Nominal Bore & Pressure Rating:
• Bore Size: 13 5/8 inches
• Working Pressure: 15,000 PSI (with a corresponding test pressure typically 1.5× working pressure)
Design & Construction:
• Constructed from high‑strength, heat‑treated alloy steel designed for durability in harsh drilling environments
• Features precision‑machined components and robust sealing systems (using high-performance elastomers such as Viton or similar) to maintain a leak‑free seal during cyclic operations
Ram/Annular Options:

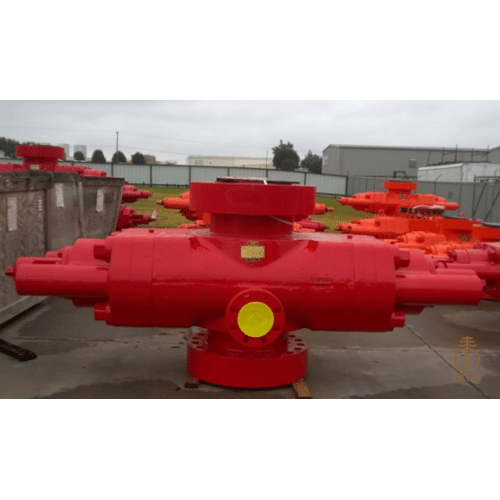

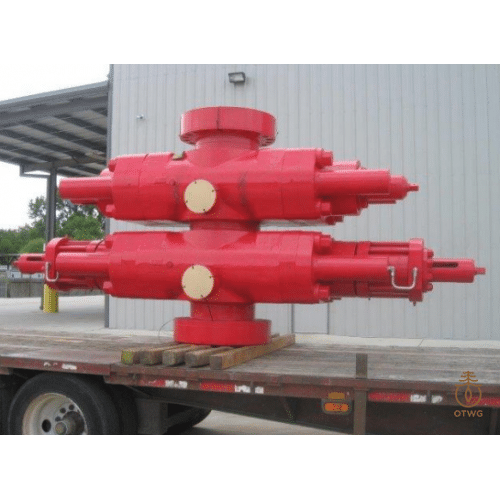

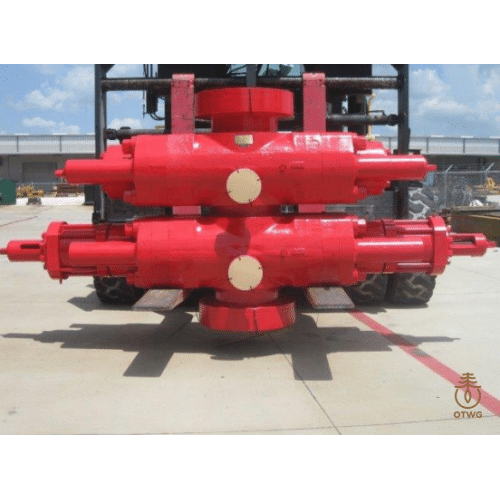

• Depending on the system design, the package may include a dual-ram configuration (often with two opposing rams for redundancy) or an annular BOP design – or a combination of both – to effectively seal around drill pipe or casing in the 13 5/8″ wellbore
Hydraulic Actuation & Control:
• Equipped with a high-performance hydraulic system for rapid, smooth actuation of the rams or annular element
• Integrated control systems monitor pressure and position, ensuring precise operation and built‑in safety features for rapid emergency closure
Operational Parameters:
• Temperature Range: Typically designed to operate reliably in a wide temperature range (e.g., –20°F to +250°F)
• Cycle Life: Engineered for extended cycle life to meet the high-frequency operating conditions of drilling rigs
• Compliance: Meets industry standards (such as API specifications) for well-control equipment
