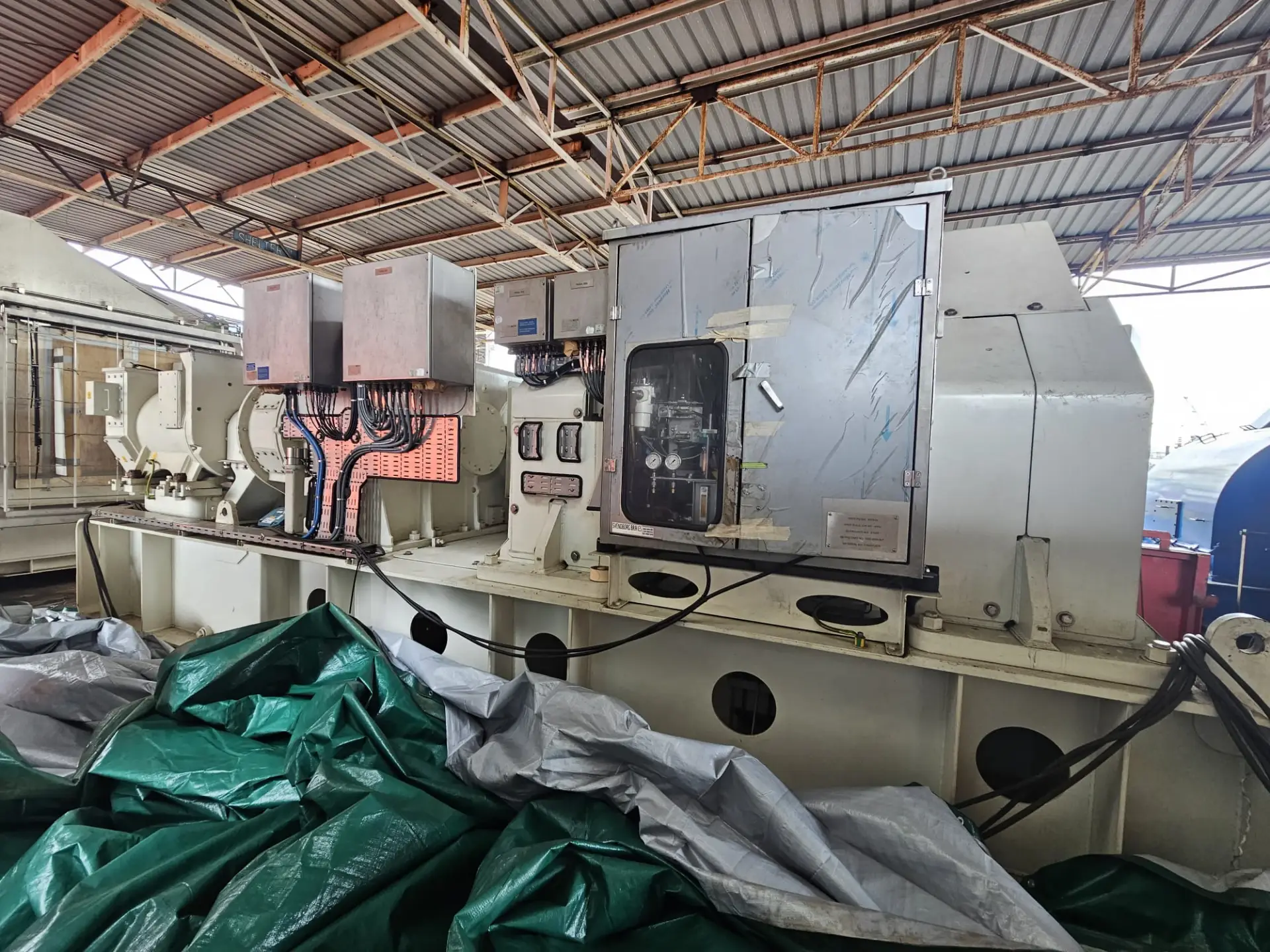

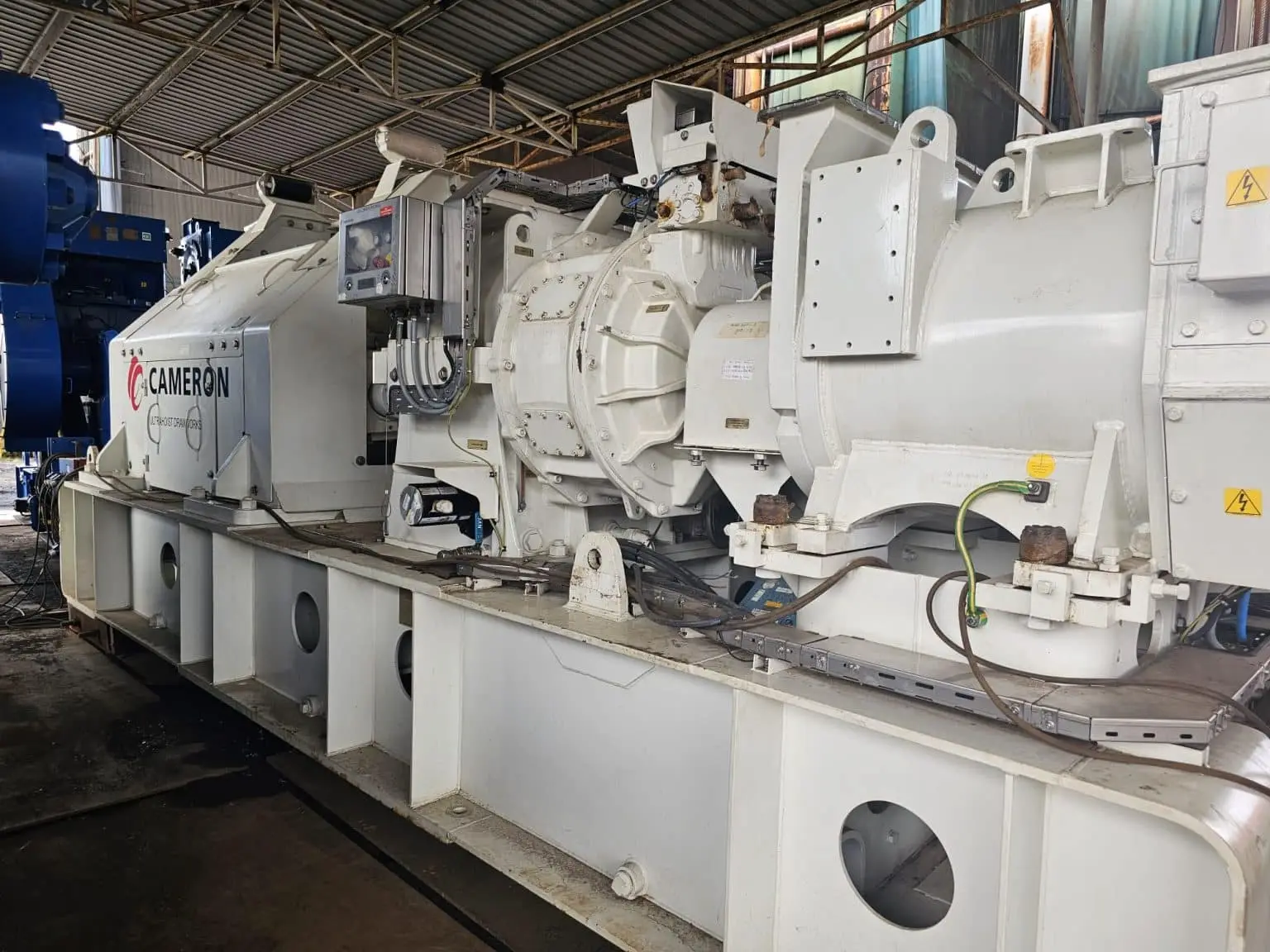

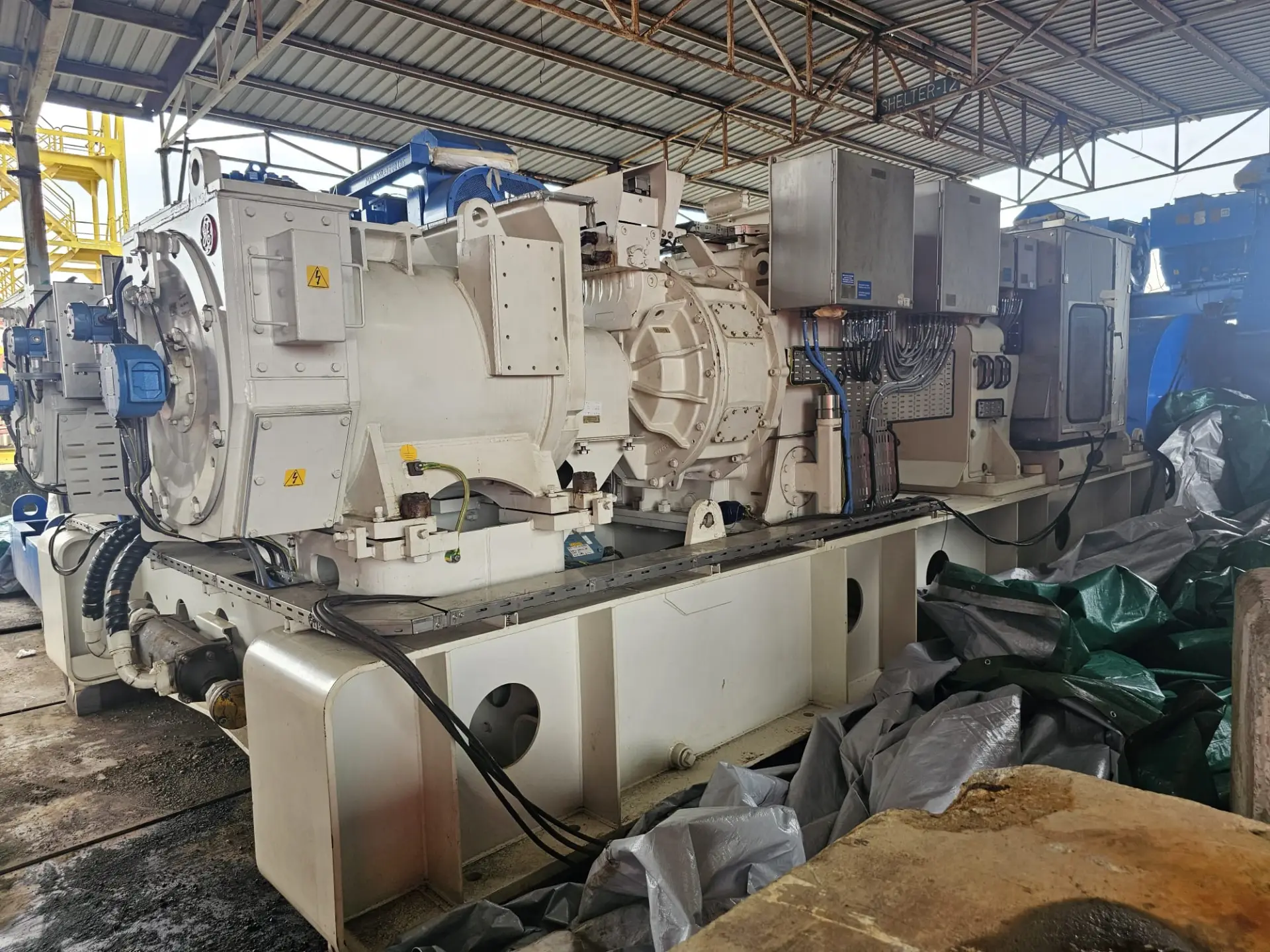

3000 HP Cameron Sense AS Drawworks

3000 HP Cameron Sense AS Drawworks – Specification Overview

Engine & Power System
• Rated Power: 3000 HP
• Uses a high‐performance diesel engine integrated with an AC drive system for optimum energy transfer and fuel efficiency.

Torque & Pullback Capacity
• Torque Output: Designed to deliver extremely high torque – estimated in the range of 45,000–50,000 lb‑ft (subject to rig configuration)
• Pullback Capacity: Typically engineered for a line pull capacity in excess of 300 tons, ensuring robust performance in deep‐well and directional drilling operations

Drum & Cable Handling
• Drum Diameter: Generally in the 30–36 inch range (depending on custom design)
• Cable Speed: Controlled low-speed operation, typically around 50–60 ft/min, to ensure smooth cable handling and minimize shock loads
• Cable Capacity: Optimized for handling long drill strings and high-cycle operations

Clutch & Brake Systems
• Low-Speed Clutch Drive: Integrated multi-plate clutch system designed for smooth engagement/disengagement under high torque loads
• Brake Assembly: Advanced friction/brake components engineered for rapid, secure deceleration and reliable cycle life under continuous operation

Control & Monitoring
• Digital Control System: Features an integrated control panel with real‑time monitoring of key parameters (e.g., torque, drum speed, hydraulic pressures)
• Sensors & Safety: Includes built-in overload, temperature, and pressure monitoring to protect the rig and optimize performance

Construction & Materials
• Heavy‑Duty Components: Constructed from high‑strength, heat‑treated alloy steel with precision-machined elements
• Durability: Designed for long service life even under harsh drilling conditions, with features aimed at efficient heat dissipation and ease of maintenance

Dimensions & Weight
• Overall System Weight: Typically in the 60,000–70,000 lb range, depending on configuration
• Footprint: Engineered to fit within standard rig layouts while providing stable, vibration‐free operation

Advanced “Sense” Technology
• Integrated Performance Monitoring: The “Sense AS” platform provides real‑time diagnostics and performance data for improved rig management, predictive maintenance, and safety assurance
