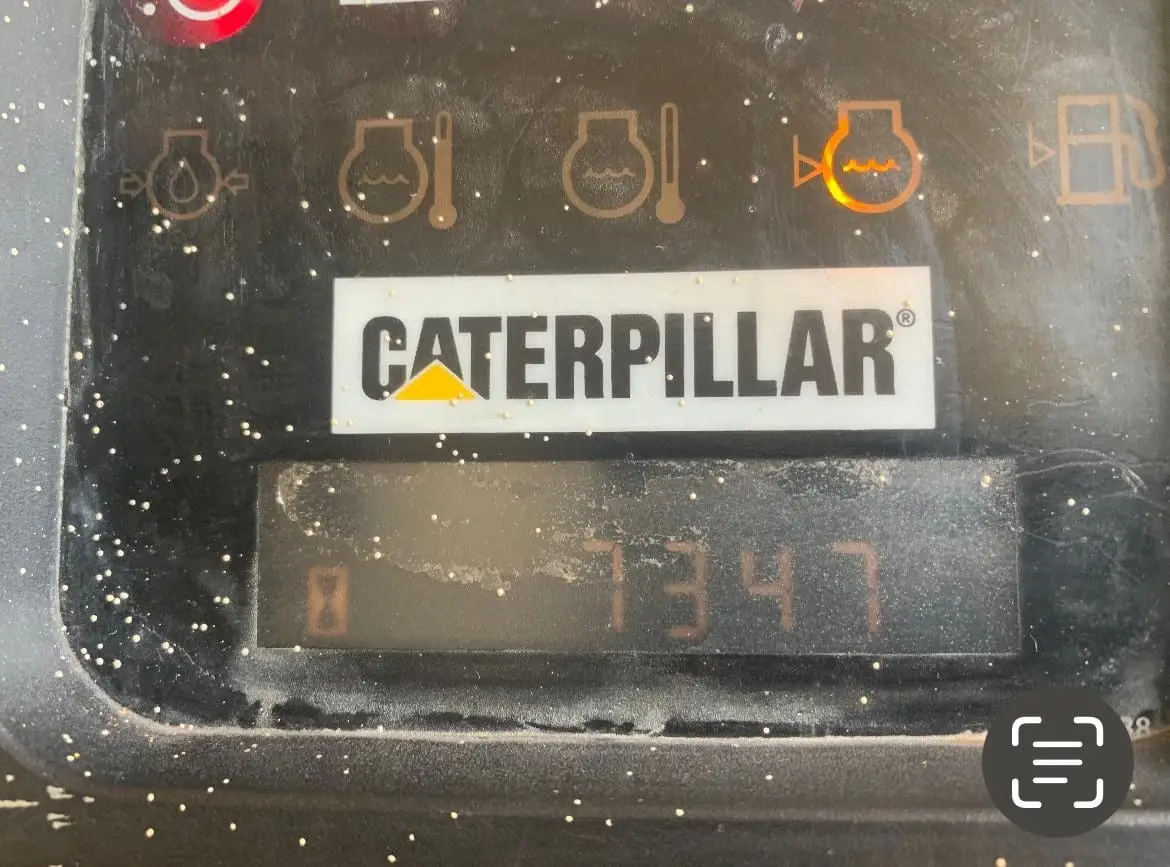

CAT 3516 Marine Engine Low Hours QT-2

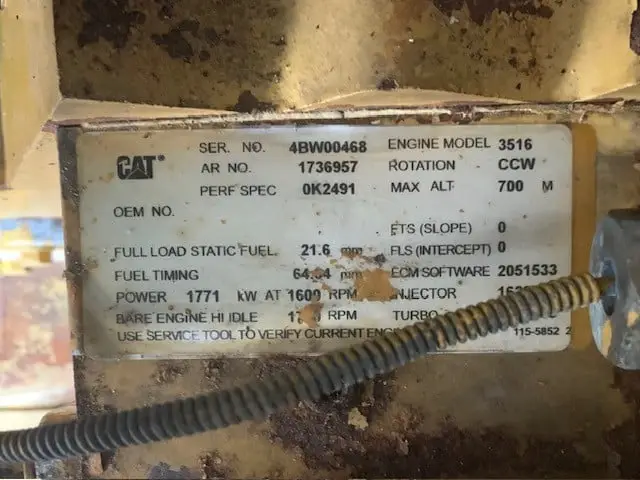

Caterpillar 3516 Engine Specifications

• Engine Model: 3516

• Arrangement Number (AR No.): 1736957

• Performance Spec: 0K2491

• Rotation: CCW (Counterclockwise)

• Maximum Altitude: 700 m

Fuel System Settings

• Full Load Static Fuel: 21.6 mm

• Fuel Timing: 64.34 mm

Performance

• Power Output: 1771 kW @ 1600 RPM

• Bare Engine High Idle: 1761 RPM

Electronic Controls

• ECM Software: 2051533

• Injector: 1602603

• Turbocharger: (Not specified)

Additional Calibration Values

• FTS (Slope): 0

• FLS (Intercept): 0

• Use Service Tool to Verify Current Engine Settings

• Reference Number: 115-5852
