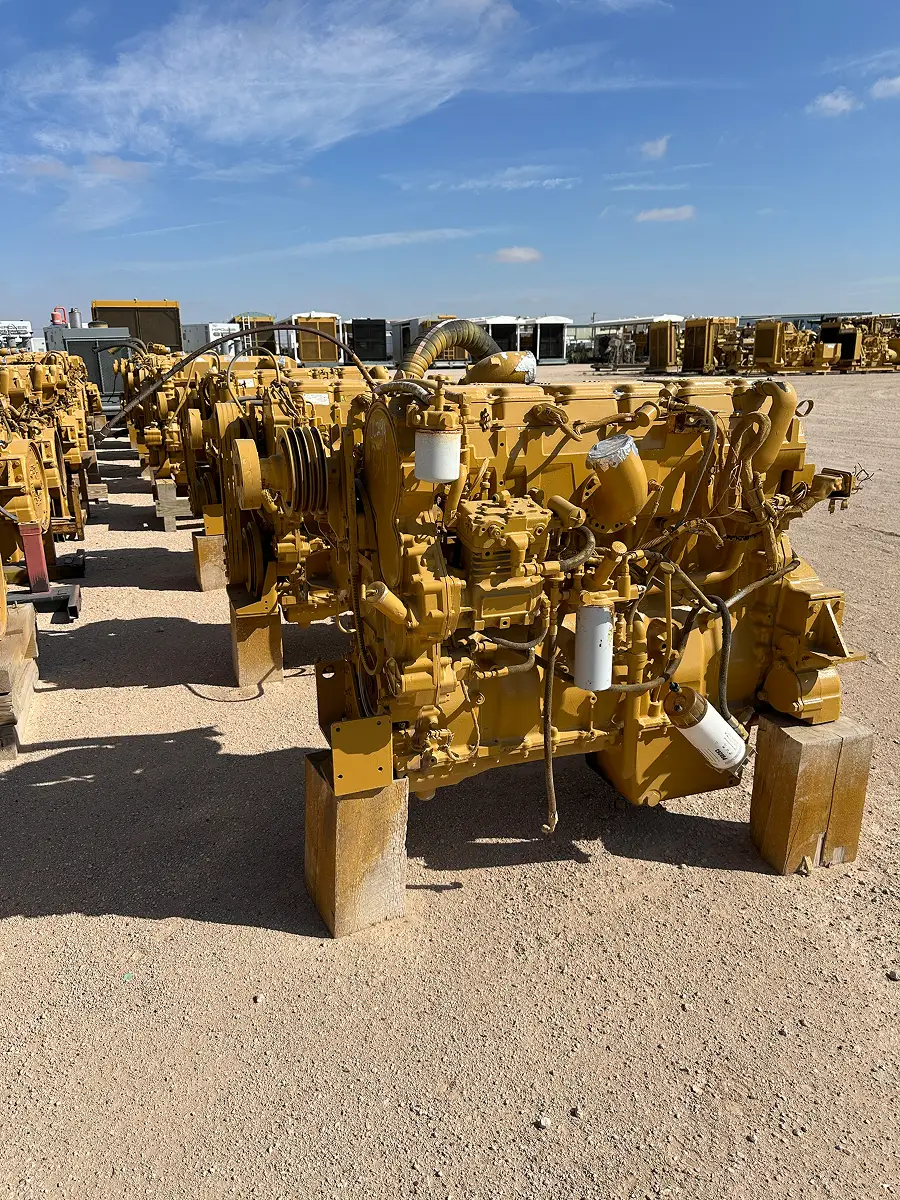

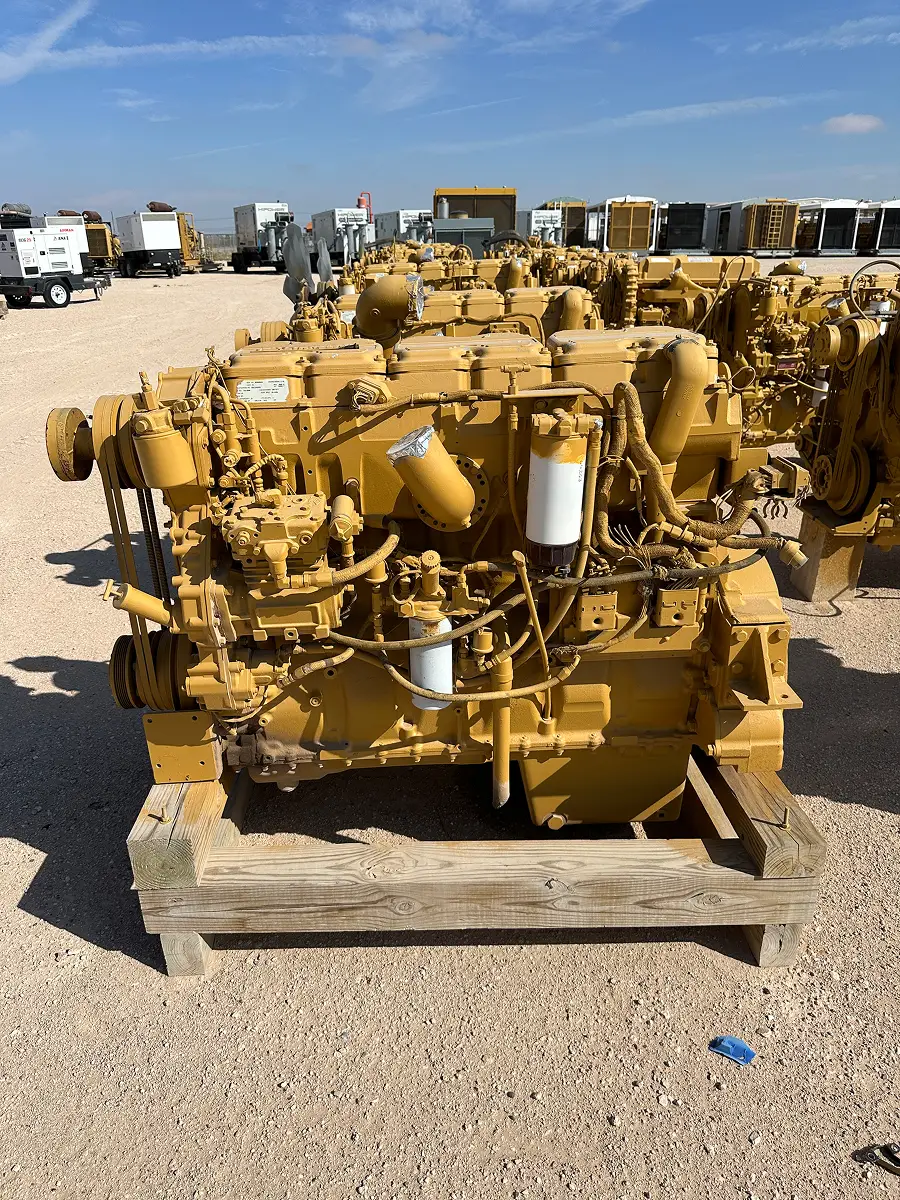

CAT C15 Engines

Engine Specifications:

• Displacement: 15.2 liters (927.6 cubic inches)
• Bore: 137 mm (5.4 inches)
• Stroke: 171 mm (6.7 inches)
• Compression Ratio: 17.0:1
• Aspiration: Turbocharged Aftercooled (TA)
• Combustion System: Direct Injection
• Rotation (from flywheel end): Counterclockwise

Power Ratings:

• Maximum Power: 444 kW (595 hp)
• Minimum Power: 328 kW (440 hp)
• Rated Speed: 1800-2100 rpm
• Maximum Torque: 2717 Nm (2004 lb-ft) @ 1400 rpm

Emissions Compliance:

• China Nonroad III
• U.S. EPA Tier 3 Equivalent
• EU Stage IIIA Equivalent

Physical Dimensions (Approximate):

• Length: 1377 mm (54.2 inches)
• Width: 919 mm (36.2 inches)
• Height: 1226 mm (48.3 inches)
• Weight (Net Dry, Basic Operating Engine without Optional Attachments): 1469 kg (3239 lbs)
