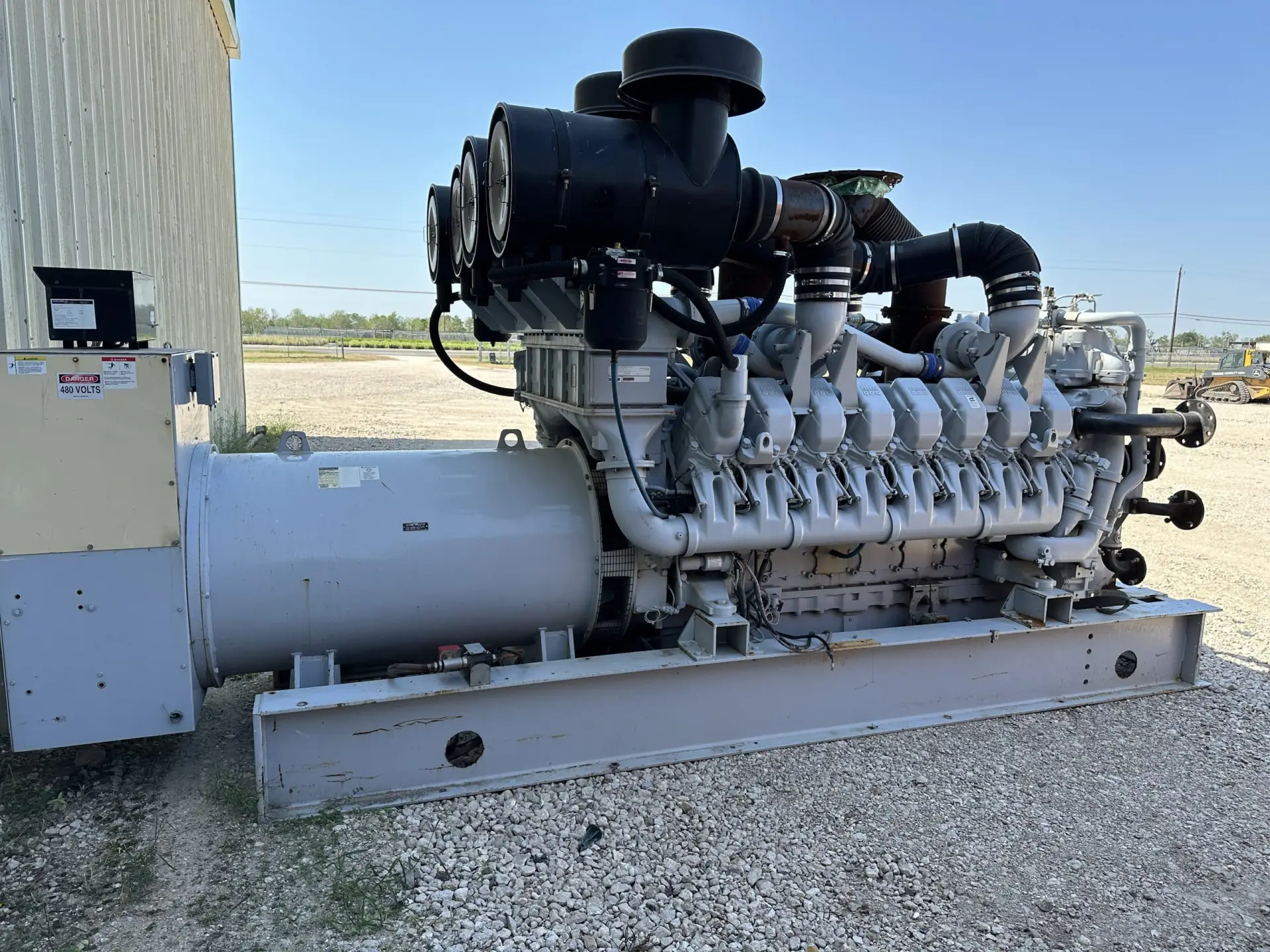

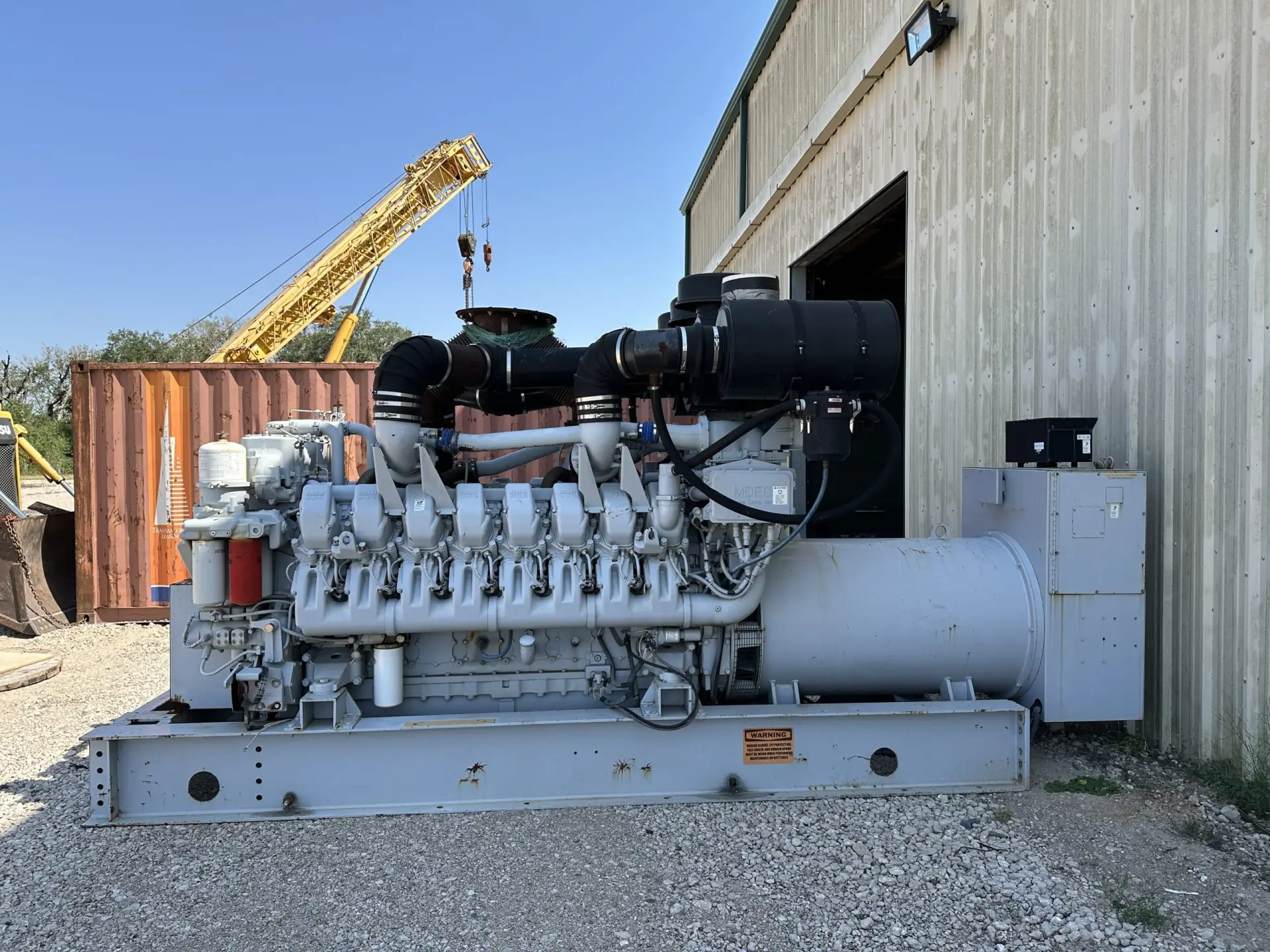

1800 KW Generator 480 volt powered by 16V-4000 MTU

Engine Specifications:

• Manufacturer: MTU
• Model: 16V4000G43
• Type: 4-cycle, 16-cylinder V-type diesel engine
• Displacement: 76.3 liters (4,656 cubic inches)
• Bore and Stroke: 170 mm x 210 mm (6.69 in x 8.27 in)
• Compression Ratio: 16.5:1
• Rated RPM: 1,800
• Governor: Electronic Isochronous (ADEC)
• Maximum Power: 2,020 kWm (2,709 bhp)
• Fuel System: Common rail fuel injection
• Cooling System: Integral set-mounted radiator with engine-driven fan

Generator Specifications:

• Power Output: 1,800 kW
• Apparent Power: 2,250 kVA
• Voltage: 480V
• Frequency: 60 Hz
• Power Factor: 0.8
• Phase: Three-phase
• Generator Model: 744RSL4054
• Temperature Rise: 105 °C/40 °C
• Connection: 4 LEAD WYE

Fuel Consumption:

• At 100% Load: 487 L/hr (128.6 gal/hr)
• At 75% Load: 381 L/hr (100.7 gal/hr)
• At 50% Load: 265 L/hr (69.9 gal/hr)

Physical Dimensions and Weight:

• Length: 6,432 mm (253.2 inches)
• Width: 2,338 mm (92 inches)
• Height: 3,191 mm (125.6 inches)
• Weight: 20,720 kg (45,687 lbs)
