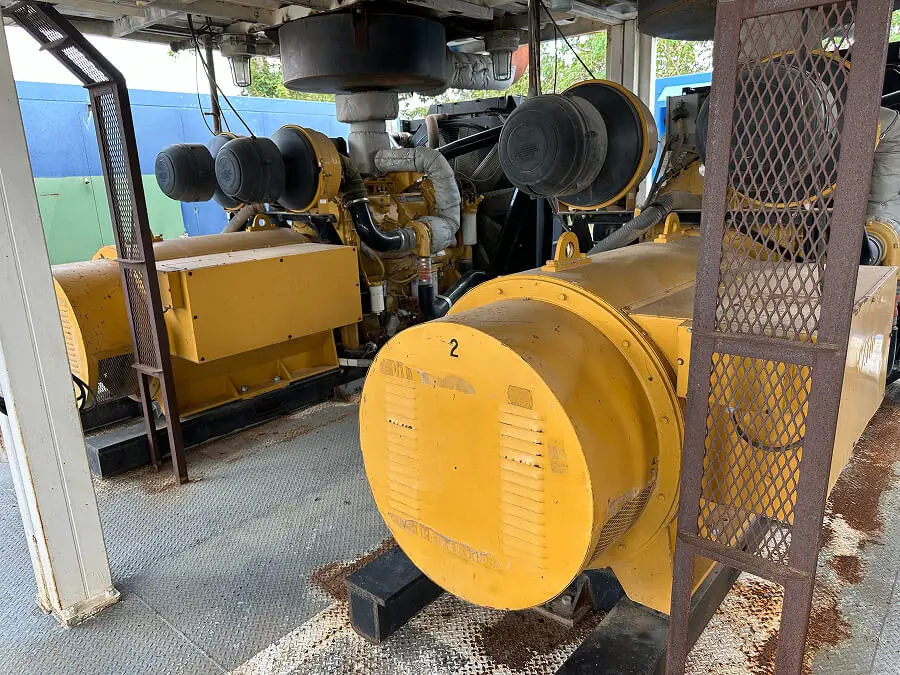

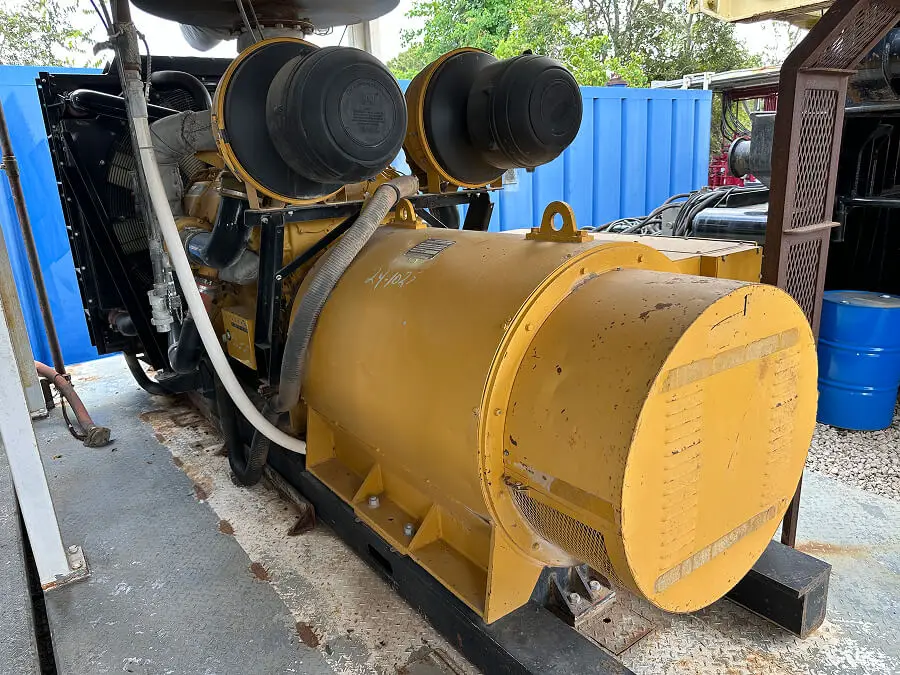

CAT C32 Gensets

Generator Set Specifications:

• Power Output:
  • Maximum Rating: 1,250 ekW
  • Minimum Rating: 830 ekW
• Voltage Options: 220 to 4,160 Volts
• Frequency: 60 Hz
• Speed: 1,800 rpm
• Emissions/Fuel Strategy: Low Fuel Consumption, Tier 2 Nonroad Standards

Engine Specifications:

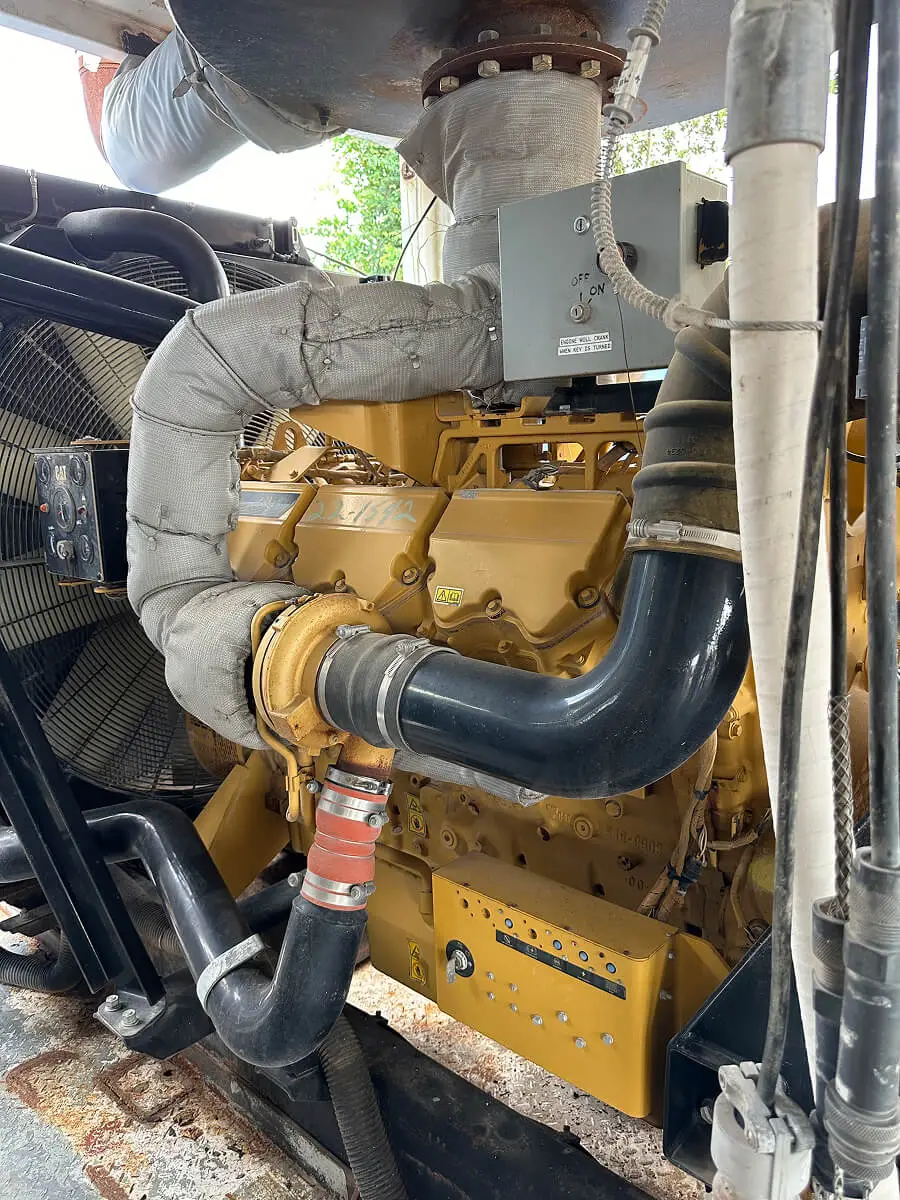

• Engine Model: C32 TA, V-12, 4-Stroke Water-Cooled Diesel
• Displacement: 32.1 liters (1,958.86 cubic inches)
• Bore: 145 mm (5.71 inches)
• Stroke: 162 mm (6.38 inches)
• Compression Ratio: 15.0:1
• Aspiration: Turbocharged Aftercooled (TA)
• Fuel System: Mechanically Actuated Electronic Unit Injection (MEUI)
• Governor Type: ADEM™ A4

Physical Dimensions:

• Length: 4,165 mm to 4,385 mm (164 inches to 172.7 inches)
• Width: 1,684 mm to 2,228 mm (66.3 inches to 87.7 inches)
• Height: 2,162 mm to 2,194 mm (85.1 inches to 86.4 inches)
• Dry Weight: 6,668 kg to 7,600 kg (14,700 lbs to 16,755 lbs)
