CAT G3306 Generator

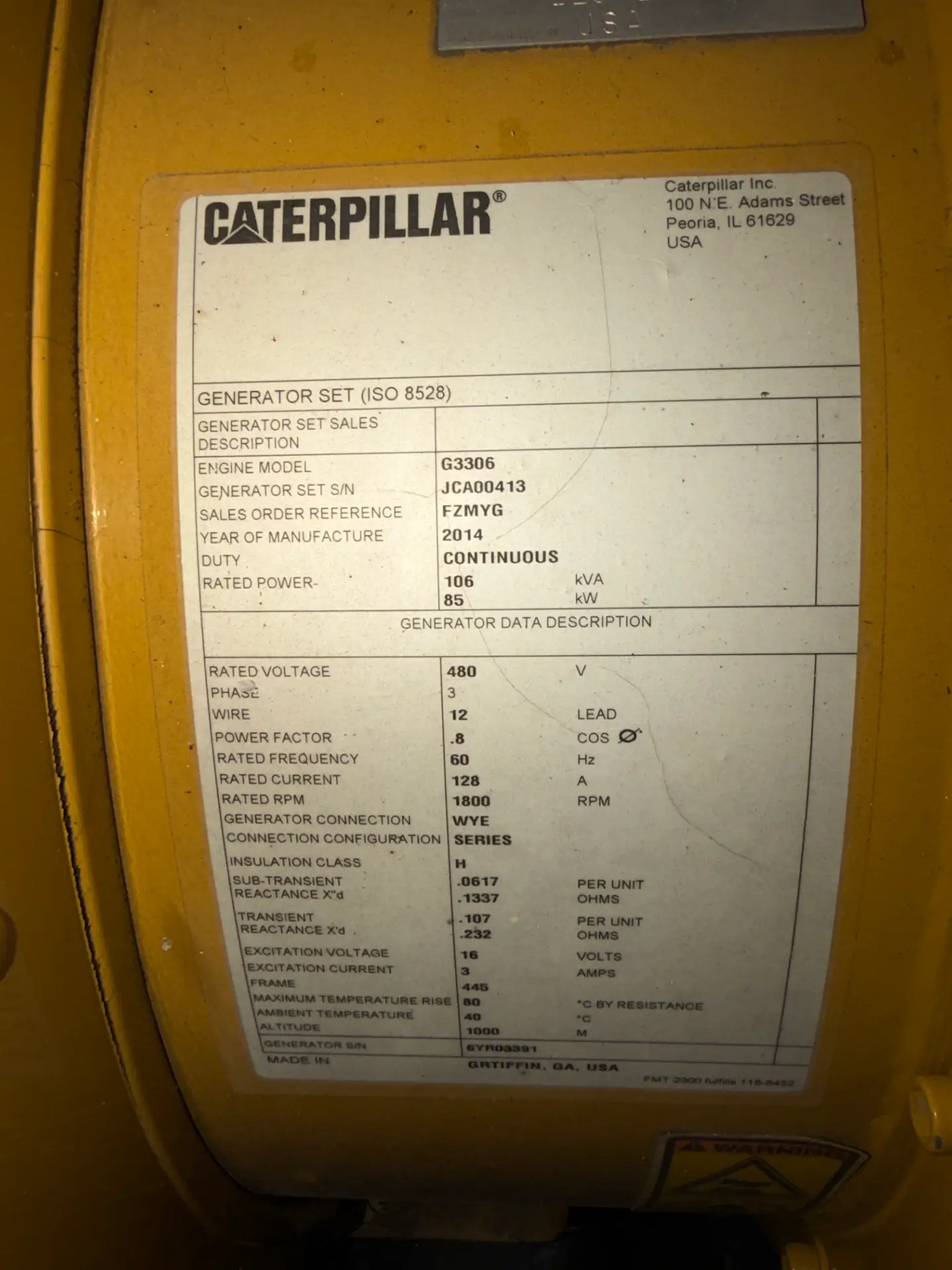

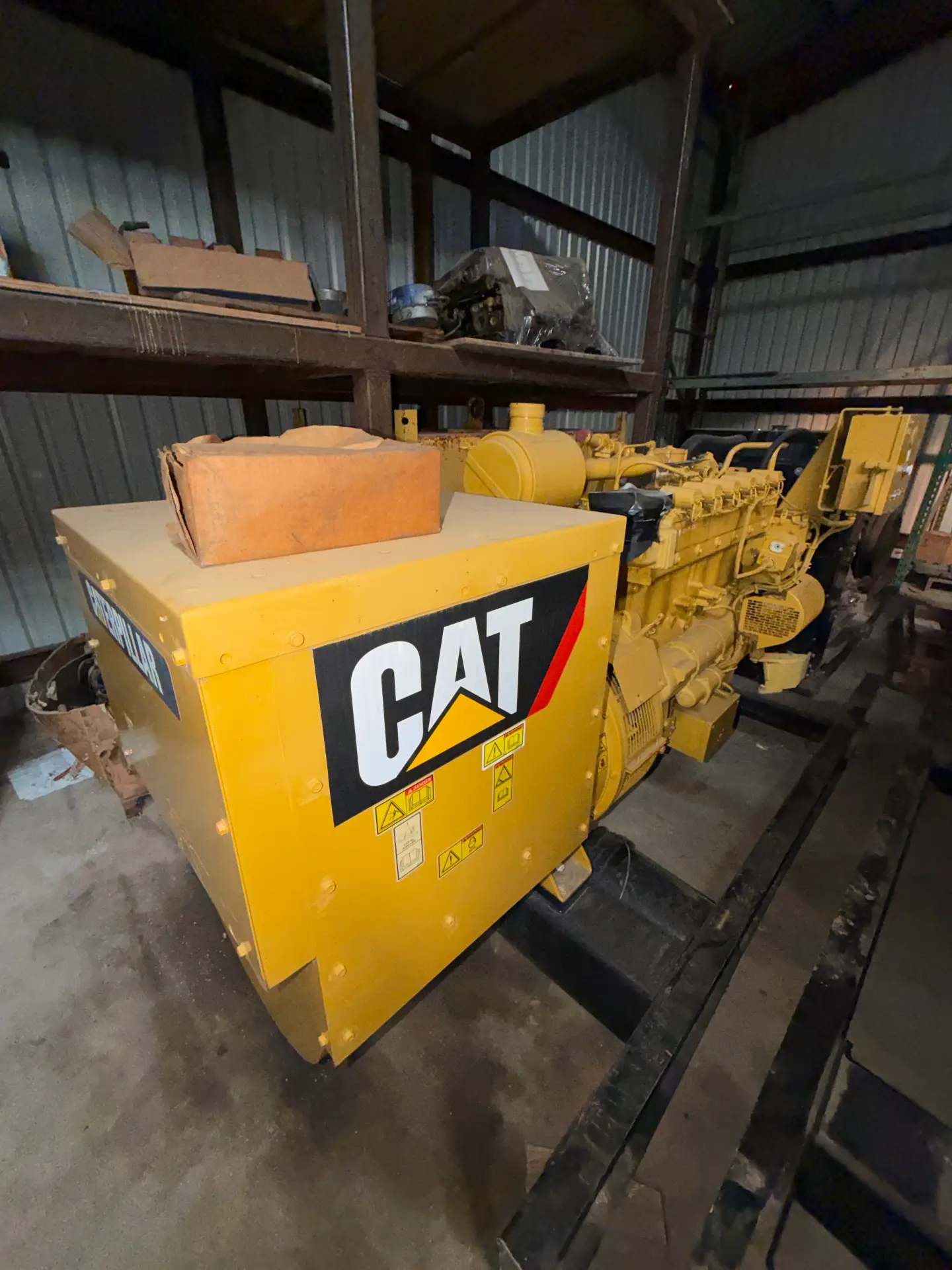

Caterpillar Generator Set – Nameplate Summary

Manufacturer: Caterpillar Inc.
Standard: ISO 8528

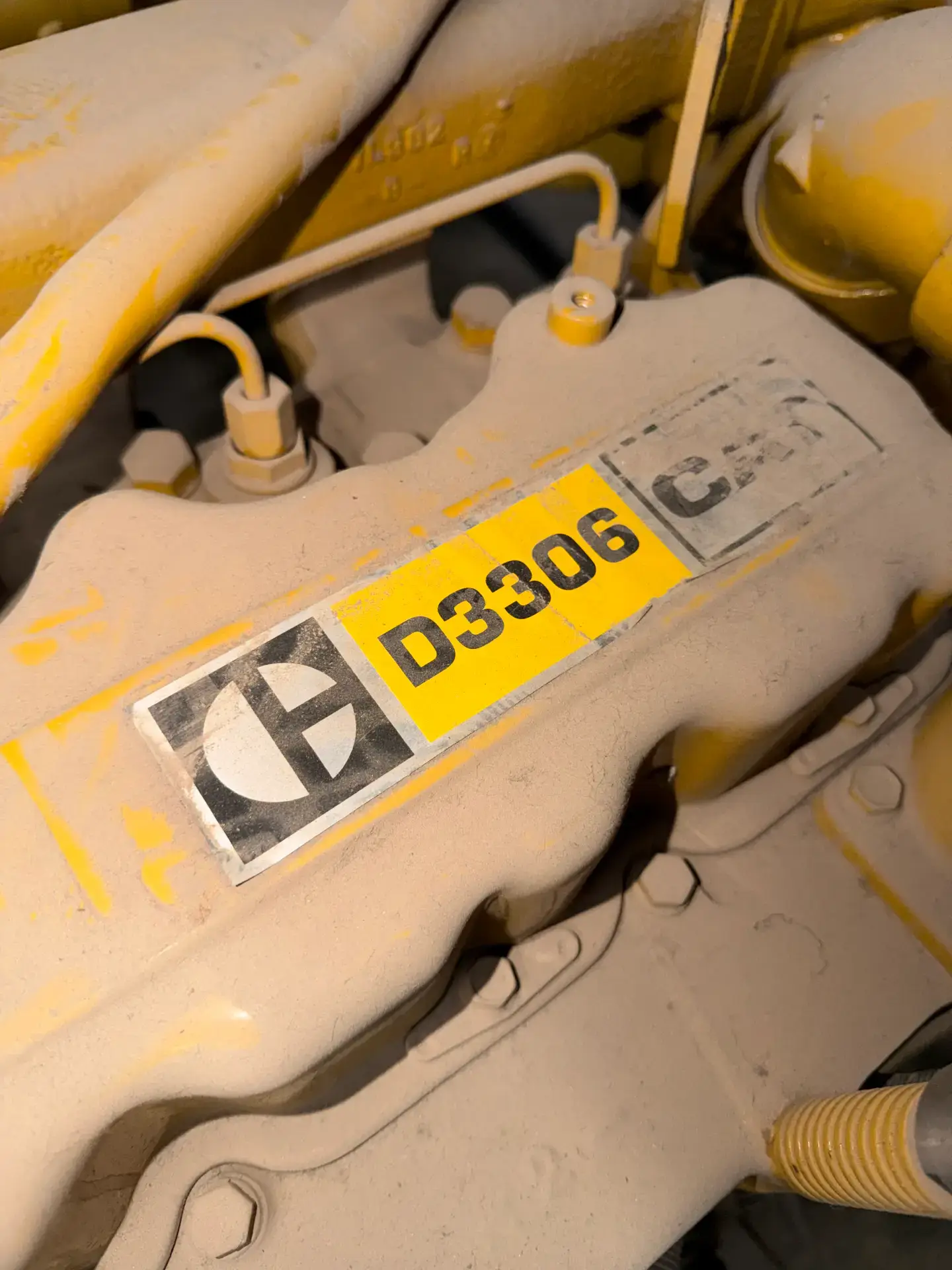

Engine

• Engine Model: CAT G3306

• Fuel: Natural Gas

• Speed: 1800 RPM

• Duty Rating: Continuous

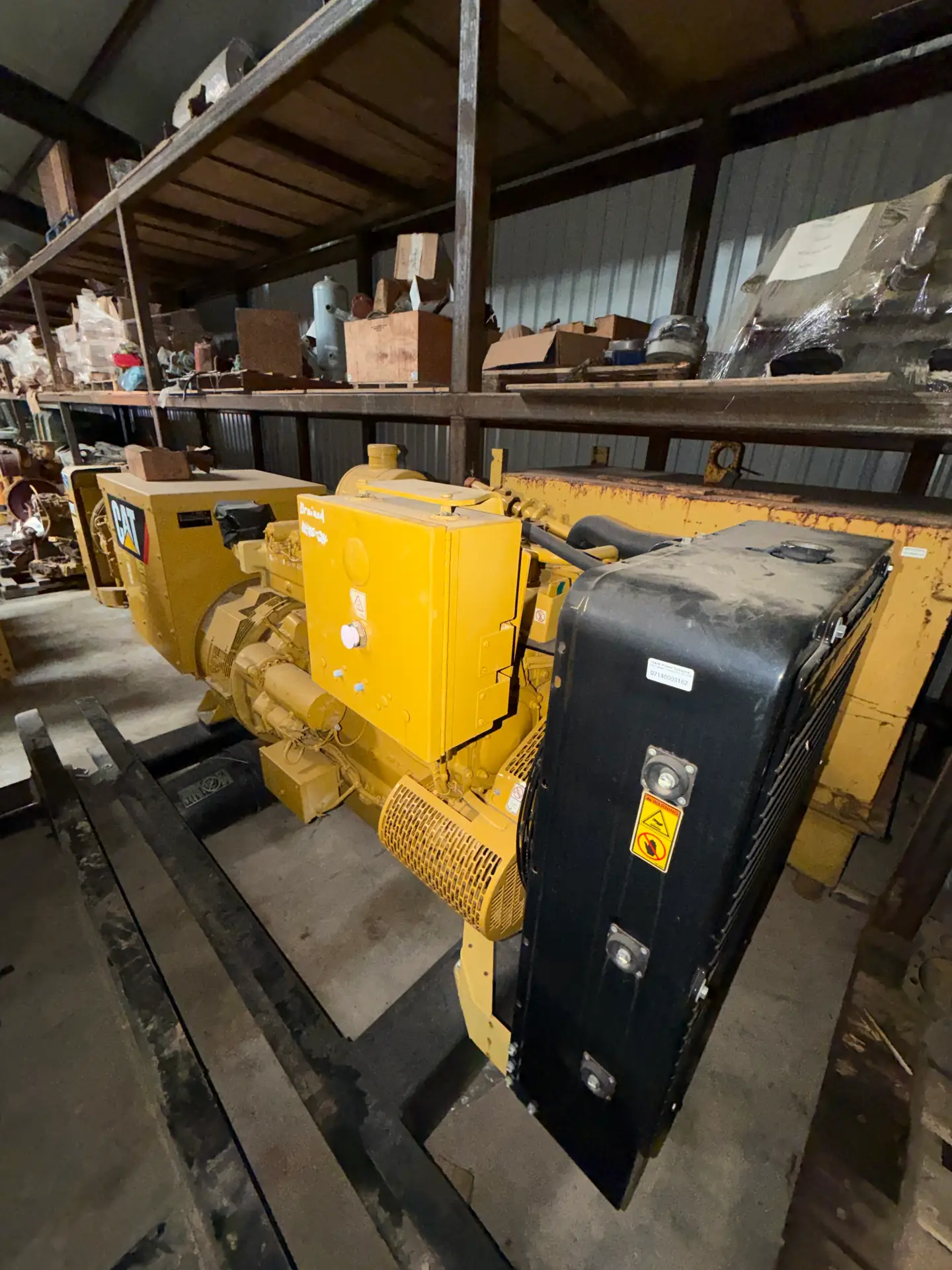

Generator Set

• Generator Set S/N: JCA00413

• Sales Order Ref: FZMYG

• Year of Manufacture: 2014

• Rated Power:

  • 106 kVA

  • 85 kW

• Power Factor: 0.8

Electrical Output

• Voltage: 480 V

• Phase: 3-phase

• Frequency: 60 Hz

• Rated Current: 128 A

• Wiring: 12-lead

• Connection: Wye

• Configuration: Series

Generator / Alternator Details

• Insulation Class: H

• Frame Size: 445

• Excitation Voltage: 16 V

• Excitation Current: 3 A

• Sub-Transient Reactance (X″d): 0.0617 pu

• Transient Reactance (X′d): 0.1337 pu

• Synchronous Reactance: 0.232 pu

• Max Temperature Rise: 80°C

• Ambient Rating: 40°C

• Altitude Rating: 1000 m

Manufacturing Location

• Generator Built In: Griffin, GA, USA
