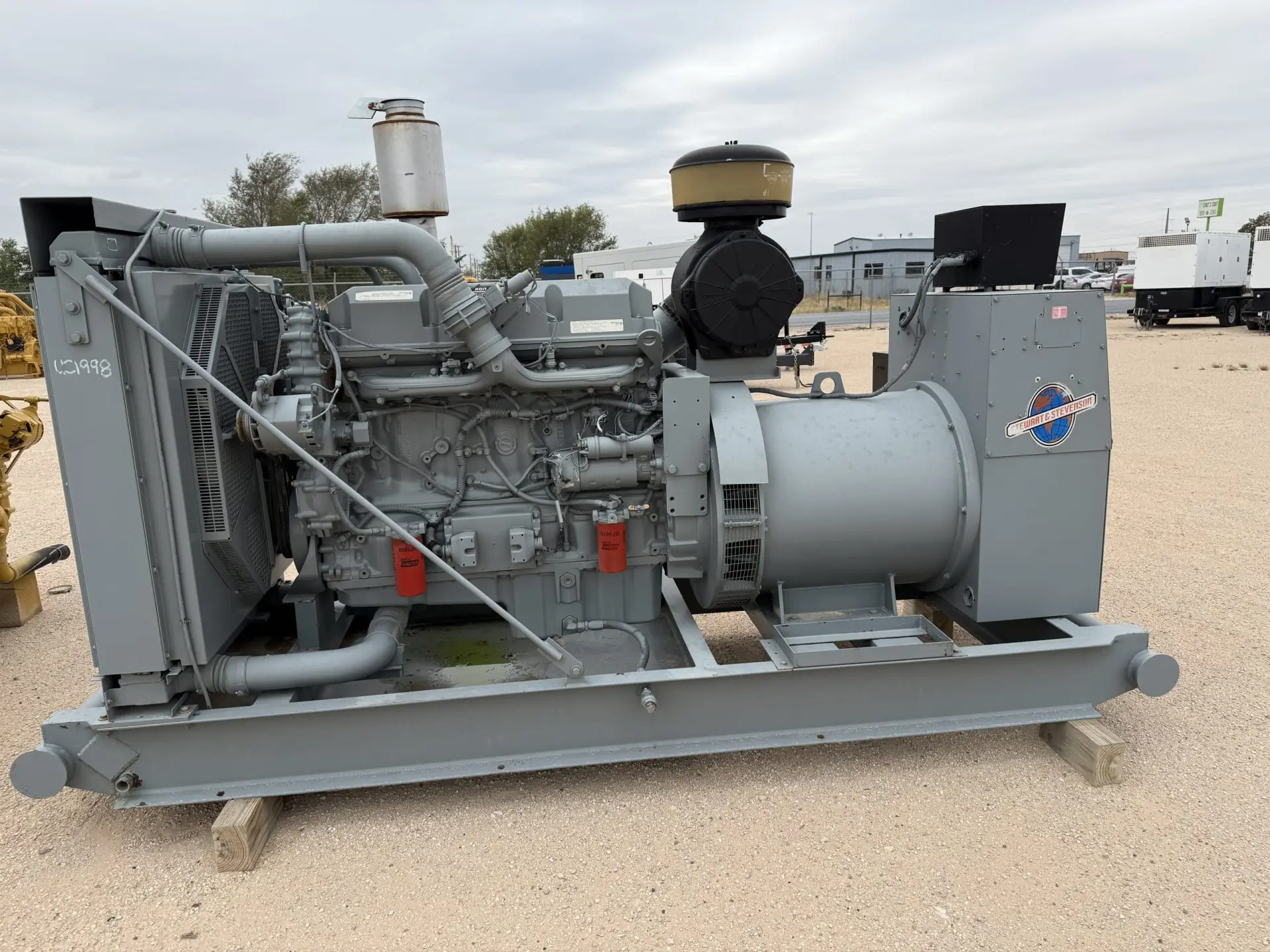

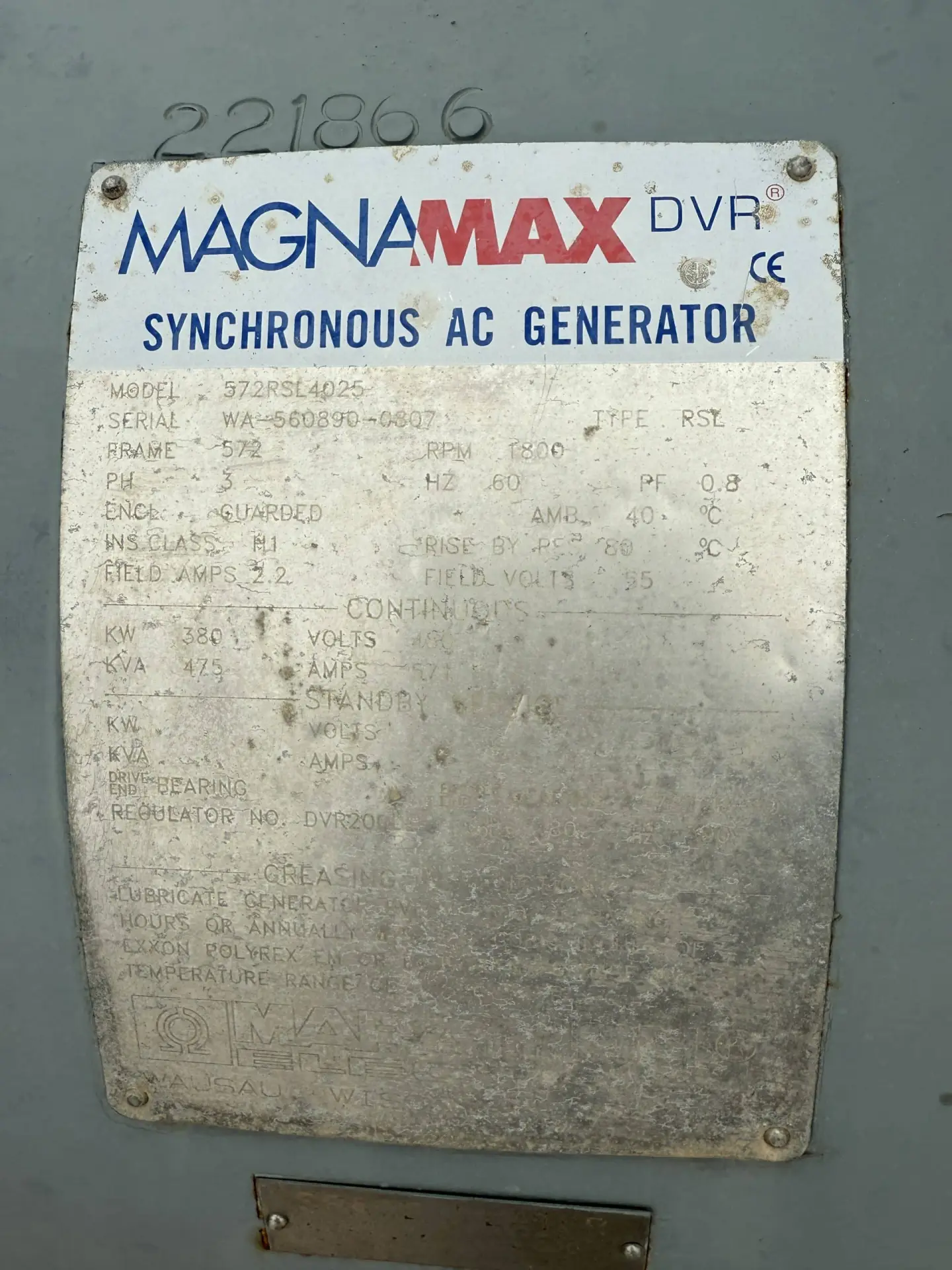

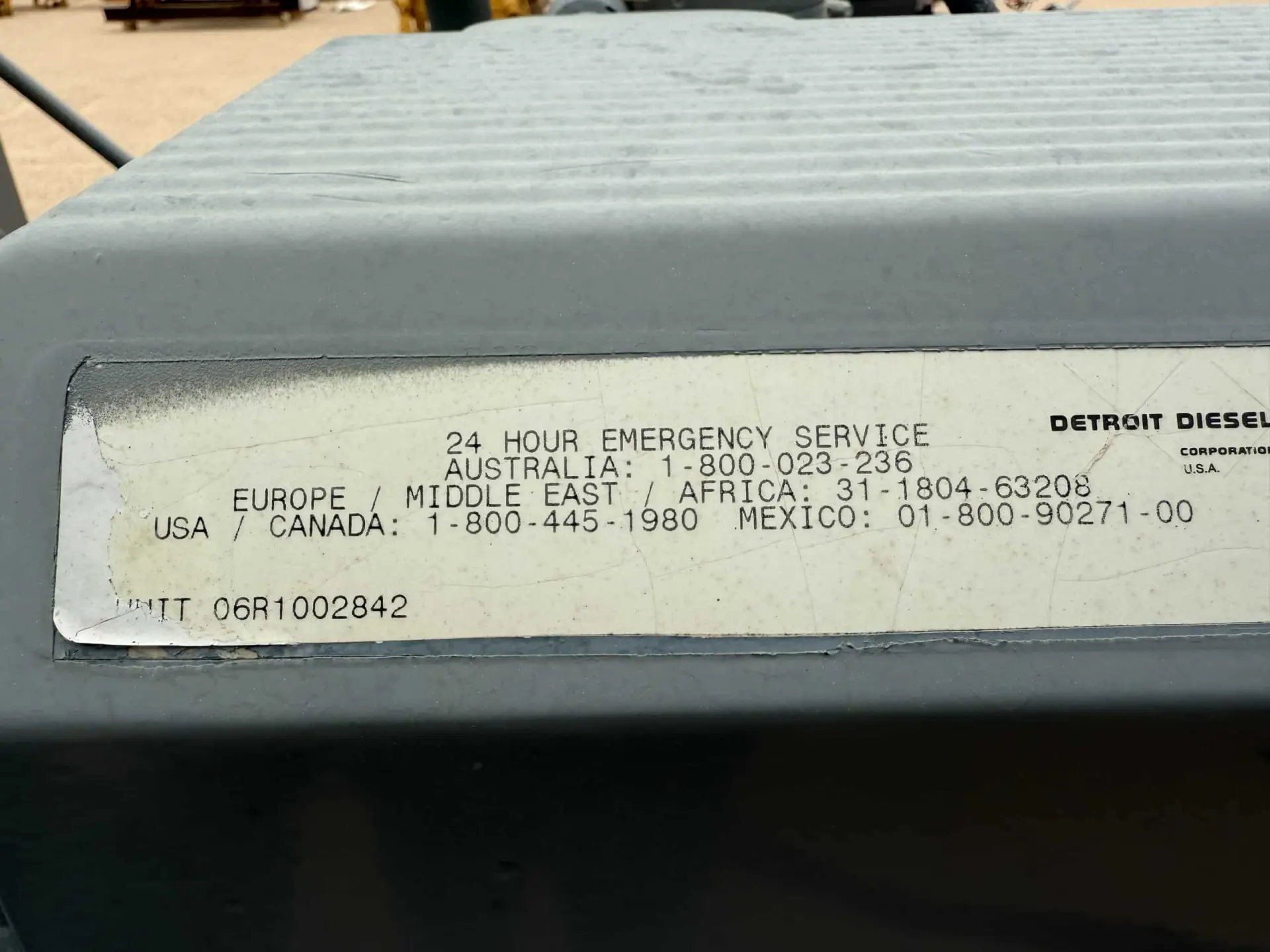

Rebuilt Detroit Series 60 Genset 06R1002842, 480 volts, 60 HZ,1800 RPM Generator Model # 572RSL4025
- Model: Detroit Diesel Series 60
- Configuration: Inline 6-cylinder, 4-stroke diesel engine
- Displacement: 12.7 liters (775 cubic inches)
- Bore and Stroke: 133 mm x 168 mm (5.24 inches x 6.61 inches)
- Compression Ratio: 16.5:1
- Aspiration: Turbocharged Aftercooled (TA)
- Fuel System: Direct Injection
- Governor Type: Electronic
- Rated Power Output: Varies by application; commonly around 450 to 685 horsepower (336 to 511 kW) at 1,800 RPM
Generator Specifications:
- Power Output: Ranges from 240 kW to 450 kW, depending on configuration
- Apparent Power: Up to 563 kVA
- Voltage Options: Commonly 277/480 volts or 600 volts
- Frequency: 60 Hz
- Speed: 1,800 RPM
- Phase: Three-phase
- Power Factor: 0.8
Additional Features:
- Control Panel: Digital control panels with autostart and safety shutdowns
- Starting System: 24-volt electric starter
- Cooling System: Radiator cooled
- Enclosure: Options vary; some units come with open skid configurations, while others may include enclosures
- Fuel Tank: Sub-base fuel tanks with capacities up to 500 gallons
