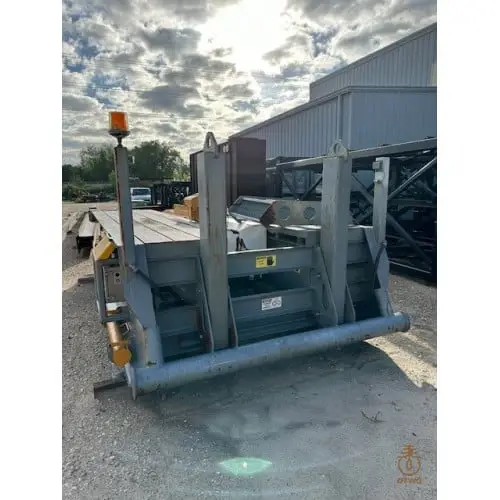

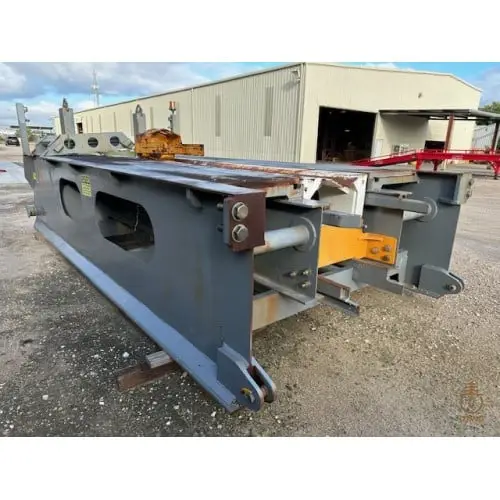

PC4000 Canrig Catwalk, this catwalk was used to drill one well,480 Volts, Rig floor Height 37' to 42', Maximum Capacity 3000LBS
Tubular Handling Capacity:
Maximum Tubular Length:
Standard: 50 ft (15.2 m)
Optional: 65 ft (19.8 m)
Maximum Tubular Outer Diameter: 24 in (610 mm)
Maximum Tubular Weight: 10,000 lbs (4,535 kg)
Operational Parameters:
Cycle Time: 30 to 50 seconds
Drill Floor Height Range: 22 ft to 42 ft (6.7 m to 12.8 m)
Catwalk Deck Height: 42 in (1,067 mm)
Dimensions and Weight:
Working Dimensions: 42 in (H) x 28 ft 6 in (W) x 65 ft 3 in (L)
Optional Range 2 Double: 75 ft 3 in (L)
Transport Dimensions: 9 ft 6 in (H) x 10 ft (W) x 60 ft (L)
Total Weight: 76,000 lbs (34,473 kg) in basic configuration
Power and Drive System:
Hydraulic Power Unit (HPU) Drive System: Electric
Supply Power Required:
480V / 111 AMP
Optional: 600V / 90 AMP
