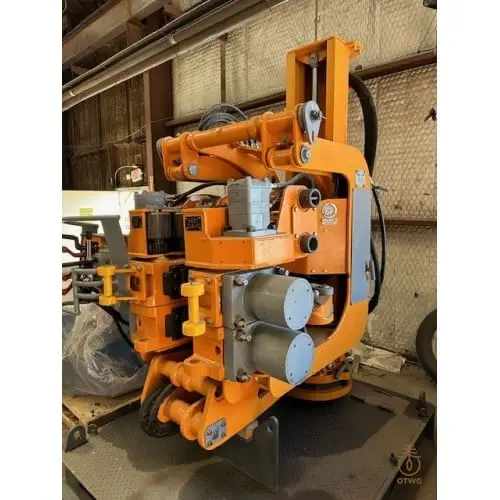

Rebuilt FH80 Iron Roughneck

Connection Compatibility: Handles tool joint connections ranging from 4¼ inches to 8½ inches in outside diameter.

Drill Pipe Range: Accommodates nominal drill pipe sizes from 3½ inches up to 6⅝ inches without modification. An optional adapter kit is available for 2⅞-inch drill pipe.

Torque Capacities:

• Make-up Torque: Up to 65,000 ft-lbs (88,128 Nm).
• Break-out Torque: Up to 80,000 ft-lbs (108,465 Nm).
  • Spin Speed: The spinner achieves roller speeds between 105 to 110 RPM, translating to a pipe spin speed of approximately 80 to 100 RPM for an 8½-inch O.D. pipe.
