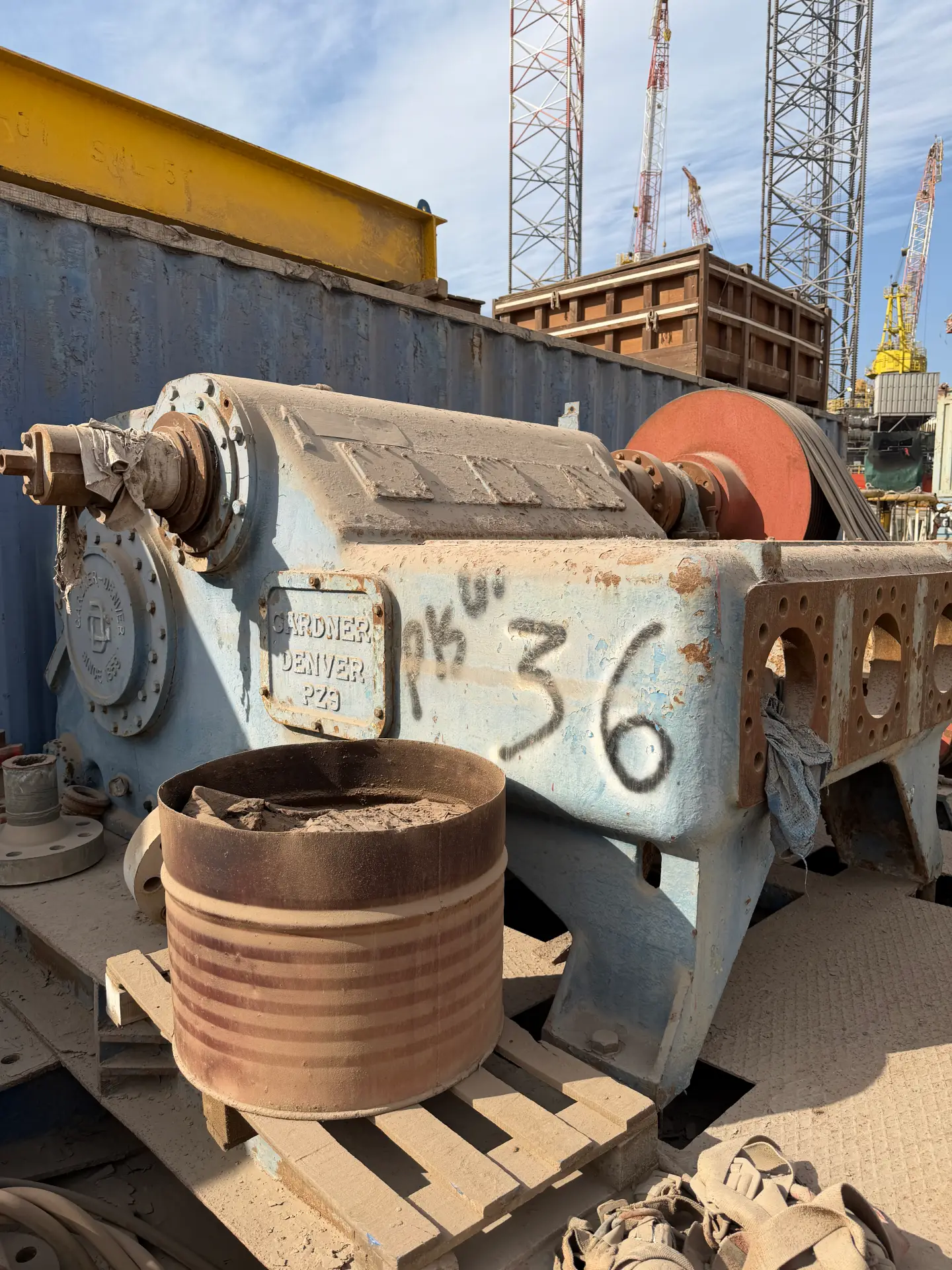

Garden Denver PZ-9 Mud Pump

General / Performance

• Model: PZ-9 (also referenced as PZJ)

• Rated Input Power: 1,000 BHP (≈ 746 kW)

• Maximum RPM (Pump Speed): 130 RPM

• Stroke Length: 9 in (229 mm)

• Gear Ratio: 4.48 : 1

Pressure & Flow

• Maximum Service/Operating Pressure: ~5,000 psi

• Maximum Flow / Displacement: ~585 GPM (dependent on liner size, e.g., 7″)

Mechanical Loads & Weight

• Piston Load: 101,550 lb (≈ 451,700 N)

• Approximate Pump Weight: ~24,368 lb (≈ 11,075 kg)
