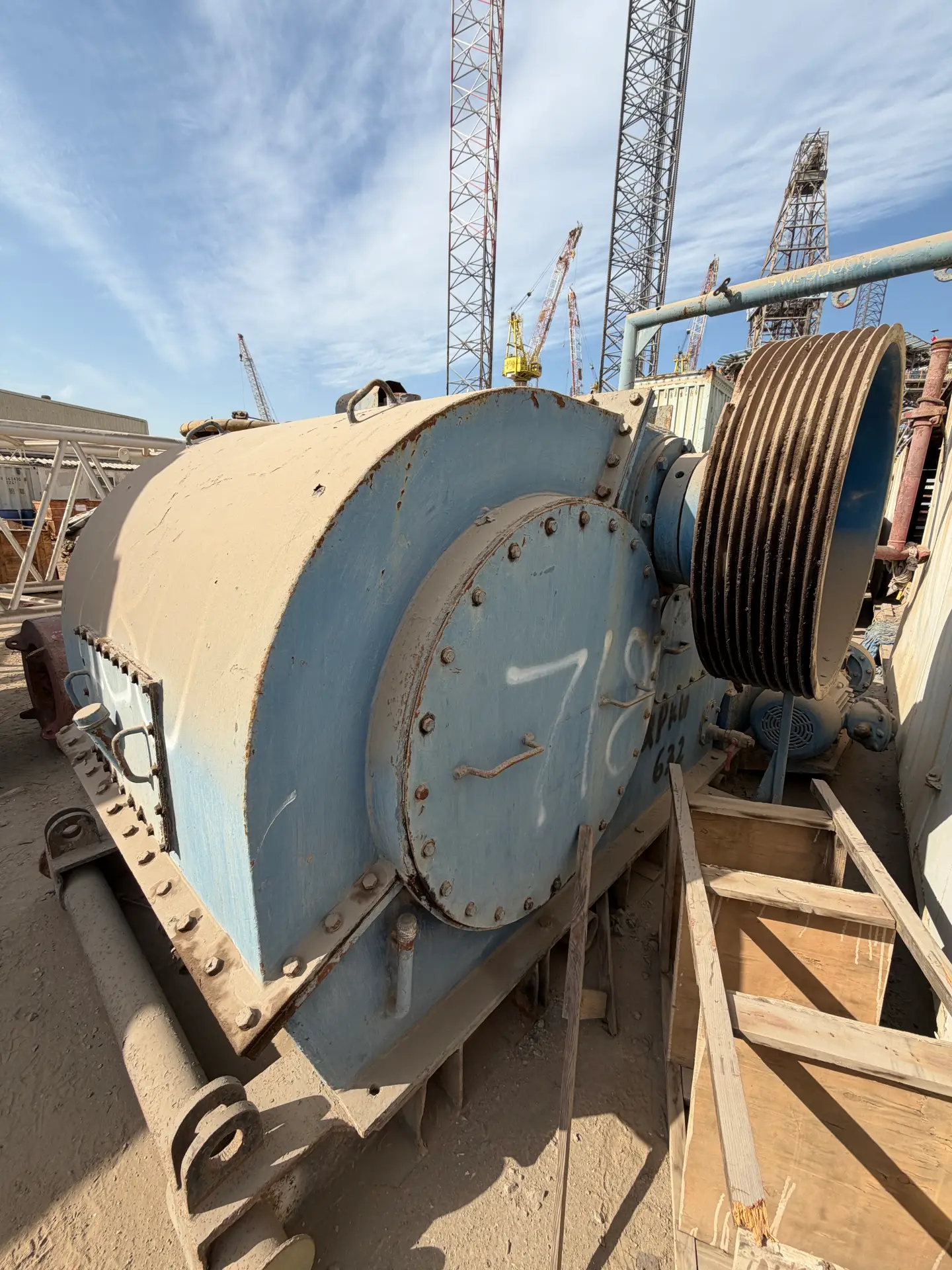

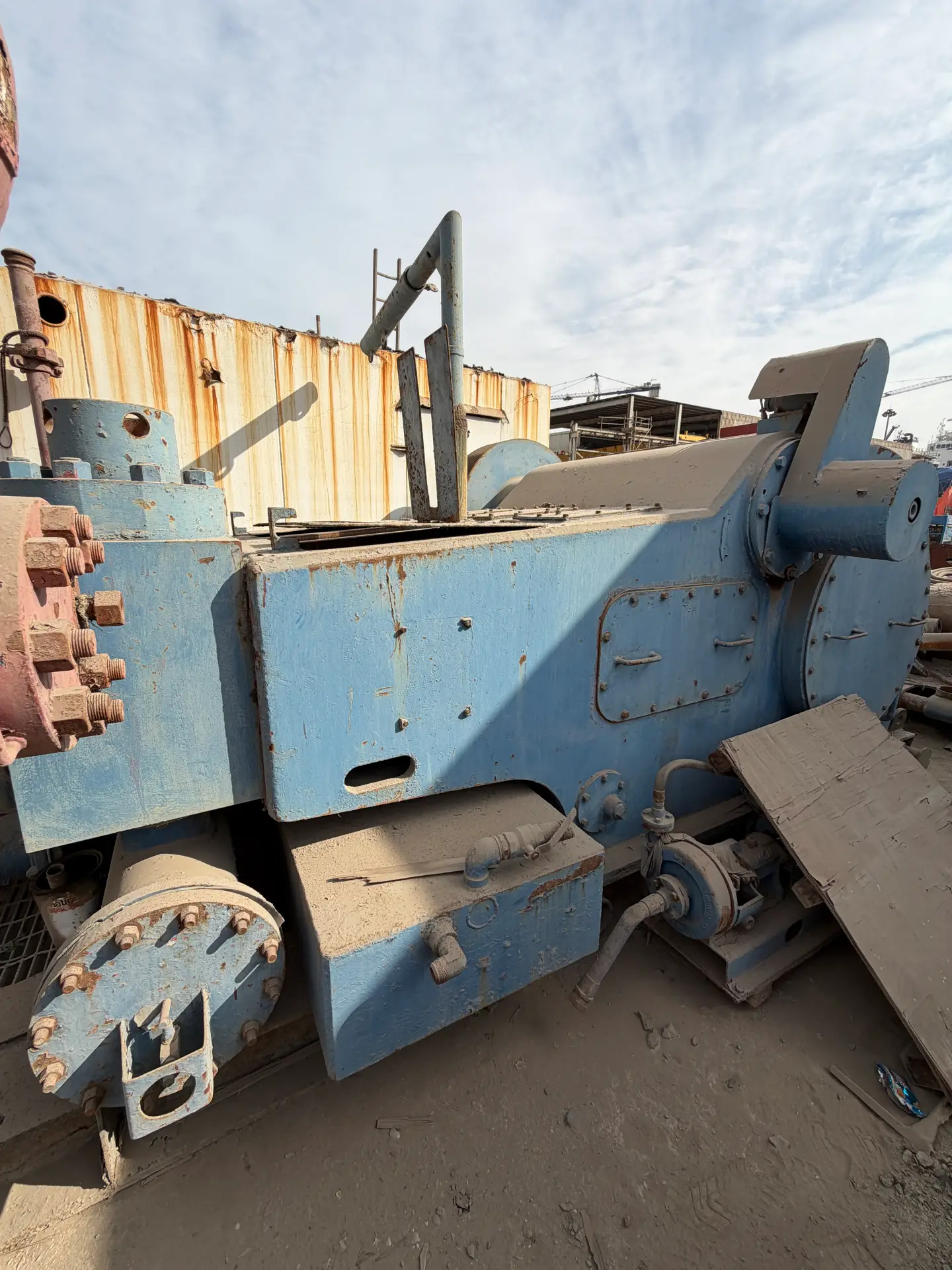

Skytop Brewster Mud Pump 1600HP

1600 HP Triplex Mud Pump (Skytop Brewster Rig Type)

General

• Pump Type: Triplex, single-acting reciprocating piston pump

• Rated Input Power: 1,600 HP (≈ 1,193 kW)

• Typical Application: Land drilling rigs (SCR / mechanical rigs)

Power End

• Maximum Pump Speed: ~120 strokes per minute (SPM)

• Stroke Length: 12 in (305 mm)

• Gear Ratio: ~4.2 : 1

• Drive Gears: Double-helical (herringbone) hardened alloy steel

• Lubrication: Forced and splash lubrication system

• Bearings: Heavy-duty roller bearings throughout power end

Fluid End

• Fluid End Type: Forged steel, API-style

• Maximum Working Pressure: 5,000 psi (standard configuration)

• Valve Type: API valve-over-valve design

• Liner Sizes (typical): 5", 5-1/2", 6", 6-3/4", 7"

Flow Capacity (Approximate @ 120 SPM)

• 7" liner: ~720 GPM @ ~3,400 psi

• 6-3/4" liner: ~670 GPM @ ~3,800 psi

• 6" liner: ~530 GPM @ ~4,800 psi

• 5-1/2" liner: ~470 GPM @ ~5,000 psi

(Actual performance varies by liner size, mud weight, and efficiency)

Connections

• Suction Connection: ~12 in diameter

• Discharge Connection: 5-1/8 in API flange

Weights & Dimensions (Approximate)

• Complete Pump Weight: 54,000 – 55,000 lb

• Overall Length: ~180 in

• Overall Width: ~125–130 in

• Overall Height: ~100–105 in
