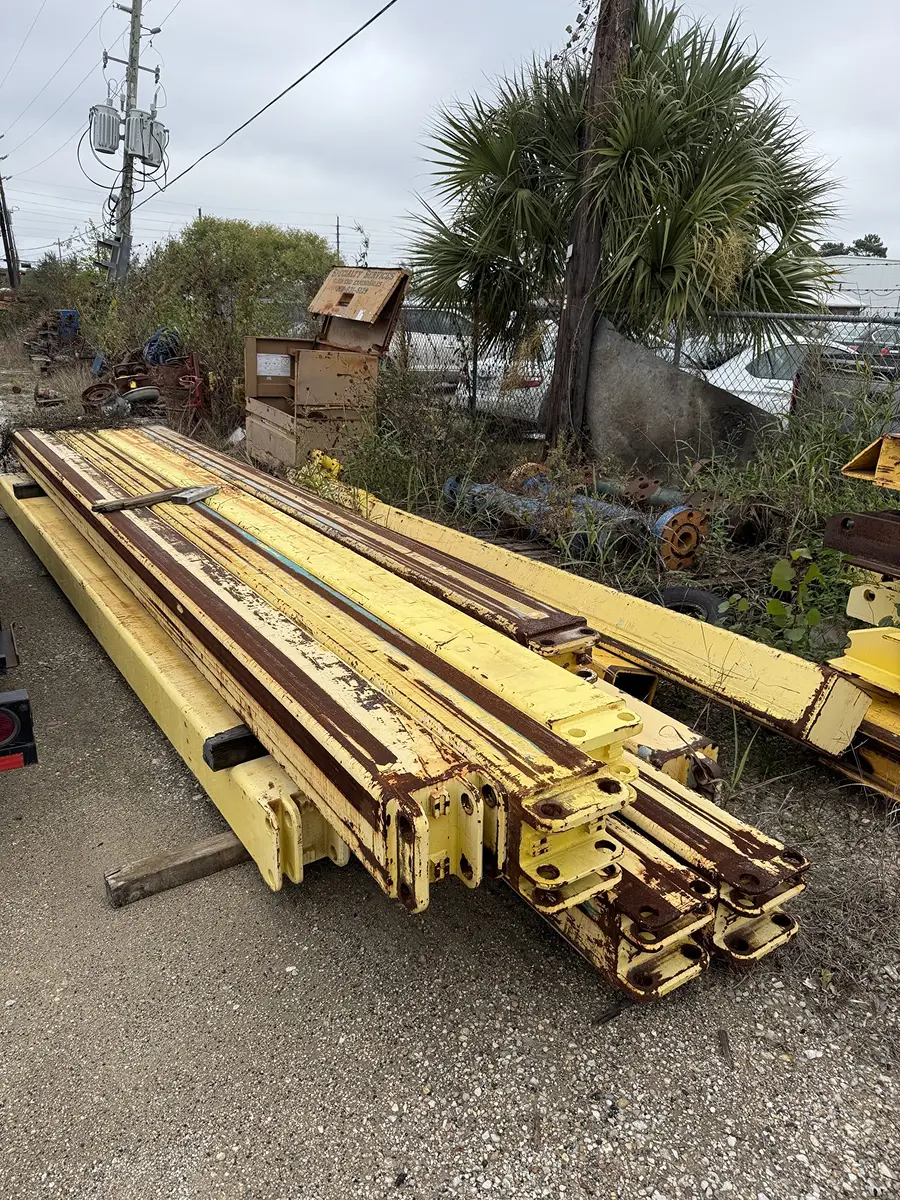

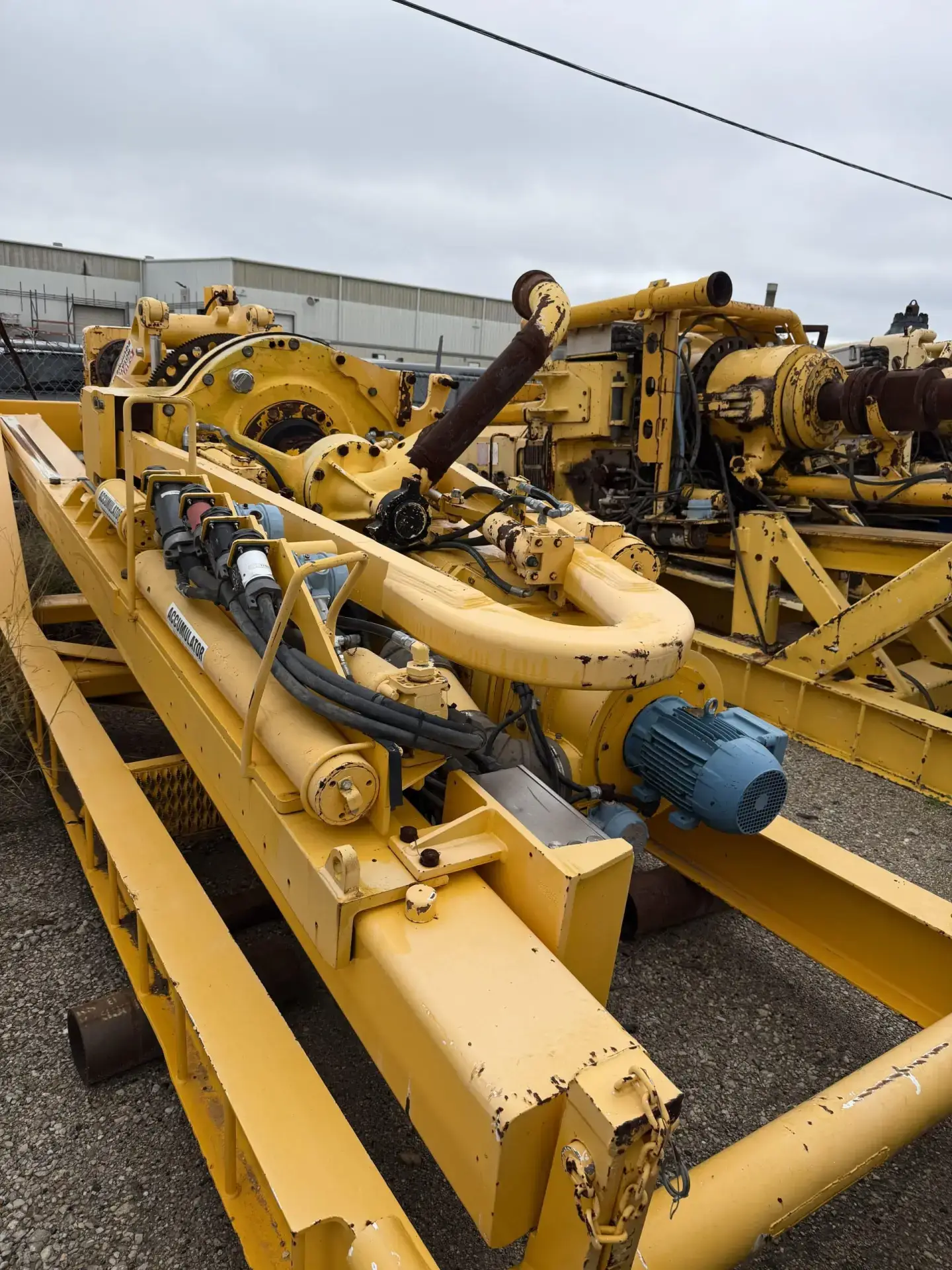

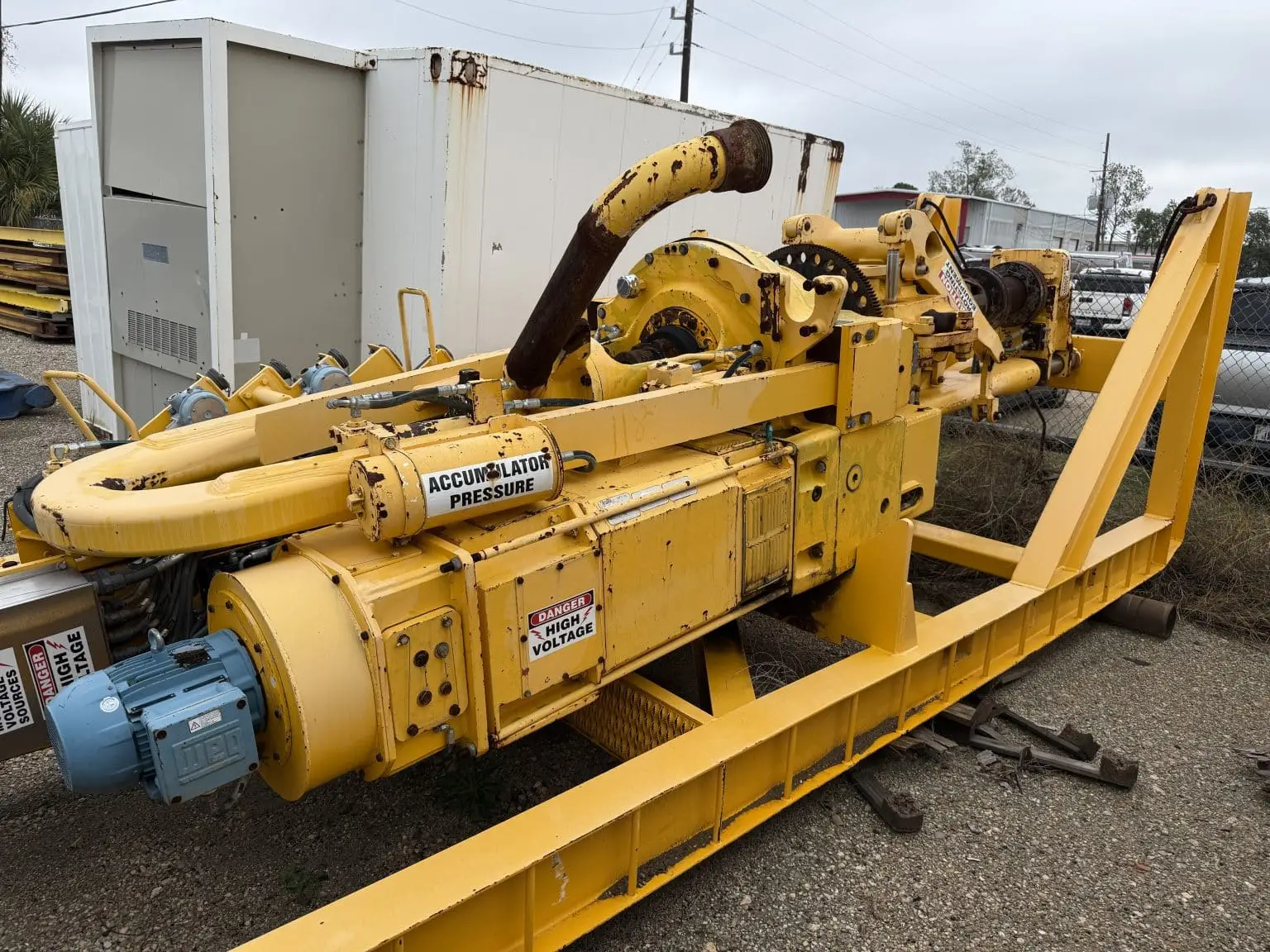

NOV TDS10 Top Drive Complete Set (Top drive track, Stand alone VFD house, Top Drive)
- Hoisting Capacity: 250 tons
- Horsepower: 400 HP
- Maximum Continuous Torque: 22,288 ft-lb (30,218 N-m)
- Maximum Speed: 182 RPM
- Gear Ratio: 13.1:1
- Working Pressure: 7,500 psi (517 bar)
- Main Shaft Water Course Diameter: 3 inches (76.2 mm)
- Integrated Blowout Preventer (IBOP) Pressure Rating: 15,000 psi (1,034 bar)
- Pipe Handler: PH-55
- Breakout Torque Capacity: 55,000 ft-lb (74,569 N-m)
- Drill Pipe Range: 2⅞ inches to 5 inches (73 mm to 127 mm)
- Connection Outer Diameter: 4 inches to 6⅝ inches (101.6 mm to 168.2 mm)
- Upper IBOP Connection: 6⅝ inches API Reg. RH Box (remote operated)
- Lower IBOP Connection: 6⅝ inches API Reg. RH Pin/Box (manual)
- Rotation/Orientation: 360°/Unlimited
- Cooling System: Local Blower
- Hydraulic Power: Onboard
- Temperature Range: -40°C to +40°C (-40°F to +104°F)
- Casing Running Tool Ready: No
- Elevator Links: 250 ton API
