SKU: 26486

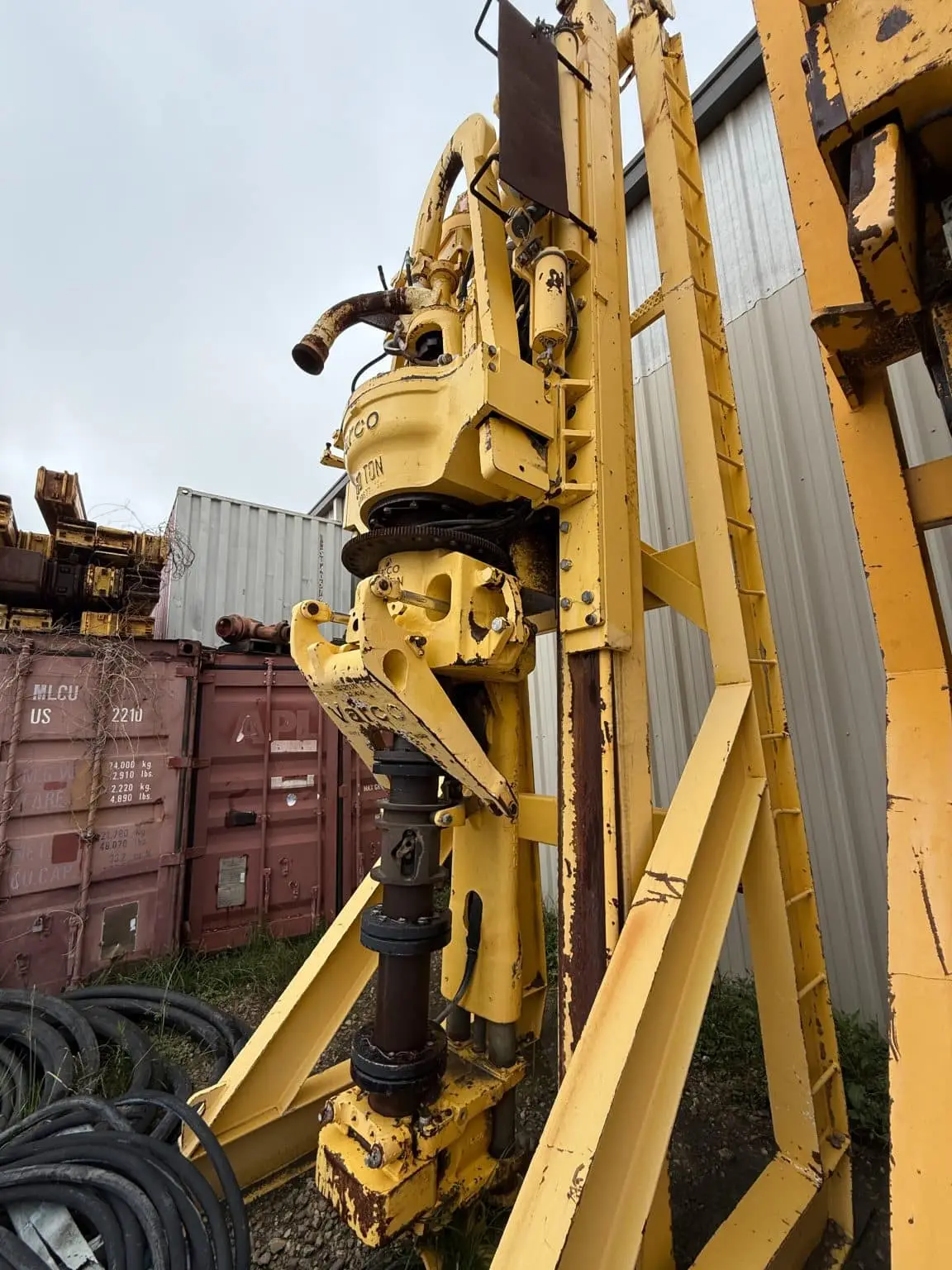

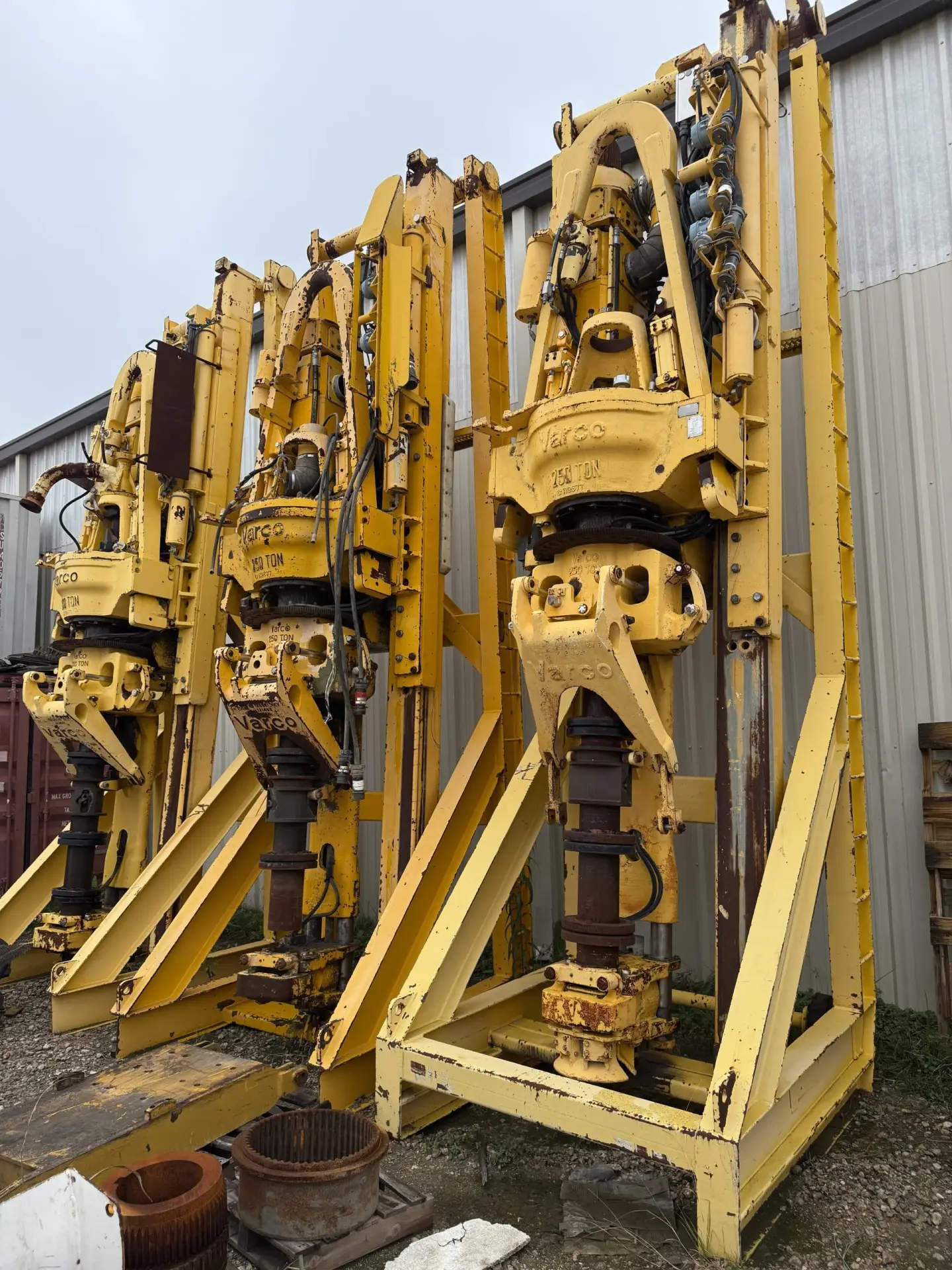

NOV TDS10 Top Drives

Condition: Used
Location: Texas
Manufacturer: NOV
Manufacturer Date:

Description

NOV TDS10 Top Drives

Hoisting Capacity: 250 tons
Horsepower: 350 HP
Maximum Continuous Torque: 20,000 ft-lb
Intermittent Torque: 36,500 ft-lb
Maximum Speed: 182 RPM
Working Pressure: 7,500 psi
Main Shaft Water Course Diameter: 3 inches
Integrated Blowout Preventer (IBOP) Pressure Rating: 15,000 psi
Pipe Handler: PH-55
Drill Pipe Range: 2⅞ inches to 5 inches
Connection Outer Diameter: 4 inches to 6⅝ inches
Upper IBOP Connection: 6⅝ inches API Reg. RH Box (remote operated)
Lower IBOP Connection: 6⅝ inches API Reg. RH Pin/Box (manual)
Rotation/Orientation: 360°/Unlimited
Cooling System: Local Blower
Hydraulic Power: Onboard
Temperature Range: -40°C to +40°C (-40°F to +104°F)
Casing Running Tool Ready: No
Elevator Links: 250 ton API
