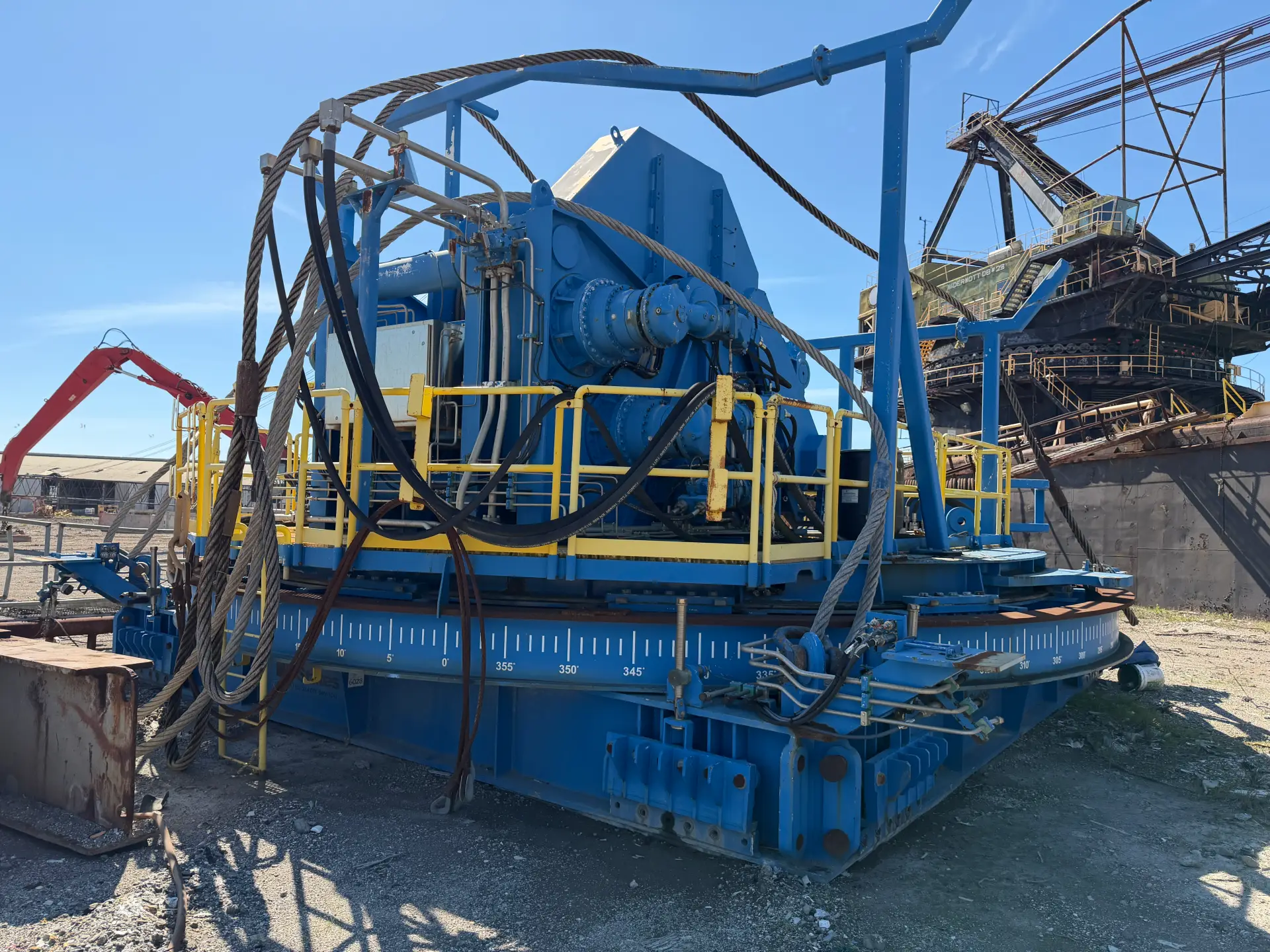

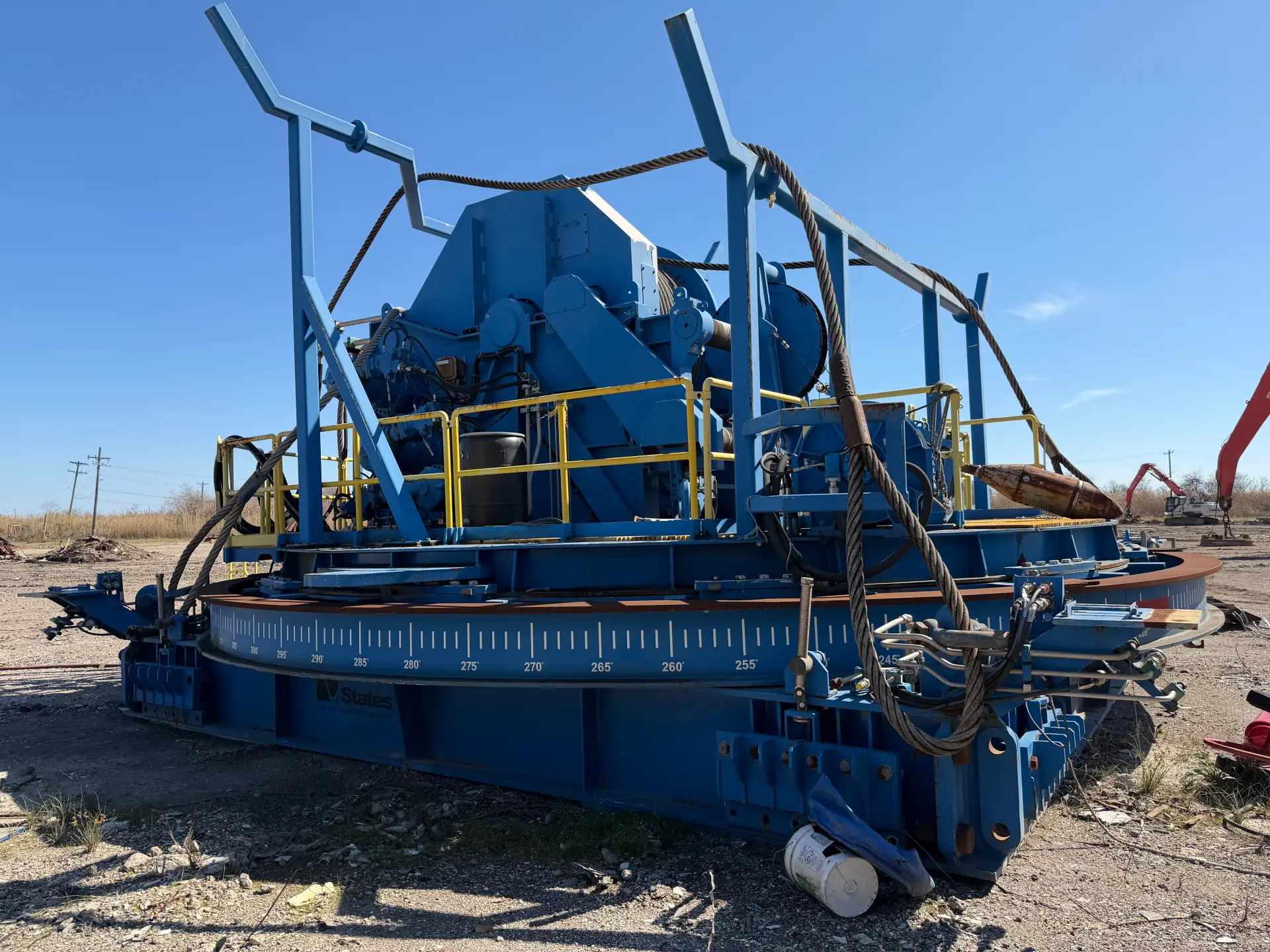

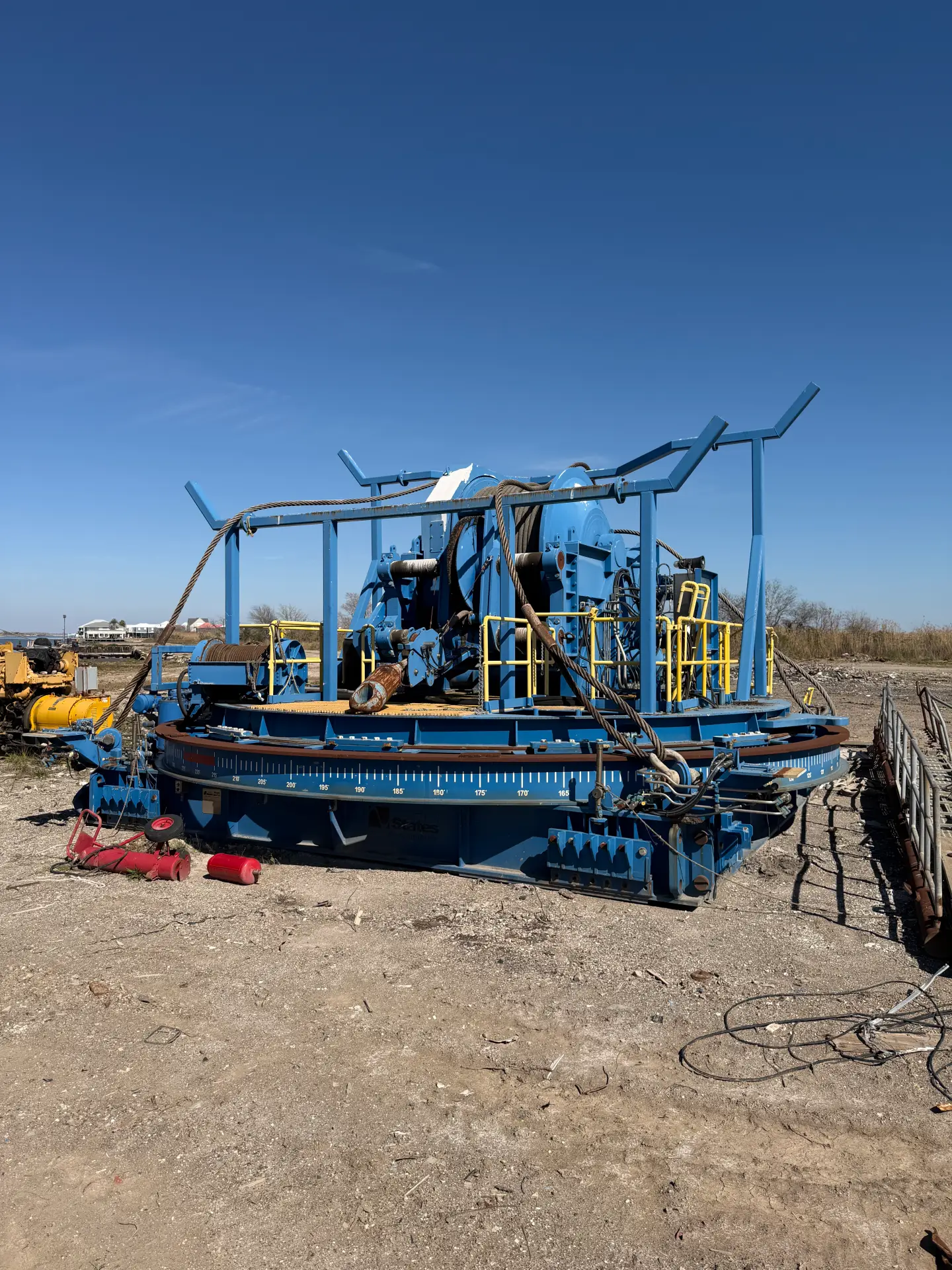

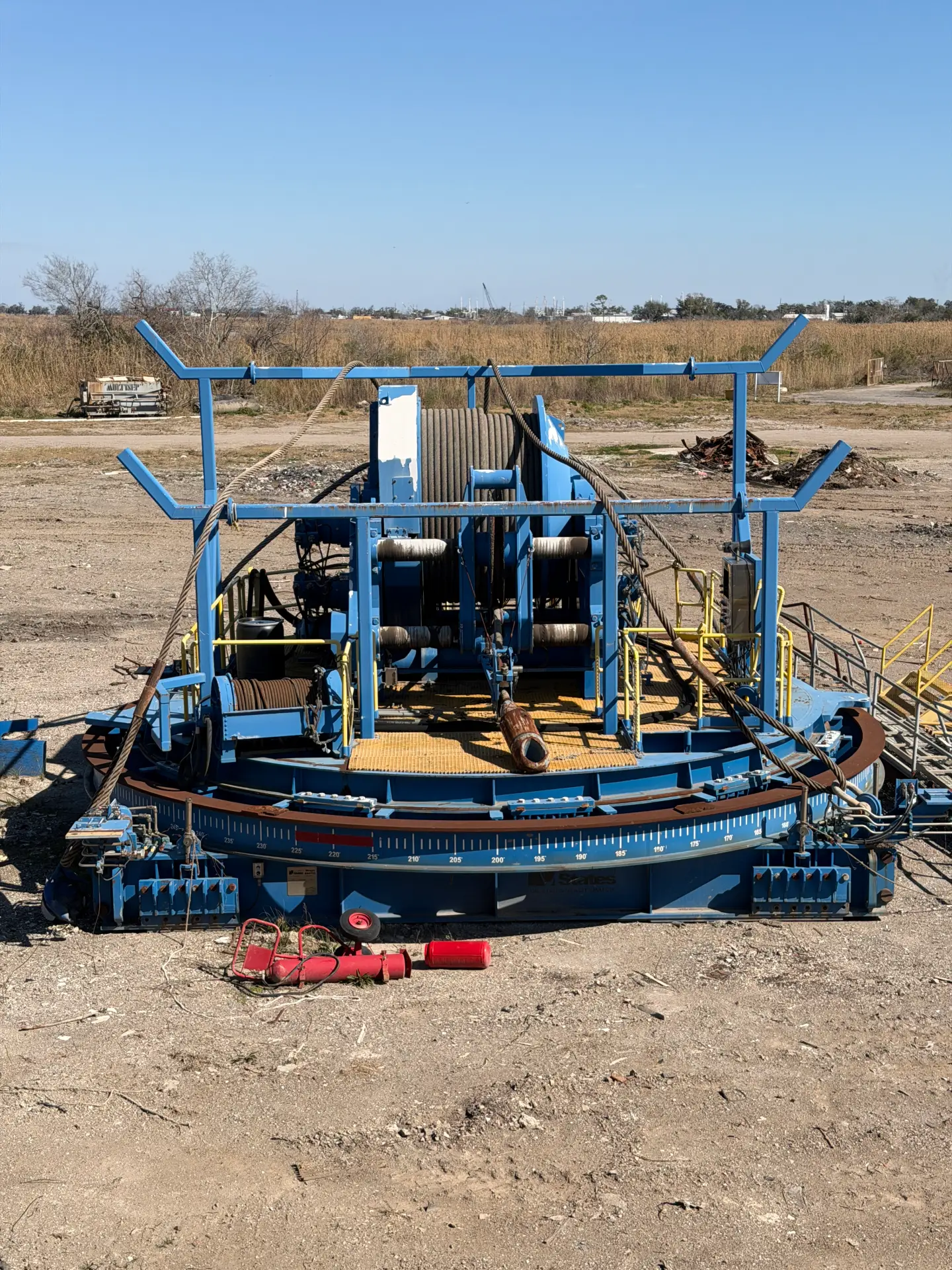

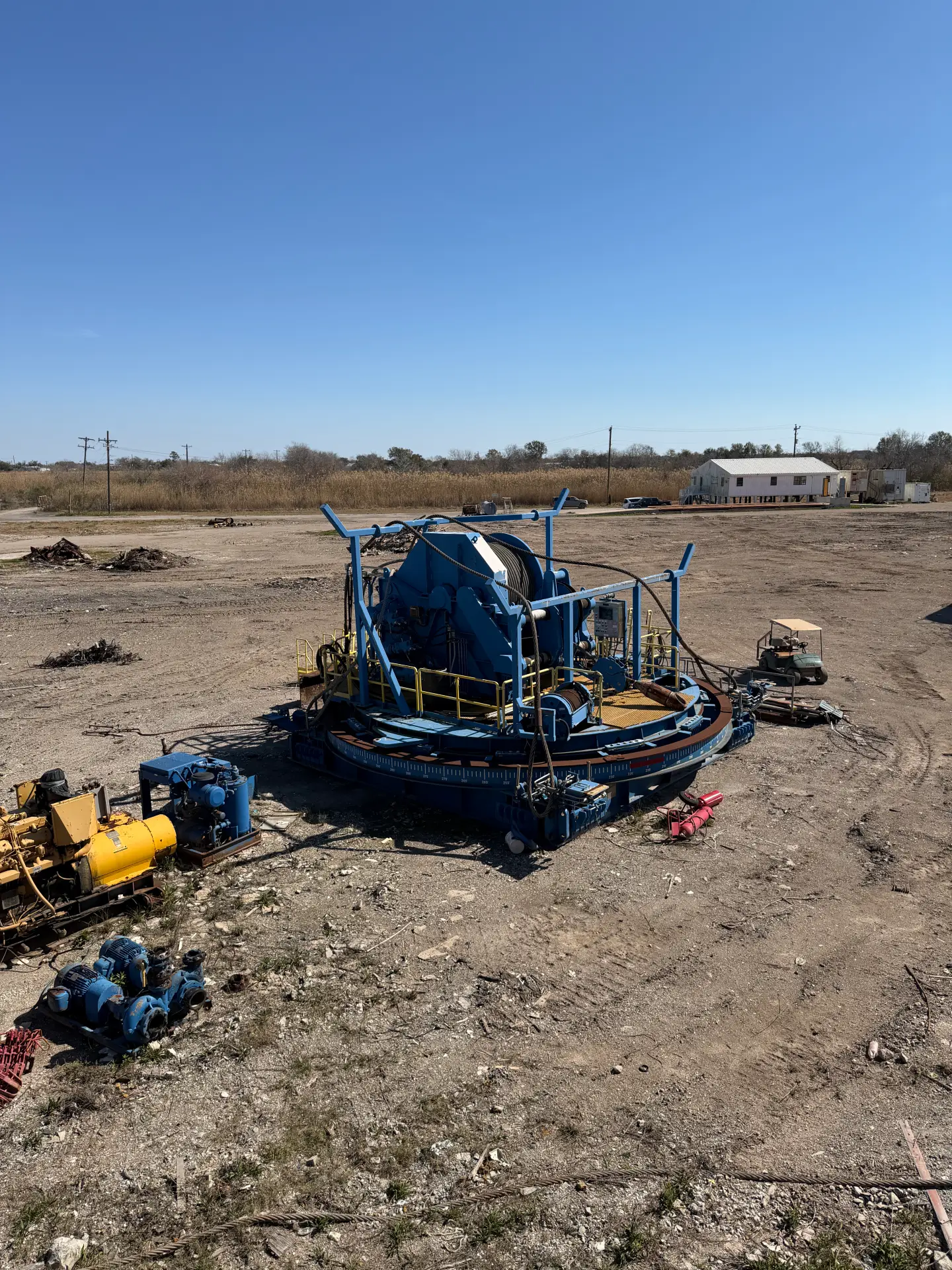

Oil States Skagit HPW-600 Single Drum Hydraulic Winch For Vessel Mobilization/Slip Winch for Shipyard etc

🛠️ Core Specifications

Model: Skagit HPW-600 Hydraulic Winch
Manufacturer: Oil States Skagit Smatco, LLC (Oil States)

📏 Winch Capacity

• Safe Working Load (SWL): 175 Te (385,700 lb) on all layers

• Brake Holding Capacity: ~694,500 lb (315 mT) on all layers

🪝 Rope & Drum

• Wire Rope Size: 3.00 in (76.2 mm) diameter

• Drum Grooved For: 3.00 in (76.2 mm) wire rope

• Rope Capacity: ~2,500 ft (780 m) in 7 layers

• Barrel Diameter: ~60 in (1524 mm)

• Flange Diameter: ~108 in (2743 mm)

• Barrel Length: ~58 in (1473 mm)

⚙️ Line Pull & Speed

• Low Speed:
  • 175 Te (385,700 lb) at ~5 m/min (16.4 ft/min) on all layers

• High Speed:
  • ~50 Te (110,000 lb) at ~17 m/min (55.8 ft/min) on all layers

📦 Weight

• Winch Unit with Wire Rope: ~173,500 lb (78,769 kg)

• Skid/Foundation: ~145,278 lb (65,956 kg)

• Total Installed Weight: ~318,778 lb (145 Te) including skid/foundation

• Wire Rope Weight: ~48,000 lb (21.8 mT) included

📐 Dimensions

• Approx 32 ft length (from side)

• 17 ft-7 in from center to corner

• Approx 18 ft overall height

• Footprint approximately a Ø10 m circle with rotary foundation

🔄 Additional Notes

• The unit is often mounted on a rotary foundation/skid for vessel mobilization; it can be dismantled from the foundation for separate sale or reduced footprint.
