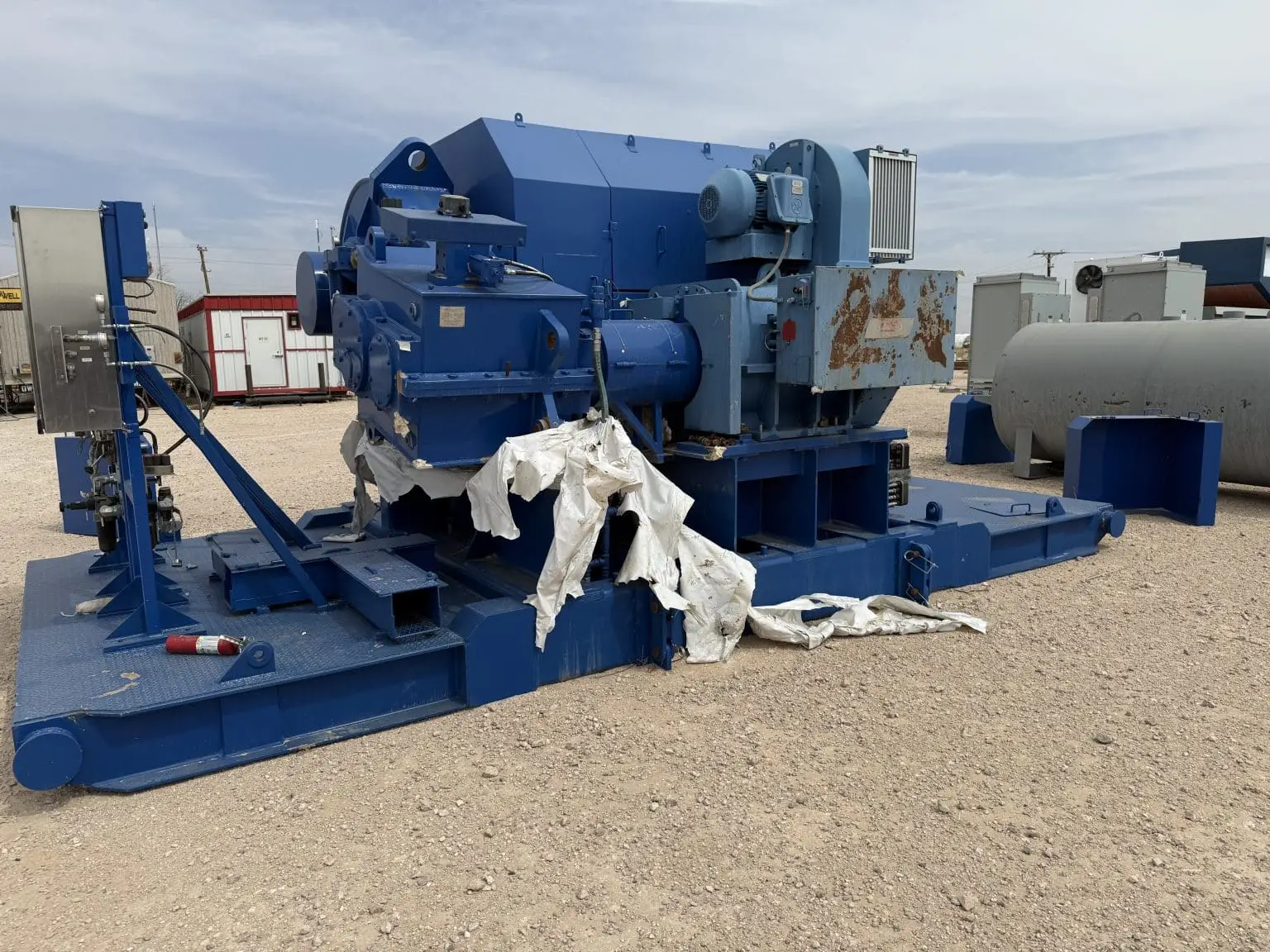

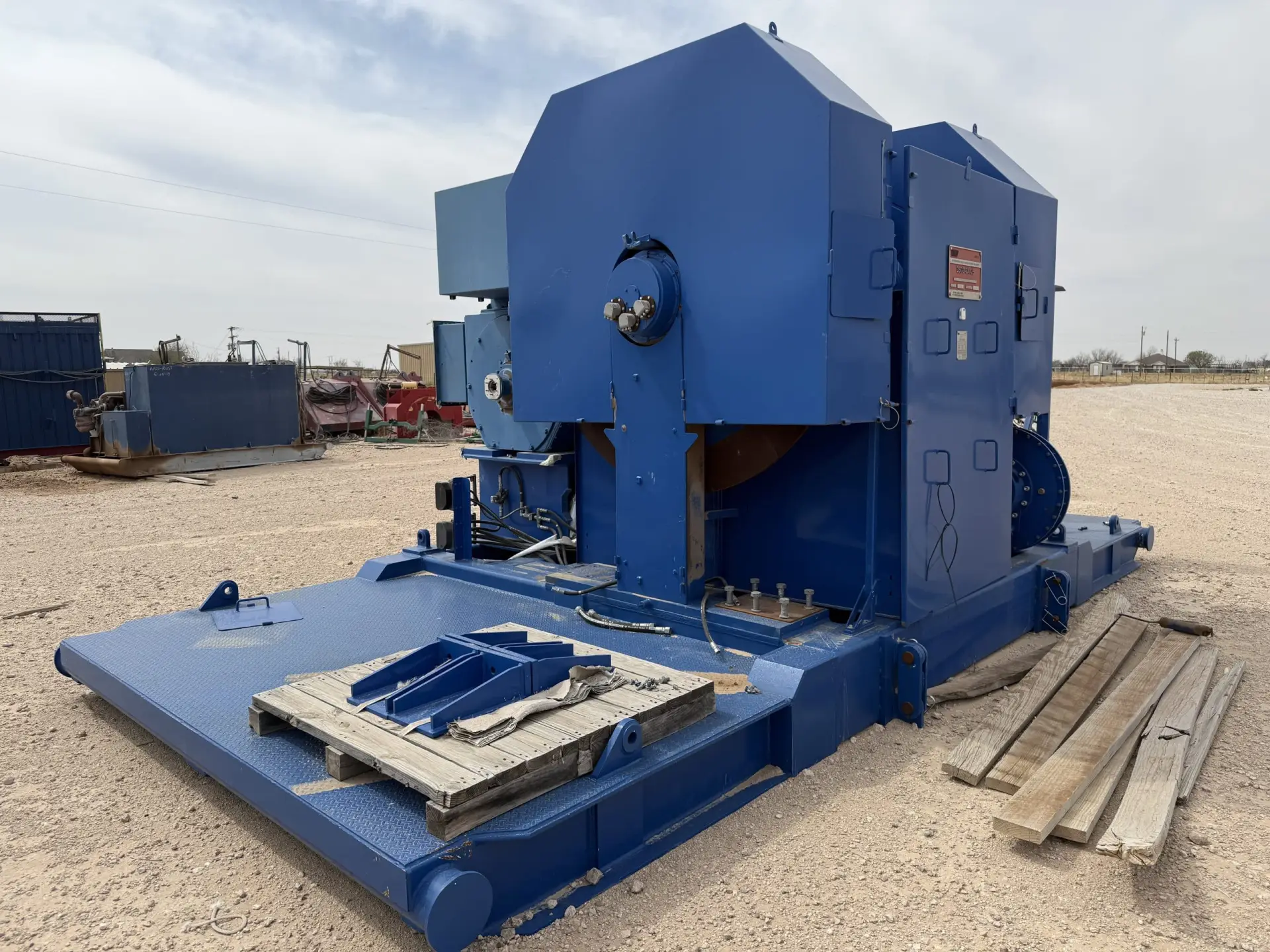

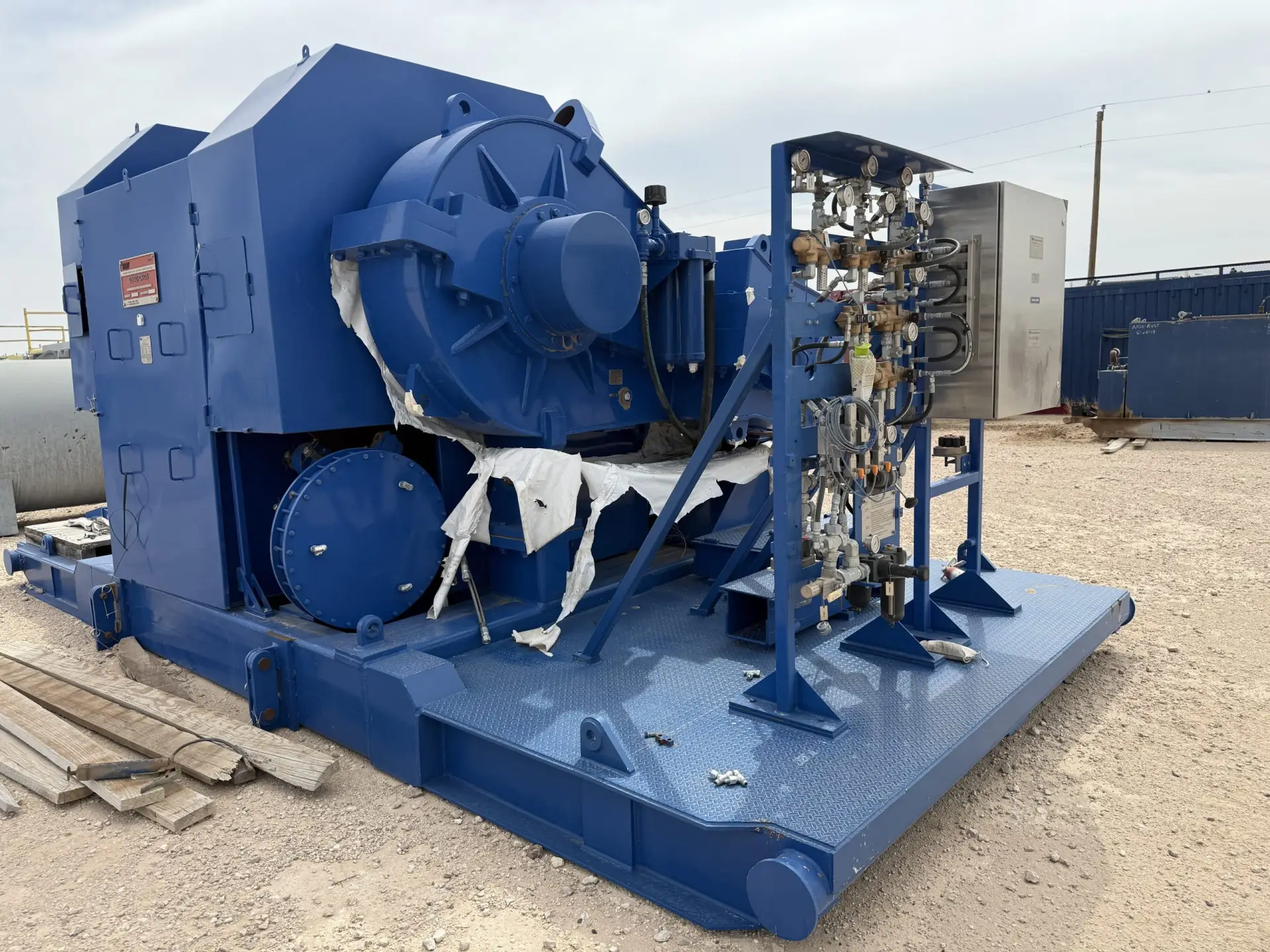

NOV DSGD-CX425 2000 HP Drawworks

NOV DSGD-CX425 Specifications

• Hoisting Capacity with 8 Lines:

  • Hook Load (Low): 693,193 lbs

  • Hook Load (High): 406,054 lbs

• Hoisting Capacity with 10 Lines:

  • Hook Load (Low): 850,000 lbs

  • Hook Load (High): 497,908 lbs

• Hoisting Capacity with 16 Lines:

  • Hook Load (Low): 1,000,719 lbs

  • Hook Load (High): 586,195 lbs

• Maximum Input Horsepower: 2,000 HP

• Maximum Input RPM: 3,000 RPM

• Drum Size: 34" @ Root of Grooving

• Hoisting Speeds: 2

• Drill Line Size: 1 3/8"
