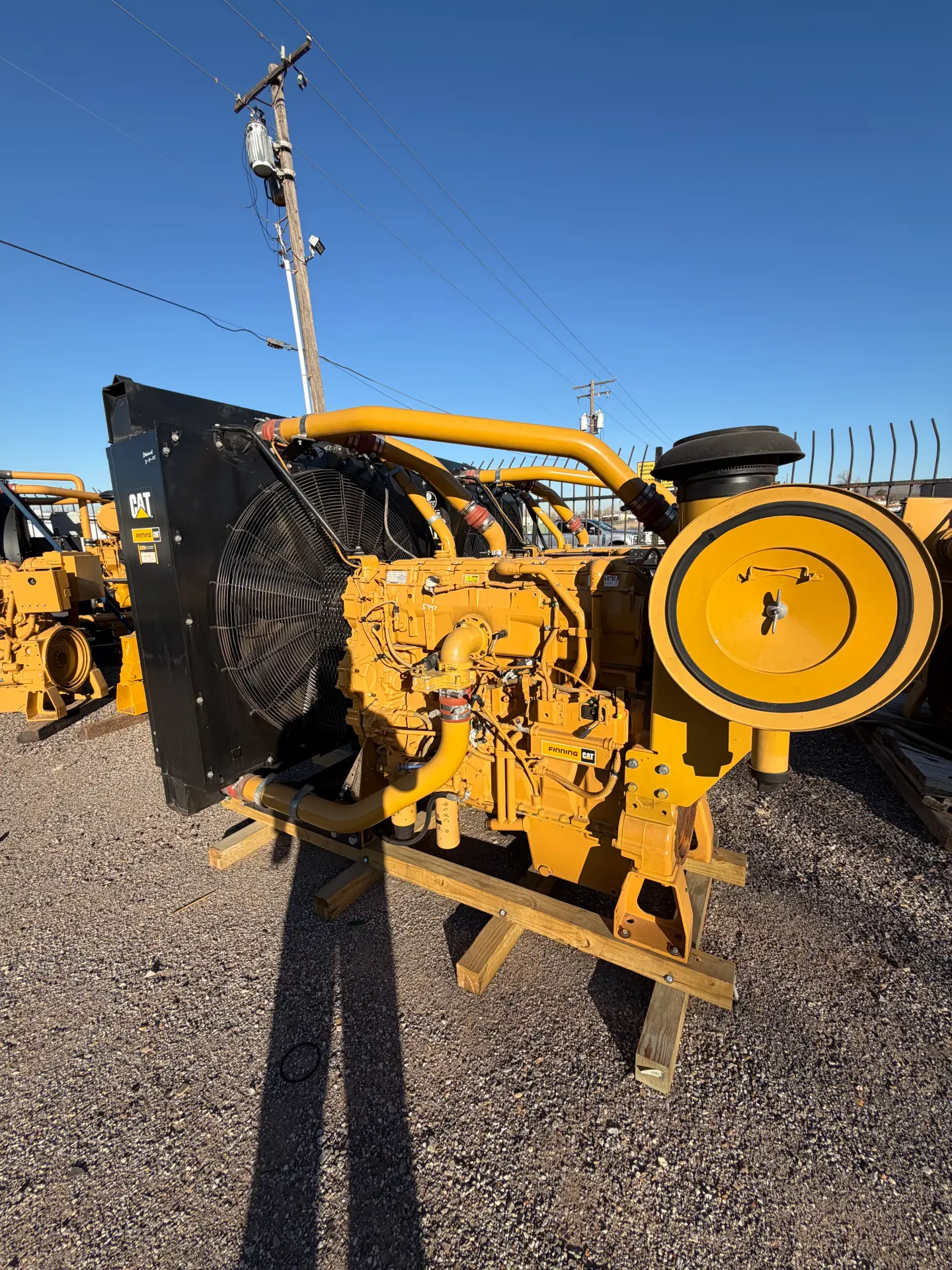

Caterpillar C18 Diesel Engine – Industrial / Oilfield Configuration

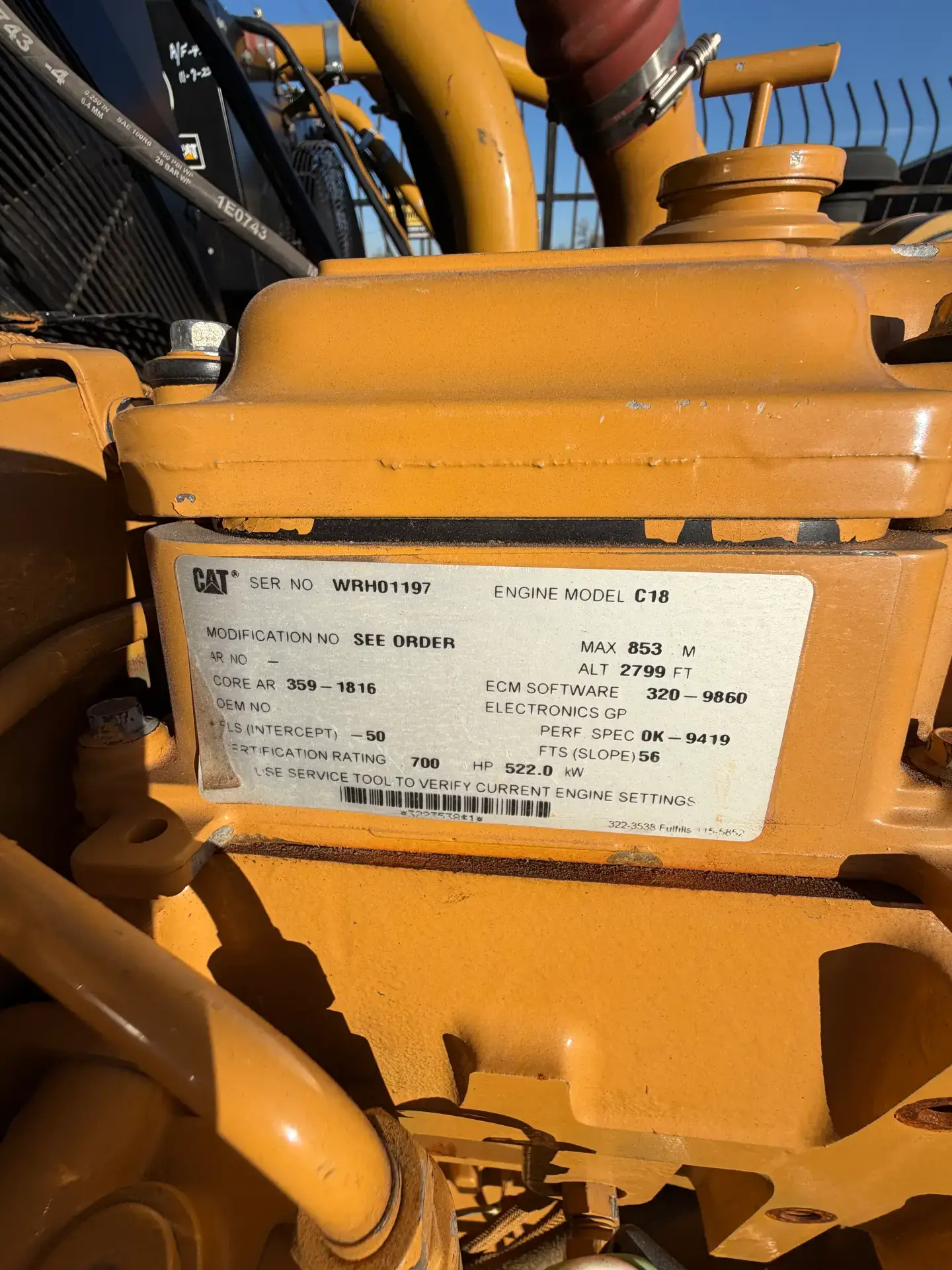

Nameplate Data (Verified from Photo)

• Manufacturer: Caterpillar

• Engine Model: CAT C18

• Serial Number: WRH01197

• Core Arrangement: 359-1816

• Performance Specification: OK-9419

• ECM Software: 320-9860

• Electronics Group: Electronic GP

• Fuel Slope (FTS): 56

• Altitude Rating: 2,799 ft

• Rating Class: 853 M

Power Rating

• Rated Power: 700 HP (522.0 kW)

• Certification Rating: 700 HP

Tag note: “Use service tool to verify current engine settings” – standard for ECM-controlled engines.

Engine Platform Specifications (CAT C18 – Standard)

General

• Configuration: Inline 6-cylinder

• Cycle: 4-stroke diesel

• Aspiration: Turbocharged & aftercooled

• Fuel System: Electronic Unit Injection (ACERT)

• Engine Management: CAT ADEM ECM

• Duty Rating: Continuous heavy-duty industrial / oilfield service

Mechanical

• Displacement: 1,106 in³ (18.1 L)

• Bore: 5.7 in (145 mm)

• Stroke: 7.2 in (183 mm)

• Compression Ratio: ~16.0:1

• Firing Order: 1-5-3-6-2-4
