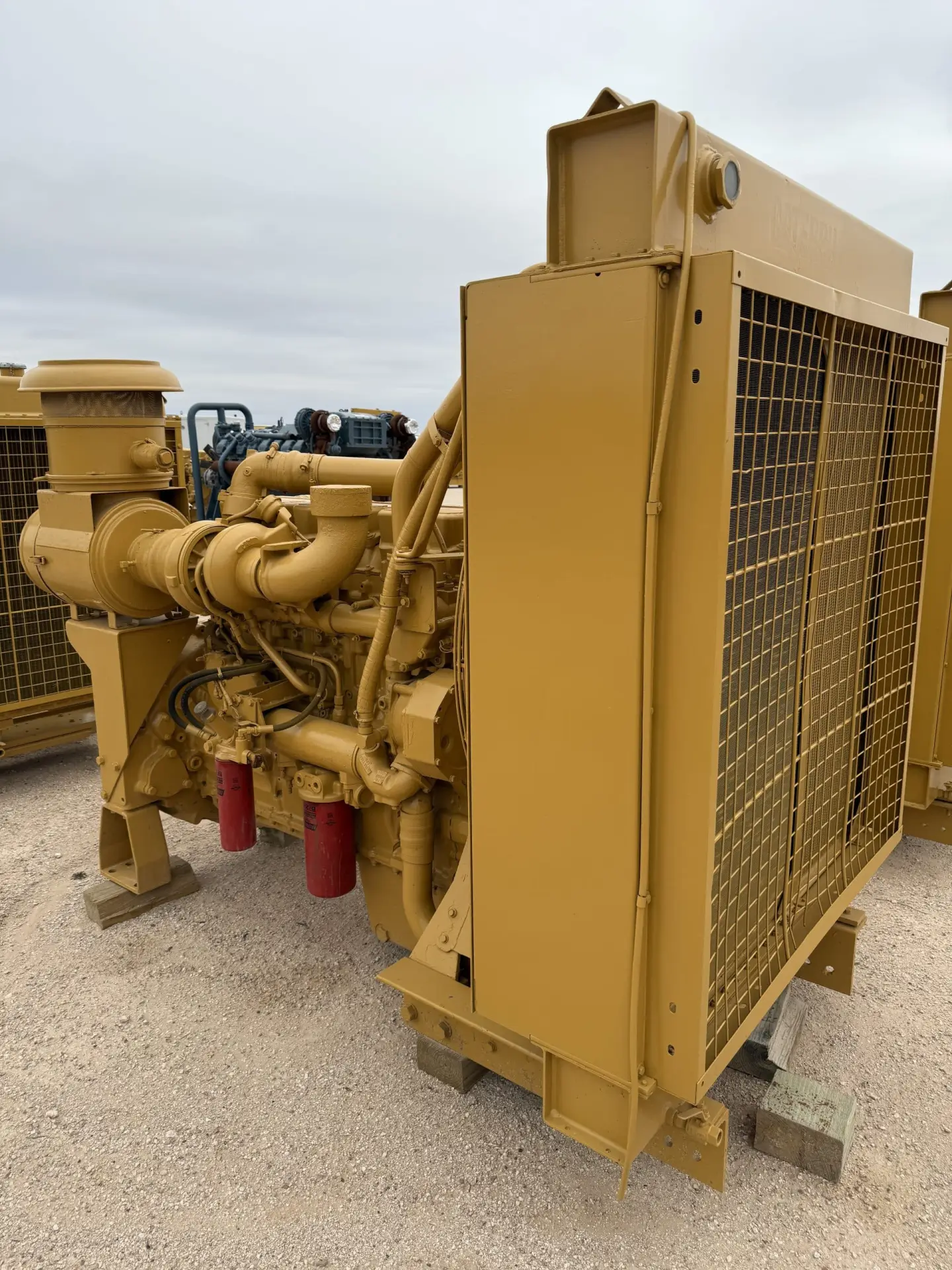

Rebuilt C16 CAT Engine

General Specifications:

• Displacement: 15.8 liters
• Bore: 145 mm
• Stroke: 162 mm
• Compression Ratio: 18:1
• Aspiration: Turbocharged and aftercooled
• Fuel System: Electronically controlled unit injection
• Governor Type: Full-range electronic

Performance Ratings:

• Maximum Power: 575 horsepower (428 kW) at 1,700 rpm
• Peak Torque: 1,850 lb-ft (2,516 Nm) at 1,200 rpm
• Operating Range: 1,200–2,100 rpm
• Governed Speed: 2,100 rpm
• Torque Rise: 32%

Physical Dimensions:

• Length: 1,524 mm
• Width: 1,016 mm
• Height: 1,270 mm
• Dry Weight: 1,497 kg
