1050 KW Generator 600 Volts powered by 16V149 Detroit

1050 KW Generator 600 Volts powered by 16V149 Detroit With 0 operating hours.

Engine Specifications:

• Model: Detroit Diesel 16V149
• Configuration: V16, two-stroke diesel
• Displacement: 39.3 liters (2,400 cubic inches)
• Bore and Stroke: 146 mm x 146 mm (5.75 inches x 5.75 inches)
• Compression Ratio: 16:1 (turbocharged engines)
• Aspiration: Turbocharged and intercooled
• Power Output: Up to 1,800 horsepower (1,343 kW) at 1,900 RPM
• Torque: Up to 5,120 lb-ft (6,942 Nm) at 1,600 RPM
• Dimensions (Approximate):
  • Length: 2,692 mm (106 inches)
  • Width: 1,626 mm (64 inches)
  • Height: 1,727 mm (68 inches)
• Weight: Approximately 4,928 kg (10,864 lbs)

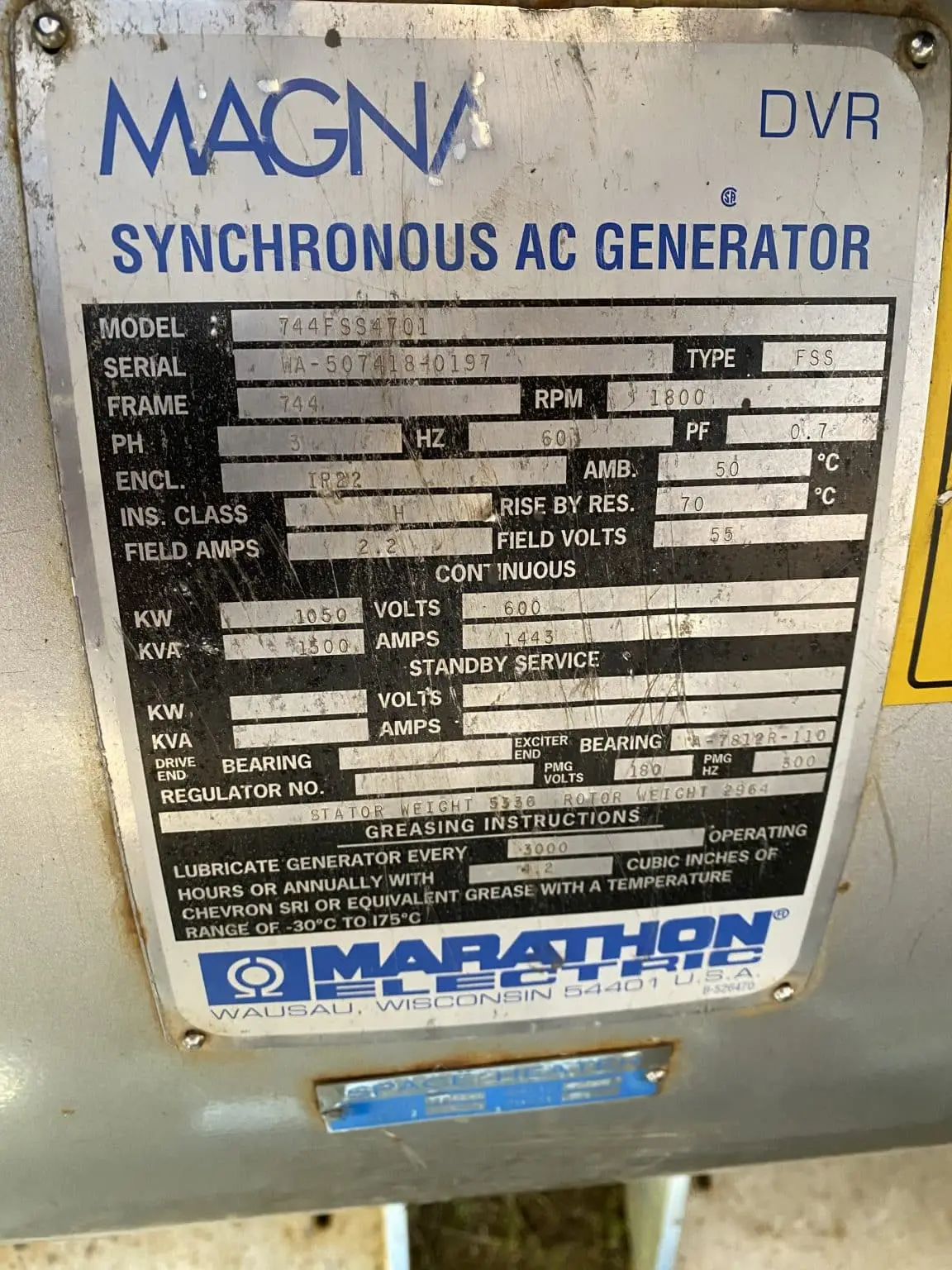

Generator Specifications:

• Power Output: 1,050 kW
• Apparent Power: 1,500 kVA
• Voltage: 600 volts
• Frequency: 60 Hz
• Power Factor: 0.7
• Speed: 1,200 RPM
• Phase: Three-phase
• Insulation Class: F
• Temperature Rise: 80°C
• Generator Model: Kato 6P6-2900
• Bearings: Double bearing
• Dimensions (Approximate):
  • Length: 2,413 mm (95 inches)
  • Width: 1,575 mm (62 inches)
  • Height: 1,219 mm (48 inches)
• Weight: Approximately 5,443 kg (12,000 lbs)
