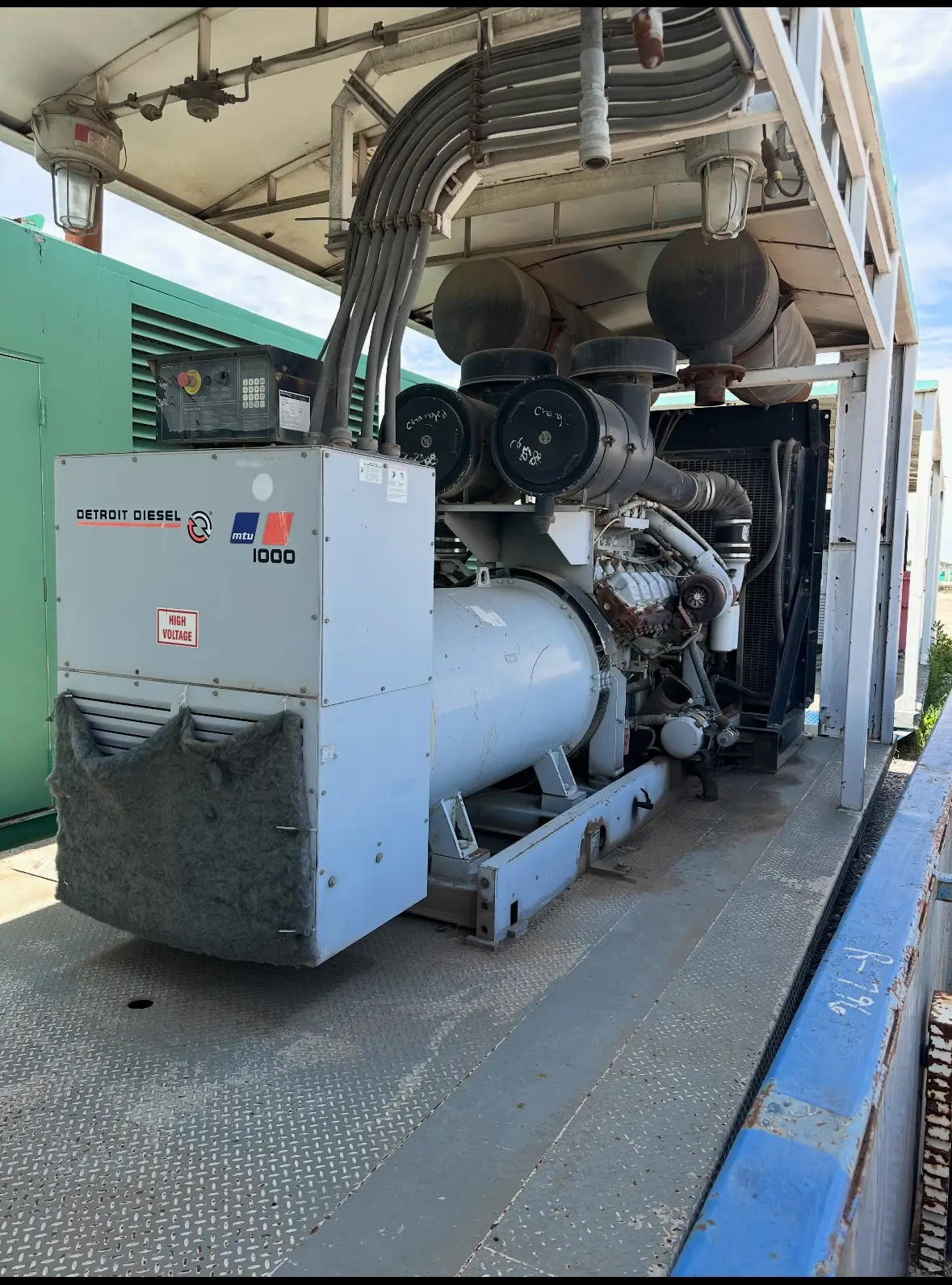

MTU 1000 DSEC Generator (Operating Hours 22K-25K)

Engine Specifications

• Manufacturer/Model: Detroit Diesel/MTU 16V2000 G81

• Engine Type: 4-cycle, turbocharged, water-cooled, intercooled

• Cylinder Arrangement: 16 cylinders in a V configuration

• Displacement: 1,944 cu in (31.9 L)

• Bore x Stroke: 5.12 in x 5.91 in (130 mm x 150 mm)

• Compression Ratio: 14.5:1

• Rated RPM: 1,800 RPM

• Maximum Power at Rated RPM: 1,495 HP (1,115 kW)

• Governor Type: Electronic (DDEC)

• Fuel System: Direct injection

• Cooling System: Radiator cooled

• Starting System: 24V electric starter

Generator Specifications

• Power Output: 1,000 kW (1,250 kVA) standby rating

• Voltage Options: 208V, 240V, 380V, 480V, 600V, 4,160V

• Frequency: 60 Hz

• Power Factor: 0.8

• Phase: Three-phase

• Alternator: Marathon MagnaMax, rotating field type

• Voltage Regulation: ±2% from no load to full load

• Insulation Class: H

• Temperature Rise: 130°C standby, 105°C prime

• Efficiency at Full Load: 95%
