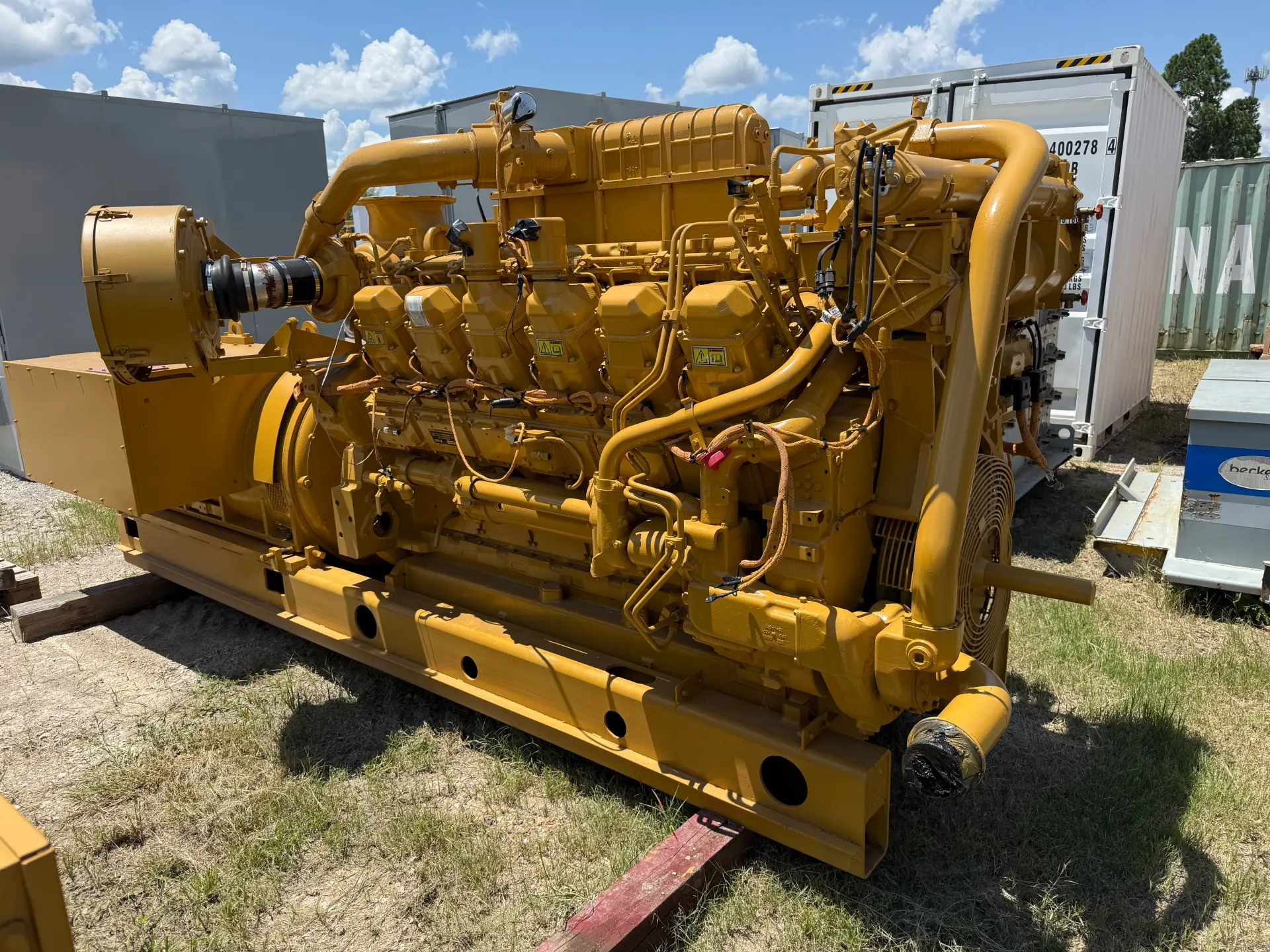

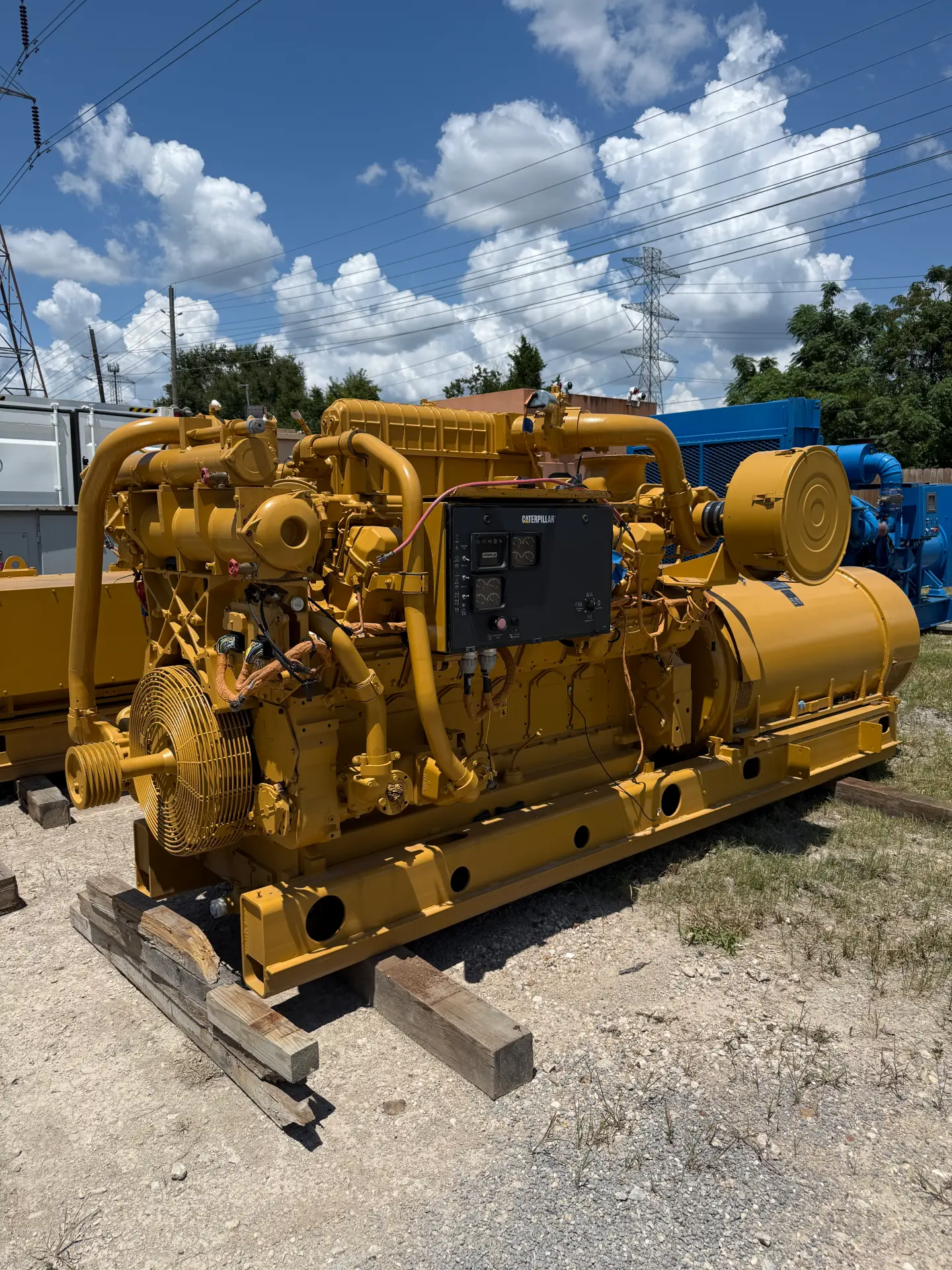

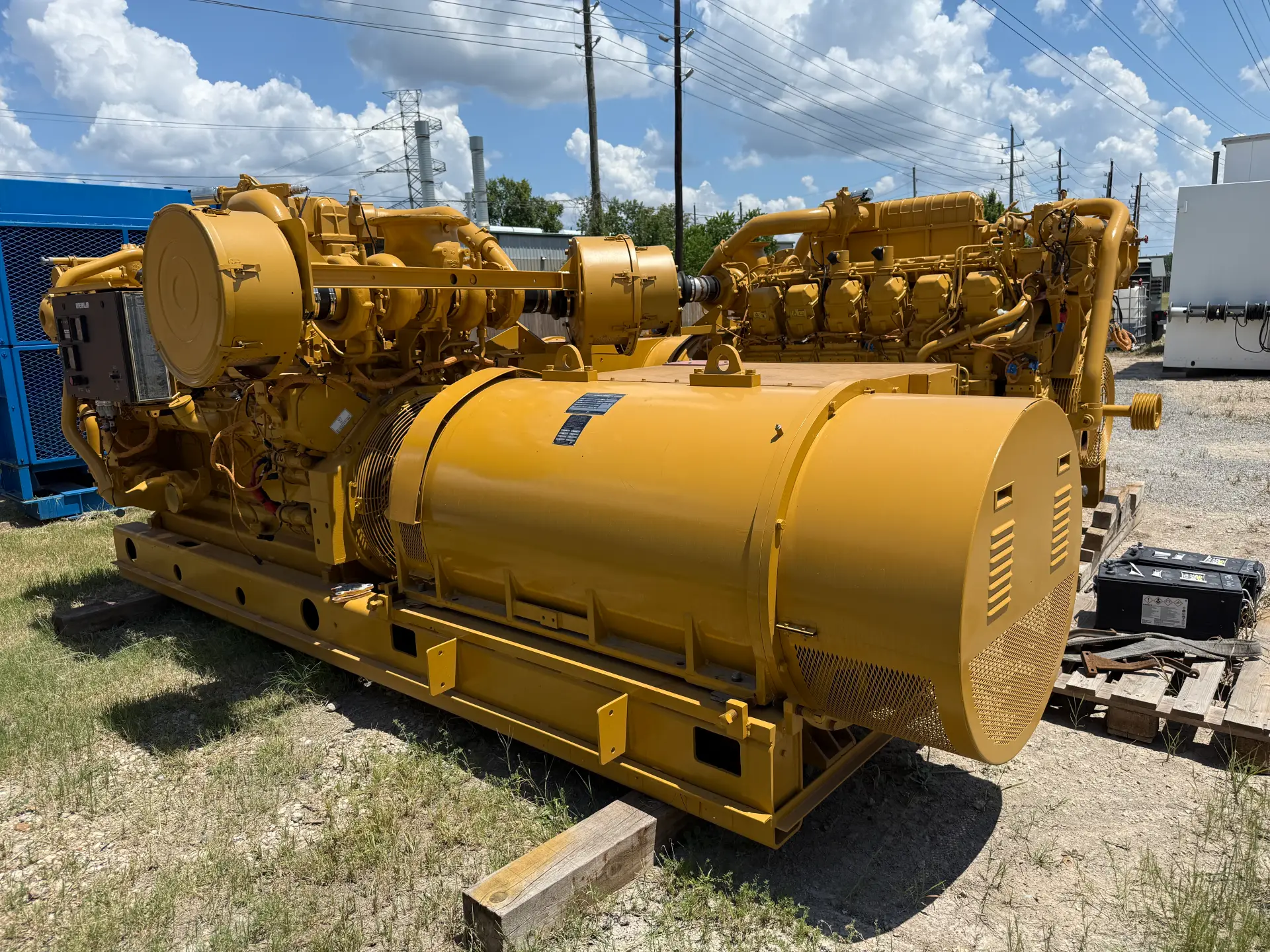

QT-2 CAT 3512C Gensets Rebuild 0 Hours Full Recertification Paperwork

CAT 3512C + Kato Revolving Field AC Generator – Genset Data

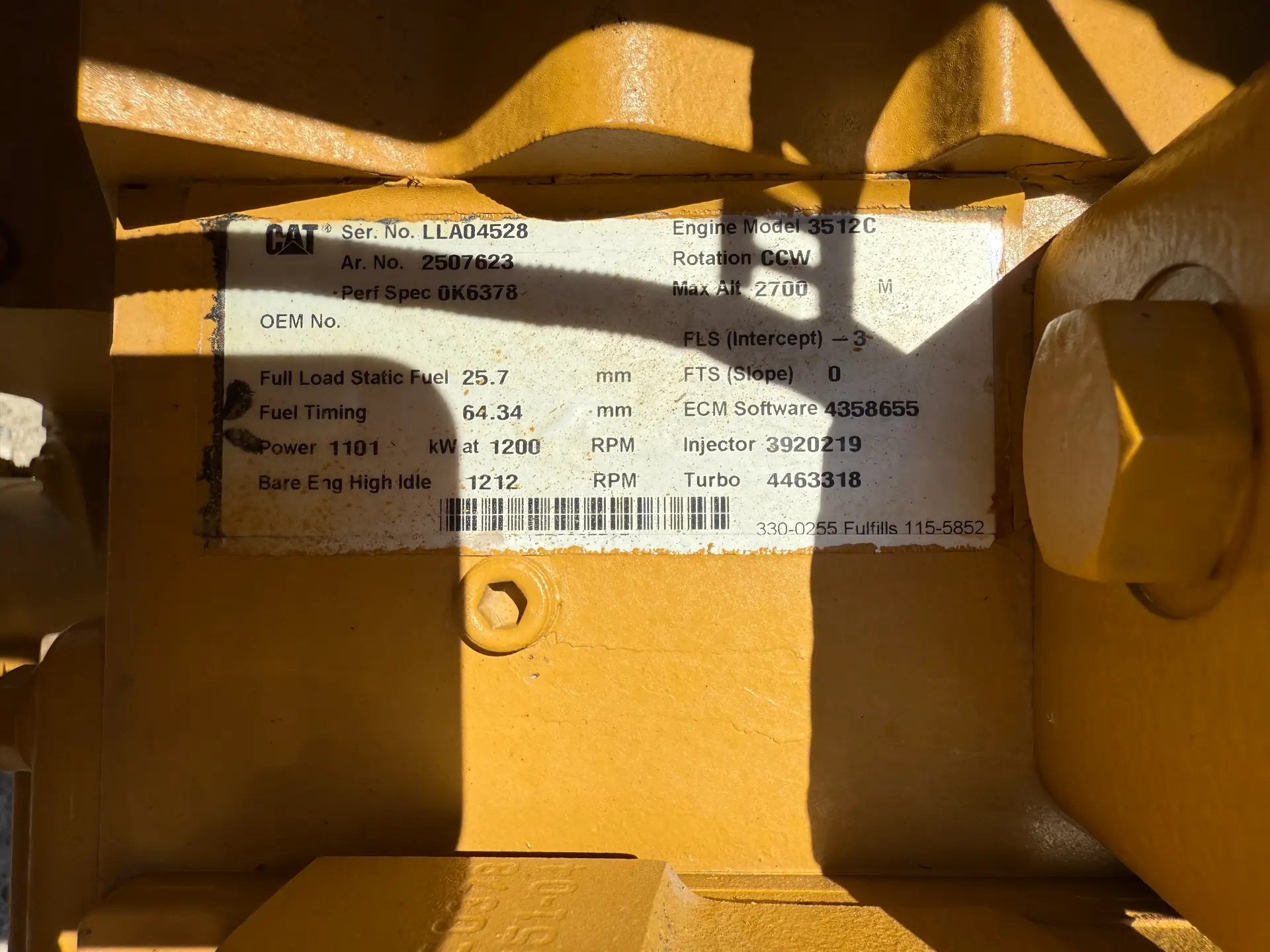

Engine Specifications (CAT 3512C)

• Manufacturer: Caterpillar

• Model: 3512C

• Serial Number: LLA04528

• Arrangement Number: 2507623

• Performance Specification: 0K6378

• Rotation: CCW (Counterclockwise)

• Max Altitude: 2700 m

• Rated Power: 1101 kW @ 1200 RPM

• Bare Engine High Idle: 1212 RPM

• Full Load Static Fuel: 25.7 mm

• Fuel Timing: 64.34 mm

• FLS (Intercept): -3

• FTS (Slope): 0

• ECM Software: 4358655

• Injector Part Number: 3920219

• Turbo Part Number: 4463318

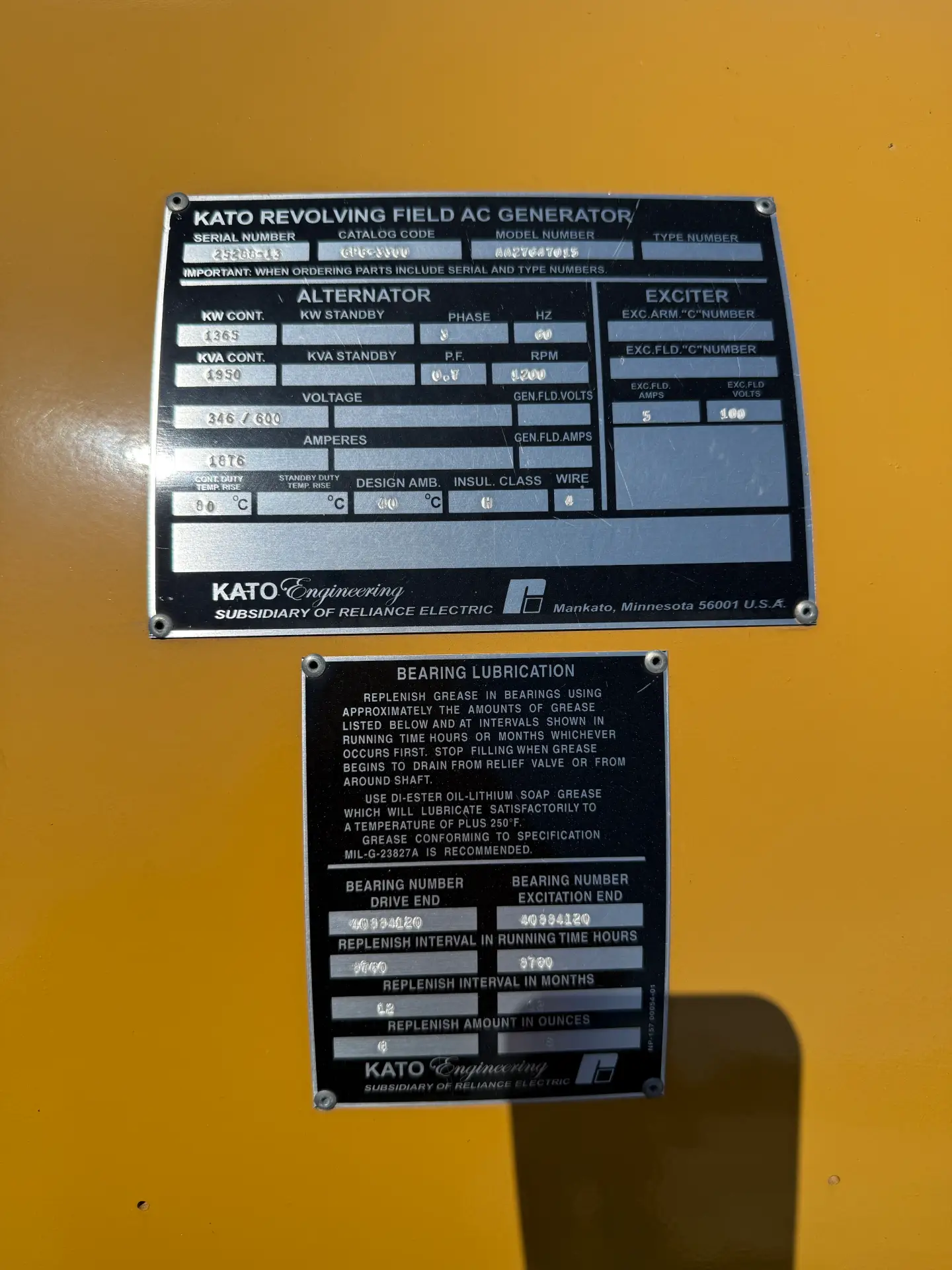

Generator Specifications (Kato Revolving Field AC Generator)

• Manufacturer: Kato Engineering – Subsidiary of Reliance Electric

• Model Number: A42763000

• Serial Number: 25288-14

• Catalog Code: 6P6-5399

• Type Number: (not listed)

• Design: Revolving Field AC Generator

• Continuous kW: 1,365 kW

• Continuous kVA: 1,958 kVA

• Power Factor: 0.8

• Phases: 3

• Frequency: 60 Hz

• RPM: 1,200

• Voltage: 346 / 600 V

• Amperage: 1,876 A

• Design Ambient Temp: 40 °C

• Insulation Class: W

• Temperature Rise (Continuous): 80 °C

• Temperature Rise (Standby): 105 °C

• Exciter Field Volts: 100 V

• Exciter Field Amps: 5 A
