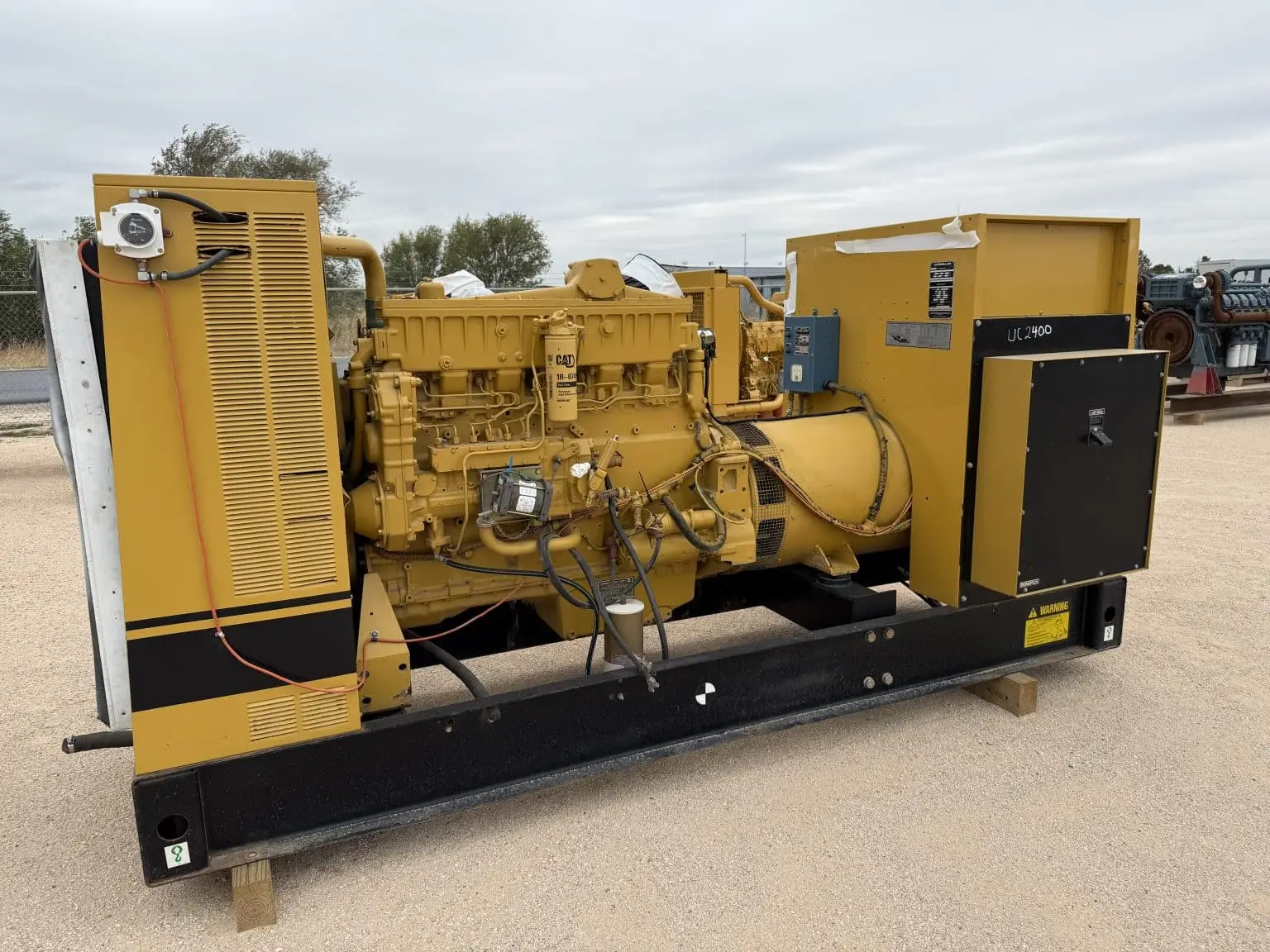

Rebuilt CAT3406B Genset

• Power Output:
  • Standby Rating: 200 kW
  • Prime Power Rating: 180 kW
• Voltage: 277/480 Volts
• Frequency: 60 Hz
• Speed: 1,800 RPM
• Phase: Three-phase
• Power Factor: 0.8

Engine Specifications:

• Engine Model: Caterpillar 3406B-DITA
• Configuration: Inline 6-cylinder, 4-stroke, water-cooled diesel
• Displacement: 14.64 liters (893.39 cubic inches)
• Bore: 137.2 mm (5.4 inches)
• Stroke: 165.1 mm (6.5 inches)
• Compression Ratio: 14.5:1
• Aspiration: Turbocharged Aftercooled (TA)
• Fuel System: Pump and Line (P&L)
• Governor Type: Hydra-mechanical
• Rated Power Output: Approximately 449 HP at 1,800 RPM

Additional Features:

• Control Panel: Analog control panel
• Starting System: Electric start
• Air Filtration: Heavy-duty air cleaner
• Cooling System: Jacket water heater; engine-driven radiator
• Mounting: Open skid (no enclosure or tank)
