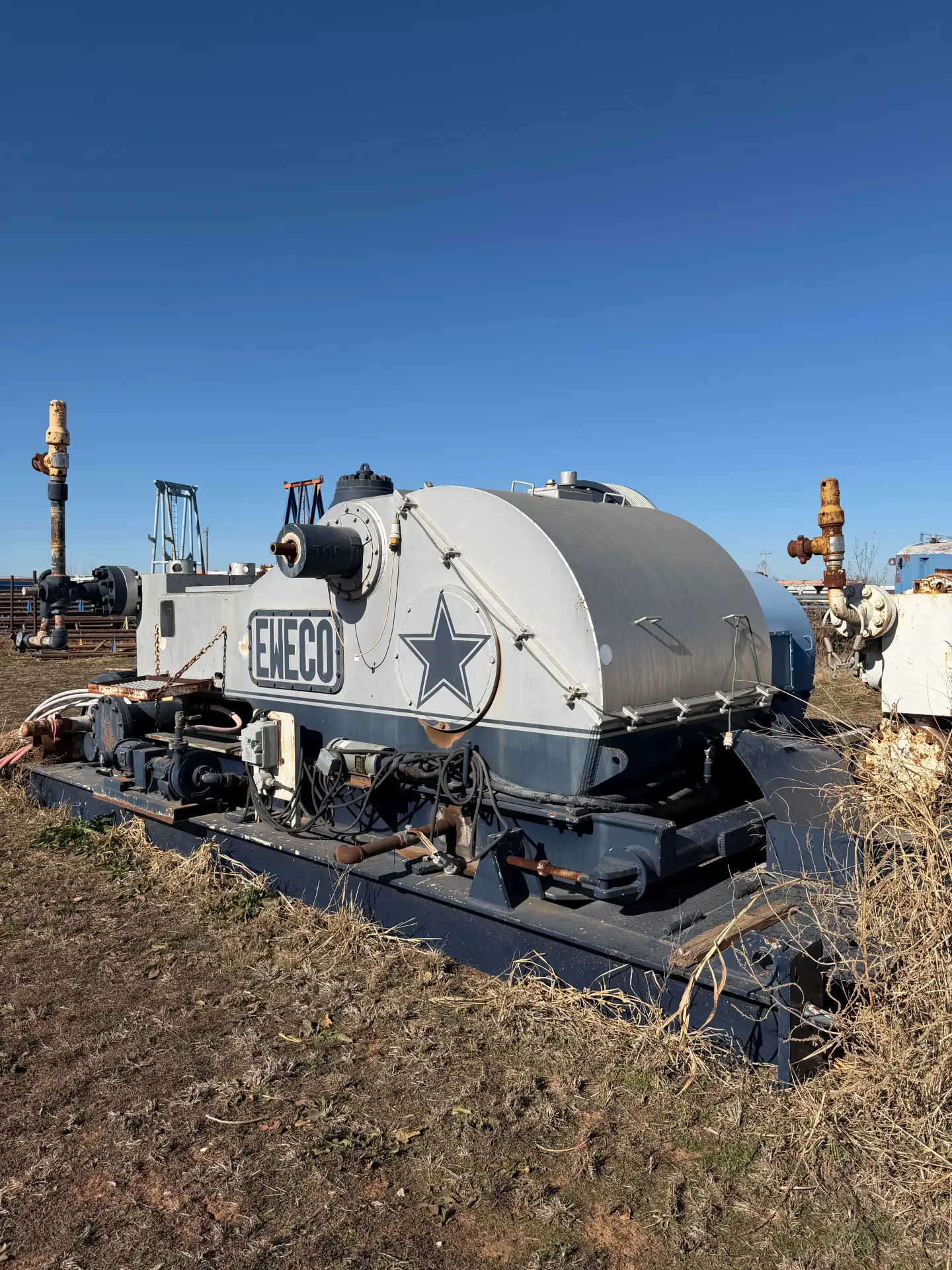

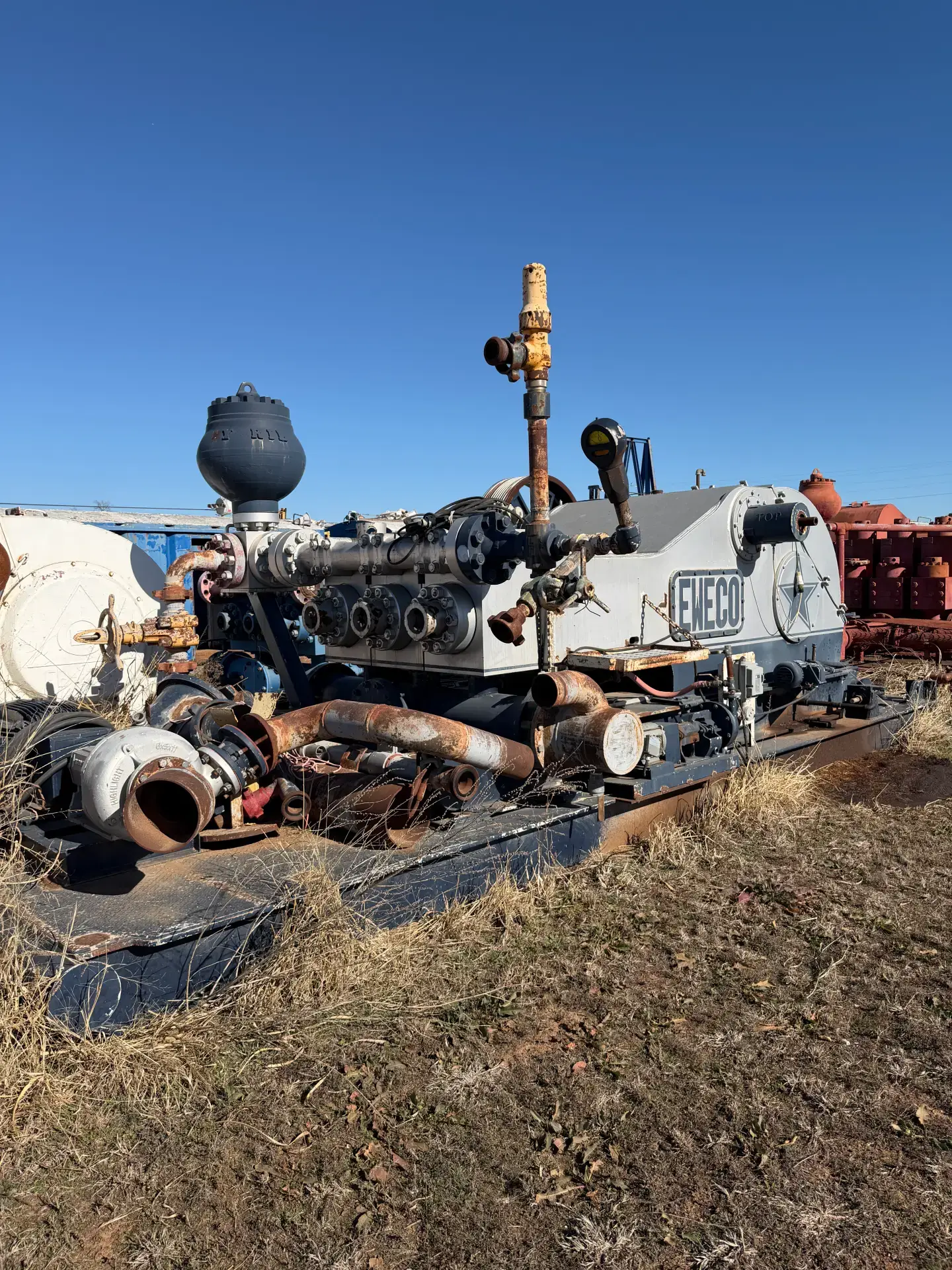

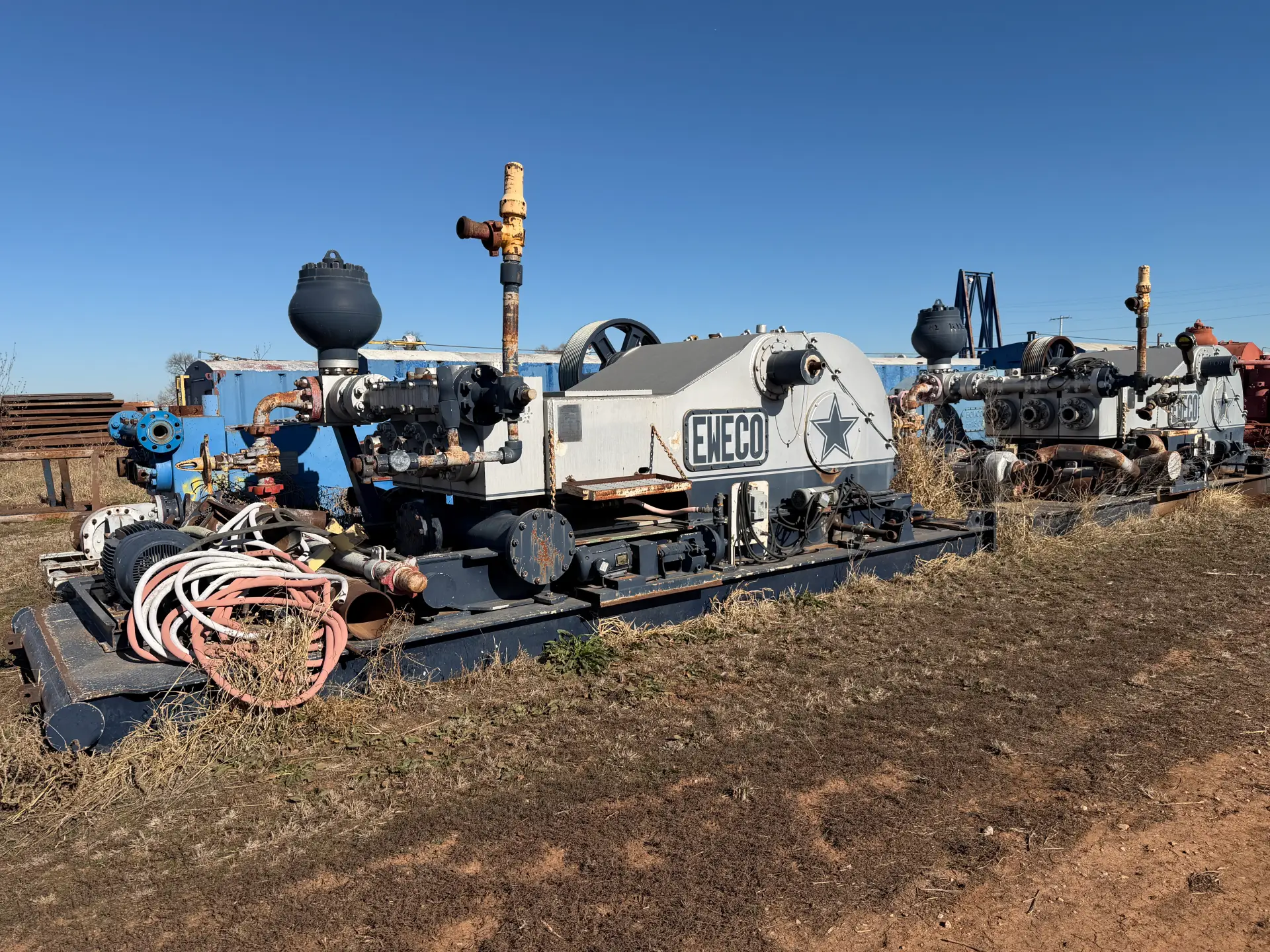

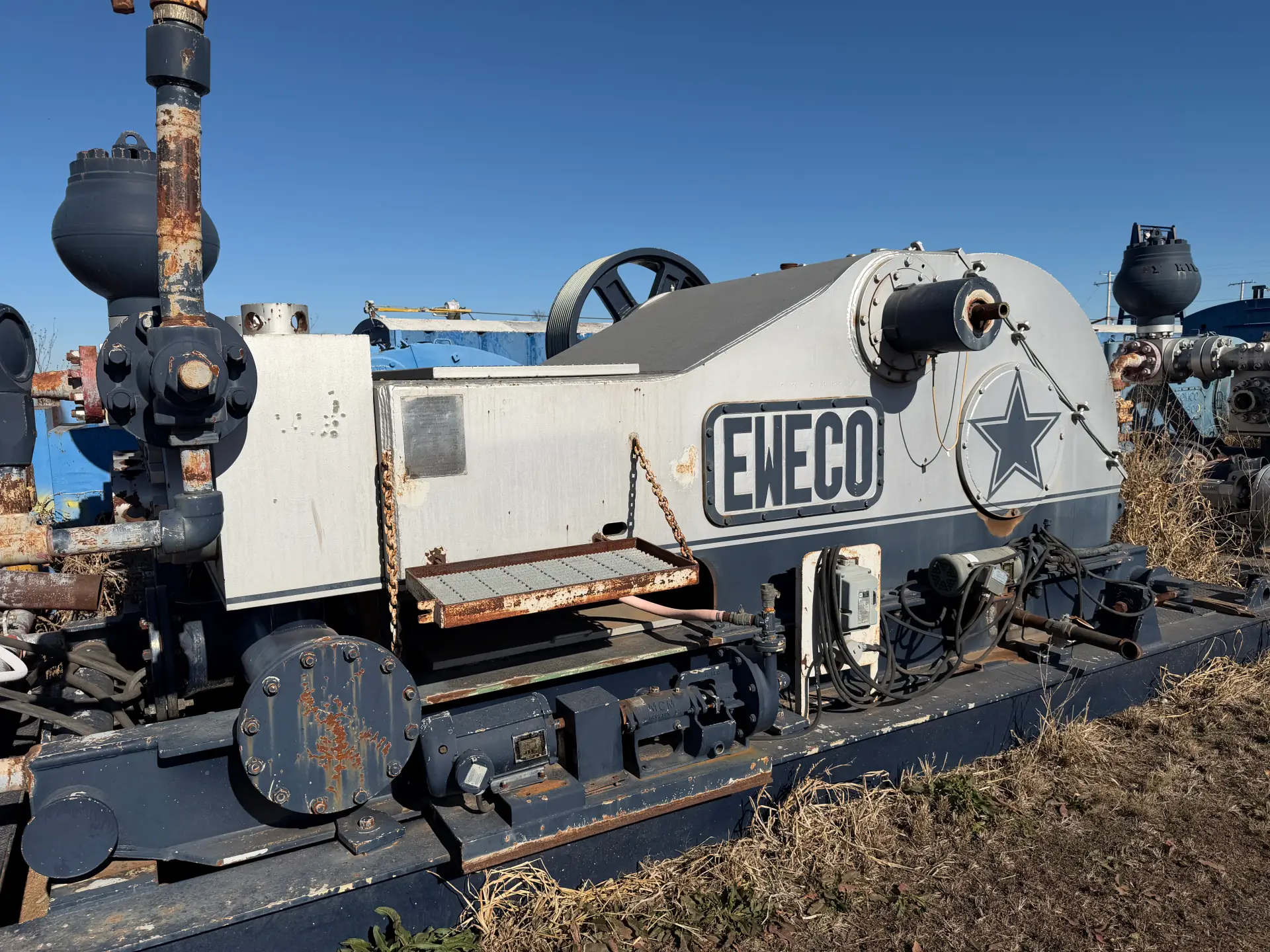

1300 HP Ewco Pumps QT-2

EWCO Mud Pump – 1300 HP Class Specifications

Manufacturer: EWCO (Engineered Wellhead & Pump Co.)

Pump Type:

• Triplex, single-acting

Class:

• 1300 HP (industry horsepower class)

General Performance

• Rated Power Input: ~1300 HP

• Max Pump Speed: ~120 SPM (standard, may vary)

• Stroke Length: Typically 12 in

• Pressure Rating: Up to ~5,000 PSI (pump model/liner dependent)

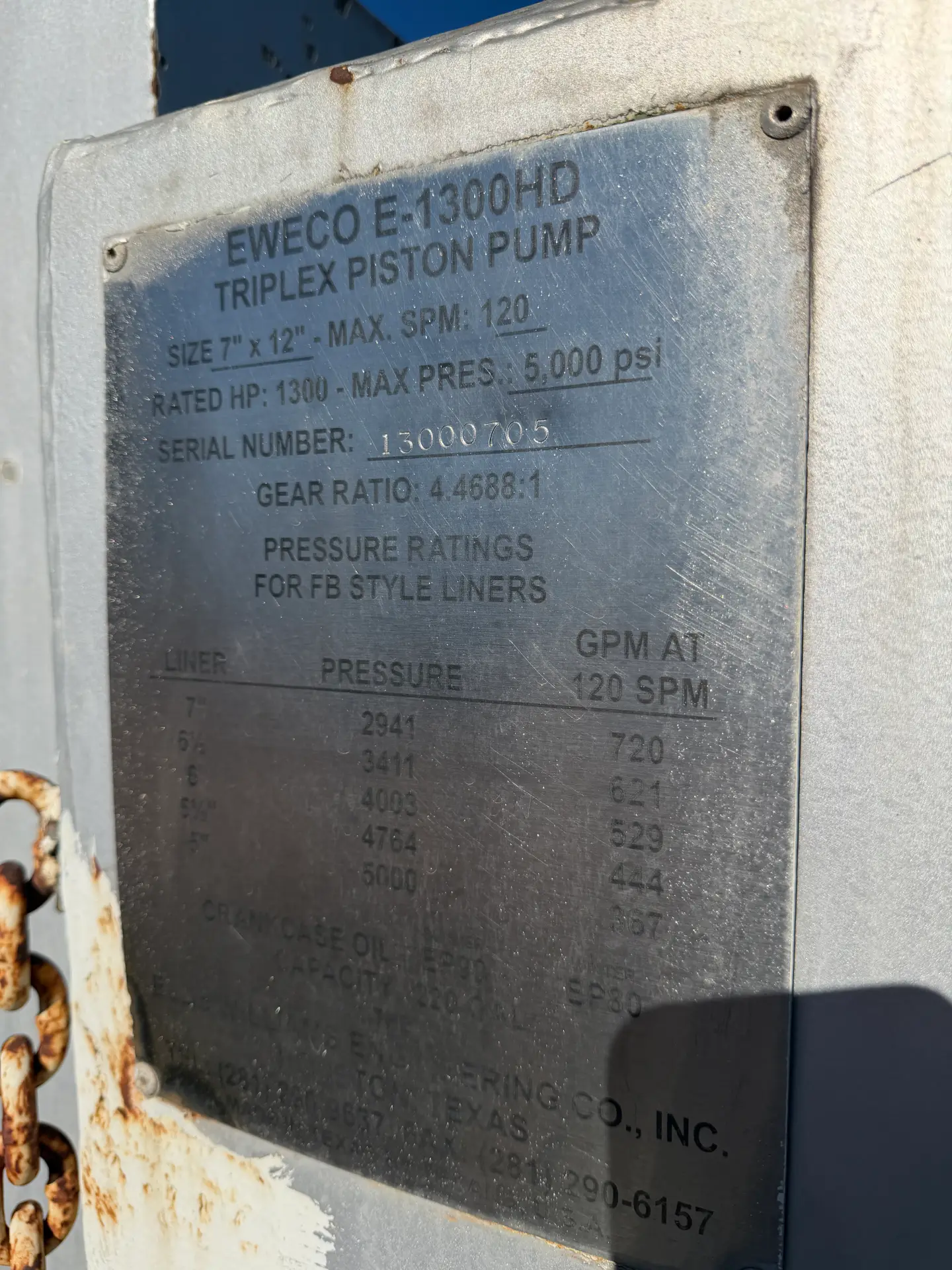

Typical Liner / Pressure / Output

(Actual output varies with rod diameters, rod loads, and service factors.)

Oilfield Pump Features

• Frame: Heavy cast block for high horsepower use

• Power End:

  • Large crankshaft journals

  • Tapered roller bearings

• Lubrication:

  • Forced pressure lubrication

  • Large capacity oil sump

• Valves:

  • Full-opening mud valves

  • Hardy or wing guided (application dependent)

• Crankcase Capacity:

  • Large oil volume (pump class dependent)
