Manufacturer:
Continental Emsco (formerly EMSCO Group)
Model:
FA-1300
Type:

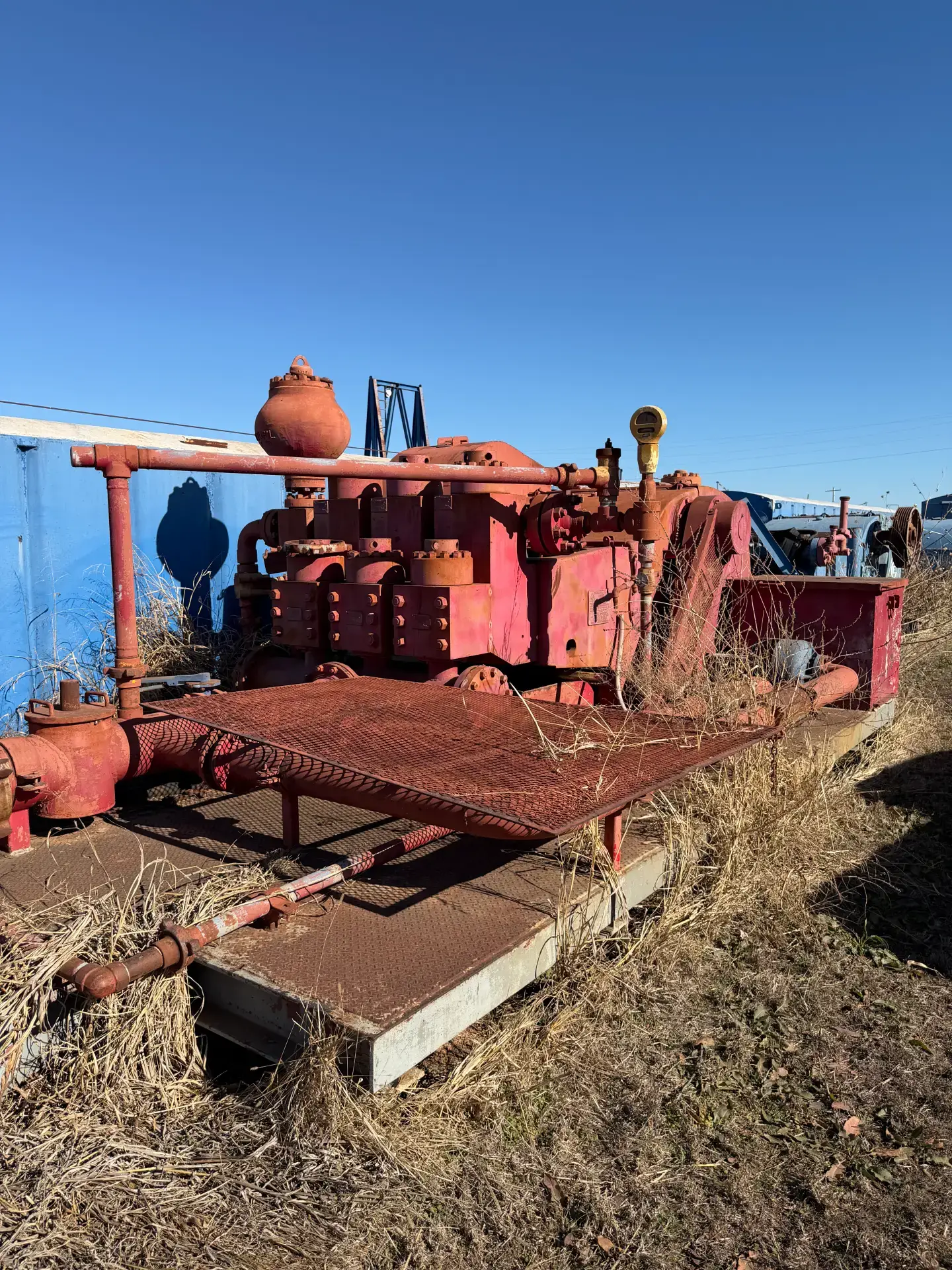

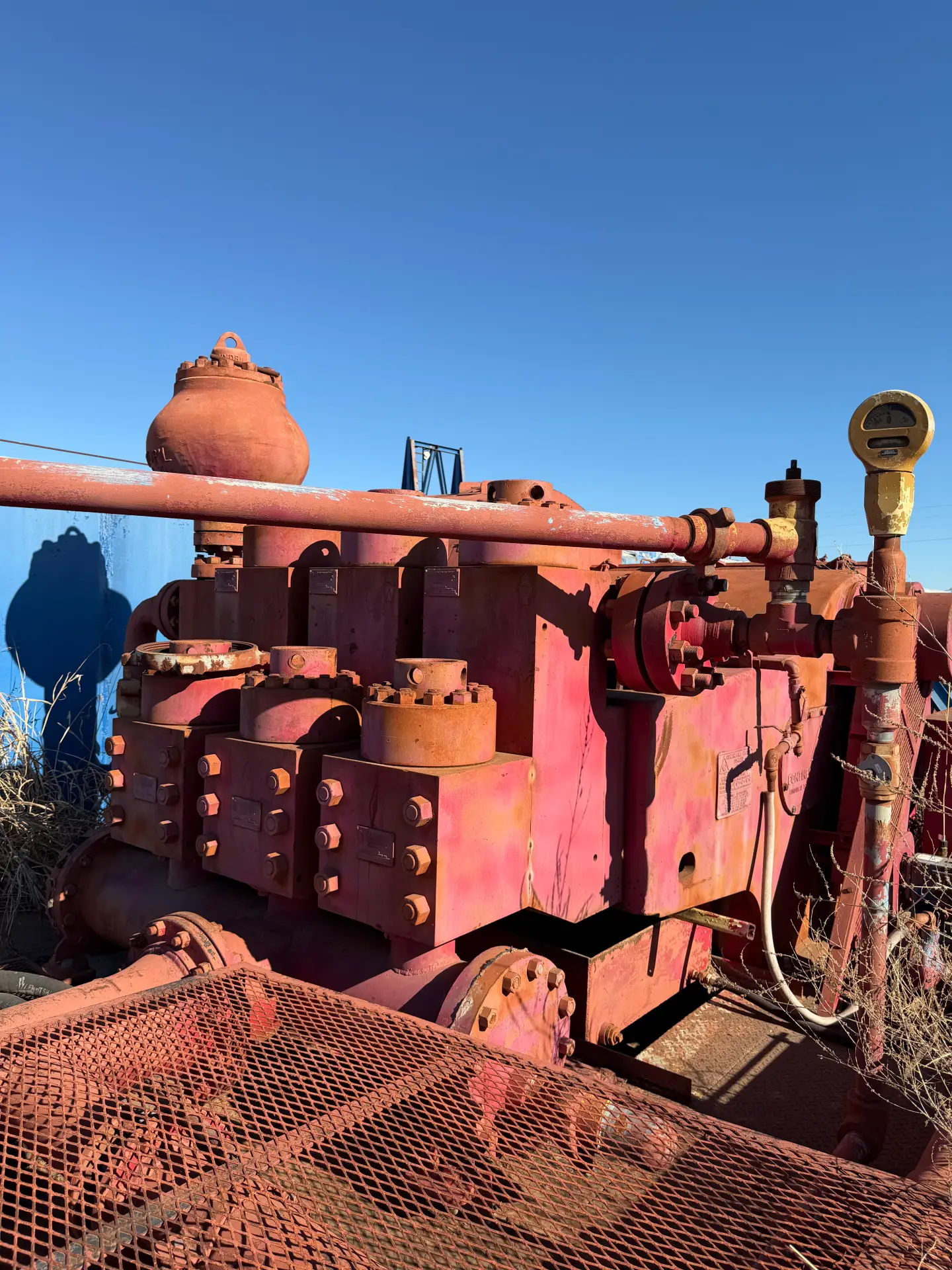

Triplex, single-acting drilling mud pump
Horsepower Class:
Rated for ~1,300 HP engine input
HP Capability: ~1300 HP (input from prime mover / gearbox)
Stroke: 12 in (standard for high-HP drilling pumps)
Pump Speed: Up to ~120 SPM (stroke per minute)
Crankcase: Heavy forged or cast steel design
Bearings: Tapered roller / heavy roller bearings
Lubrication:
Force-fed pressurized lubrication
Large oil sump for high duty
| Liner Size (in) | Approx Max Pressure (psi) | Approx Flow @ ~120 SPM (GPM) |
|---|---|---|
| 6.5 in | ~3,850–4,000 | ~700–740 |
| 7.0 in | ~3,500–3,750 | ~770–810 |
| 7.25 in | ~3,300–3,500 | ~820–860 |
| 7.5 in | ~3,100–3,300 | ~860–900 |
