Manufacturer: LeTourneau Technologies, Houston, Texas
Model: WH-1612
Input Horsepower Rating: 1600 HP
Maximum Speed: 120 SPM
Gear Ratio: 4.41 : 1

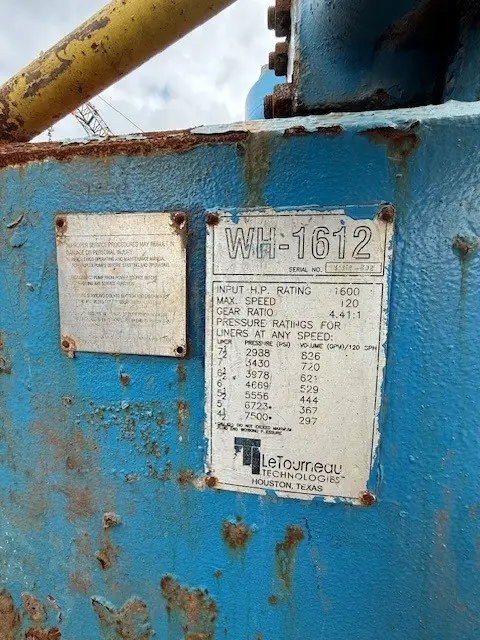

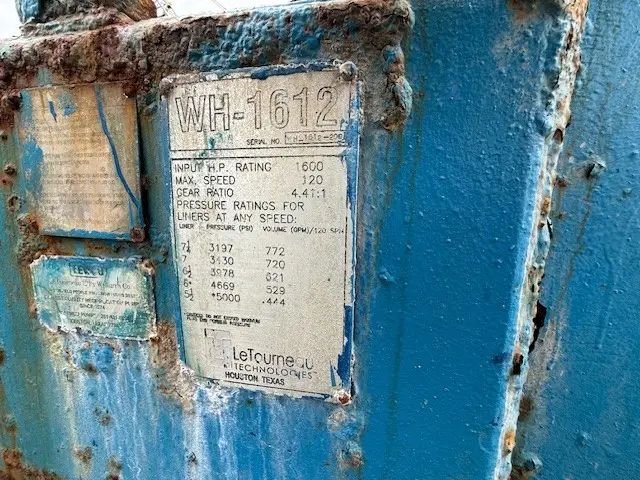

(from the plates, in psi and GPM at 120 strokes per minute)
| Liner Size (in) | Pressure (psi) | Volume (GPM @120 SPM) |
|---|---|---|
| 7" | 2,938 – 3,197 psi | 626 – 772 GPM |
| 6 ¾" | 3,430 psi | 720 GPM |
| 6 ½" | 3,978 psi | 621 GPM |
| 6" | 4,669 – 4,720 psi | 529 – 529 GPM |
| 5" | 6,720 psi | 367 GPM |
| 4 ½" | 7,500 psi | 297 GPM |

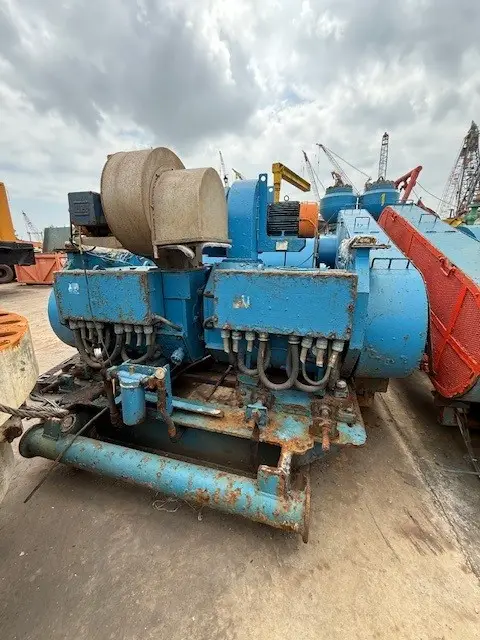

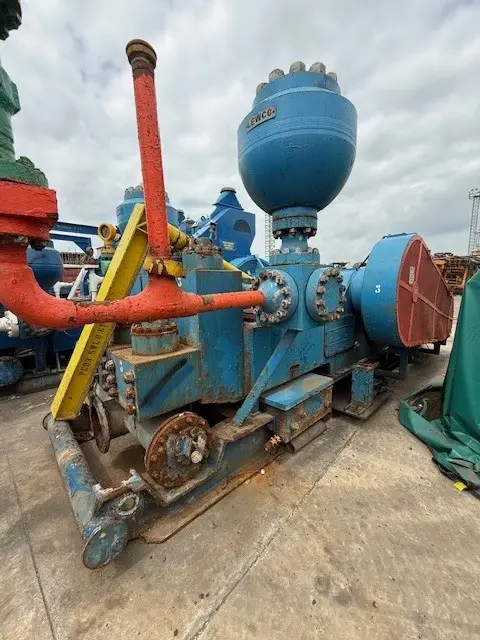

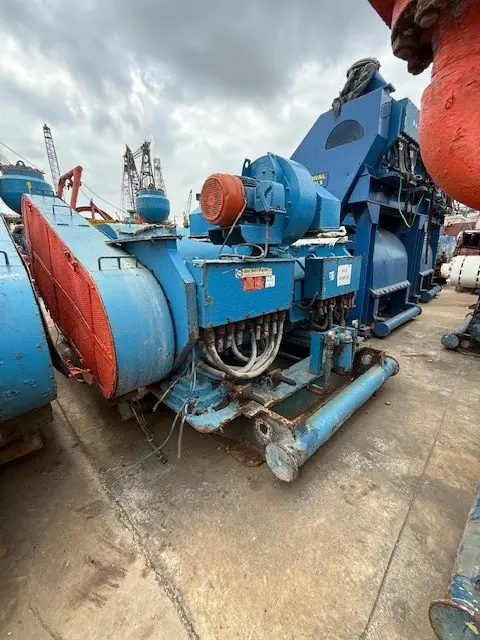

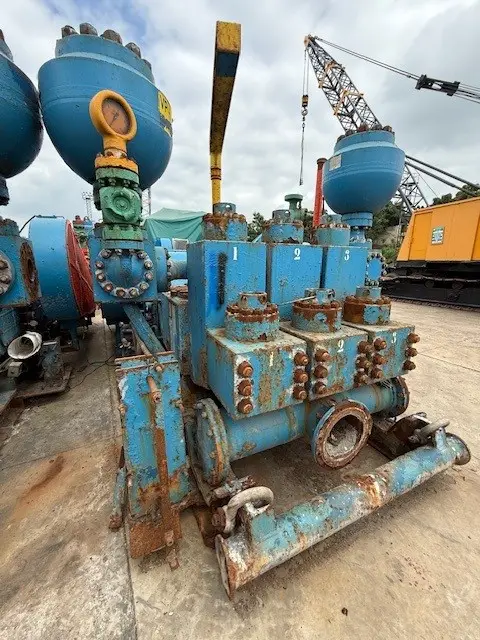

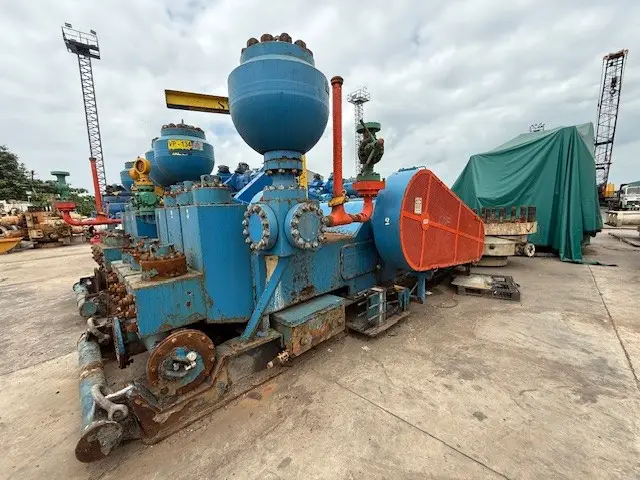

Type: Triplex Mud Pump
Rated Power: 1,600 HP continuous duty
Stroke Length: 12 in (hence “1612” = 1,600 HP, 12" stroke)
Discharge Pressure Range: Up to ~7,500 psi (depending on liner size)
Flow Capacity: ~300 – 770+ GPM at 120 SPM (depending on liner size)
