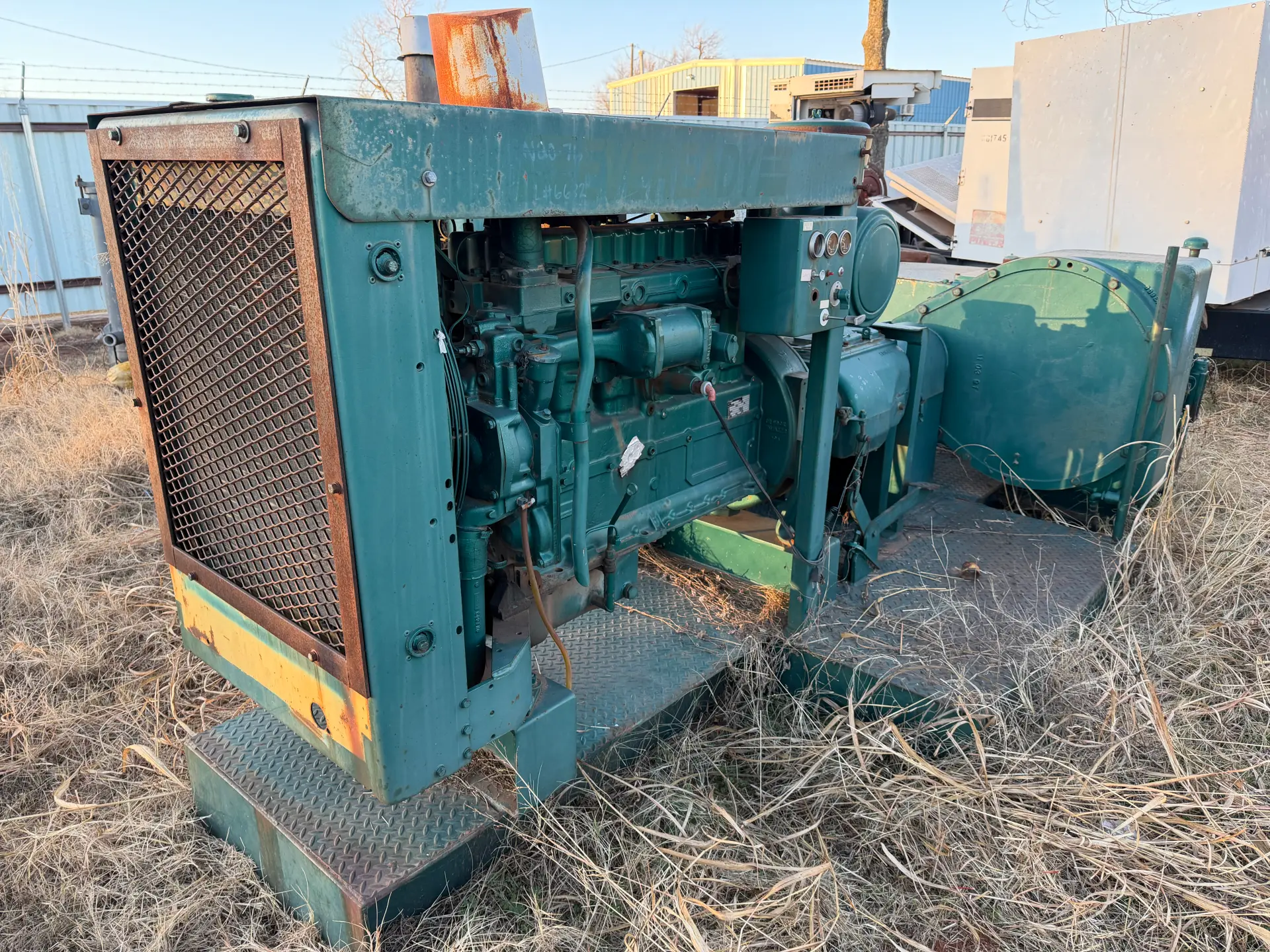

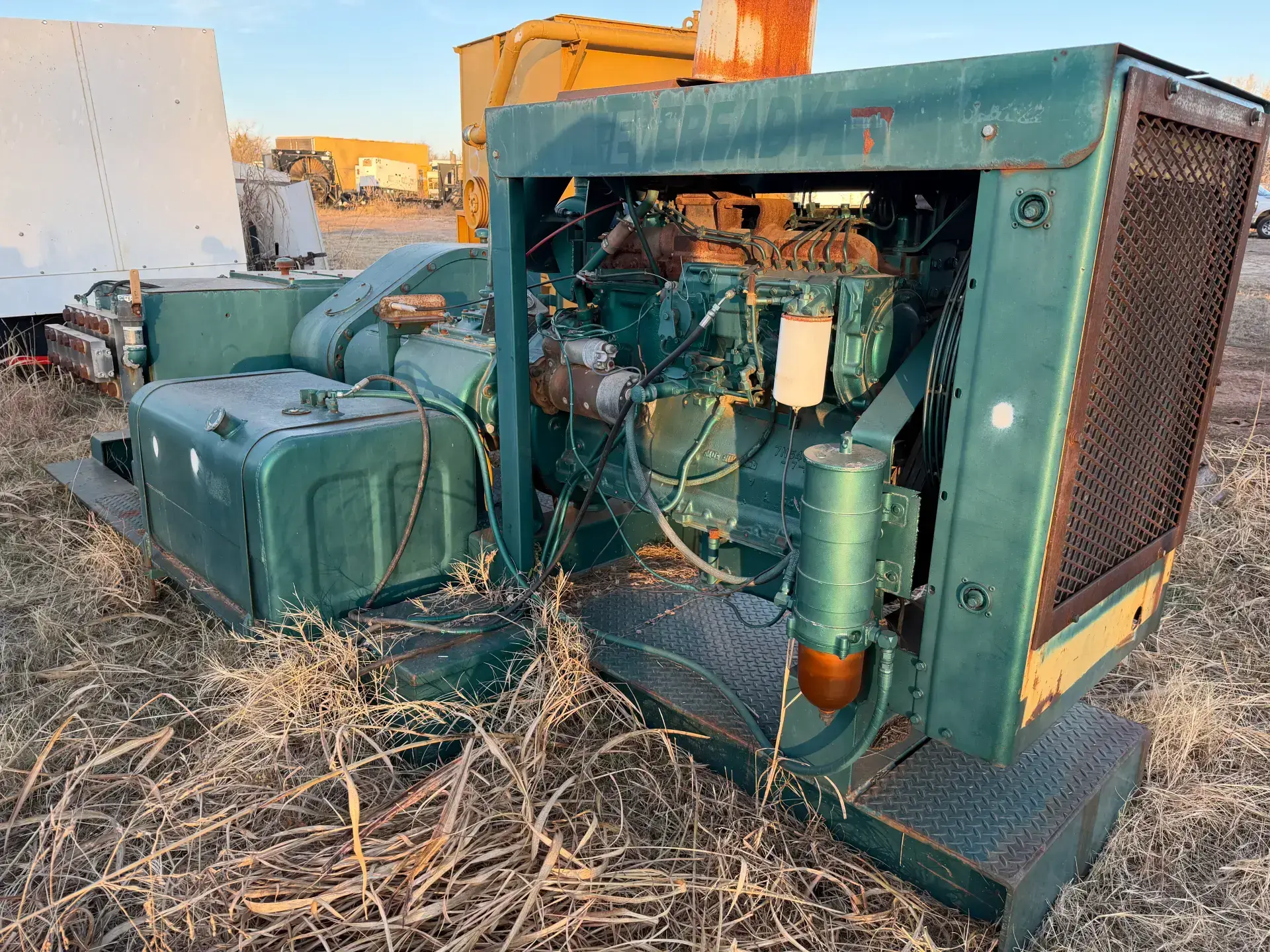

National J-200 Injection Pump Package

with Caterpillar Engine Driver

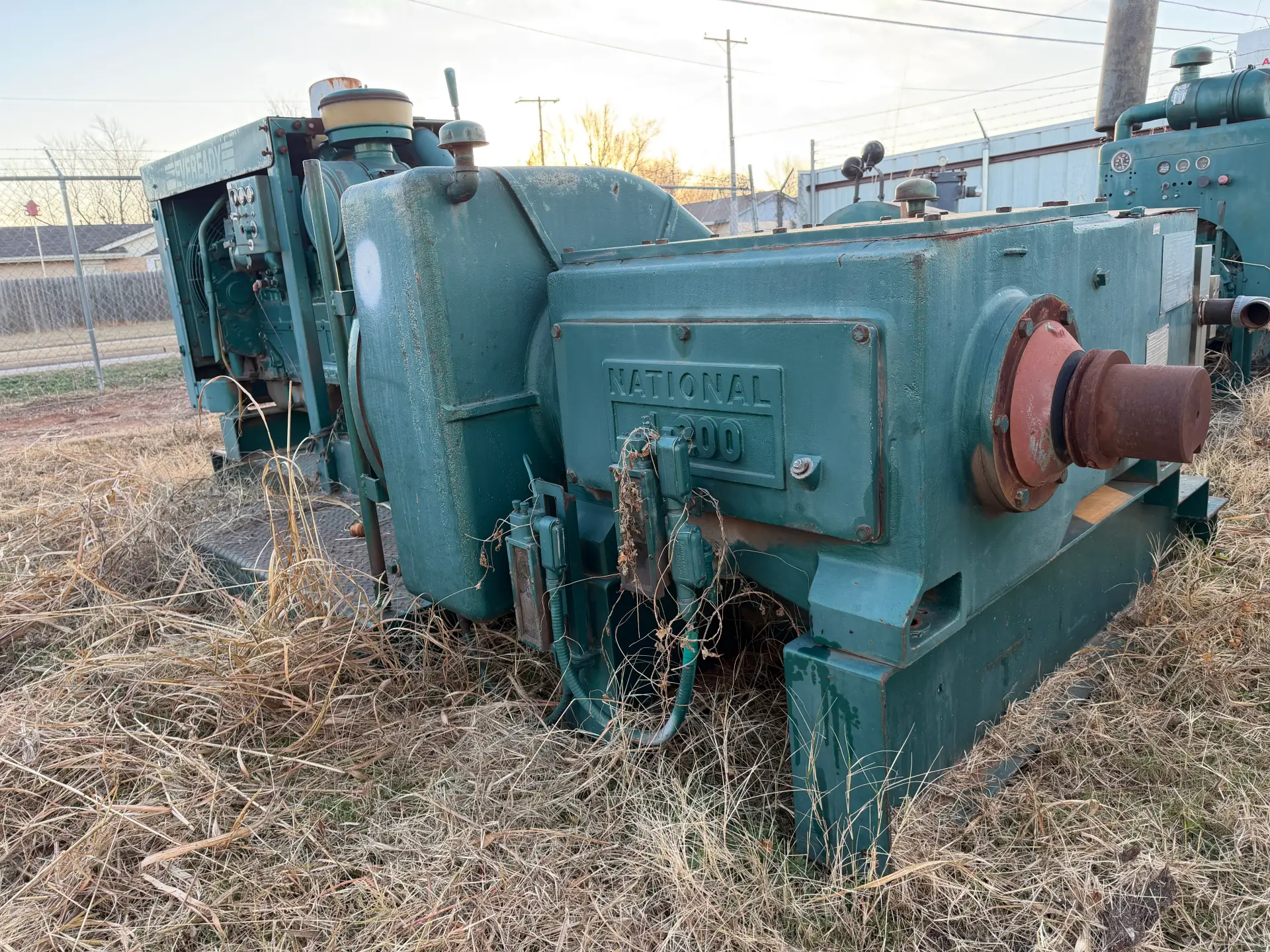

Pump Information (National / Gardner Denver)

General

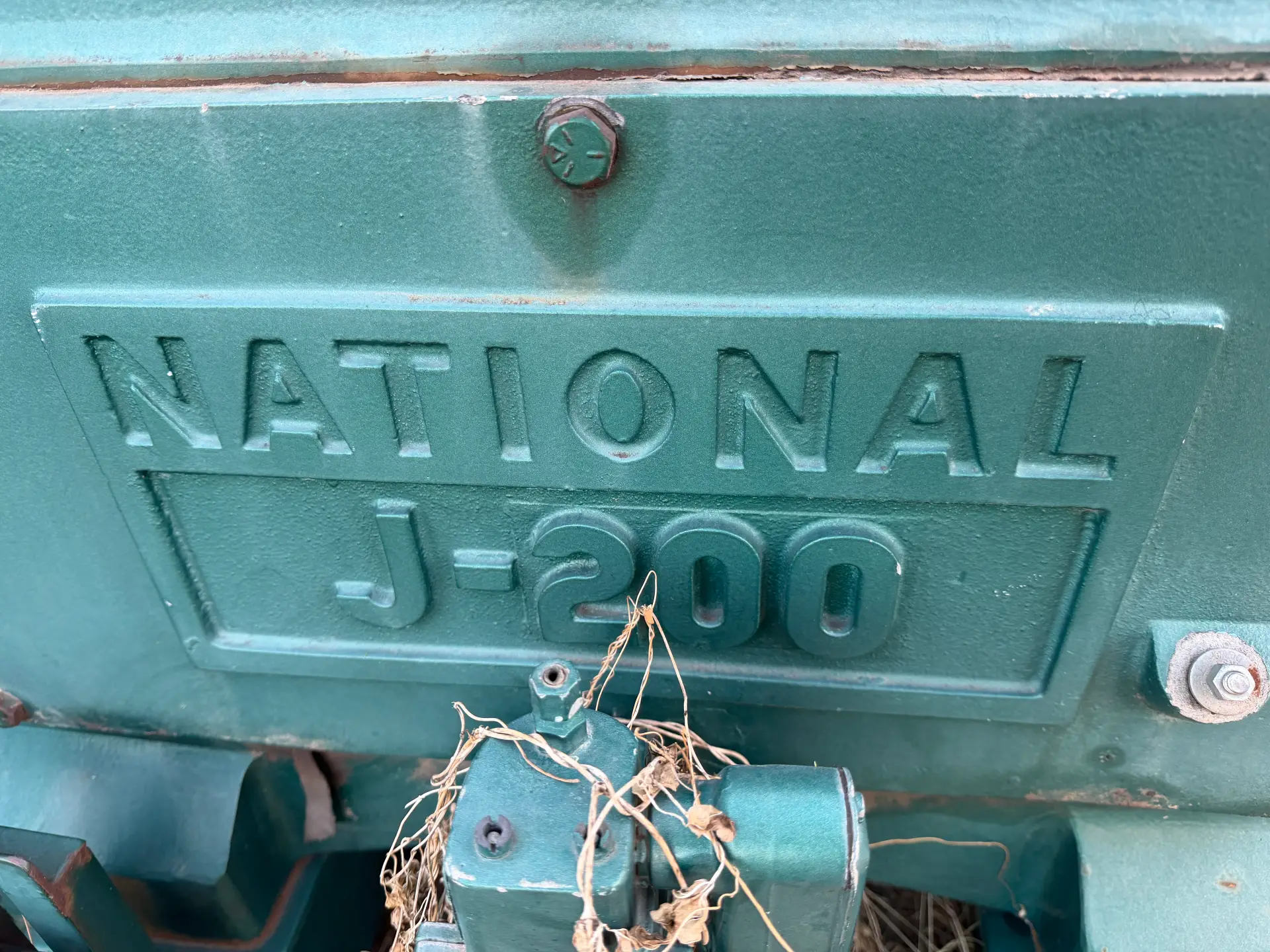

• Pump Model: National J-200

• Pump Type: Triplex reciprocating plunger pump

• Service: Injection / water / chemical service

• Duty: Continuous

Performance (Typical J-200 Range)

(Actual performance depends on plunger size & RPM)

• Maximum Pressure: up to 5,000 psi

• Flow Range: approximately 10 – 200 GPM

• Stroke Length: 5.0 in

• Speed Range: typically 150 – 300 RPM

• Rod Load Rating: ~8,000–9,000 lb (varies by configuration)

Construction

• Fluid End: Forged steel

• Plungers: Tungsten carbide

• Packing: Chevron or V-type (application dependent)

• Lubrication: Splash / pressure lube power end

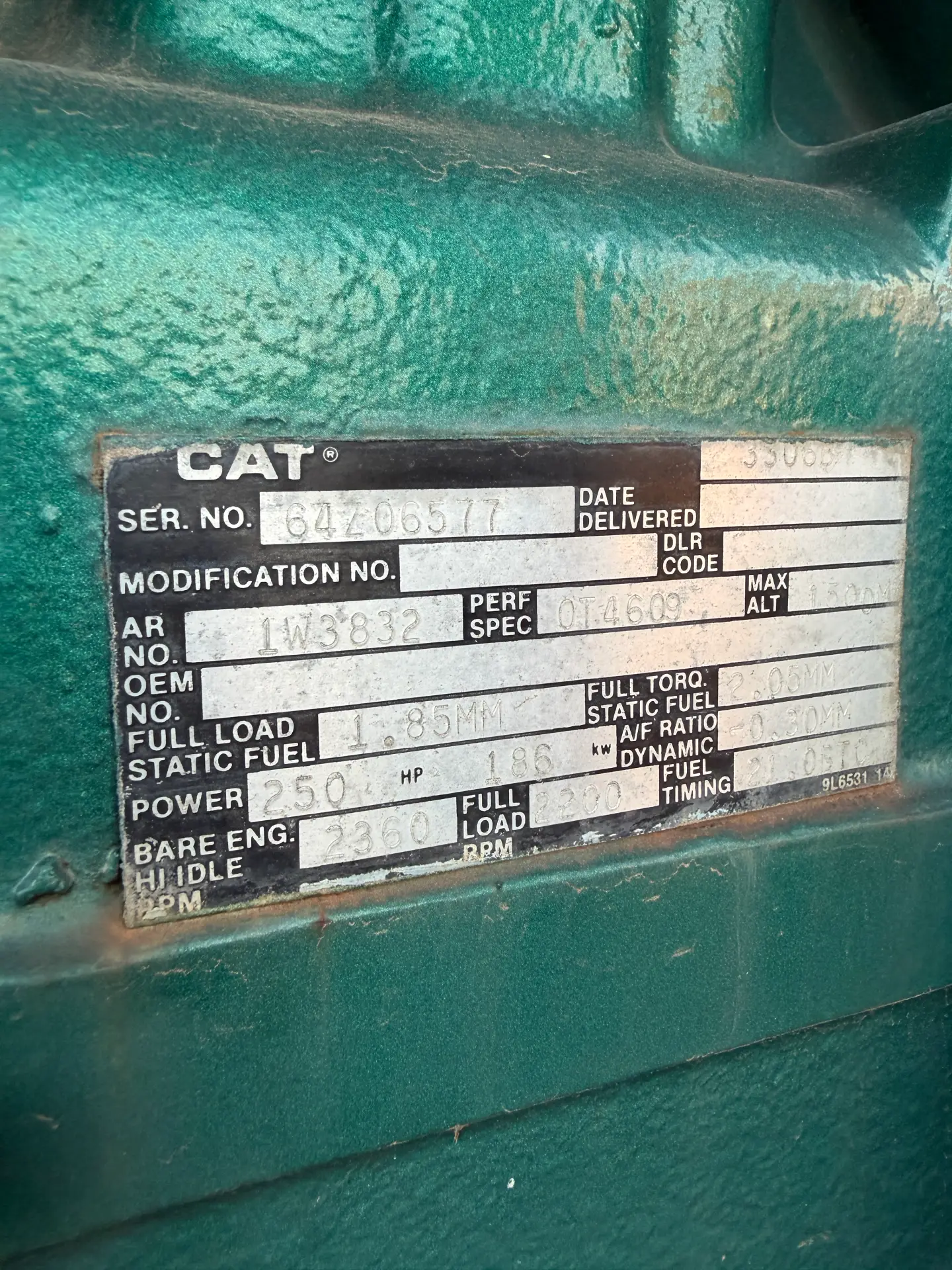

Engine Information (from Nameplate)

Manufacturer

• Engine Make: Caterpillar (CAT)

Identification

• Serial Number: 64Z06577

• Arrangement No.: 1W3832

• Performance Spec: 0T4609

Power Rating

• Rated Power: 250 HP (186 kW)

• Rated Speed (Full Load): 2000 RPM

• High Idle Speed: 2360 RPM
