NOV AC ideal rig 1500 HP Mast and Subtraction

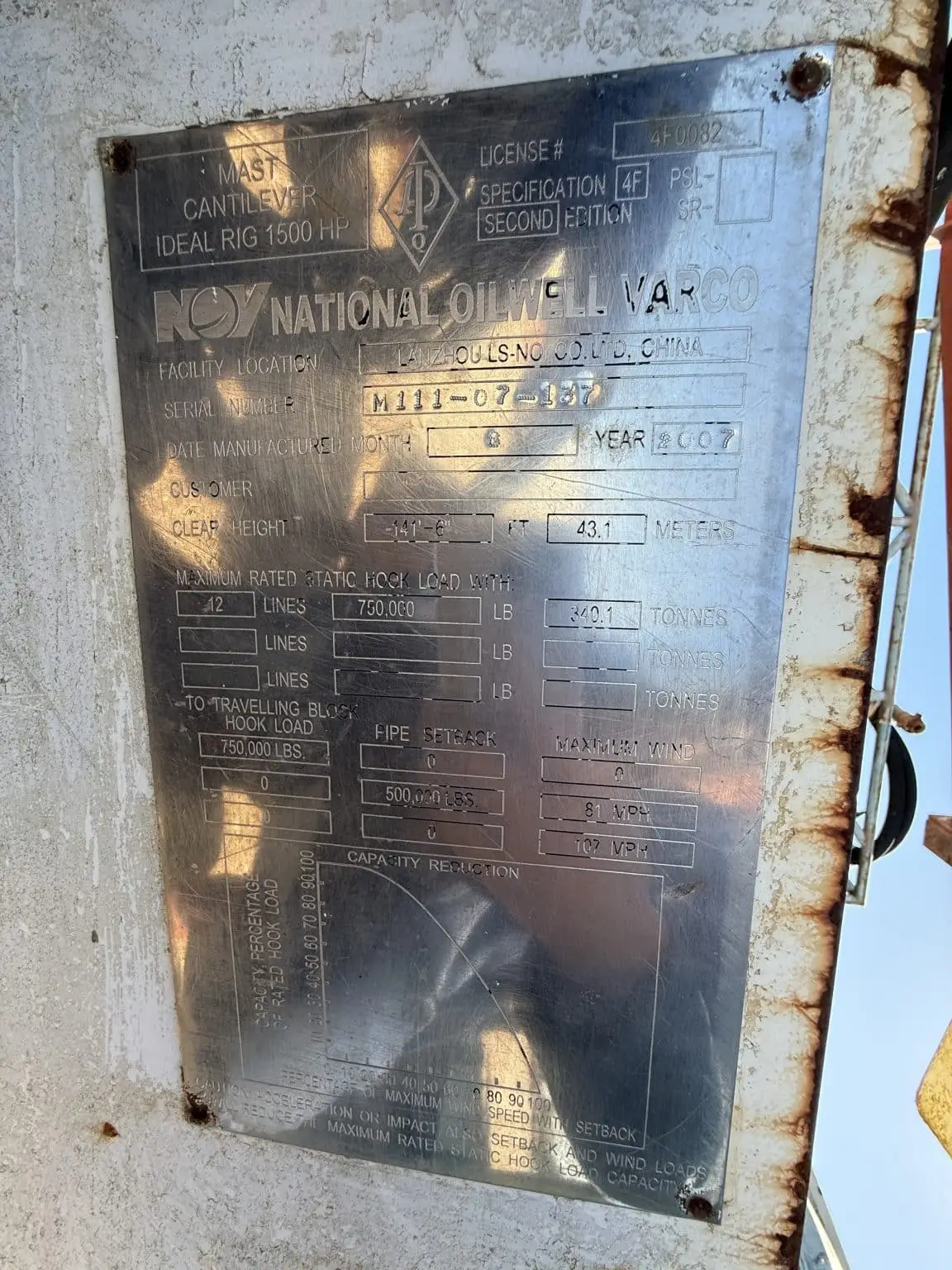

Mast Specifications:

• Type: Cantilever Mast​
• Height: 142 feet (43.2 meters)​
• Static Hook Load Capacity: 750,000 lbs (340.2 metric tons)​
• Racking Capacity: Approximately 19,300 feet of drill pipe

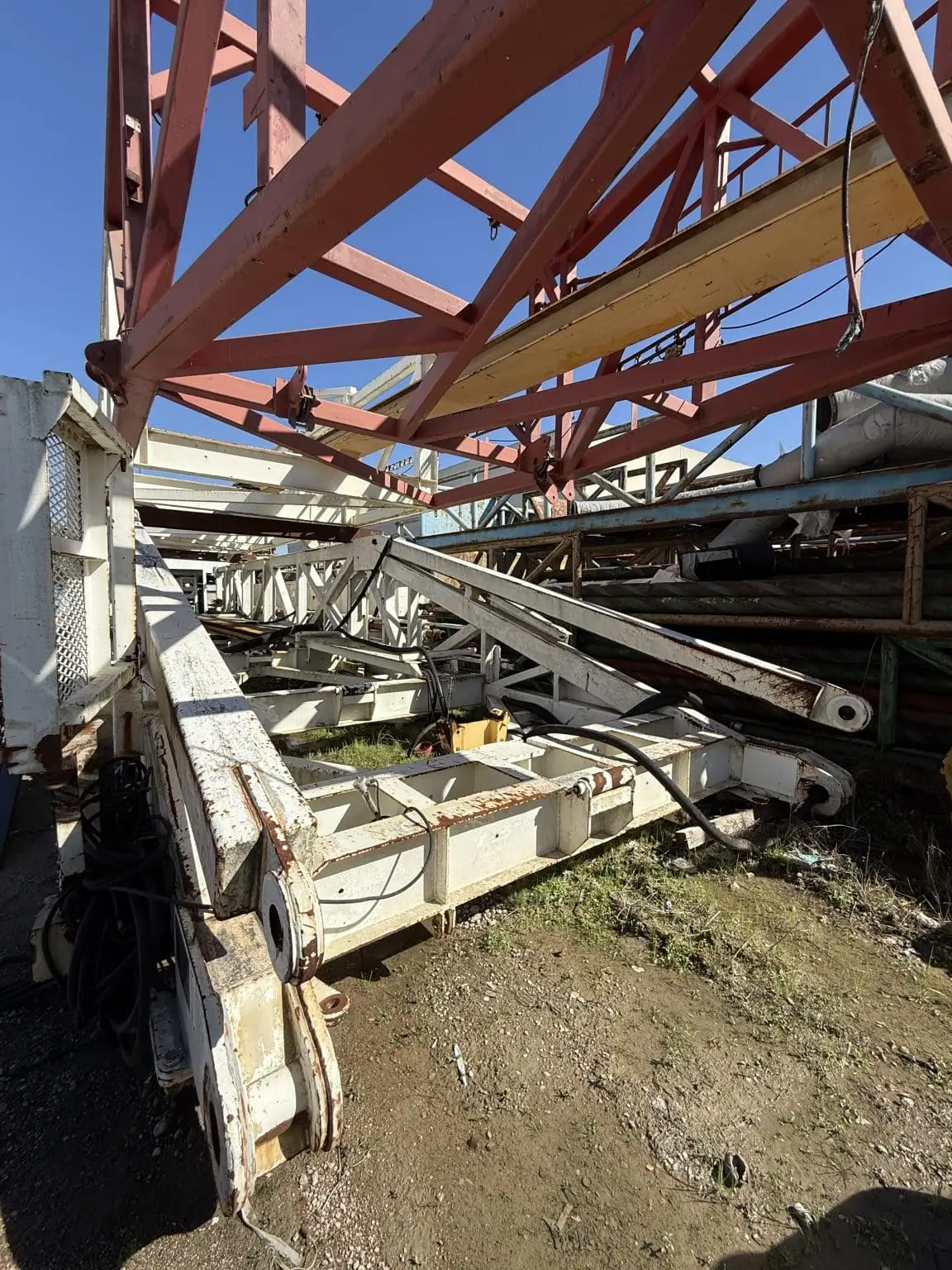

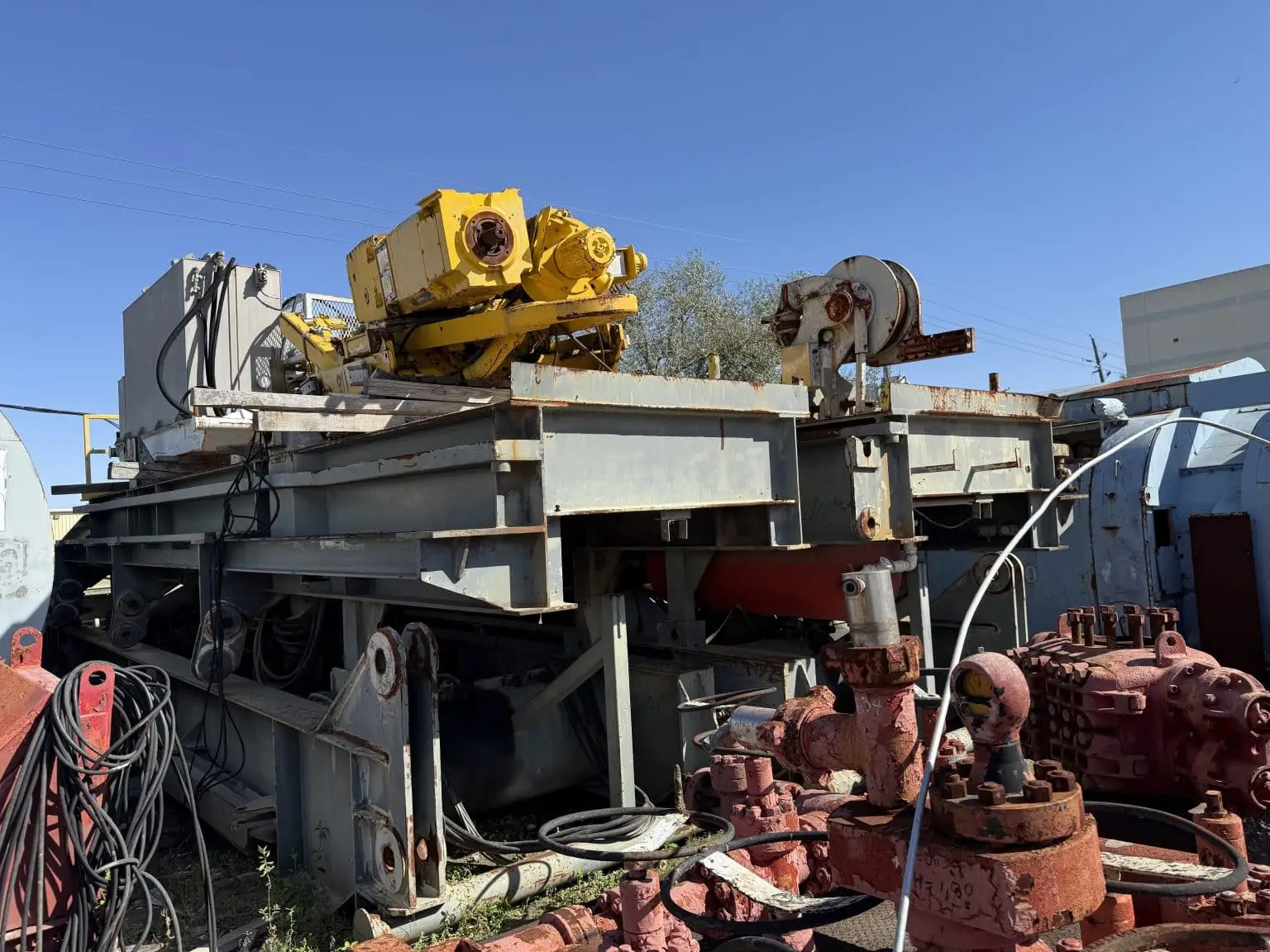

Substructure Specifications:

• Type: Parallelogram, hydraulically raised
• Height: 25 feet (7.62 meters)​
• Rotary Capacity: 750,000 lbs (340.2 metric tons)​
• Setback Capacity: 500,000 lbs (226.8 metric tons)​
• Clearance: 23.3 feet (7.1 meters) from ground to rotary beam​
