| Parameter | Value |
|---|---|

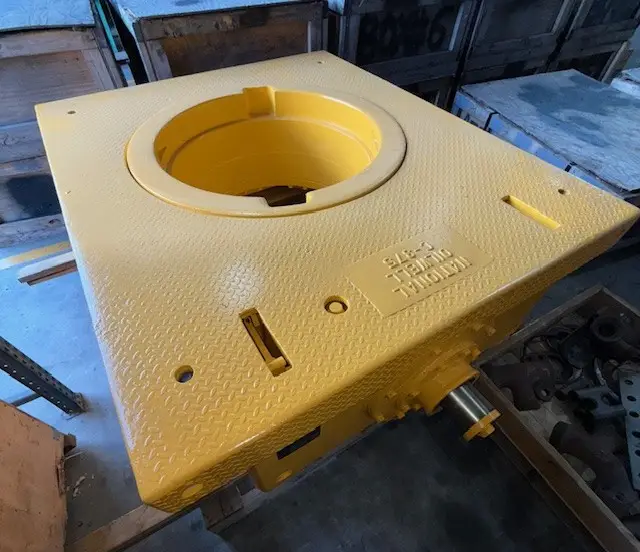

| Table Opening Diameter | 37-1/2 in (≈ 953 mm) |
| Static Load Capacity | 650 tons |
| Gear Ratio | 3.60 |
| Oil Reservoir Capacity | 7 US gallons (≈ 26.5 L) |
| Overall Length | 95-3/4 in (≈ 2,432 mm) |
| Overall Width | 70-3/4 in (≈ 1,797 mm) |
| Height (Overall) | 28 in (≈ 711 mm) |
| Width Over Skids | 56-3/4 in (≈ 1,441 mm) |
| Net Weight (including master bushing, less sprocket) | ~ 14,600 lb (≈ 6,622 kg) |
