NOV TDS-11 Top Drive

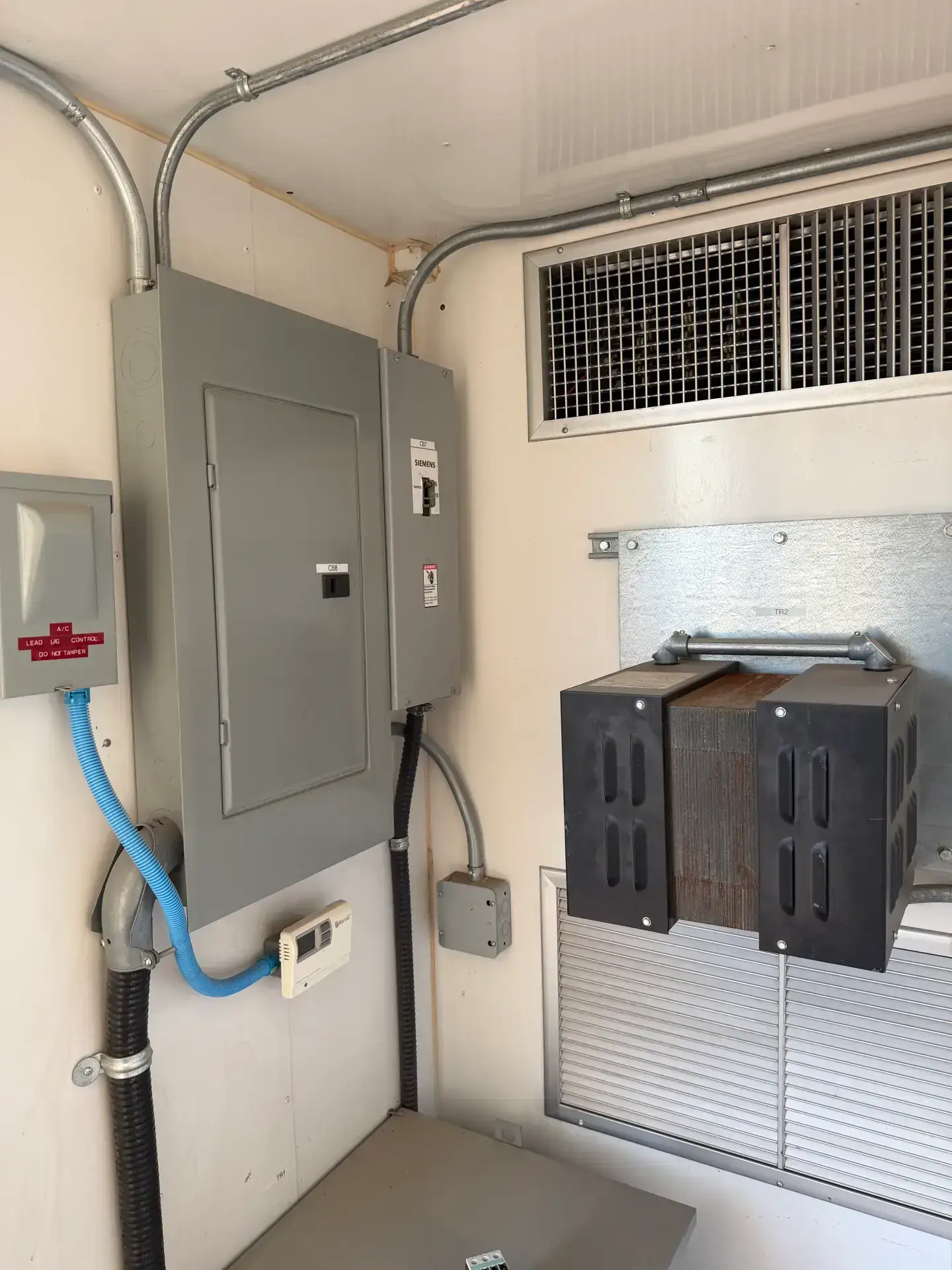

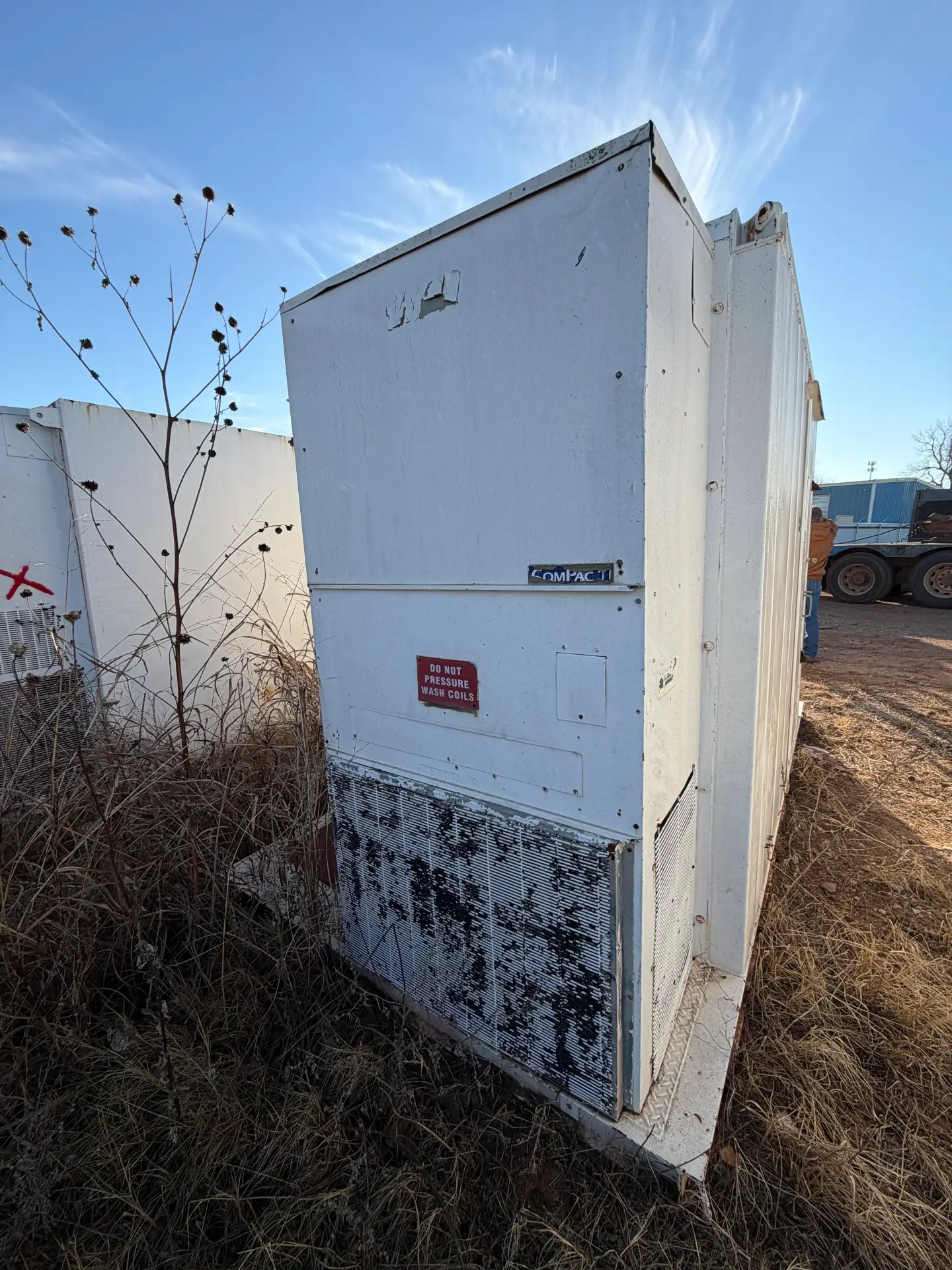

Siemens House Configuration

General

• Manufacturer: NOV (National Oilwell Varco)

• Model: TDS-11

• Equipment Type: Electric top drive system

• Service: Drilling operations

• Duty: Continuous drilling service

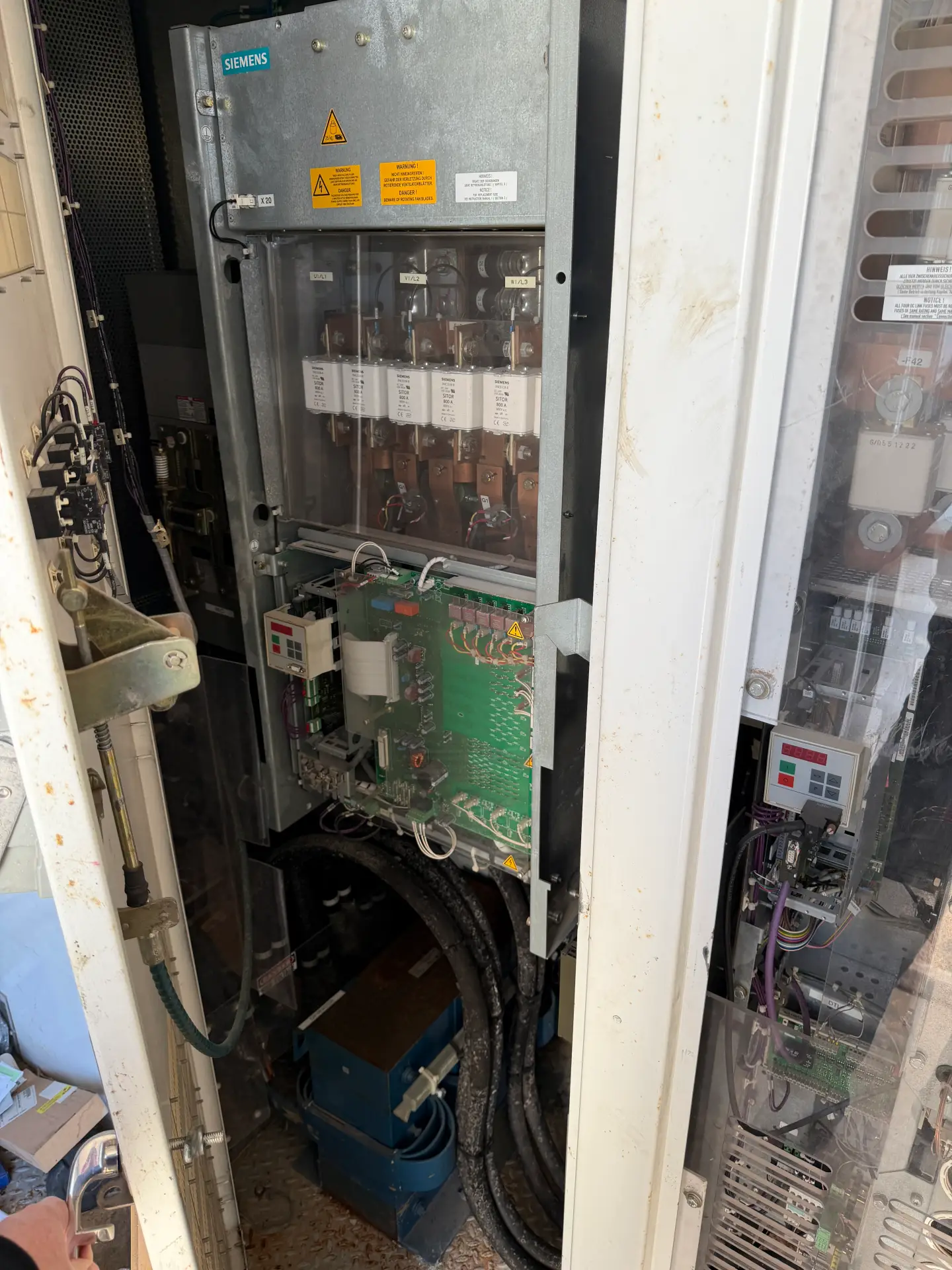

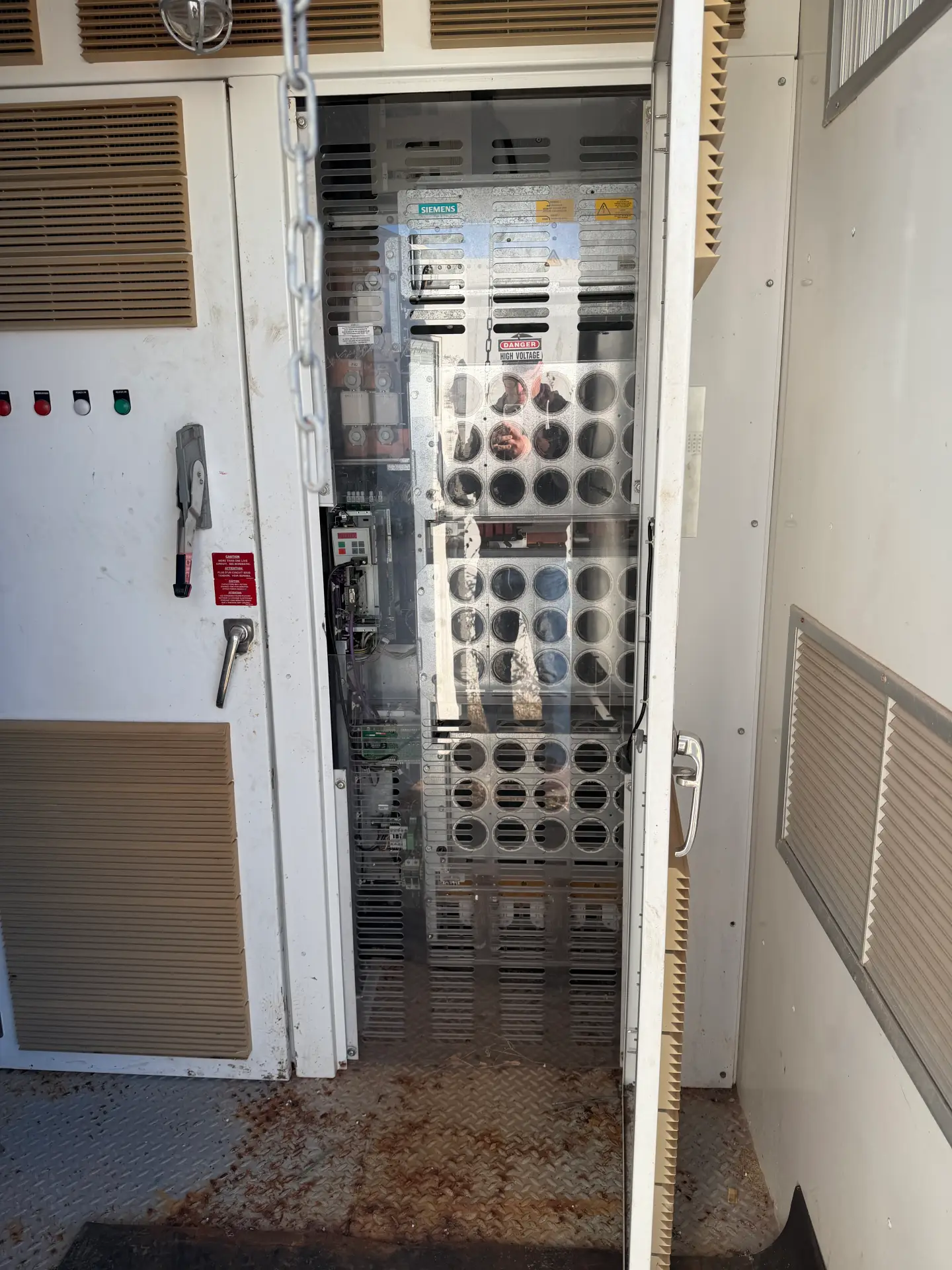

• Control House: Siemens (SCR / VFD house)

Performance

• Rated Continuous Torque: ~40,000 ft-lb

• Maximum Torque: ~46,000 ft-lb

• Maximum Speed: ~180 RPM

• Hook Load Rating: 500 tons (1,000,000 lb)

• Maximum Makeup / Breakout Torque: ~50,000 ft-lb

Drive System

• Motor Type: AC electric drilling motor

• Motor Power: ~1,150 HP (860 kW)

• Power Supply: 600 VAC (typical)

• Control System: Siemens VFD / SCR house

• Cooling: Forced air cooling

Mechanical

• Gearbox Type: Planetary reduction gearbox

• Main Shaft: Hollow bore, high-strength alloy steel

• Tilt Angle: ±10° (typical)

• Pipe Handling: Compatible with IBOP systems
