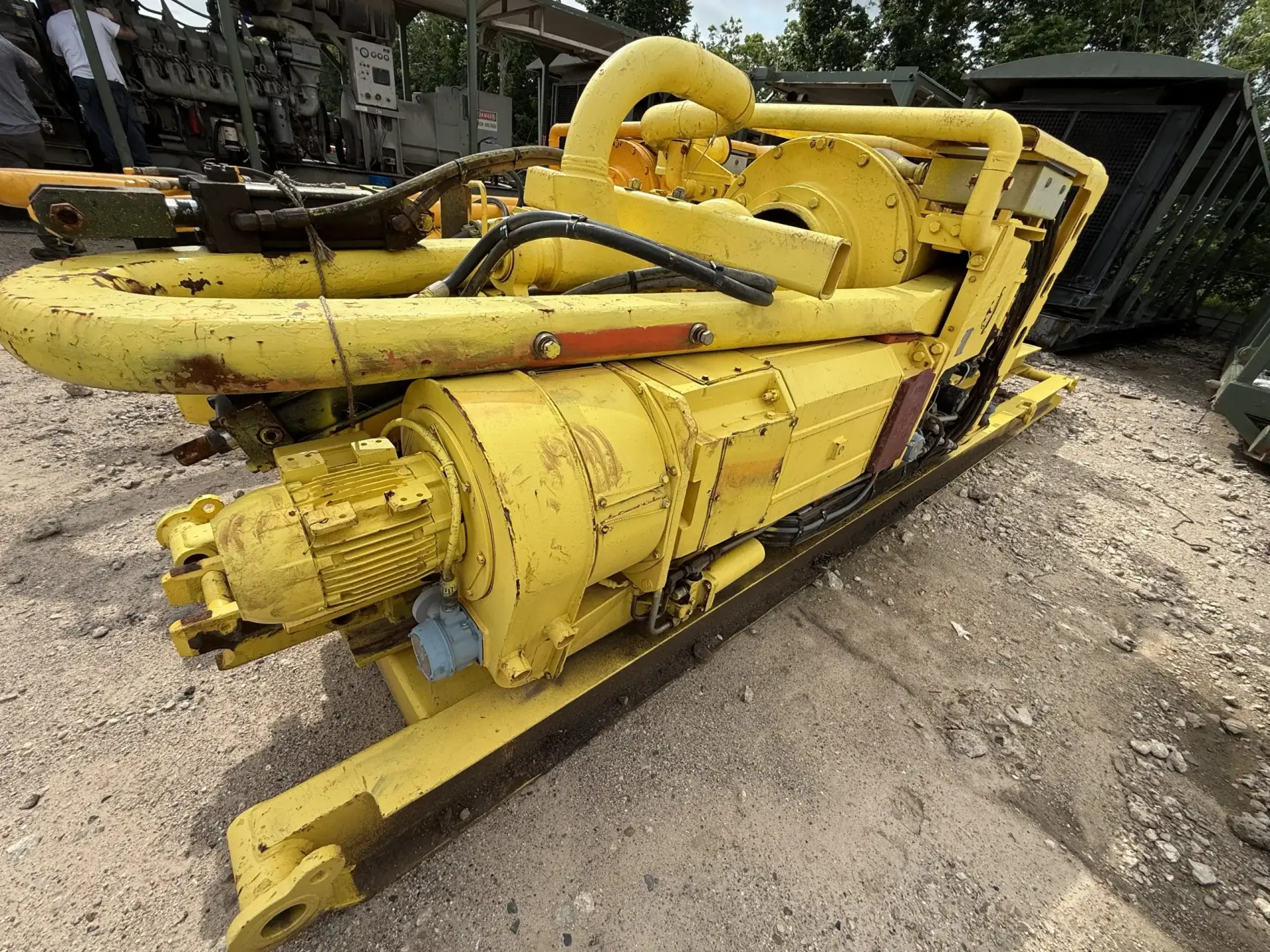

Hoisting Capacity: 500 tons (API 8C rated)
Drilling Motors: Two AC induction motors, each rated at 350 or 400 HP, totaling 700–800 HP
Continuous Drilling Torque: Up to 37,500 ft-lb at 110 RPM
Make-up/Break-out Torque: Up to 55,000 ft-lb
Maximum Speed: 228 RPM
Gear Ratio: 10.5:1 double reduction helical gear drive
Wash Pipe Pressure Rating: 7,500 psi
Weight: Approximately 35,000 lbs (15,875 kg)
Working Height: 19 ft 4 in (21 ft 8 in with 120" bail)
Pipe Handler: PH-50 or PH-75, accommodating tool joint ODs from 4" to 8.5"
Additional Features: Hydraulic disc brakes, powered rotating head, bail, counterbalance with stand jump, and a quiet gear drive
