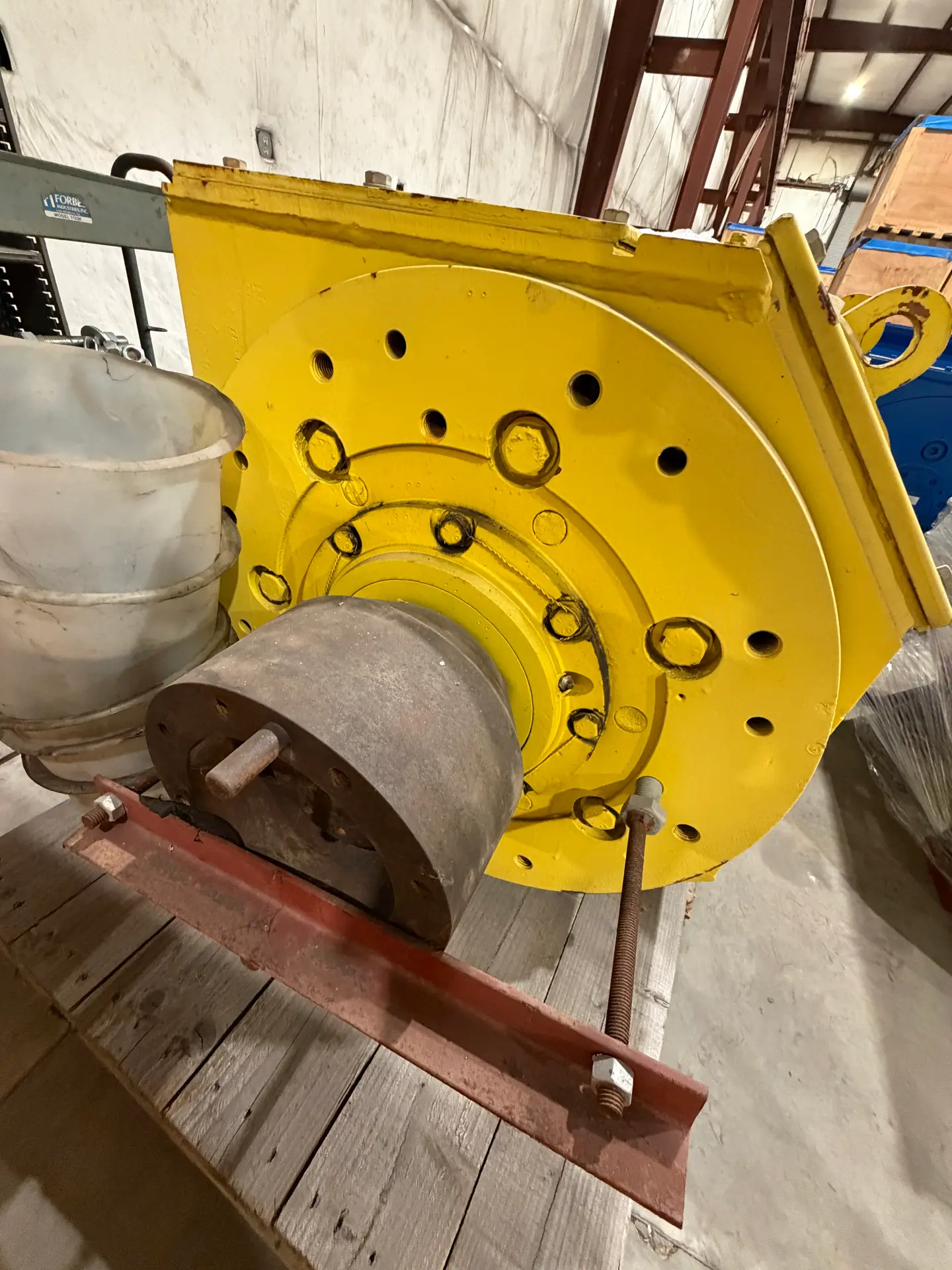

GEB752 Shunt Wound Traction Motor for Top Drive

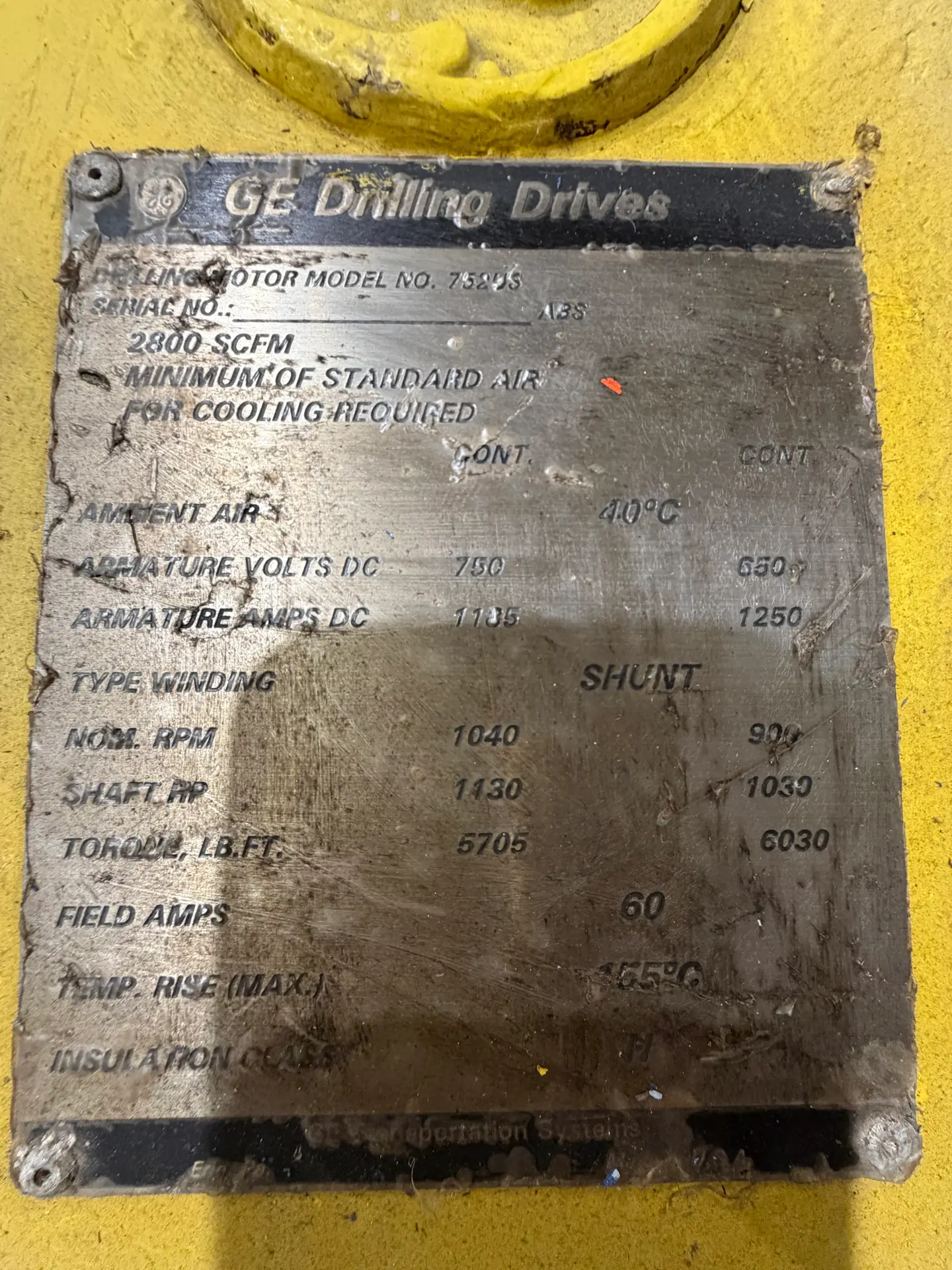

Type: Series or Shunt Wound DC Motor

Power Output: ~1,150 HP continuous, up to 1,300 HP intermittent

Voltage Rating: 750 VDC

Armature Current: ~1,150 A continuous

Speed: ~1,150 RPM base speed (with constant torque below base, constant HP above base)

Torque: ~6,000 lb-ft continuous, up to 7,000+ lb-ft intermittent

Cooling: Force ventilated (blower ~10 HP, hazardous-duty type)

Weight: ~7,200 lbs (≈ 3,265 kg)

Insulation: Class H

Frame: Standard GE 752 heavy-duty traction frame (same as Joliet, Ideal, etc.)
