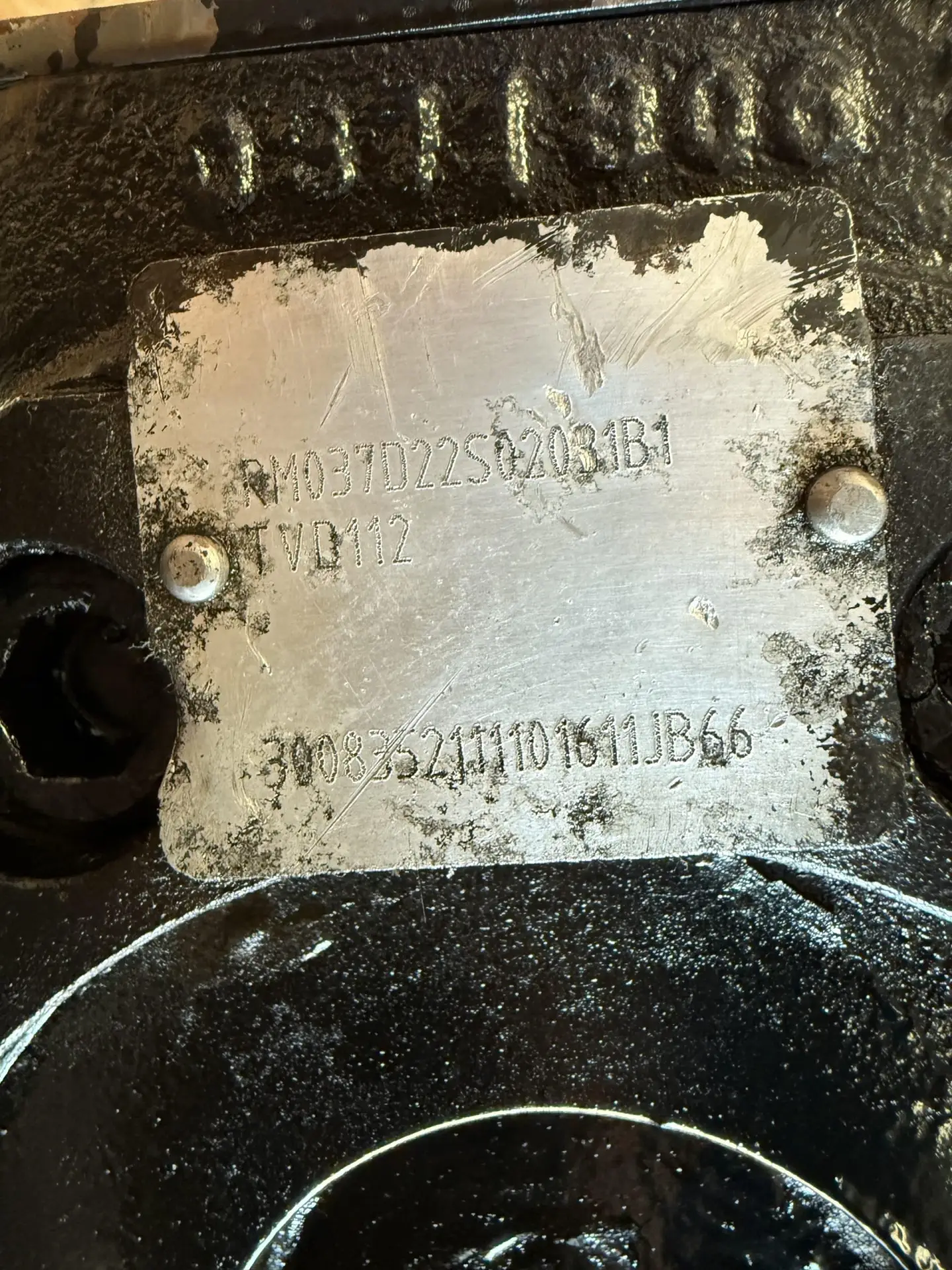

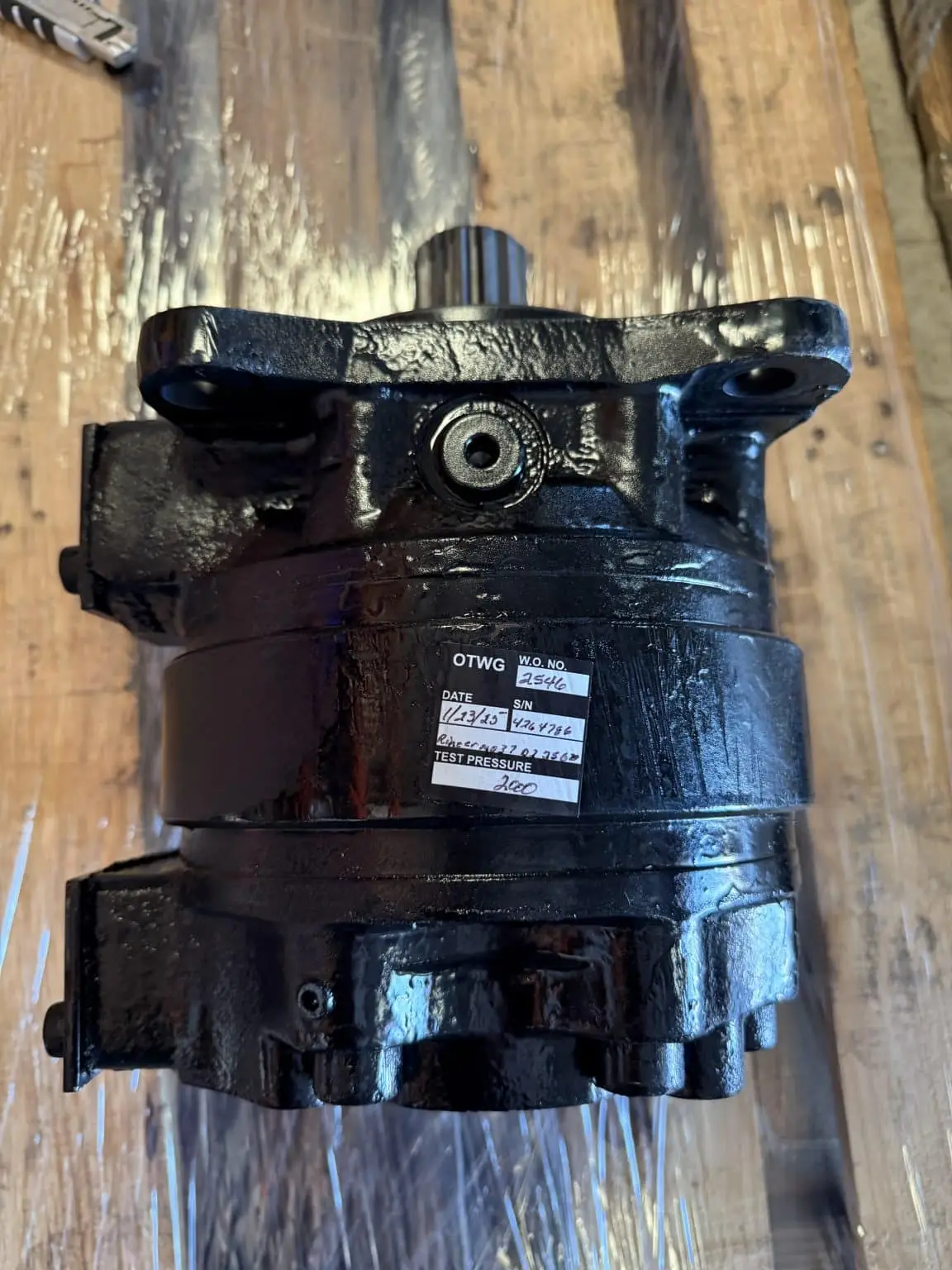

Rineer Bosh Rexroth Vane Motor MV037-D2-2S-020-31-B1-TVD-112

Key Specifications:

• Displacement: 20 in³/rev (328 cm³/rev)
• Pressure Ratings:
  • Continuous: 4,500 psi (310 bar)
  • Intermittent: 5,000 psi (345 bar)
• Speed Ratings:
  • Continuous: 1,000 RPM
  • Intermittent: 1,200 RPM
• Torque at 4,500 psi: Approximately 1,104 lb-ft (1,497 Nm)
• Mounting Configuration: SAE D Flange
• Shaft Type: 1-1/2 inch keyed shaft
• Porting: SAE O-ring ports
• Seal Material: Viton (FKM)
