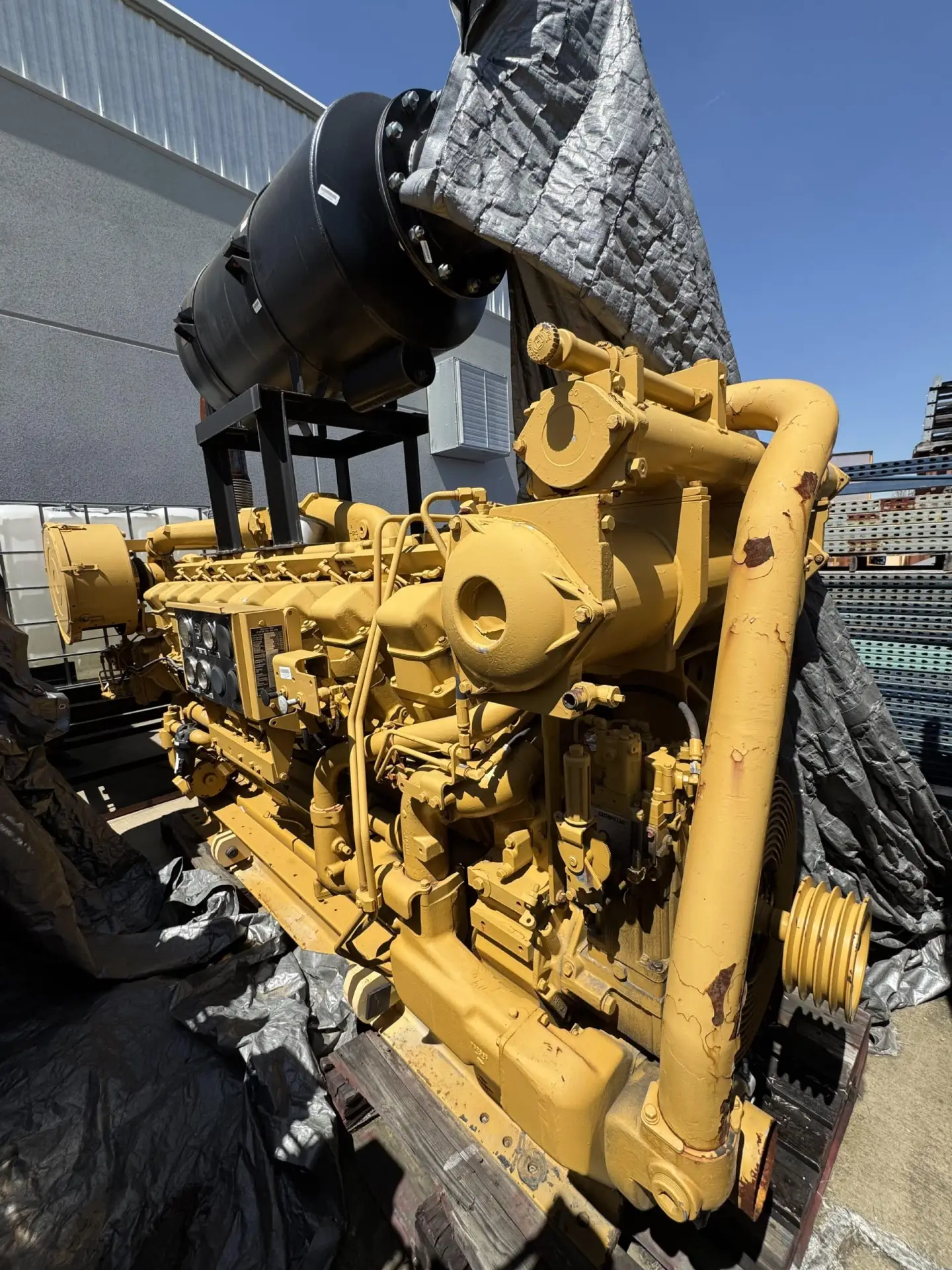

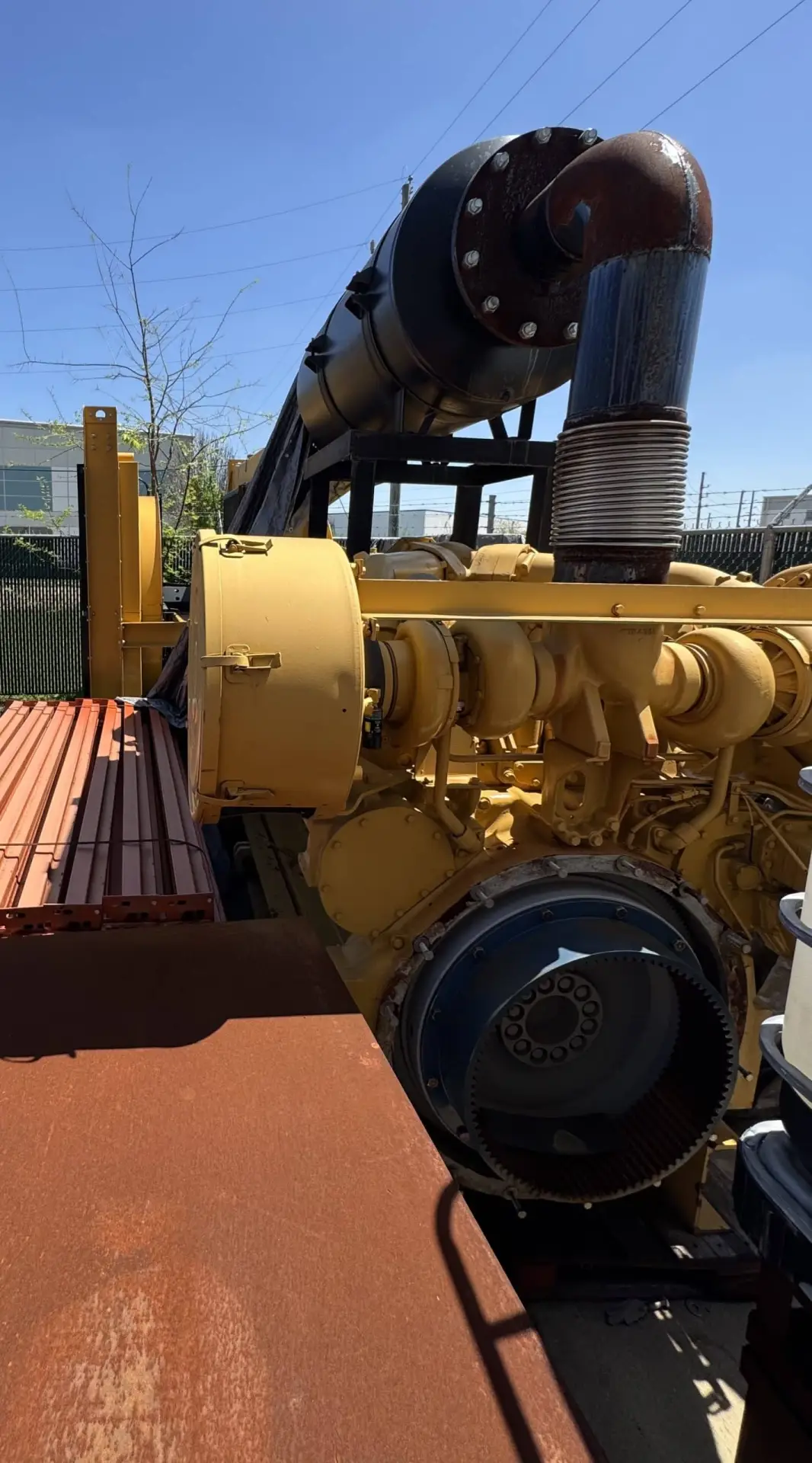

Rebuilt CAT 3516 with Radiator

Engine Overview

• Model: CAT 3516

• Type: V-16, 4-stroke-cycle diesel

• Displacement: ~69 L (4,210 in³)

• Power Range: 1,500–2,500+ hp depending on variant and rating

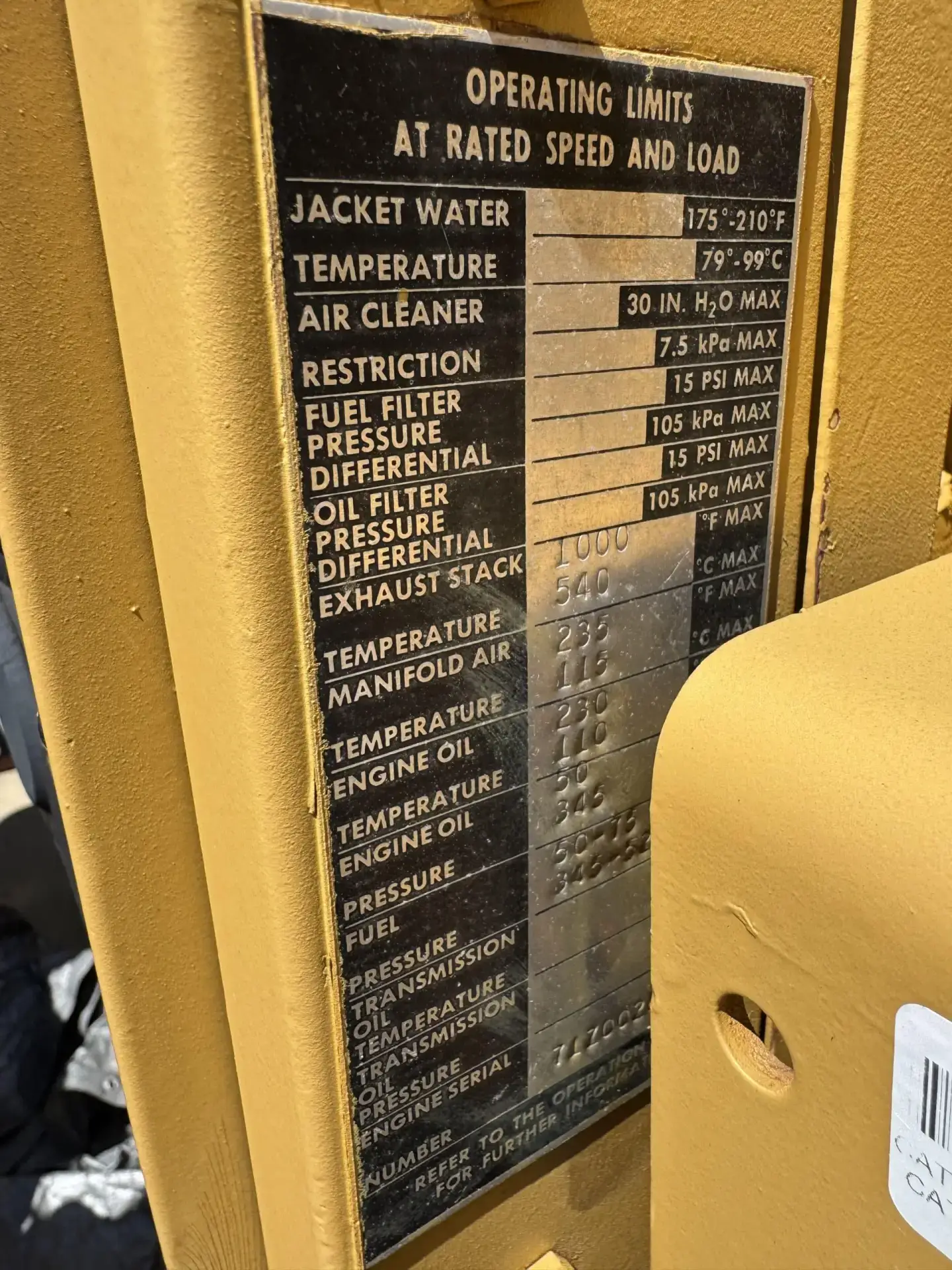

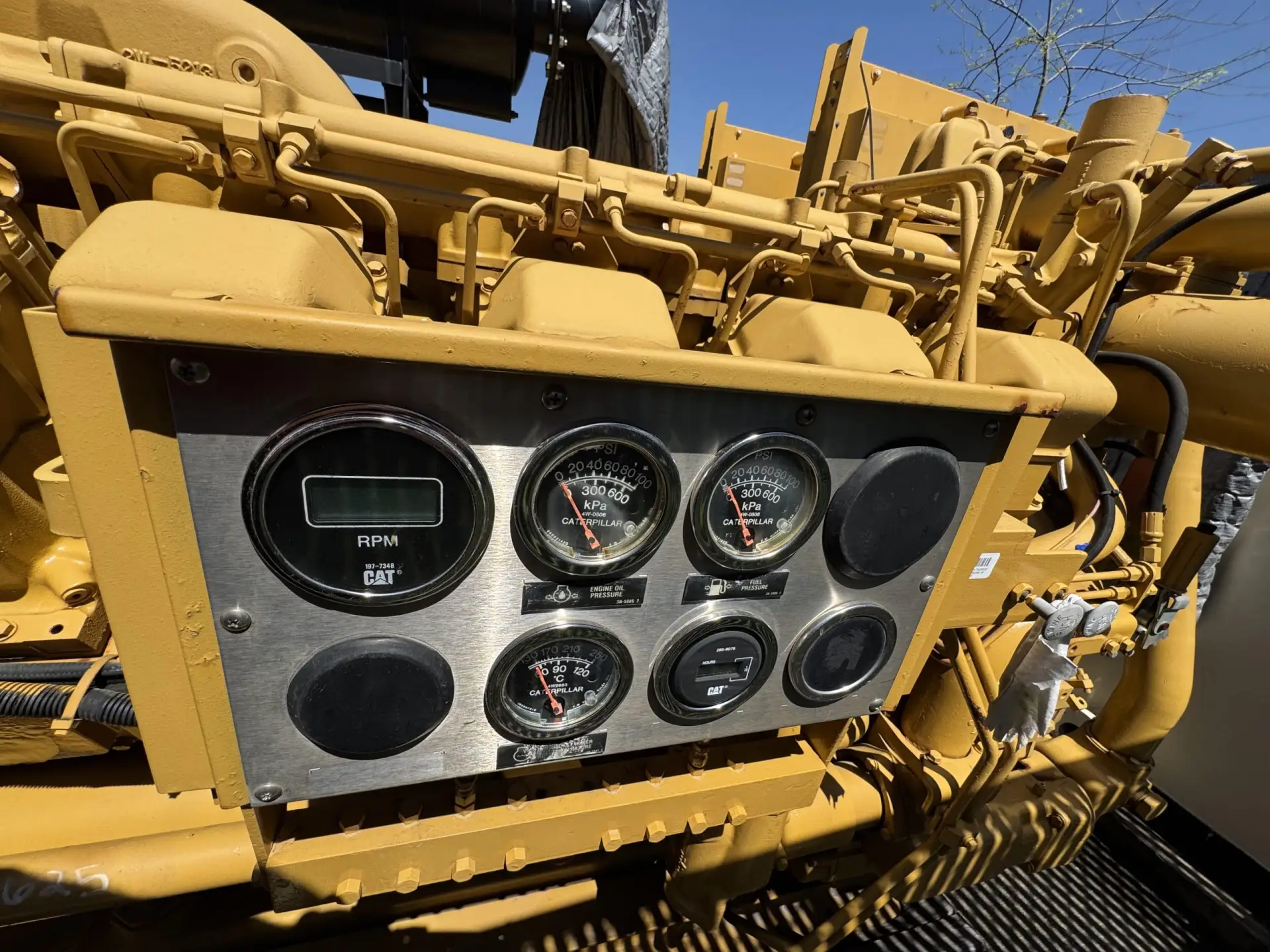

CAT 3516 – Operating Limits at Rated Speed and Load

• Jacket Water Temperature:
  175° – 210°F (79° – 99°C)

• Air Cleaner Restriction:
  30 in. H₂O Max (7.5 kPa Max)

• Fuel Filter Pressure Differential:
  15 PSI Max (105 kPa Max)

• Oil Filter Pressure Differential:
  15 PSI Max (105 kPa Max)

• Exhaust Stack Temperature:
  1000°F (540°C Max)

• Manifold Air Temperature:
  225°F (107°C Max)

• Engine Oil Temperature (Low Limit):
  230°F (110°C Min)

• Engine Oil Temperature (High Limit):
  250°F (121°C Max)

• Fuel Pressure:
  30 – 50 PSI (205 – 345 kPa)

• Transmission Oil Pressure:
  50 – 70 PSI (345 – 480 kPa)

• Transmission Oil Temperature:
  200°F Max (93°C Max)
