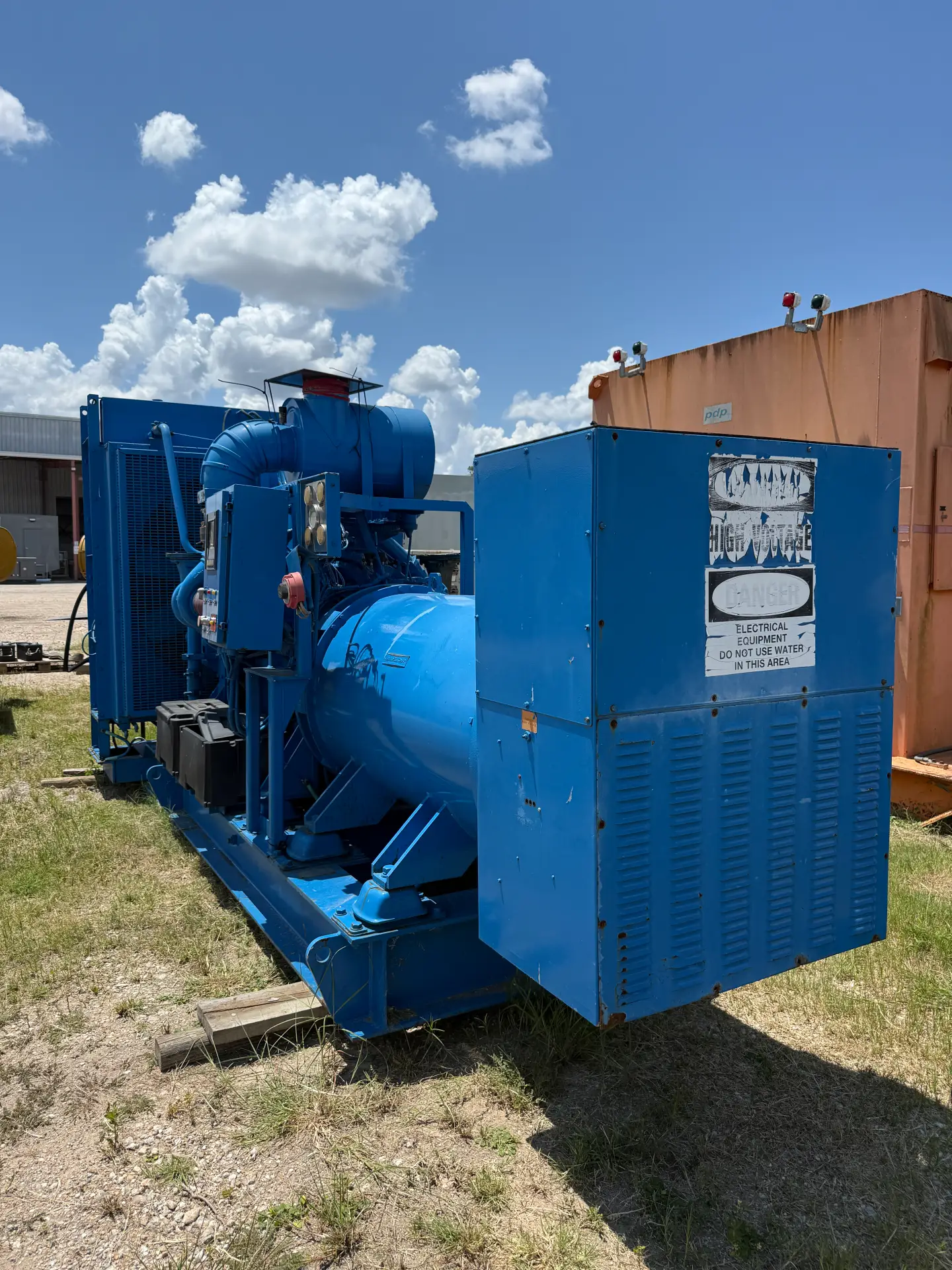

MTU – Synchronous Generator Model: S4570LU597A LOW HOURS

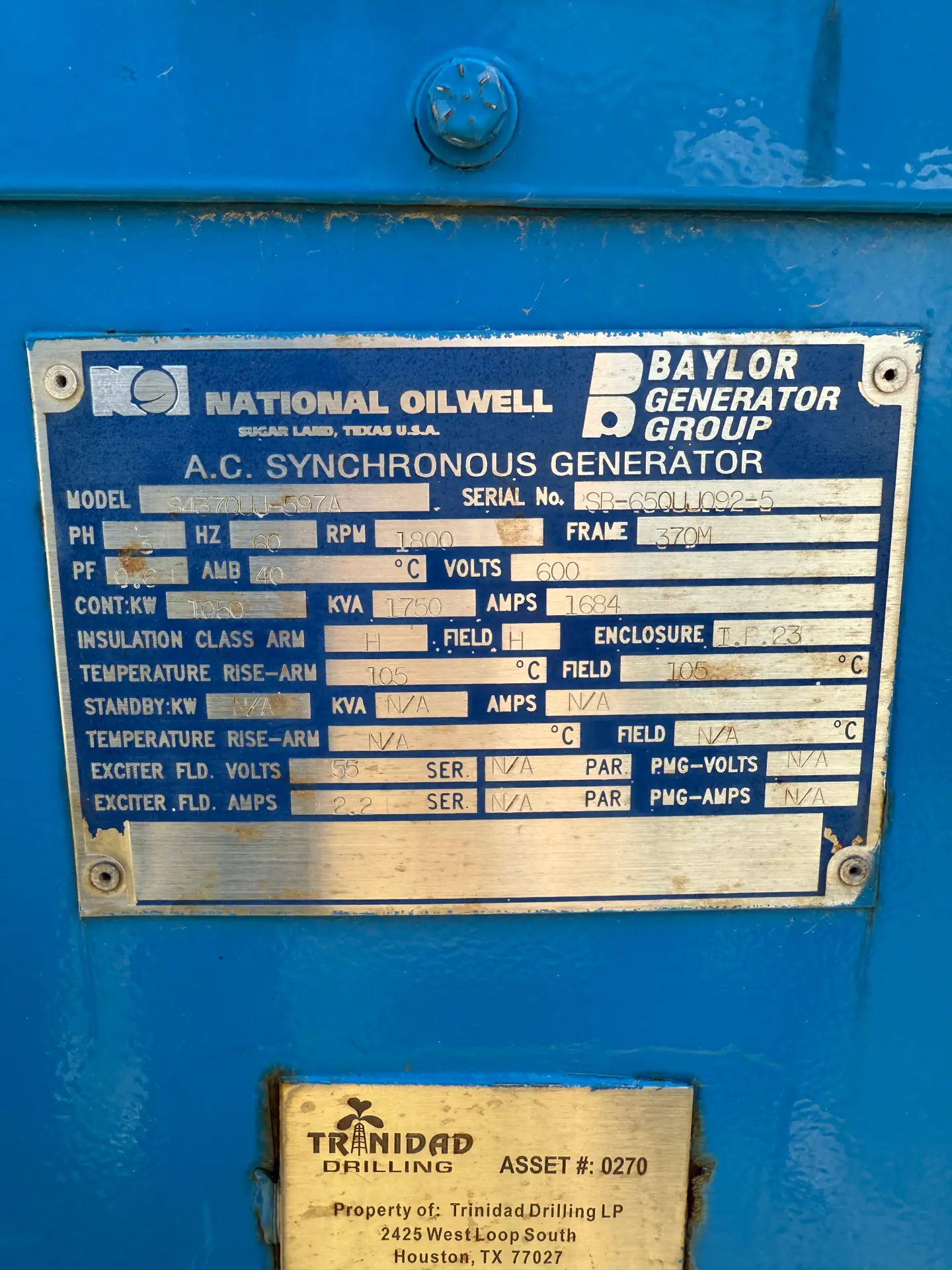

National Oilwell – Baylor Generator Group
A.C. Synchronous Generator

• Model: S4570LU597A

• Serial No.: SB-650LUJ092-5

• Phase: 3

• Frequency: 60 Hz

• RPM: 1800

• Frame: 370M

• Power Factor: 0.8

• Ambient Temp Rating: 40 °C

• Voltage: 600 V

• Continuous kW: 1400 kW

• Continuous kVA: 1750 kVA

• Continuous Amps: 1684 A

• Insulation Class: ARM F, Field F

• Temperature Rise – ARM: 105 °C

• Temperature Rise – Field: 105 °C

• Exciter Field Volts: 55 V

• Exciter Field Amps: 2.2 A

• Enclosure: TEAO (Totally Enclosed Air Over)
