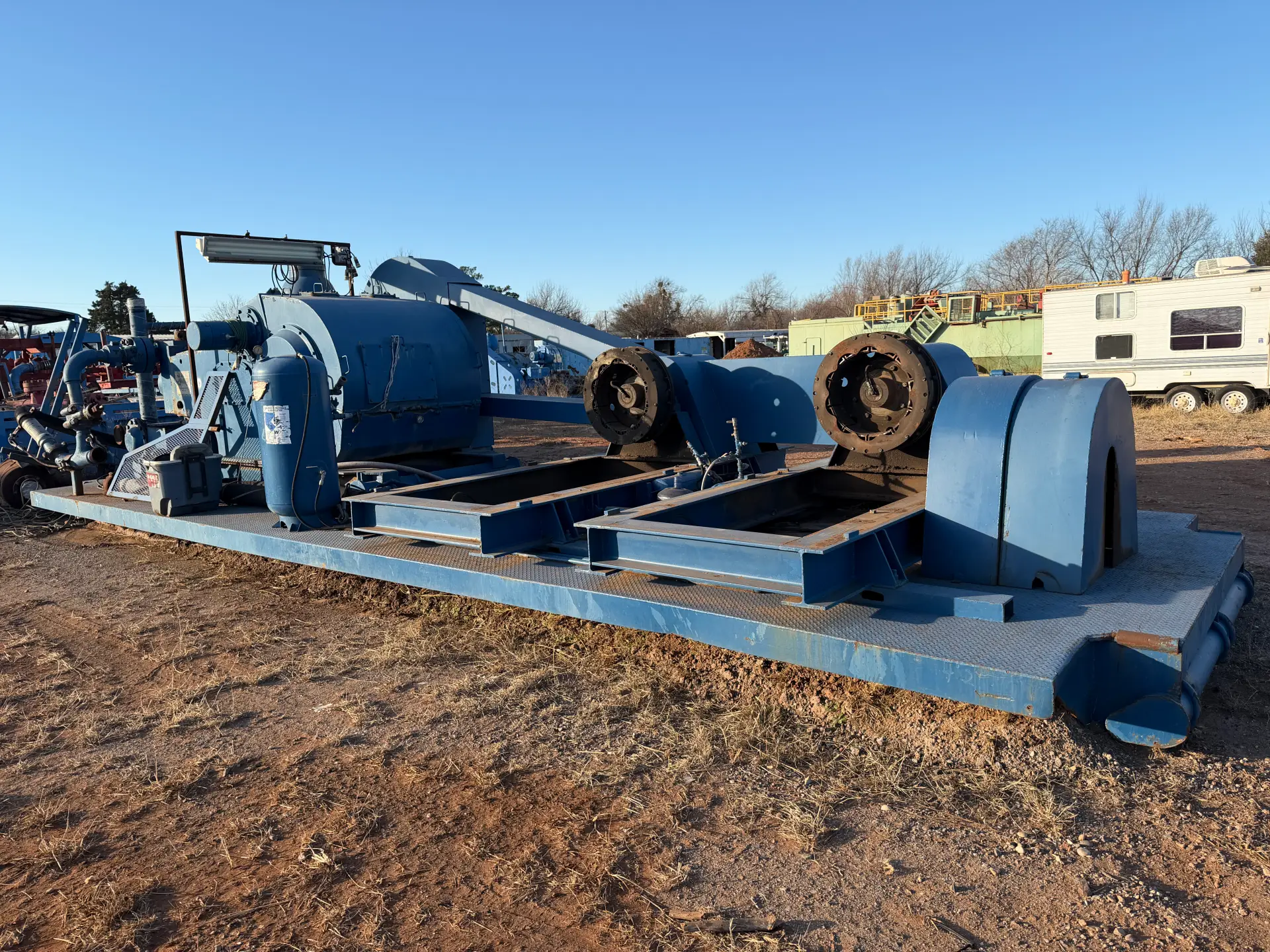

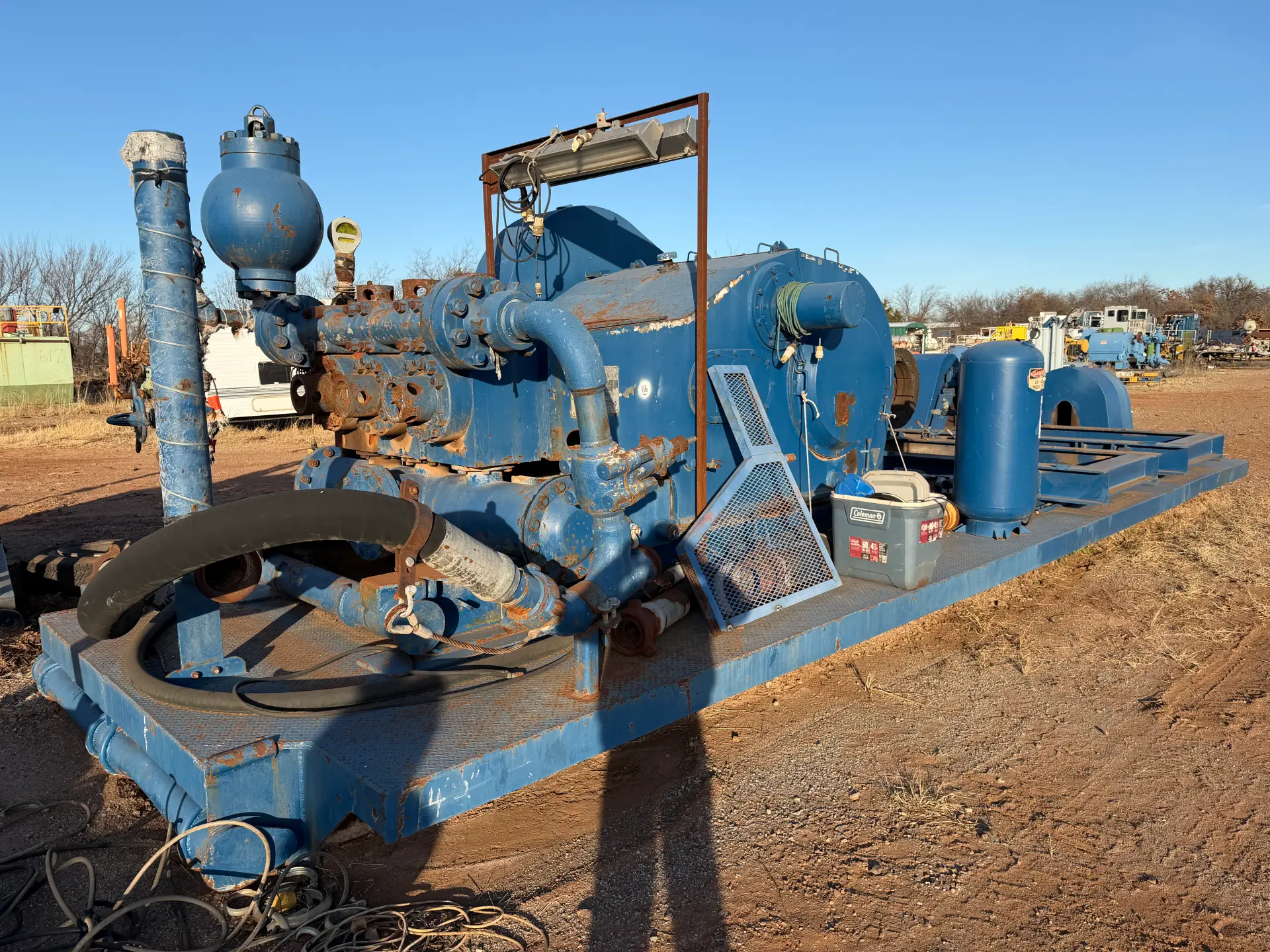

Model / Type: F-1000 Triplex Mud Pump (Single-acting piston)
Rated Power: 1000 HP (746 kW)
Rated Pump Speed: 140 strokes per minute (SPM)
Stroke Length: 10 inches (254 mm)
Gear Ratio: ≈ 4.207:1
Gear Type: Herringbone gear
Valve Pots: API-6 # valve-over-valve
Lubrication: Forced lubrication combined with splash lubrication
Maximum Liner Size: 6-3/4 in (170 mm)
Suction Inlet: 12 in flange (305 mm)
Discharge Outlet: 5-1/8 in flange (5000 psi)
| Liner Size (in) | Rated Pressure (psi) | Displacement (GPM) |
|---|---|---|
| 6-3/4 | up to 5000 psi | 651 GPM |
| 6-1/2 | 2558 psi | 603 GPM |
| 6 | 3000 psi | 514 GPM |
| 5-1/2 | 3572 psi | 432 GPM |
| 5 | 4322 psi | 357 GPM |
| 4 | 5000 psi | 289 GPM |
Approx. Weight: ~41,420-41,790 lbs (≈18,800–18,950 kg)
Dimensions (approx): ~168" × 125" × 102" (varies by supplier
