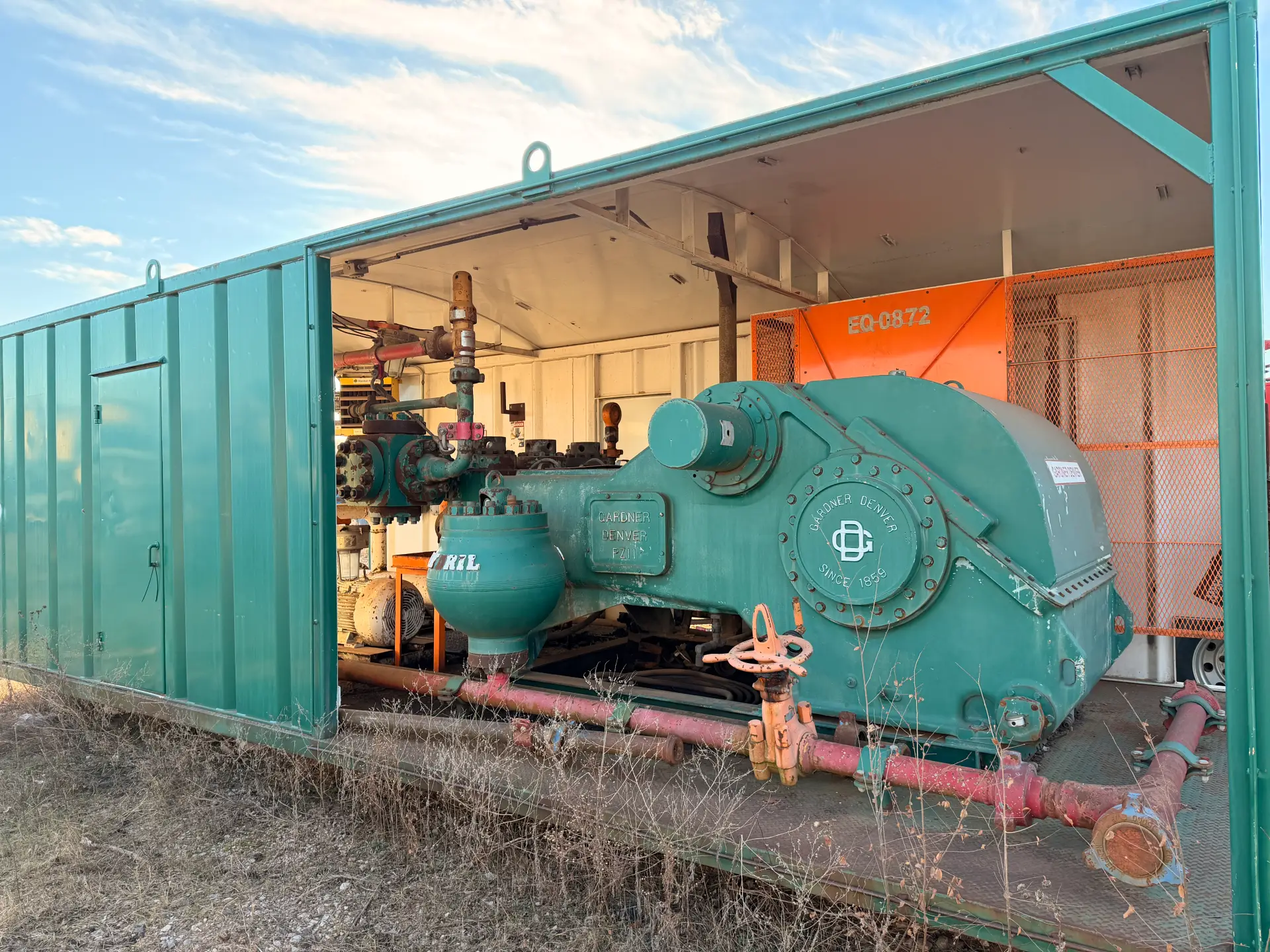

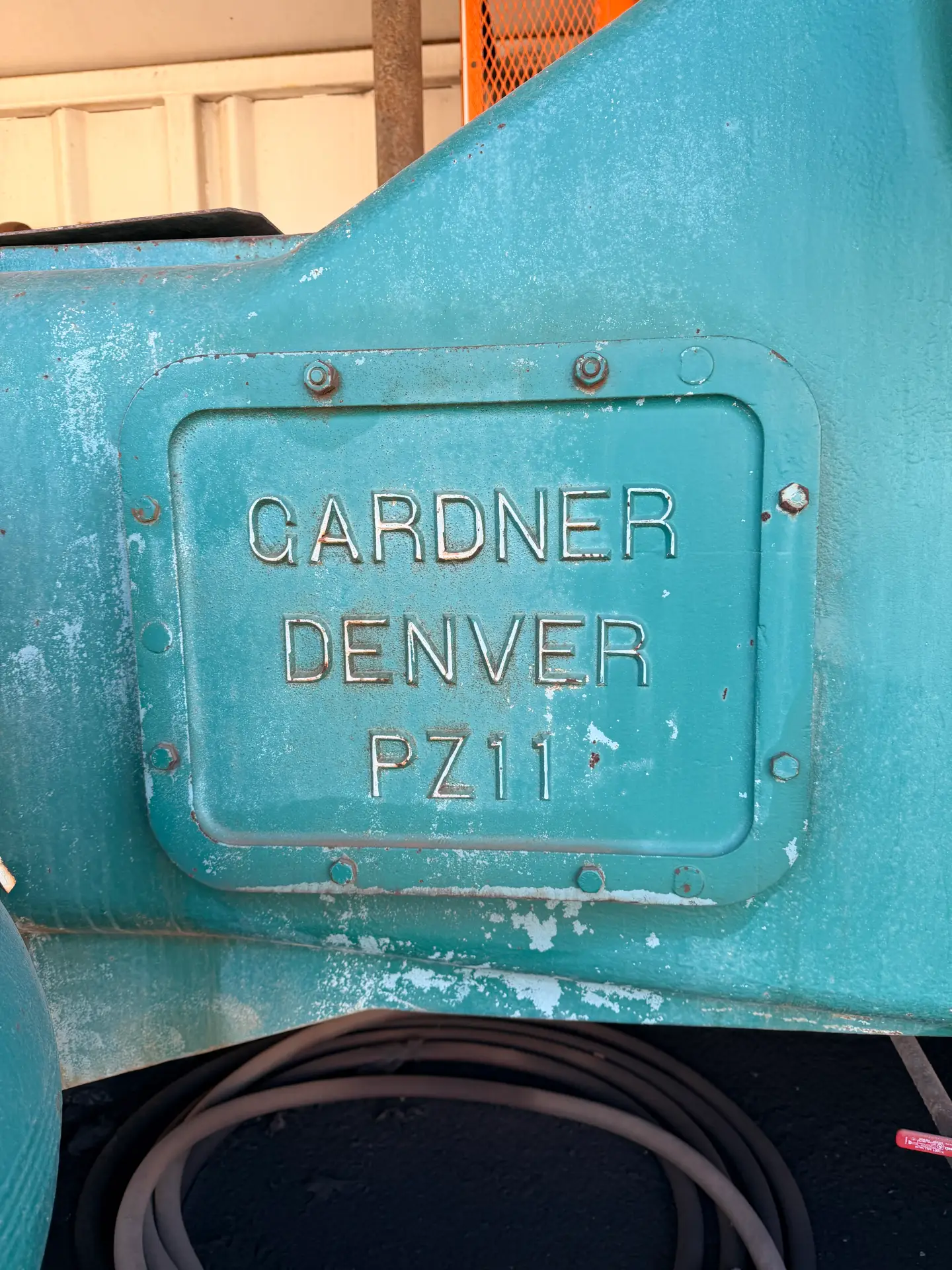

Manufacturer: Gardner Denver
Model: PZ-11
Pump Type: Triplex reciprocating plunger pump
Service: Well service / cementing / pressure pumping
Duty: Continuous oilfield service
(Actual performance depends on liner size and operating speed)
Maximum Pressure: up to 5,000 psi
Maximum Flow: up to 11 BPM (~462 GPM)
Stroke Length: 5.0 in
Speed Range: 80 – 250 SPM
Rated Rod Load: ~11,000 lb
| Liner Size | Max Pressure | Flow @ 250 SPM |
|---|---|---|
| 4.0 in | ~5,000 psi | ~4.5 BPM |
| 4.5 in | ~4,200 psi | ~6.0 BPM |
| 5.0 in | ~3,400 psi | ~7.5 BPM |
| 5.5 in | ~2,800 psi | ~9.0 BPM |
| 6.0 in | ~2,200 psi | ~11.0 BPM |
Fluid End: Forged steel
Plungers: Tungsten carbide
Valves: Oilfield 3-web / 4-web style
Packing: Chevron / V-type
Lubrication: Pressure-fed power end
