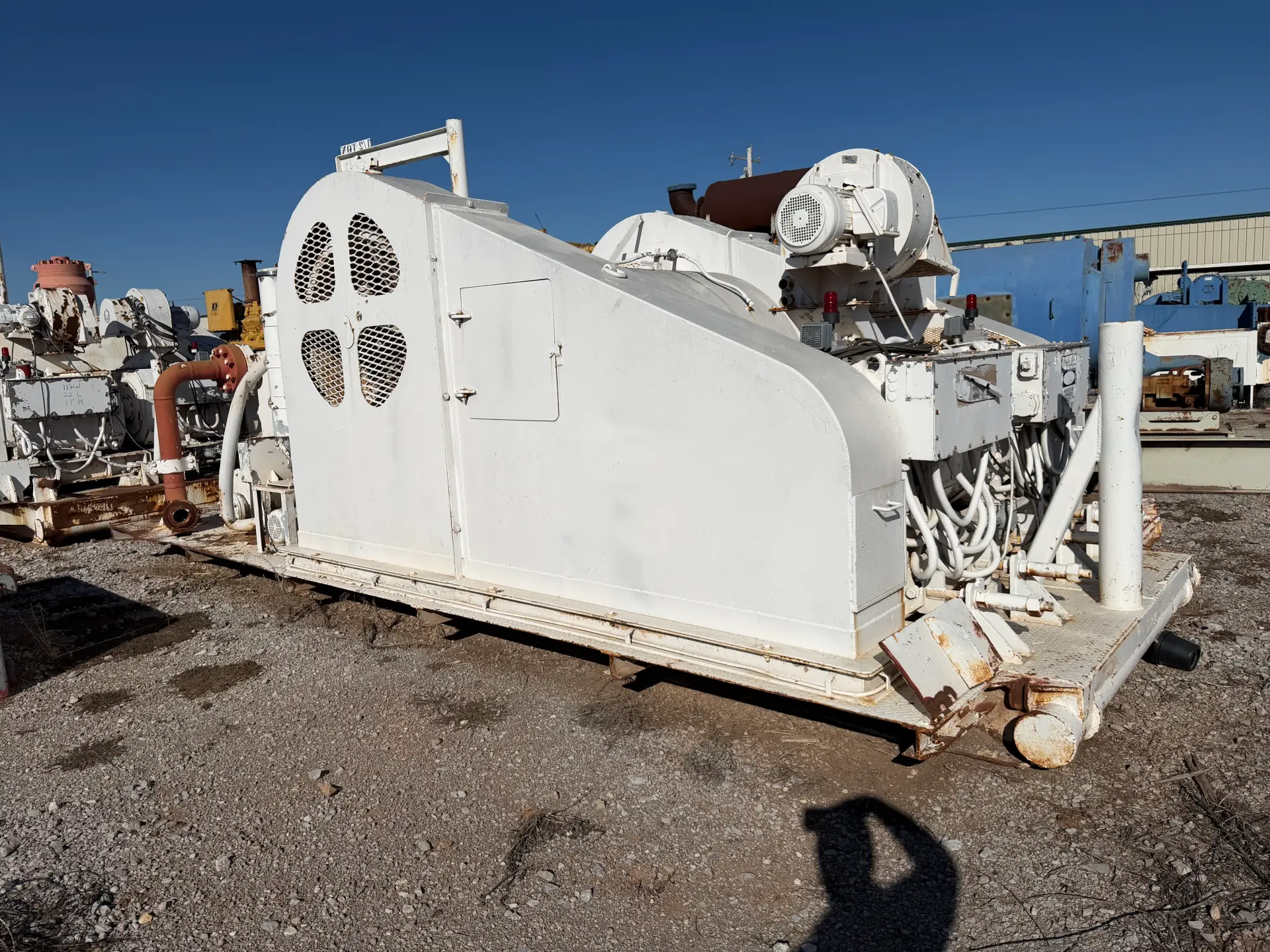

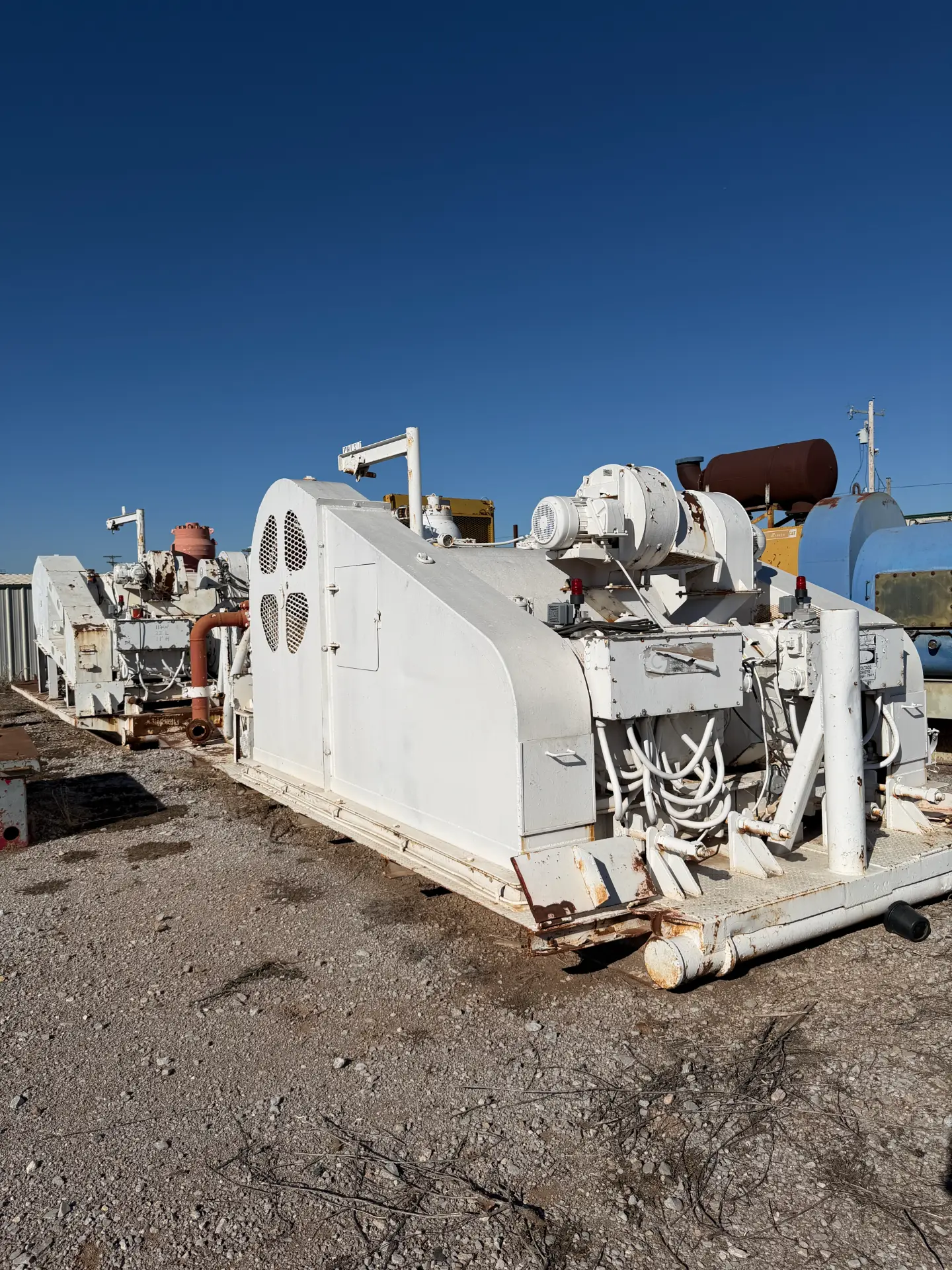

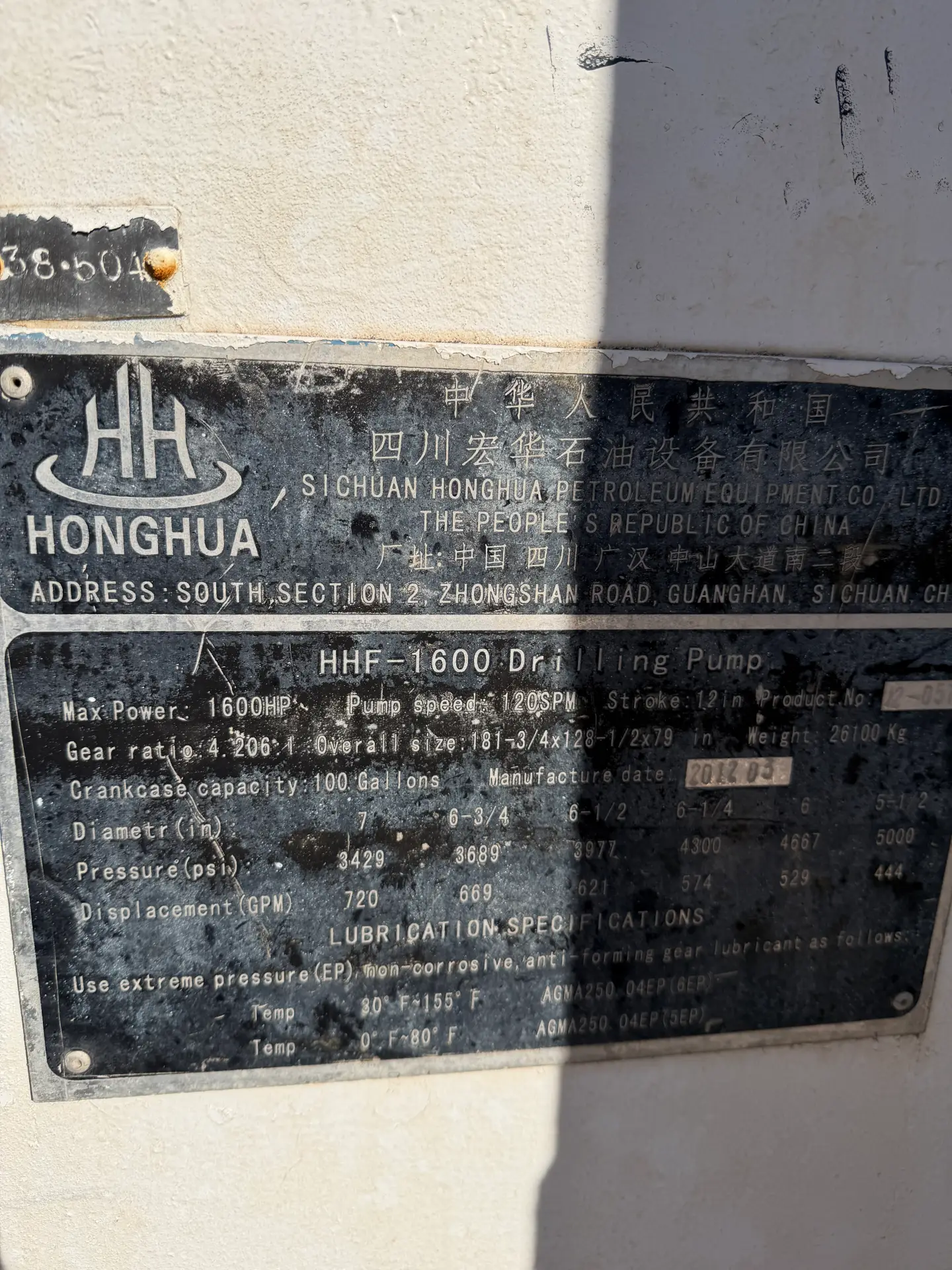

Manufacturer:
Sichuan Honghua Petroleum Equipment Co., Ltd. (PRC)
Model:
HHF-1600
Pump Type:
Triplex drilling mud pump
Maximum Power: 1,600 HP
Maximum Pump Speed: 120 SPM
Gear Ratio: 4.206 : 1
Stroke Length: 12 in
Overall Size: 181-3/4 × 128-1/2 × 79 in
Weight: 26,100 kg (≈ 57,500 lb)
Crankcase Oil Capacity: 100 gallons
| Liner Diameter (in) | Max Pressure (psi) | Displacement (GPM) |
|---|---|---|
| 7.0 | 3,429 | 720 |
| 6-3/4 | 3,689 | 669 |
| 6-1/2 | 3,977 | 621 |
| 6-1/4 | 4,300 | 574 |
| 6.0 | 4,667 | 529 |
| 5-1/2 | 5,000 | 444 |
Gear Oil Type: Extreme Pressure (EP), non-corrosive, anti-foaming
Recommended Grades:
30°F to 155°F: AGMA 250 / ISO 680
0°F to 80°F: AGMA 250 EP / ISO 680 EP
