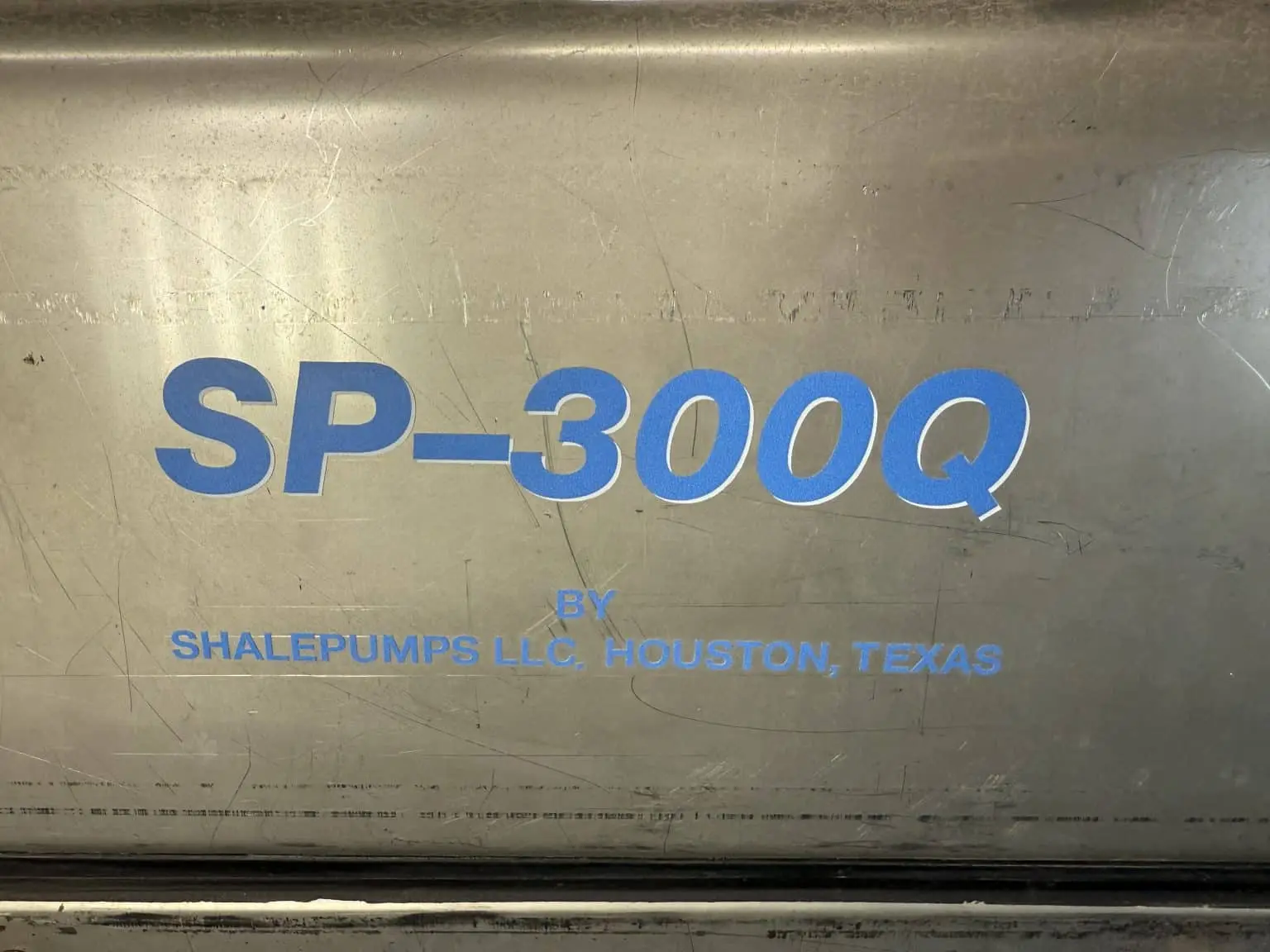

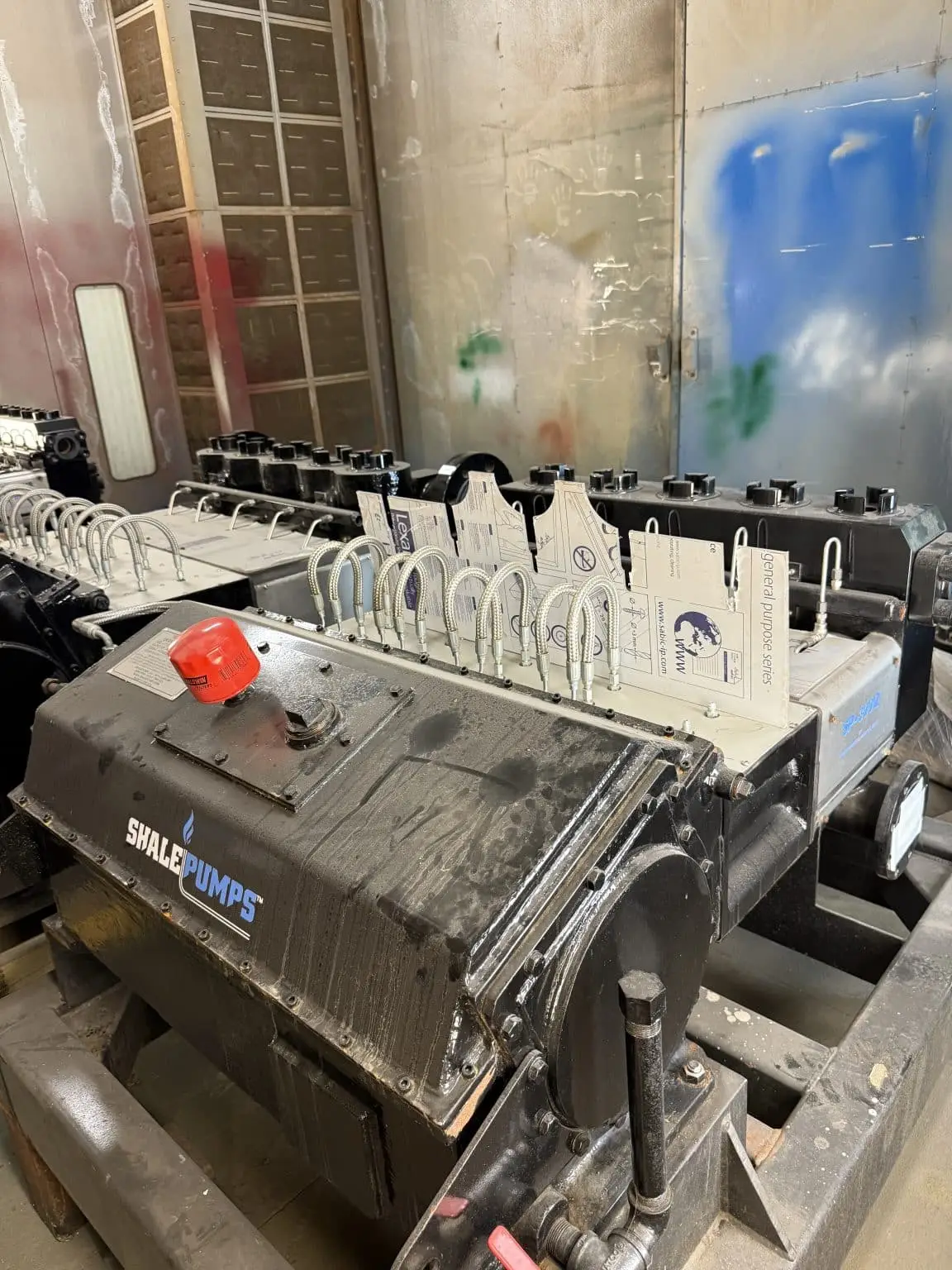

Shalepumps SP-300Q Quintuplex Piston Pump

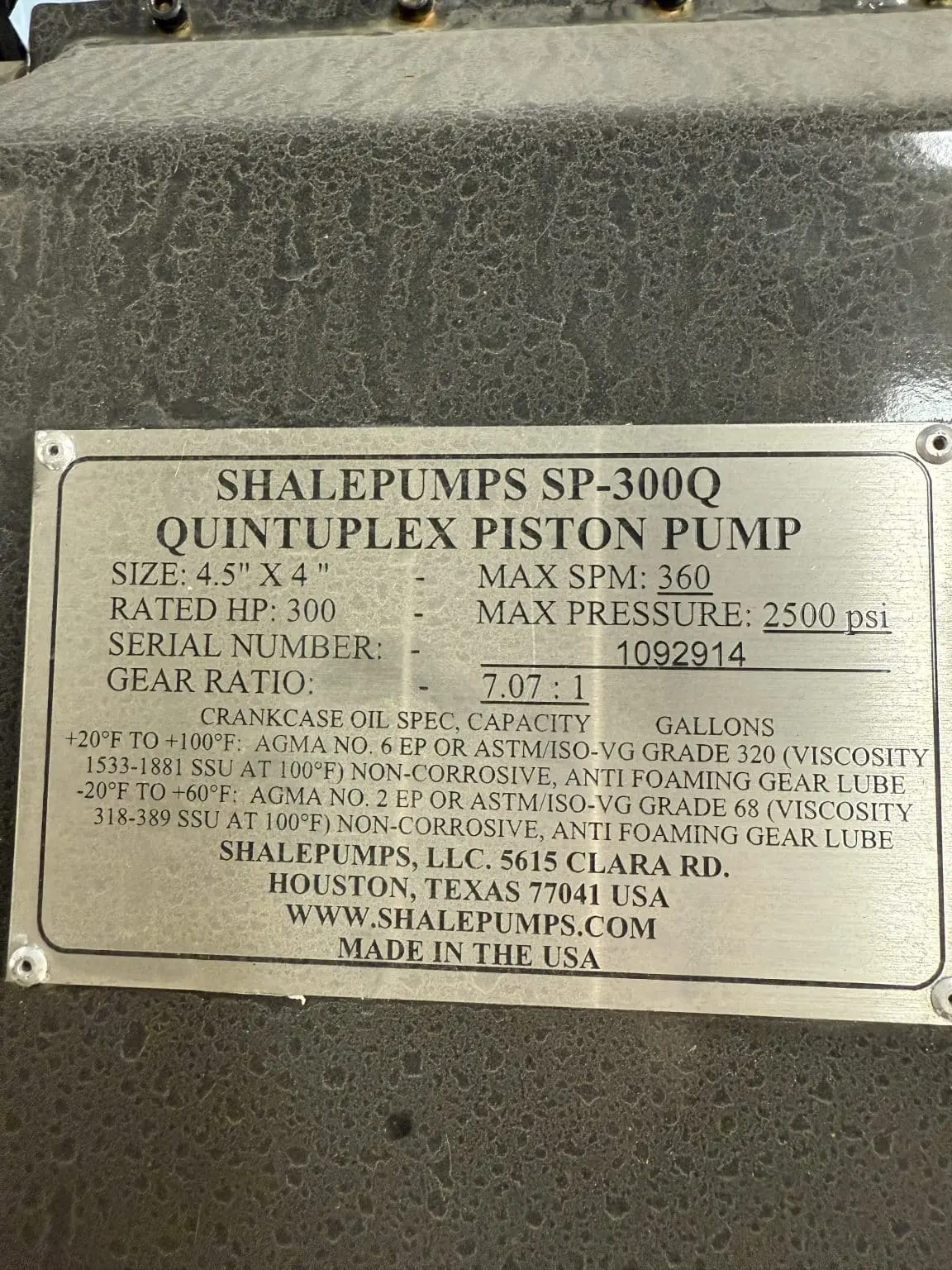

ShalePumps SP-300Q Quintuplex Piston Pump Specifications

General Specifications:

• Pump Model: SP-300Q
• Type: Quintuplex Piston Pump
• Size: 4.5” x 4”
• Rated Horsepower: 300 HP
• Maximum Strokes Per Minute (SPM): 360
• Maximum Pressure: 2,500 psi
• Serial Number: 1092914
• Gear Ratio: 7.07:1

Crankcase Oil Specifications & Capacity:

• Operating Temperature: +20°F to +100°F
  • Recommended Oil: AGMA No. 6 EP or ASTM/ISO-VG Grade 320
  • Viscosity: 1533-1881 SSU at 100°F
  • Properties: Non-corrosive, anti-foaming gear lube
• Operating Temperature: -20°F to +60°F
  • Recommended Oil: AGMA No. 2 EP or ASTM/ISO-VG Grade 68
  • Viscosity: 318-389 SSU at 100°F
  • Properties: Non-corrosive, anti-foaming gear lube
