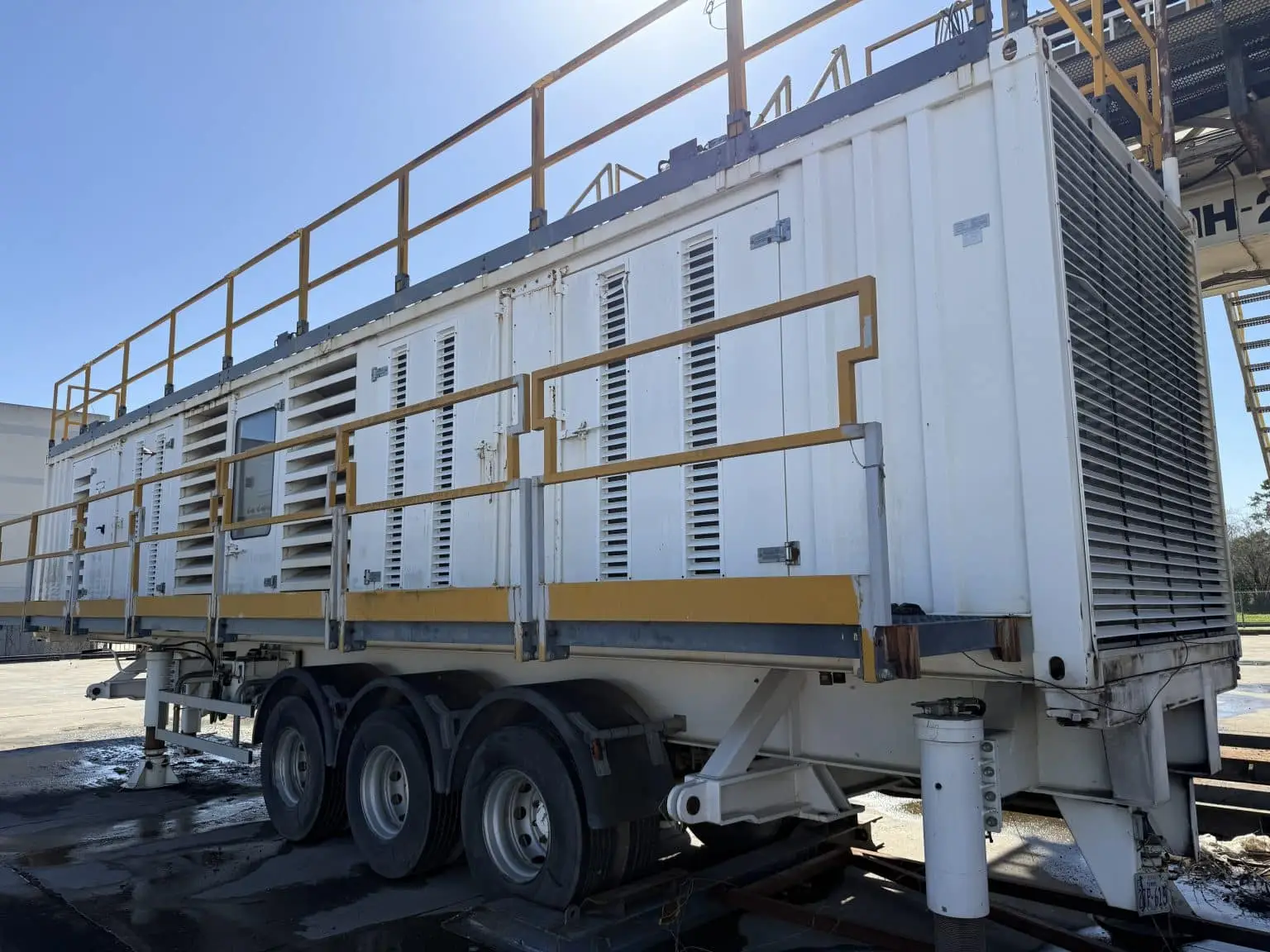

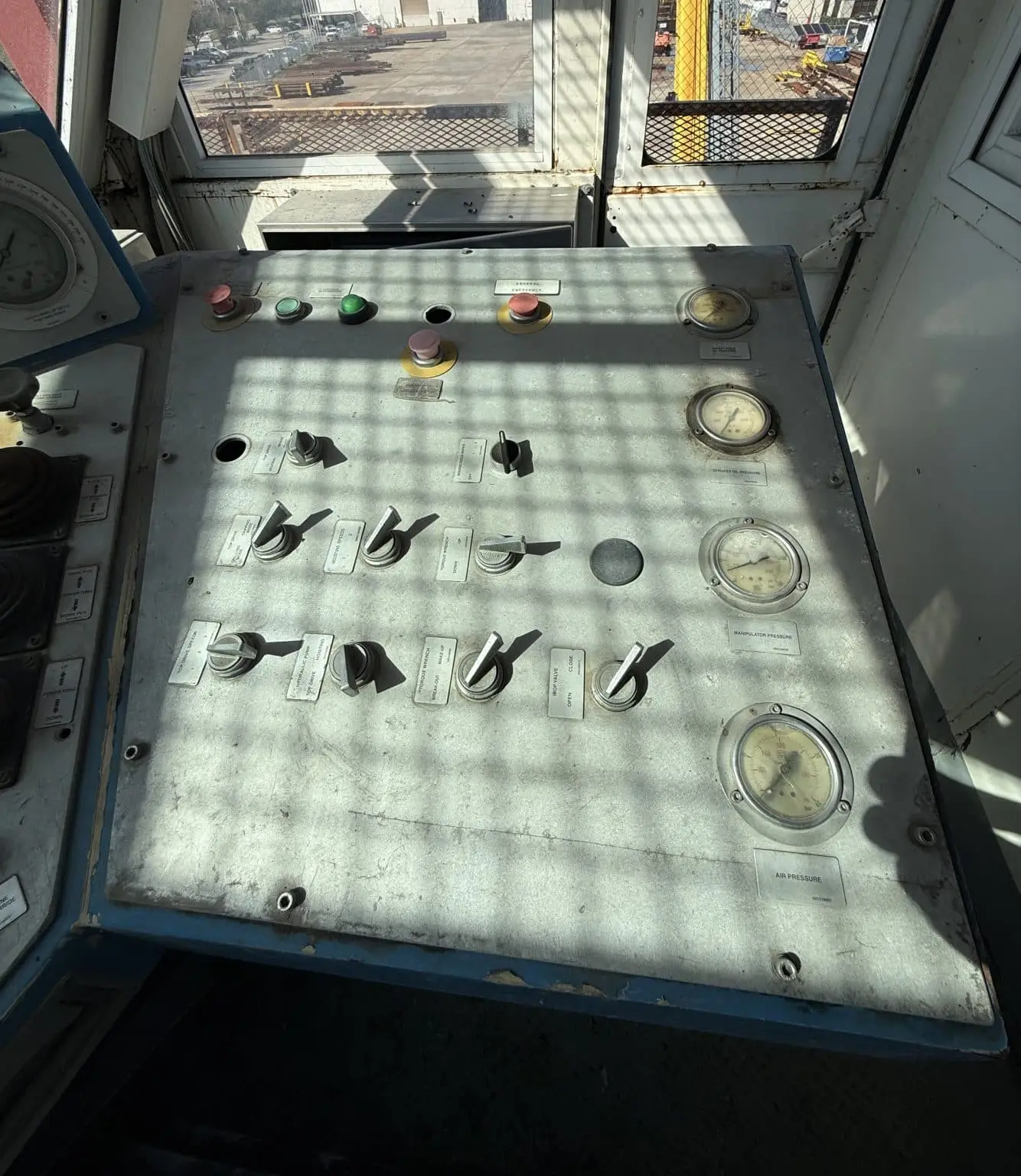

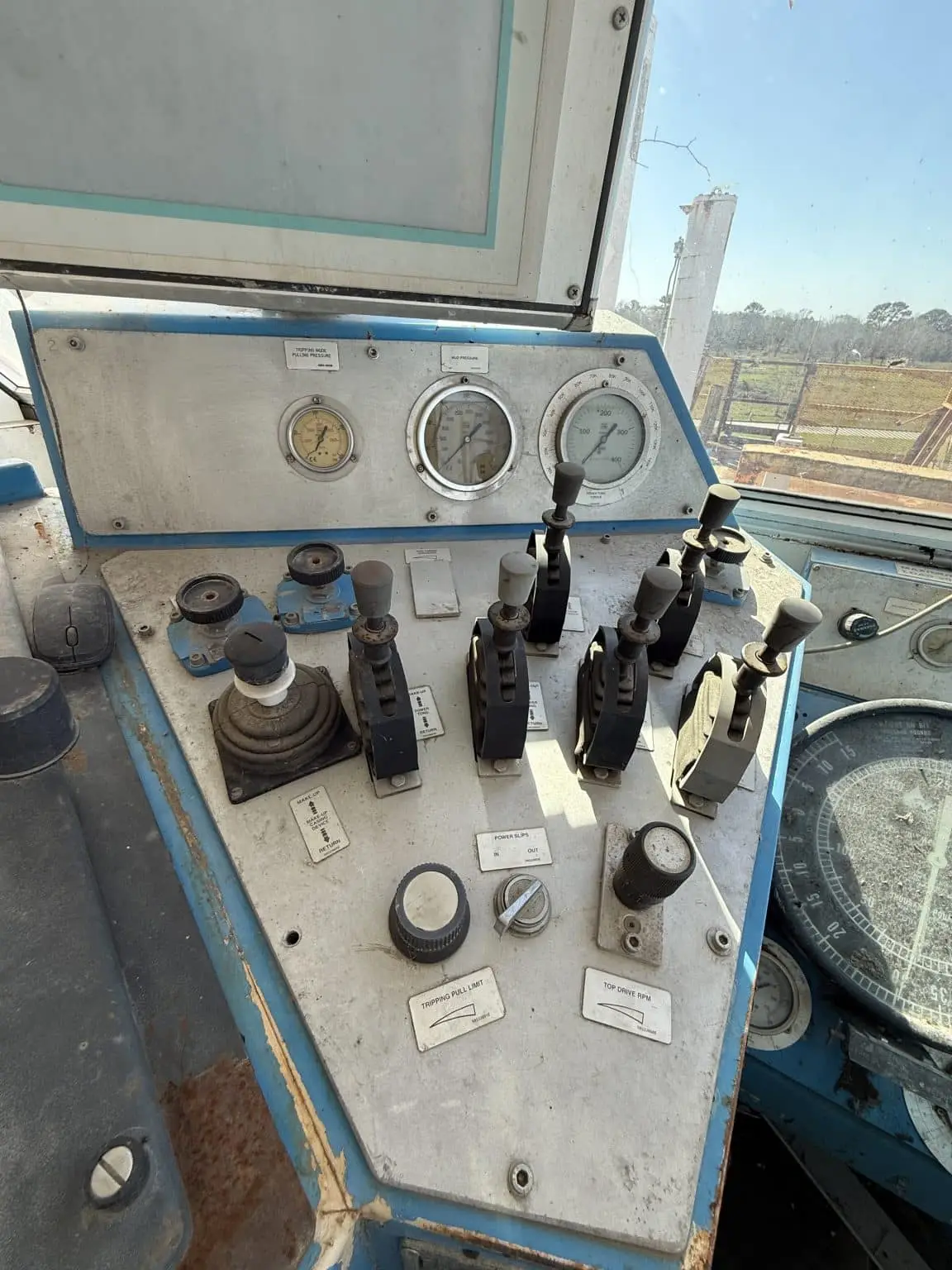

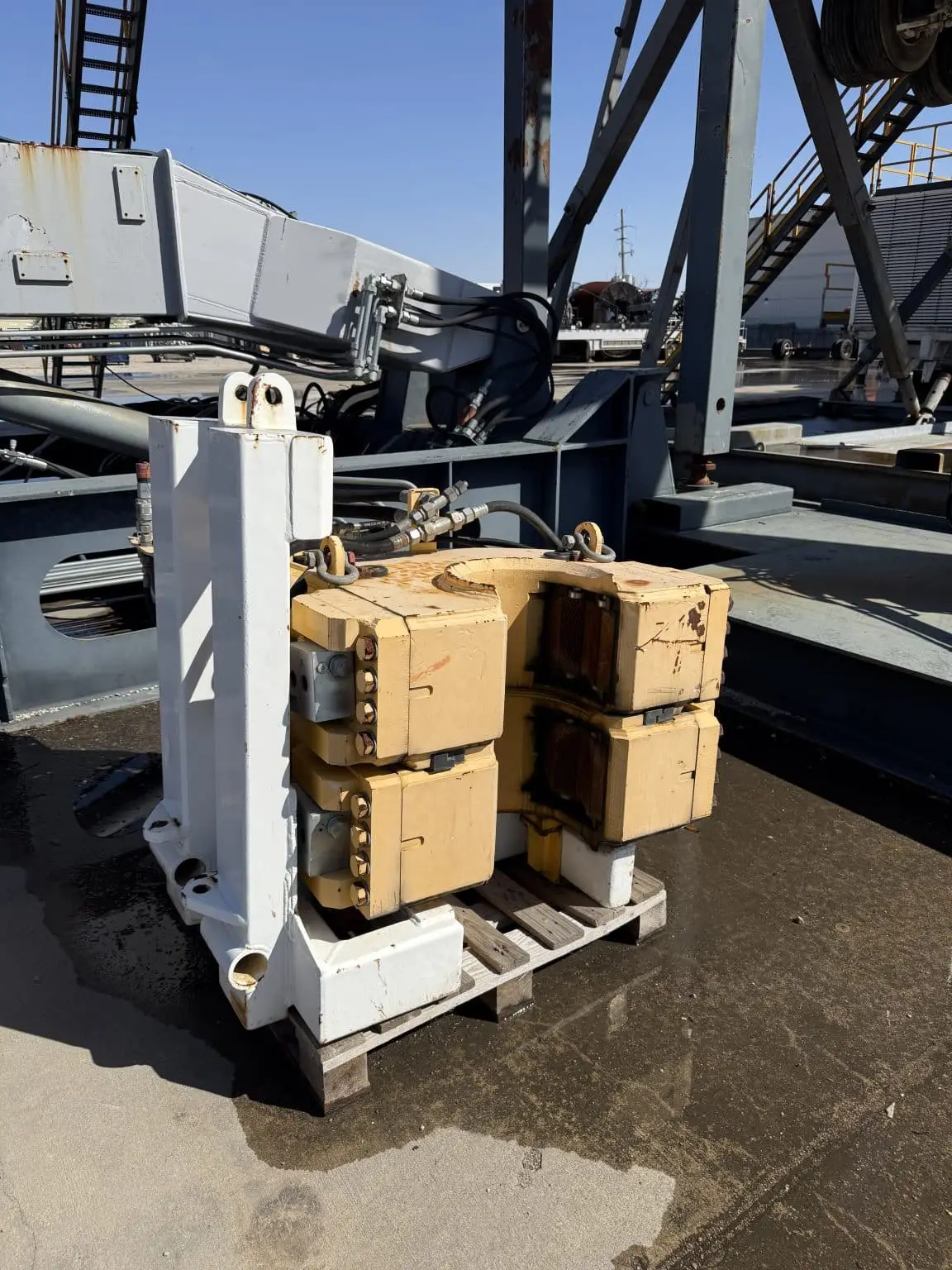

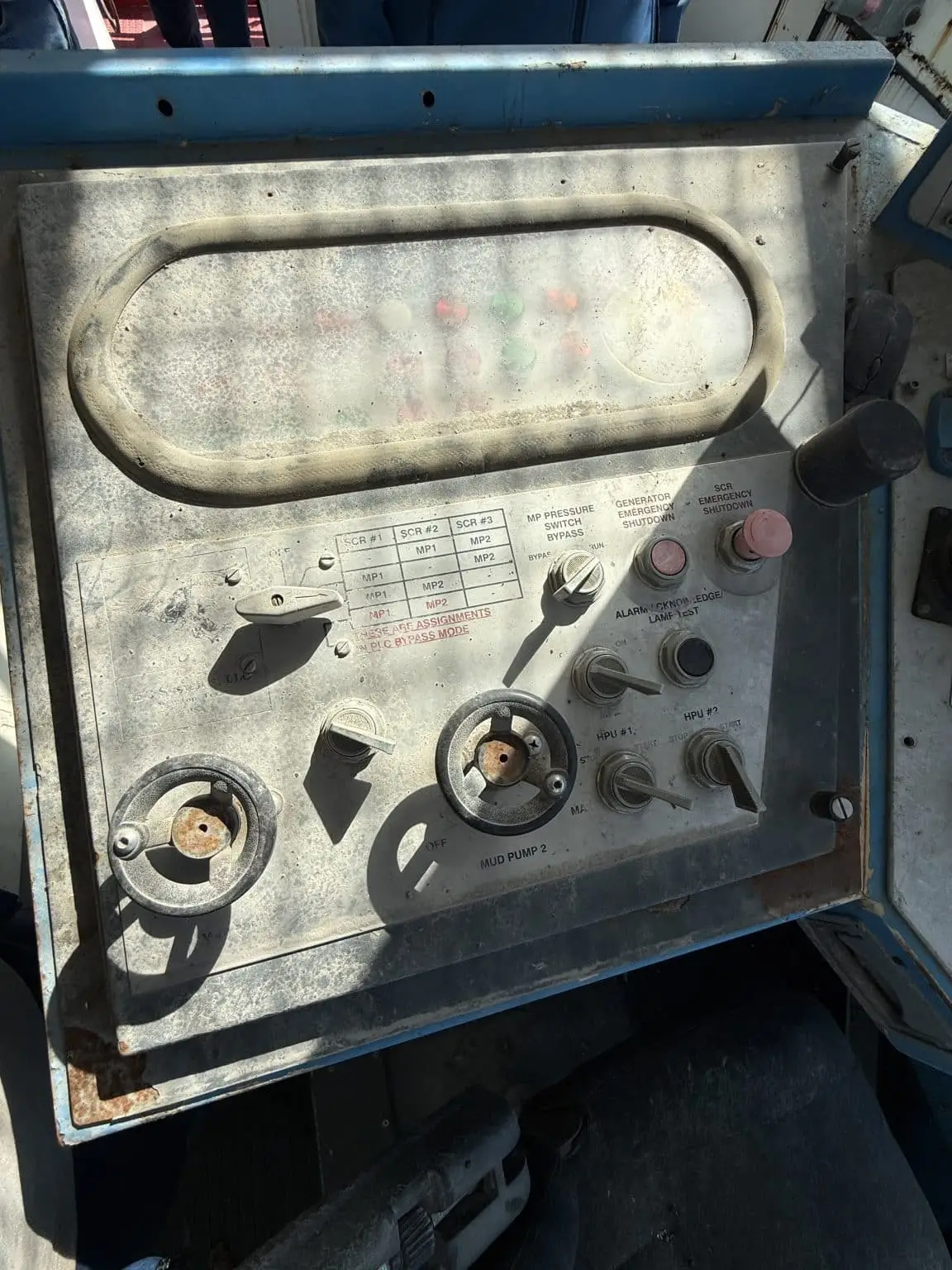

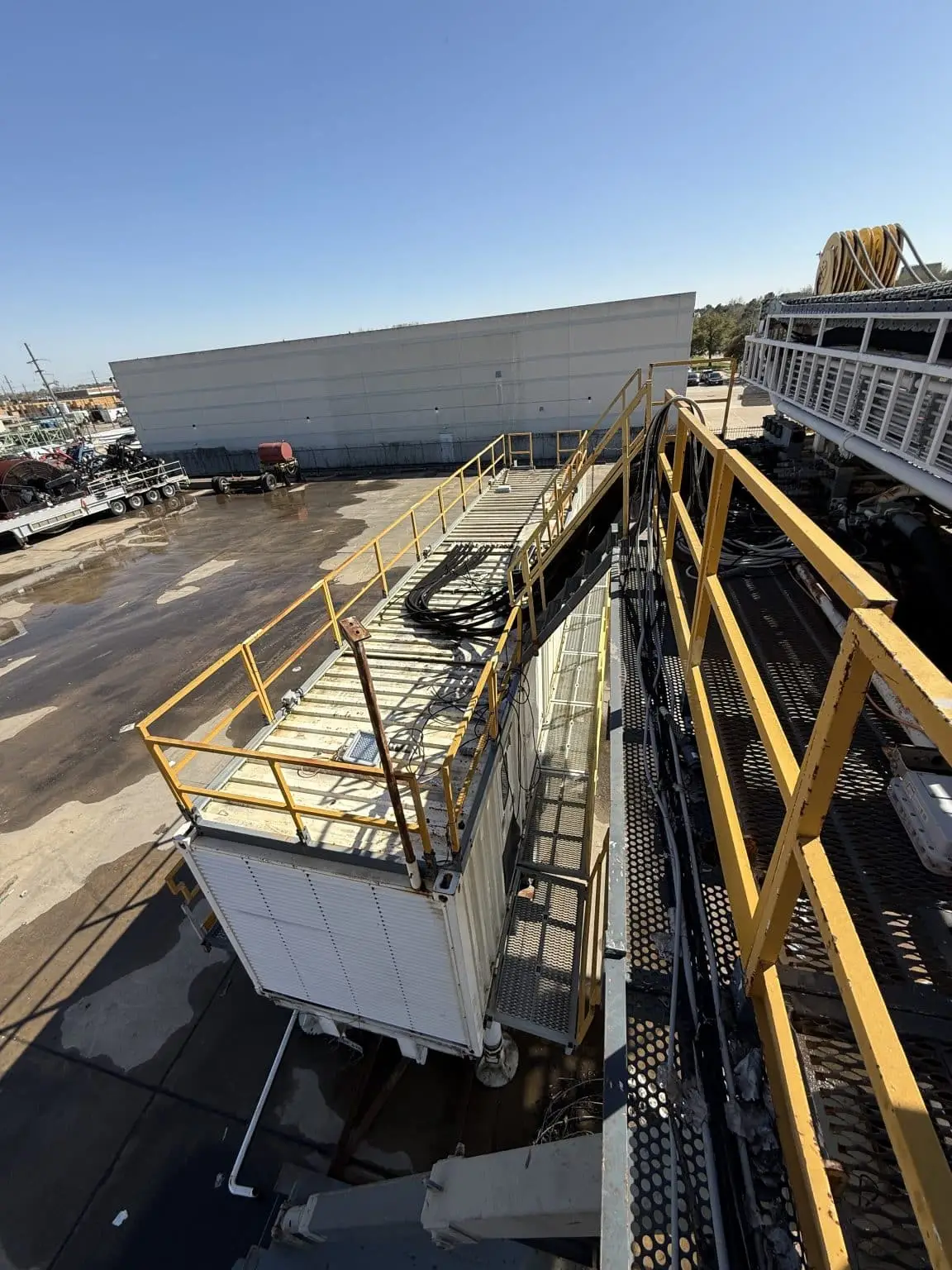

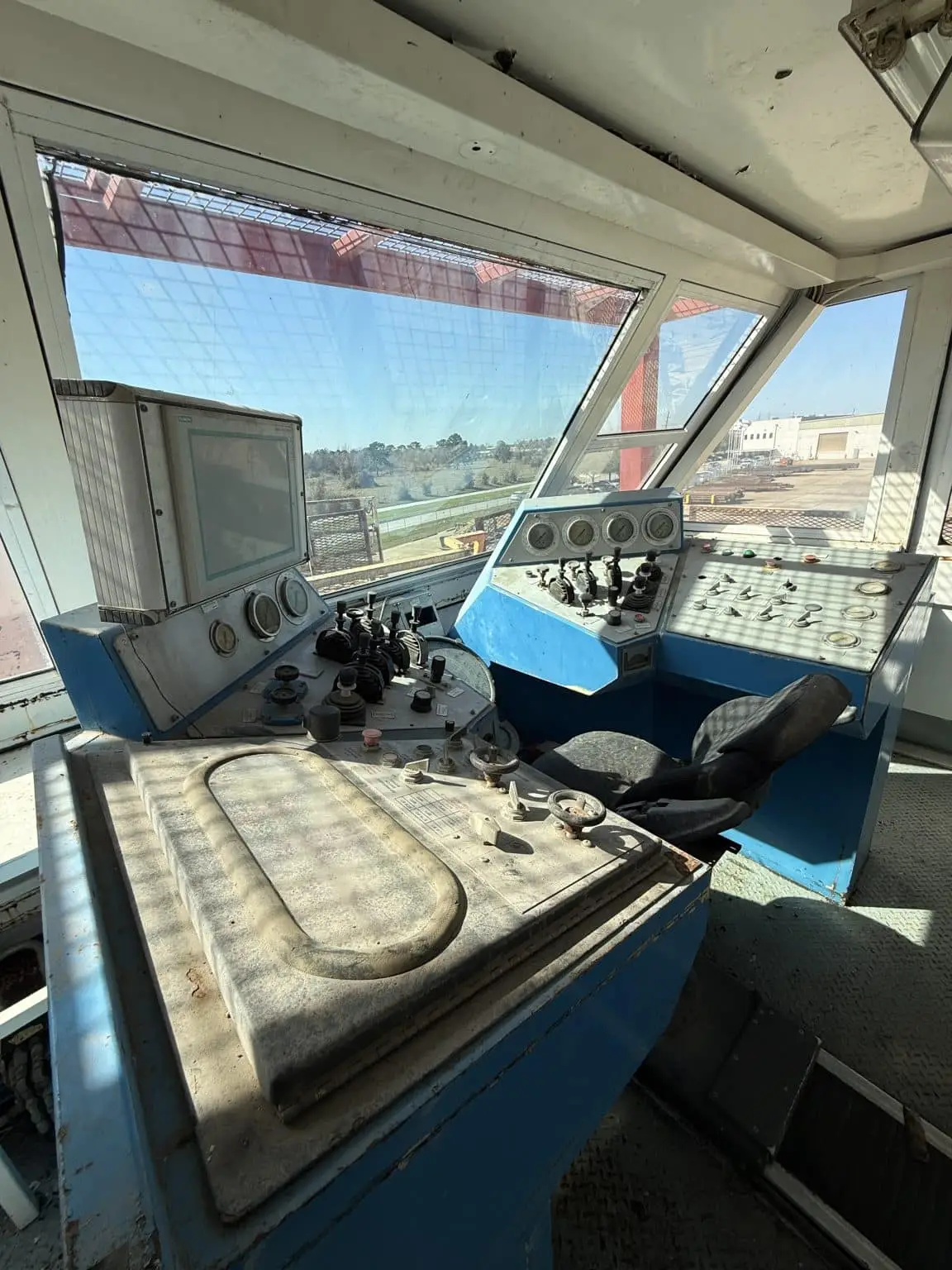

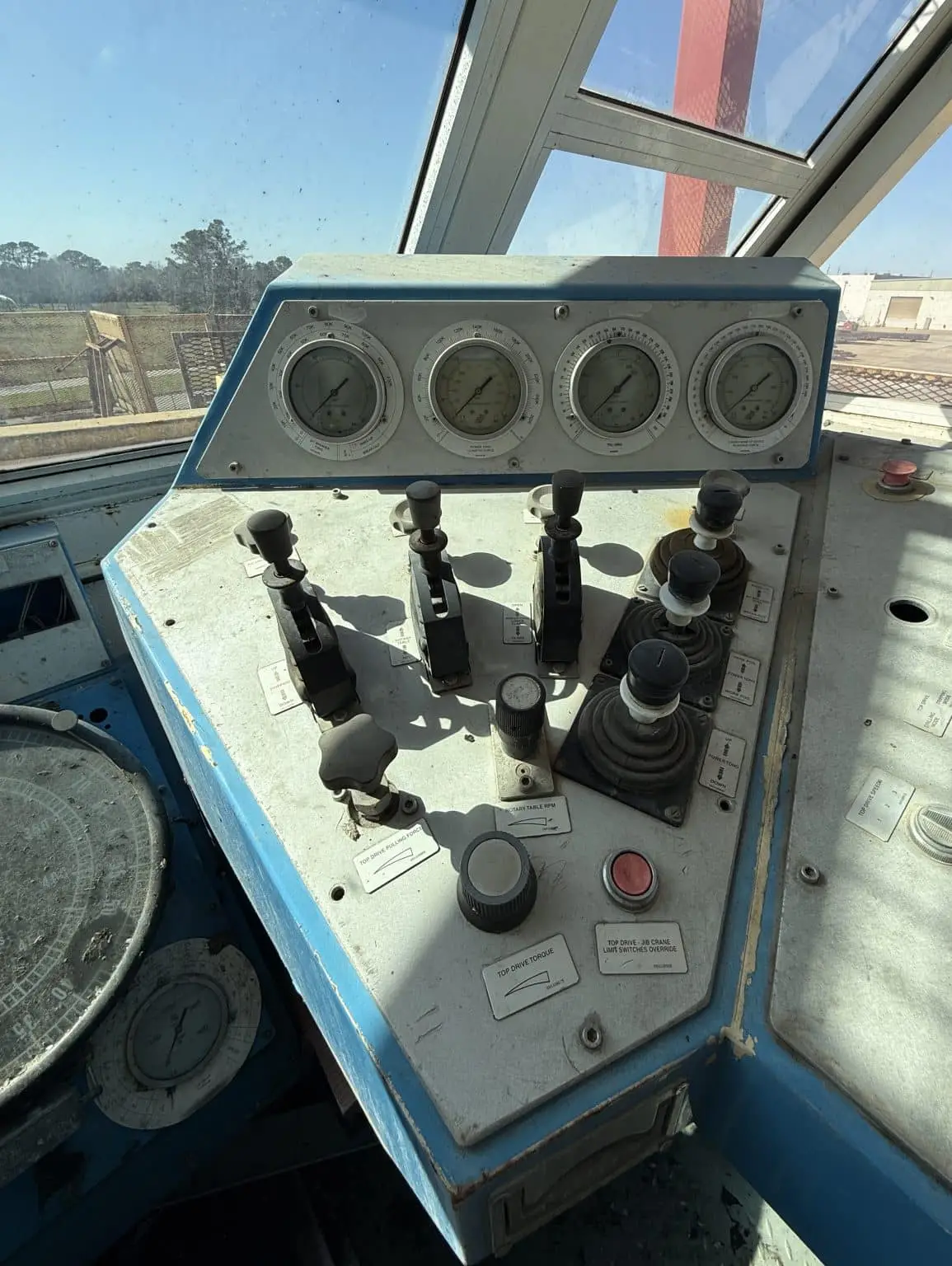

Drillmec 1000 HP HH220 Hydraulic Drilling Rig

Main Features & Technical Data

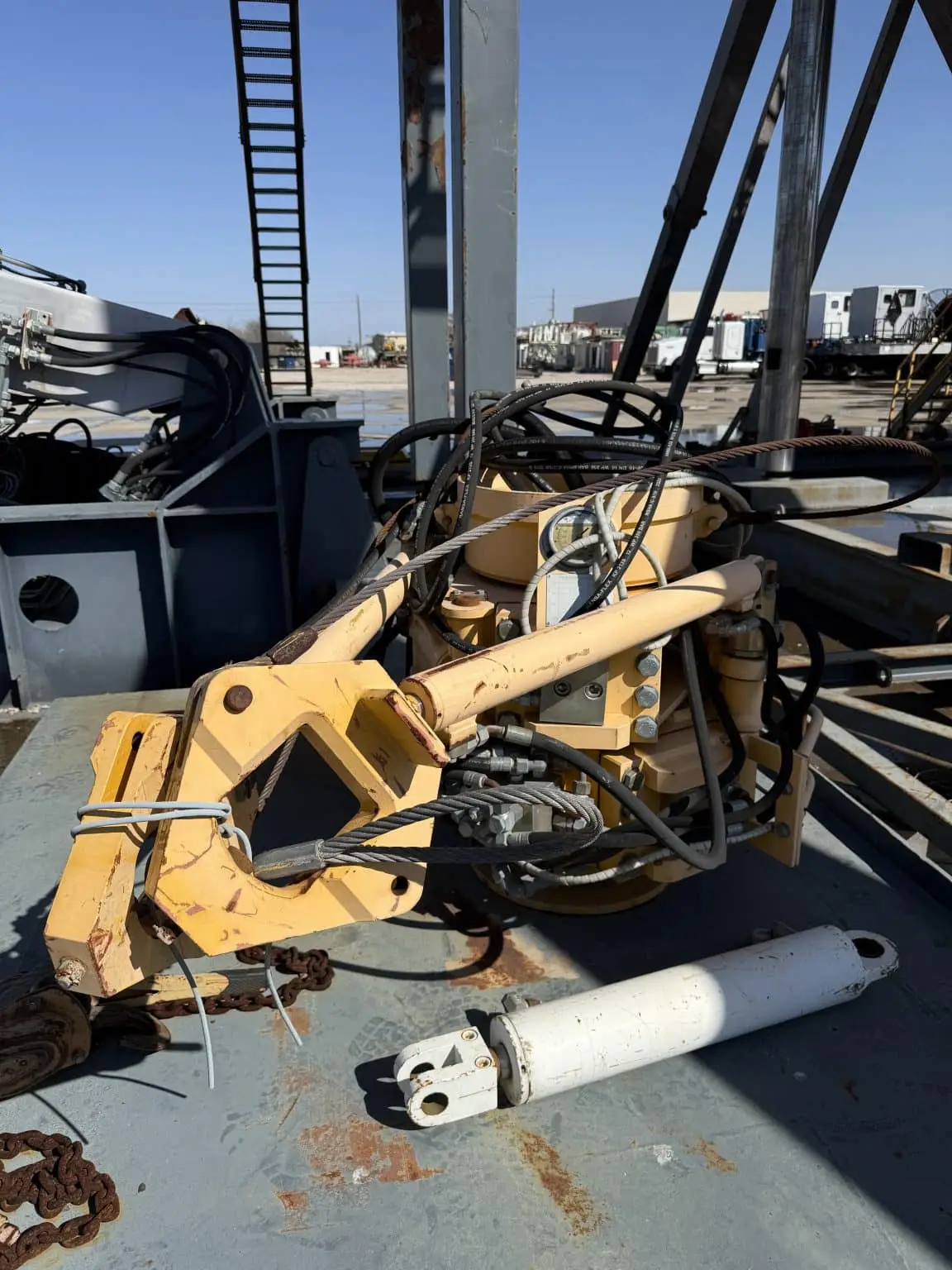

1. Drill Pipe Stands Handling:

   • Max Pull: 200 metric tons (440,000 lbs)
   • Max Pull Down: 20 metric tons (44,000 lbs)
   • Drilling Floor Height (from Ground Level): 7,710 mm (25.3 ft)

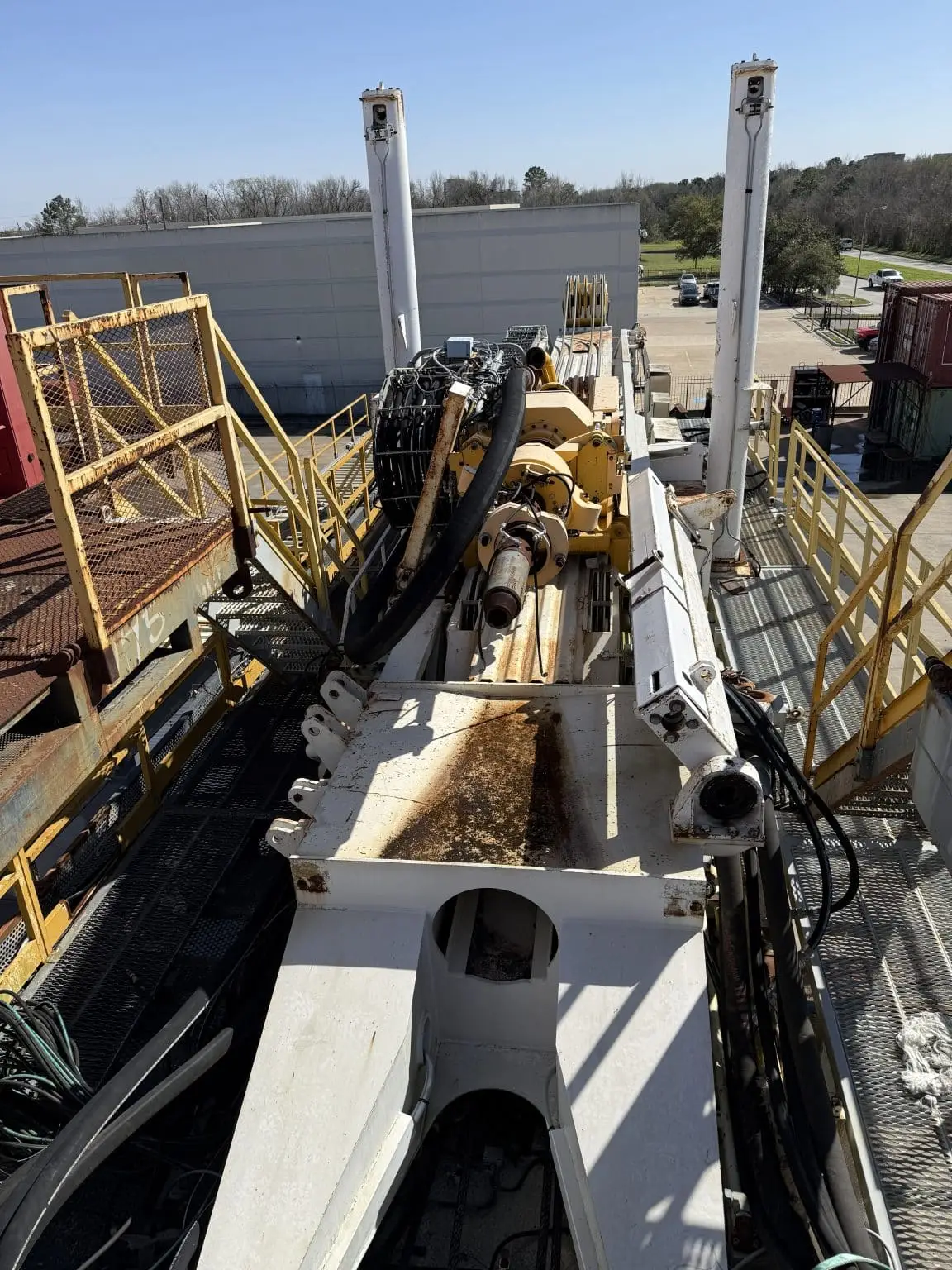

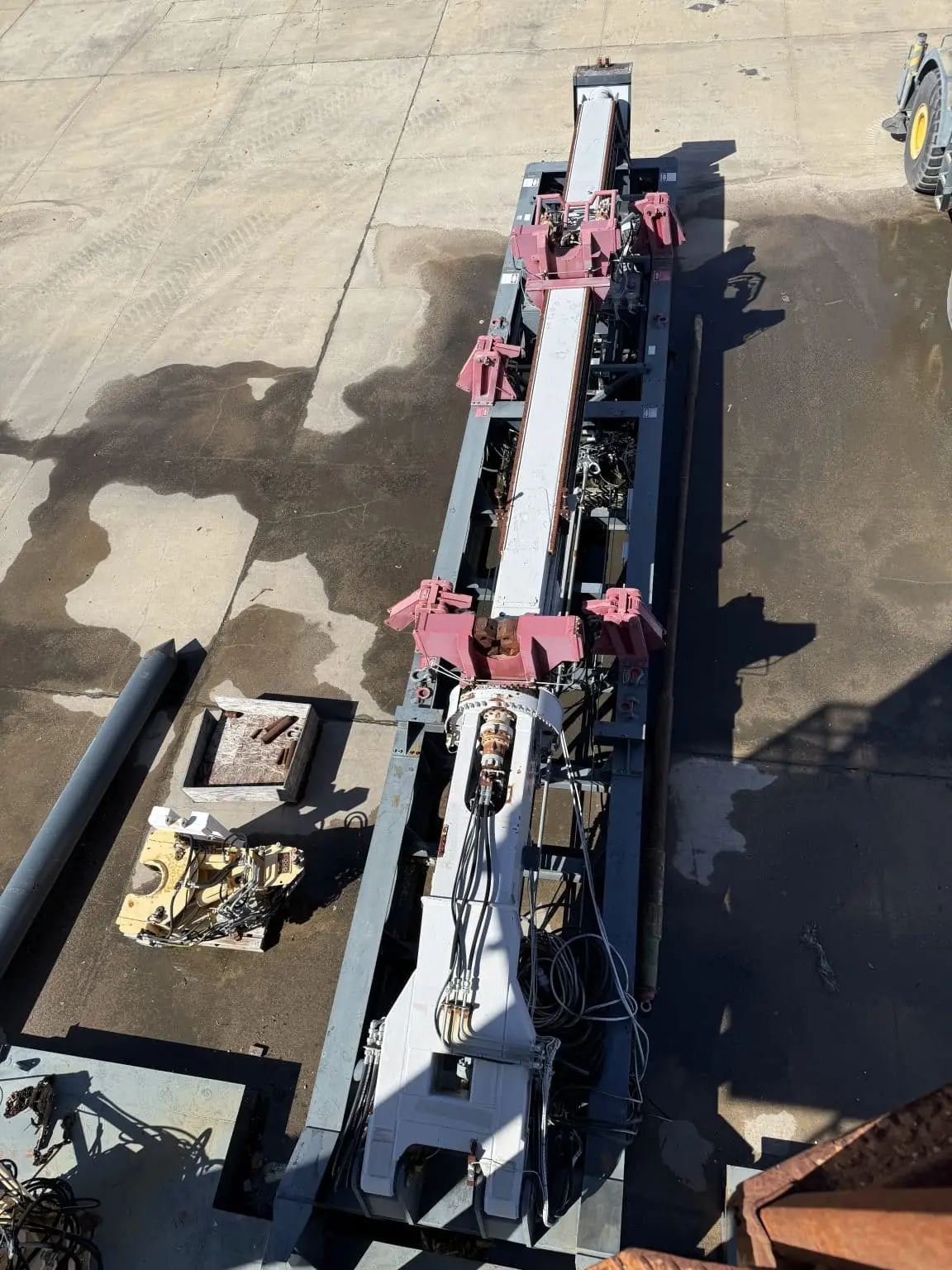

2. Top Drive System:

   • Max Torque: 3,370 daNm (24,850 lbf*ft)
   • Top Drive Stroke: 16,000 mm (52.5 ft)

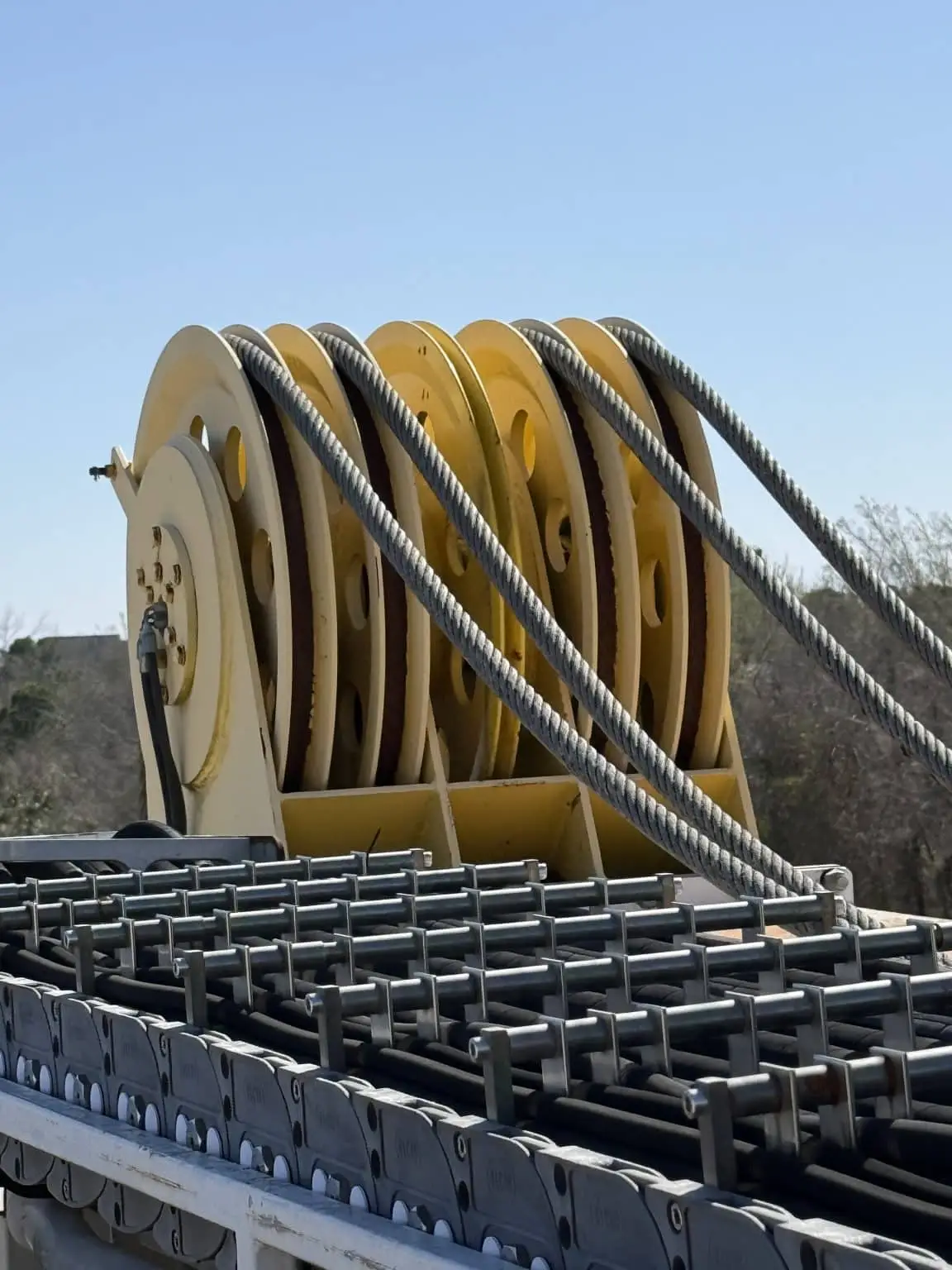

Crown Block Specifications

• Manufacturer: Drillmec
• Code: 0190 3102
• Quantity: One (1)
• Mounting: Fixed to the mast's telescopic section
• Manufacturing Standards:
  • Crown Block Assembly: API Spec 4F (4th Edition), PSL-1
  • Crown Block Sheaves: API Spec 8C (5th Edition), PSL-1

Technical Data

• Sheave Diameter: 800 mm (31.5")
• Groove Diameter: 34 mm (1.11/32")

Stand Pipe Specifications

• Manufacturer: Orilimec
• Code: 0131 1235
• Quantity: One (1)
• Description:
  • Stand pipe complete with gooseneck
  • Comes with API connection

Technical Data

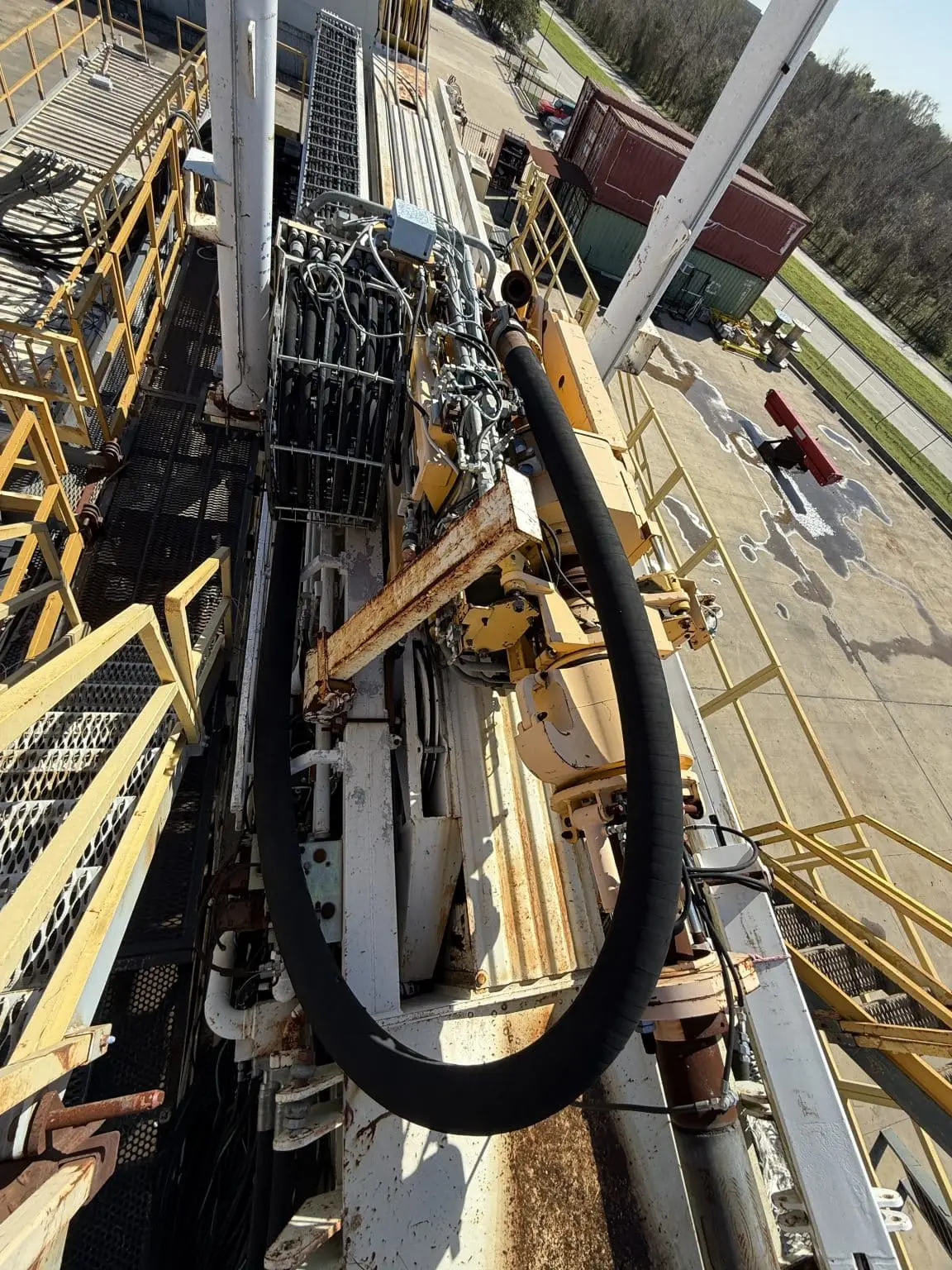

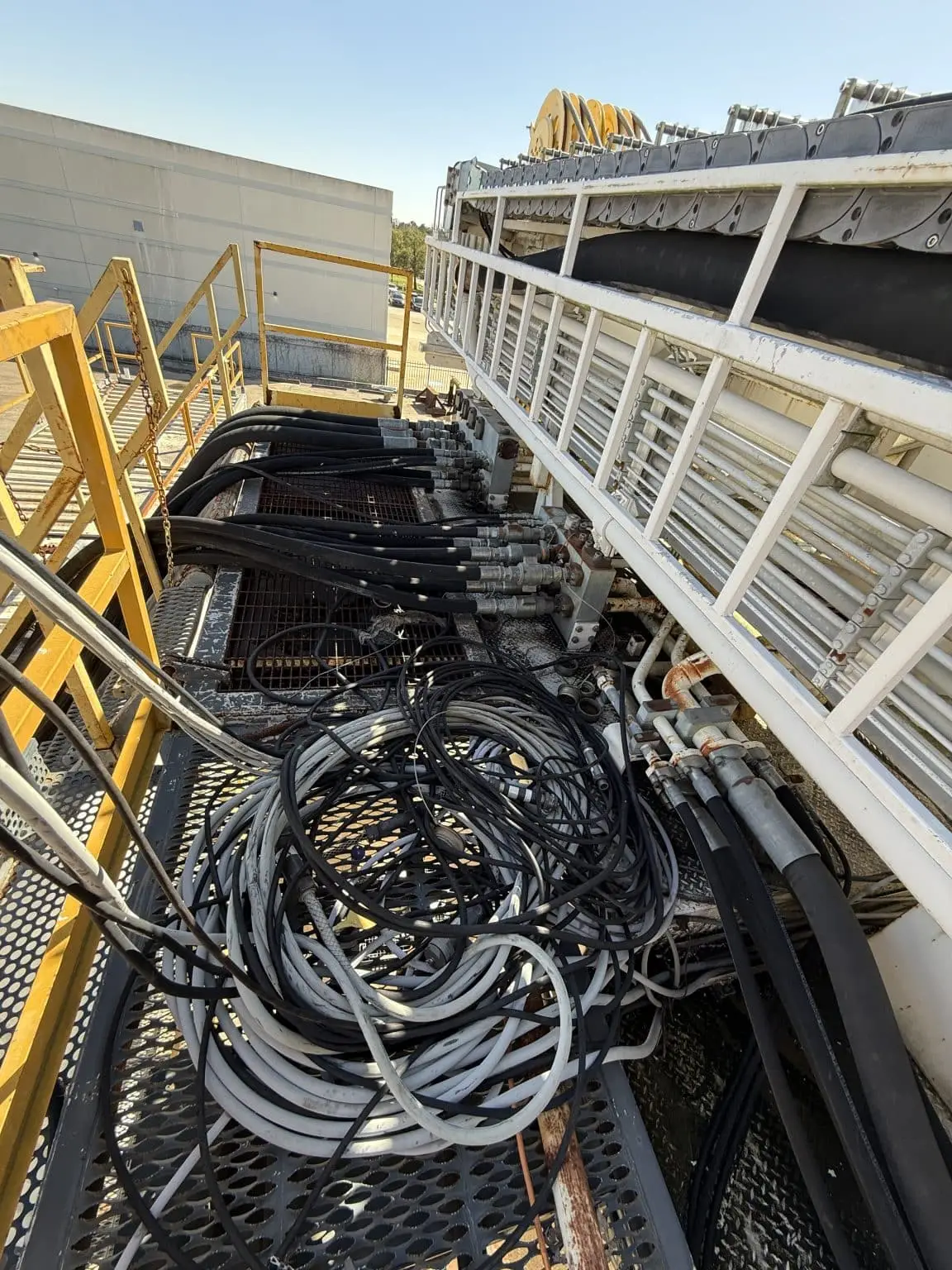

• Rotary Hose:

  • Nominal Diameter: 101 mm (4")
  • Working Pressure: 345 bar (5000 psi)

• Stand Pipe:

  • Inside Diameter: 89 mm (3 ½")
  • Working Pressure: 345 bar (5000 psi)
  • Length: 13,400 mm (44 ft)

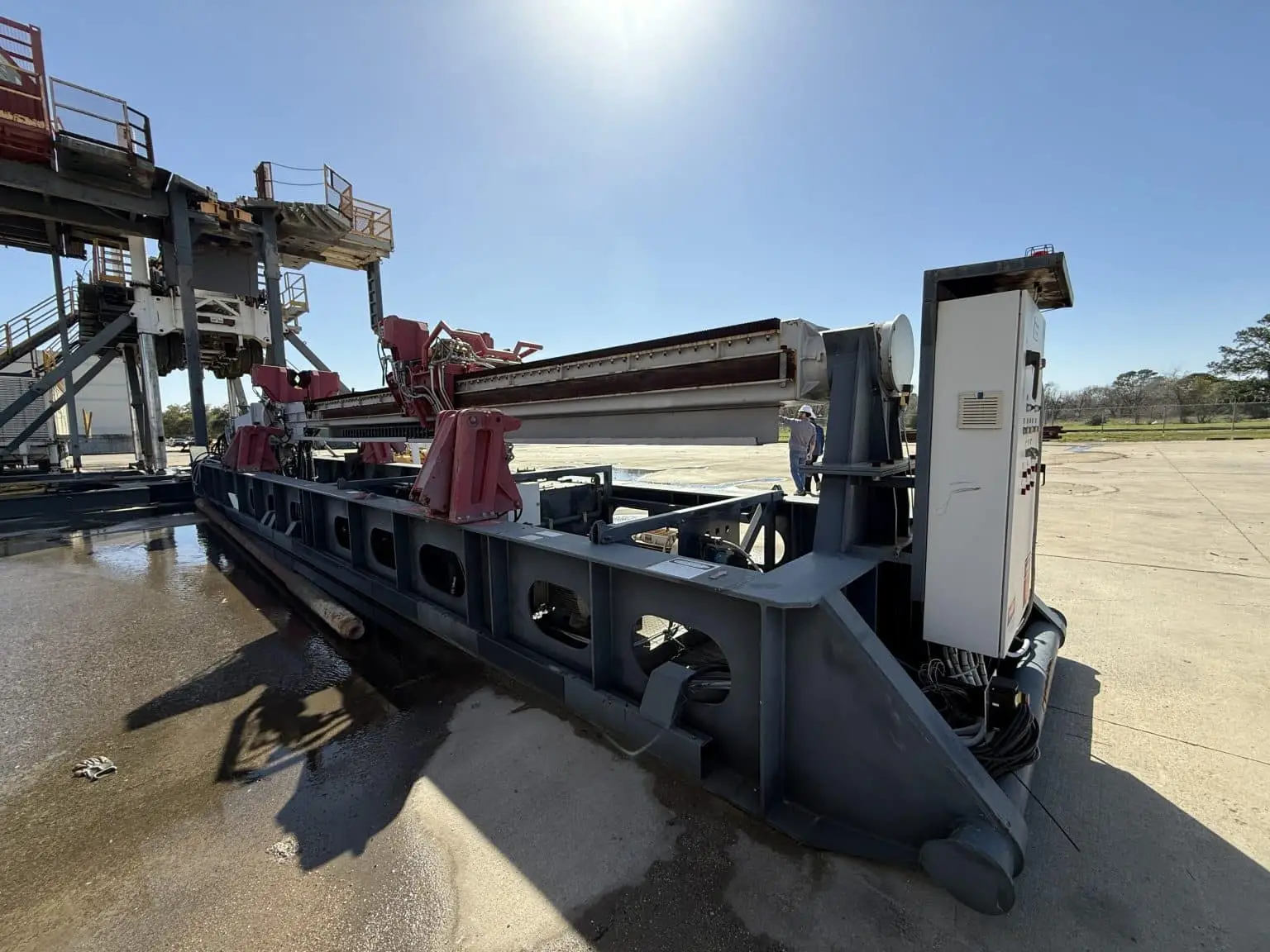

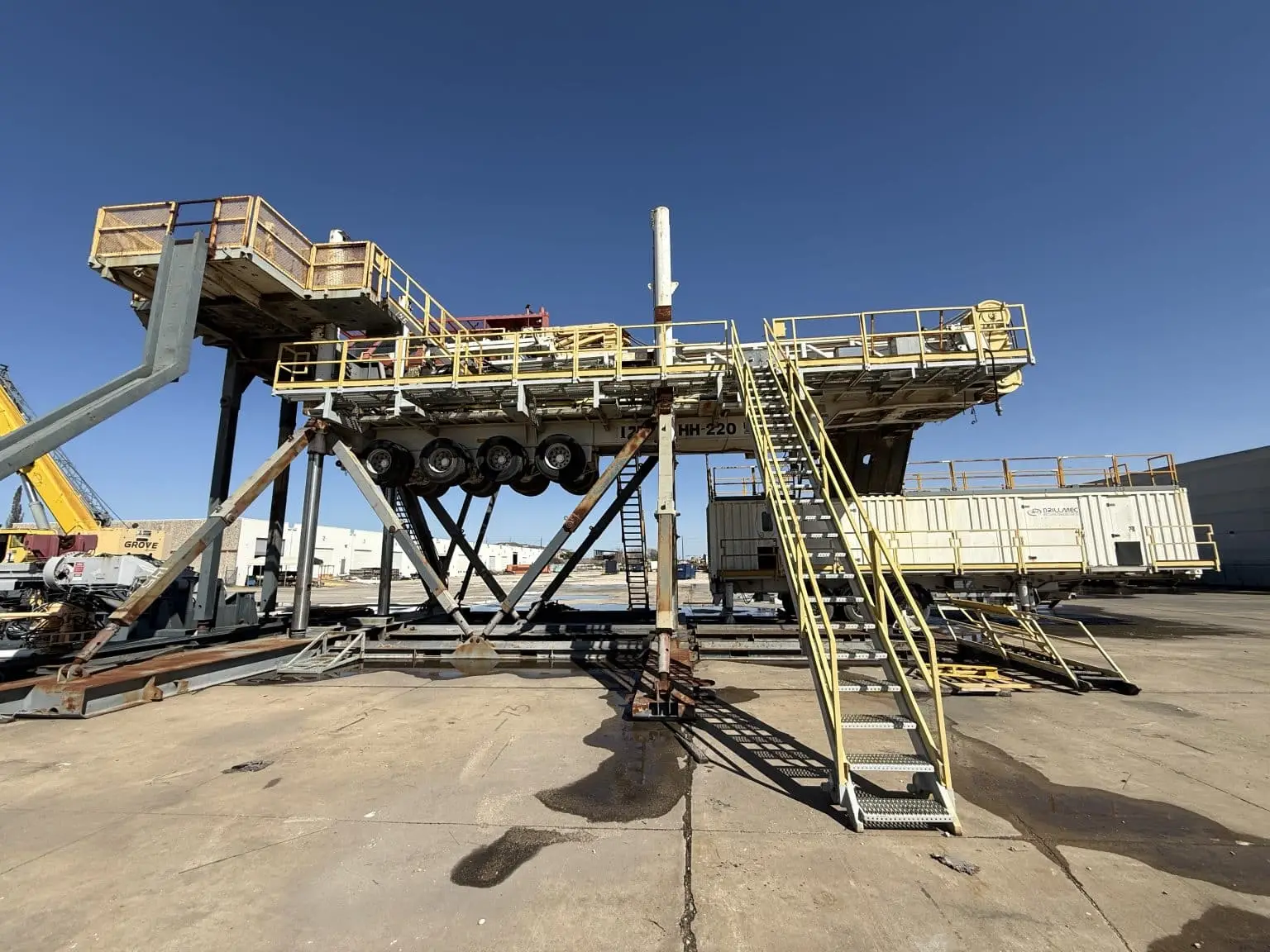

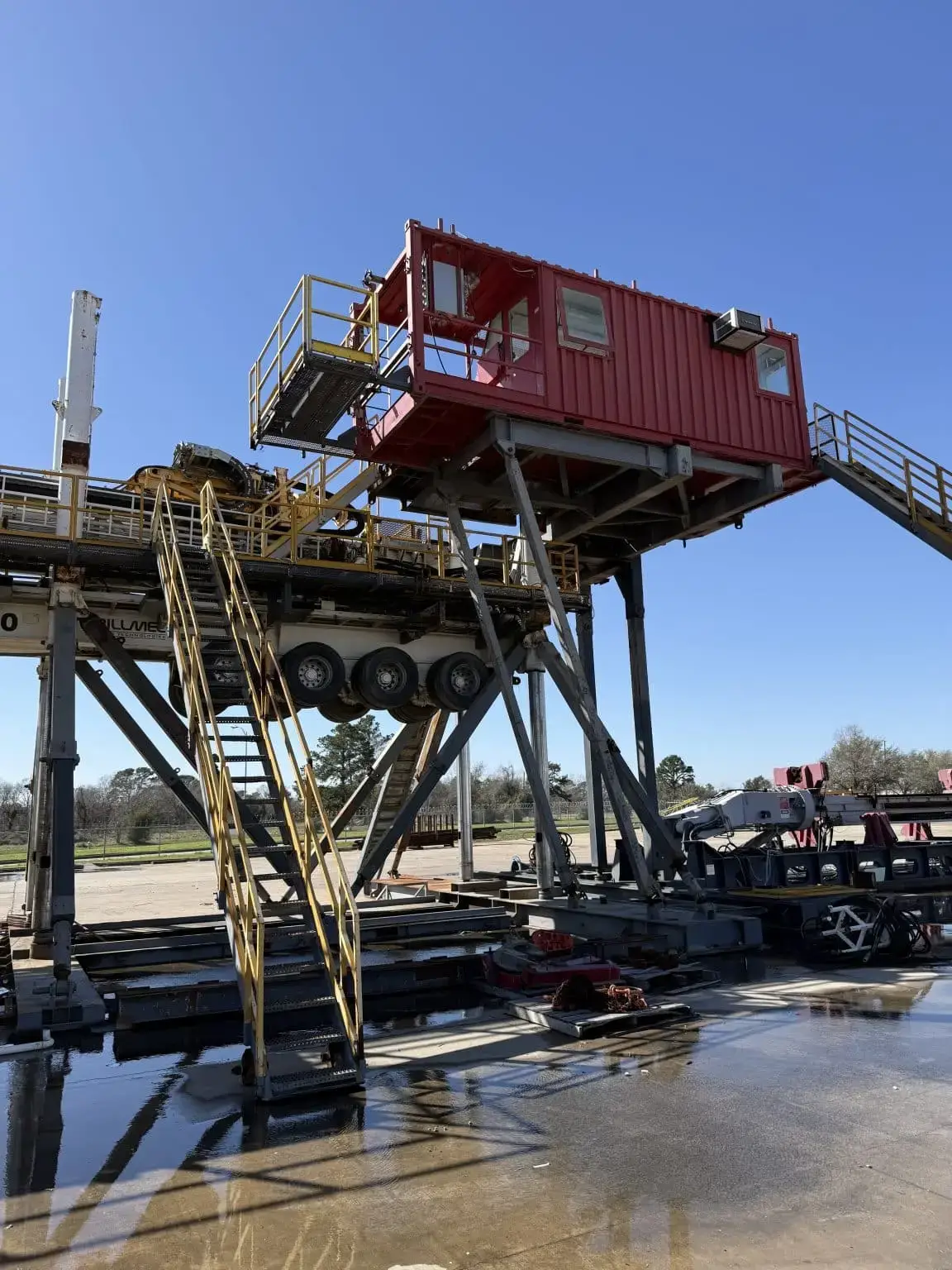

Drilling Floor Specifications

• Manufacturer: Drillmec
• Code: 0181 4195
• Quantity: One (1)
• Description:
  • Frame made of high-grade steel
  • Directly connected to the rig trailer
  • Rotary table flush with the working floor
  • Integrated vertical pipe rack for drill collars (DC) within the substructure frame

Technical Data

• Drill Floor Height: 7,710 mm (25.3 ft)
• Clear Height Under Rotary Beams: 7,000 mm (23 ft)
• Drill Collar (DC) Racking Capacity:
  • 18 Lengths of 6 ½" Drill Collars
  • 3 Lengths of 8" Drill Collars

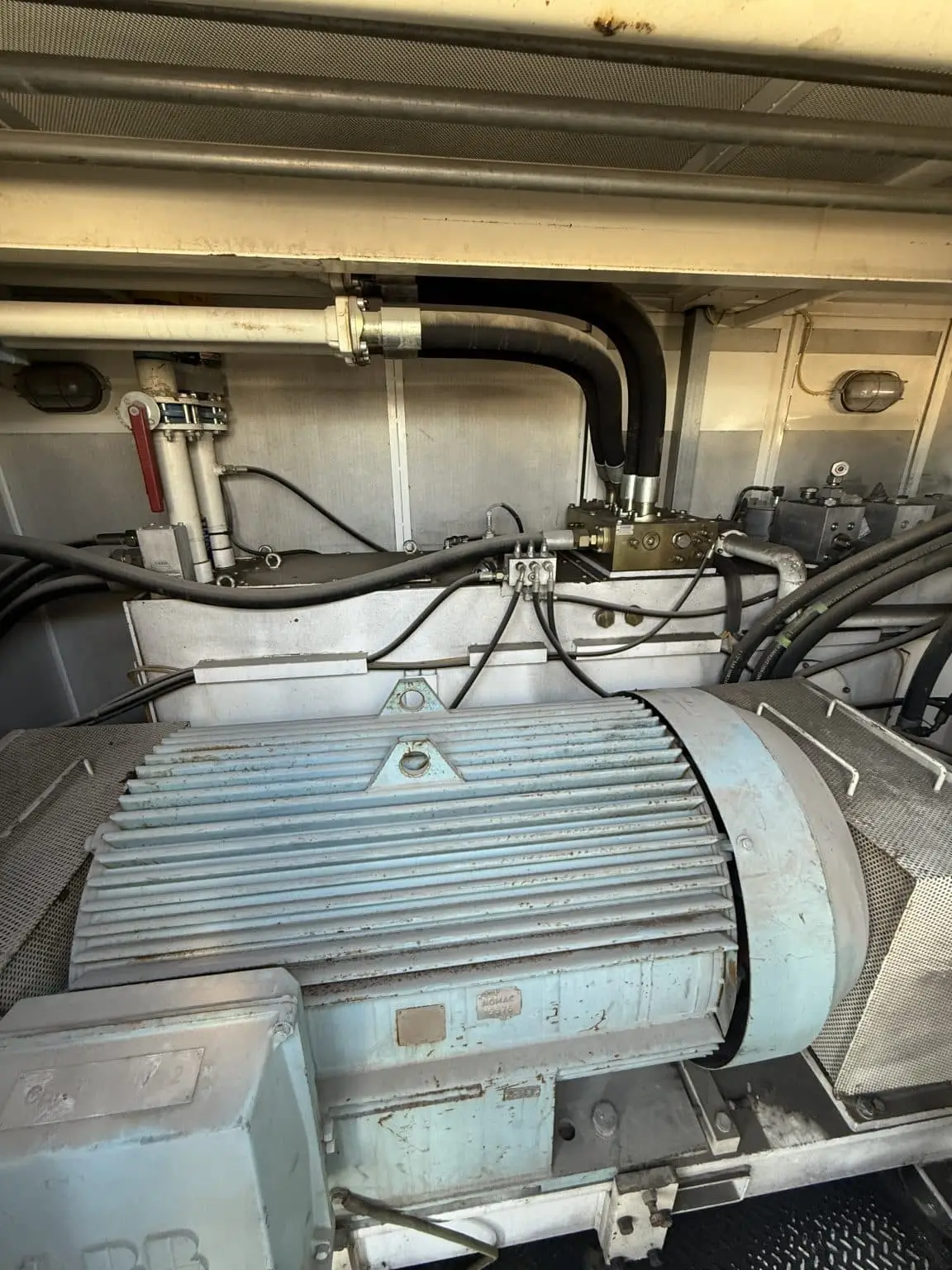

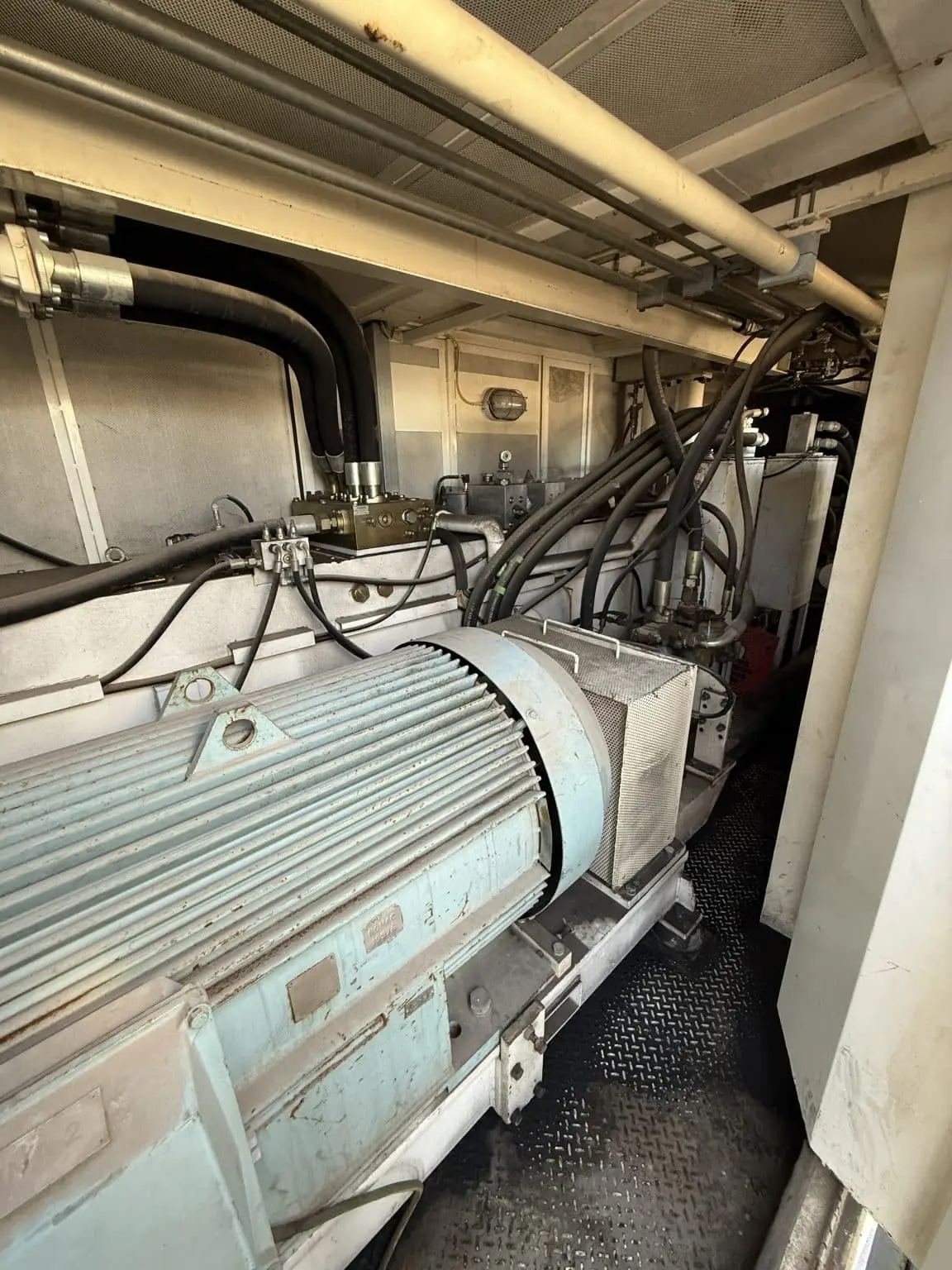

Technical Data – Hydraulic Motors & Performance

• Hydraulic Motors: 4 units
• Stroke: 16,000 mm (52 ½ ft)
• Max Pull Up: 200 metric tons (440,000 lbs)
• Max Pull Down: 20 metric tons (44,000 lbs)

Speed & Max RPM

• Speed 1: 118 RPM
• Speed 2: 154 RPM
• Speed 3: 194 RPM

Max Torque (Intermittent)

• 3,370 daN·m (24,850 lbf·ft)
• 2,580 daN·m (19,000 lbf·ft)
• 2,040 daN·m (15,000 lbf·ft)
