Cameron POD Test Valve Bench Assembly – Specifications

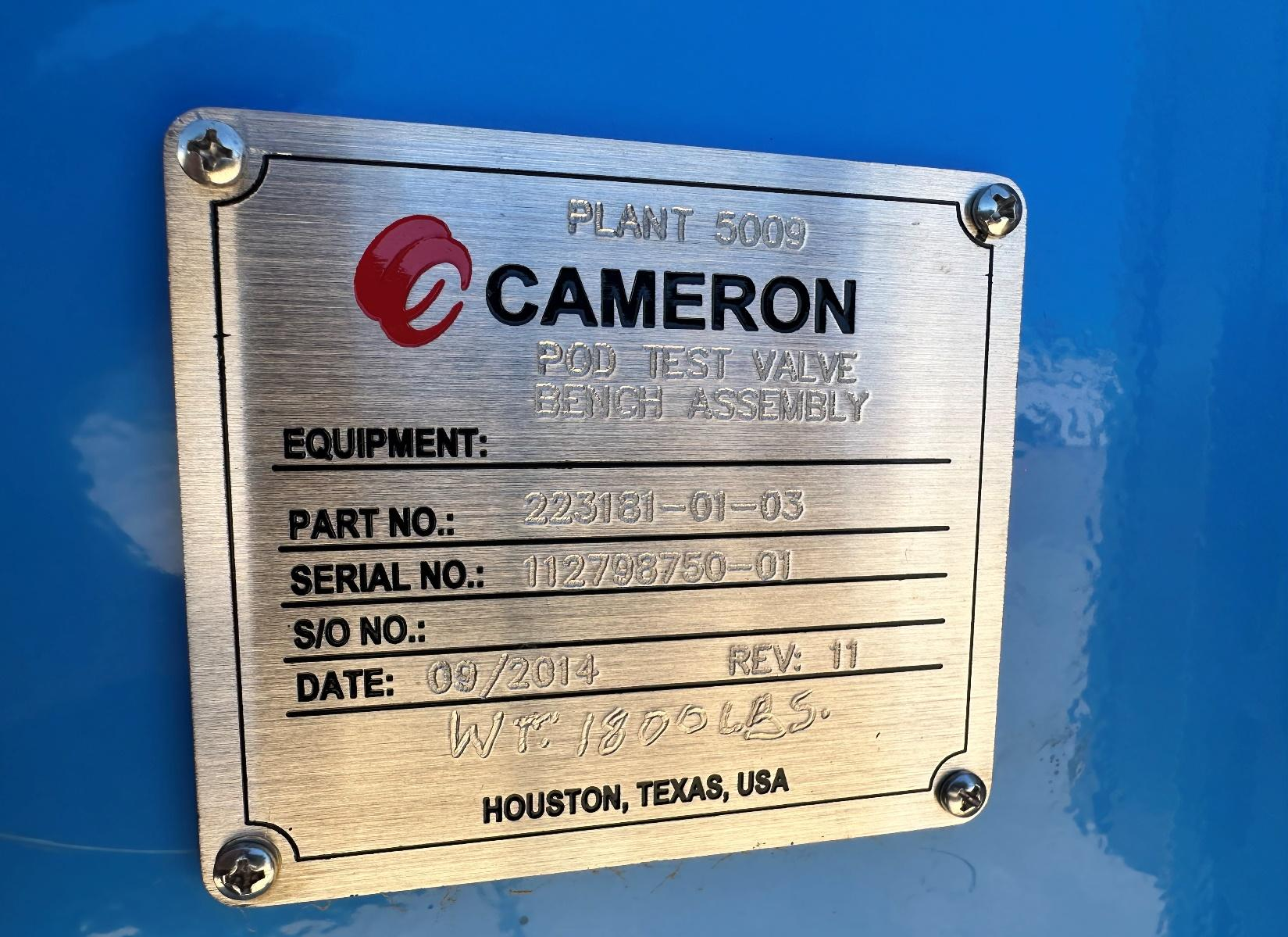

General Information

• Manufacturer: Cameron (SLB)
• Plant: 5009
• Equipment Type: POD Test Valve Bench Assembly
• Location: Houston, Texas, USA

Identification

• Part Number: 223181-01-03
• Serial Number: 112798750-01
• Revision: Rev 11
• Date of Manufacture: September 2014
• Weight: 1,806 lbs

Function

• Bench-mounted system designed for:
  • Testing BOP POD valves
  • Pressure testing and function testing of hydraulic valves
• Typically used in:
  • BOP workshops
  • Maintenance facilities
  • Offshore drilling support bases

System Capabilities (Typical for POD Test Benches)

• Test Type:
  • Hydraulic pressure testing
  • Functional (open/close) valve testing
• Compatible Equipment:
  • BOP control pods
  • Subsea control valves
  • Hydraulic cartridges / regulators

Pressure Ratings (Typical)

• Low Pressure Test Range: 0 – 1,500 psi
• High Pressure Test Range: up to 5,000 psi (may vary by configuration)
