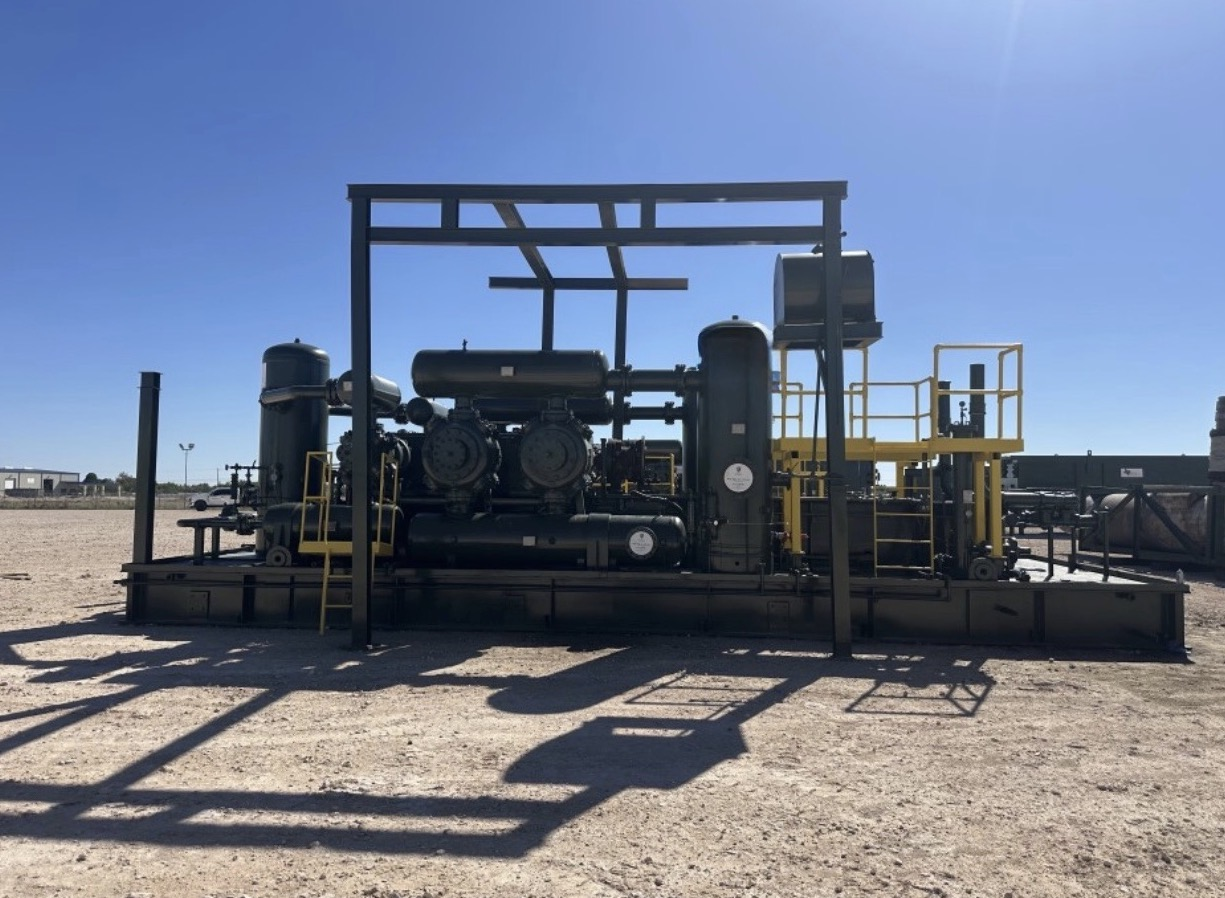

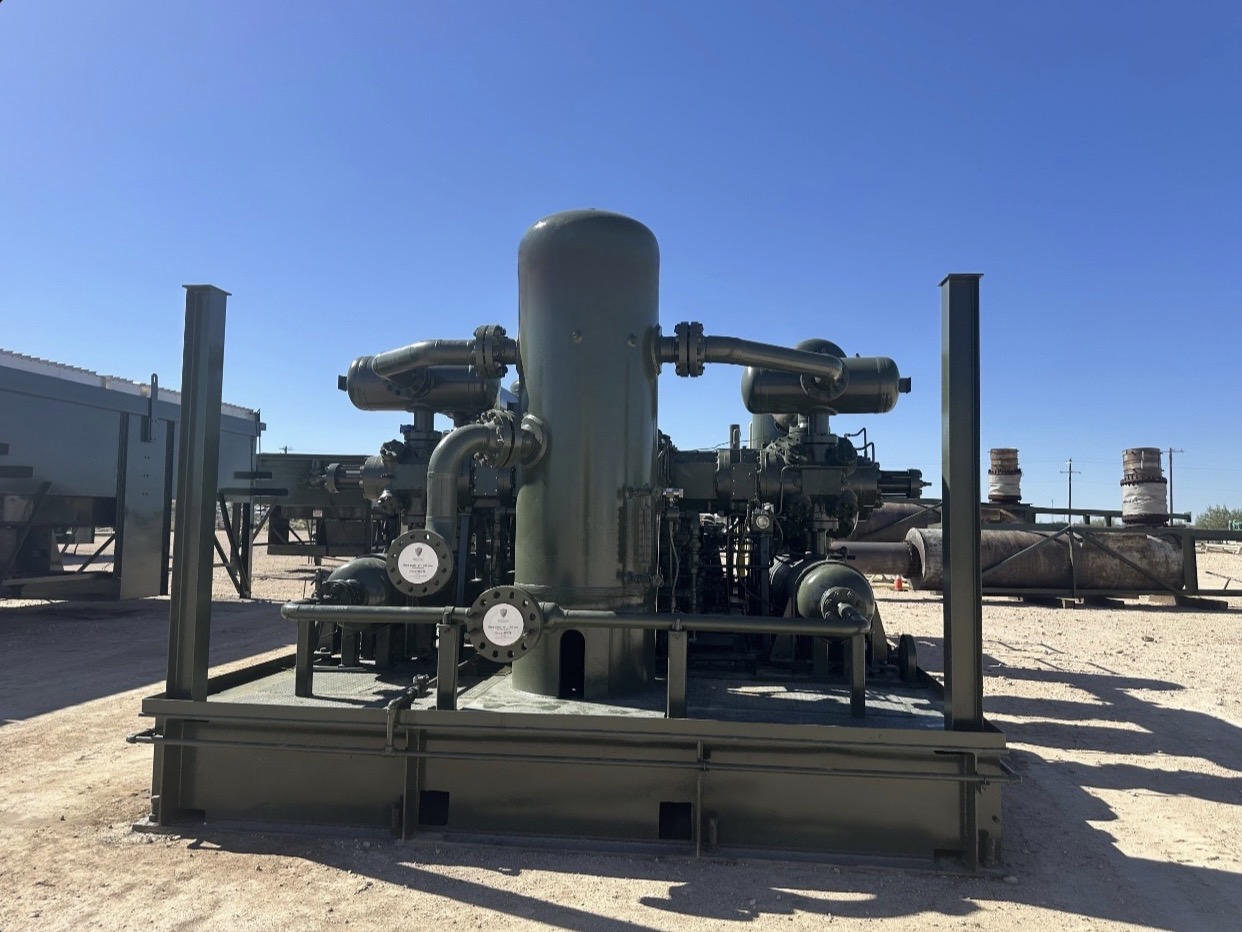

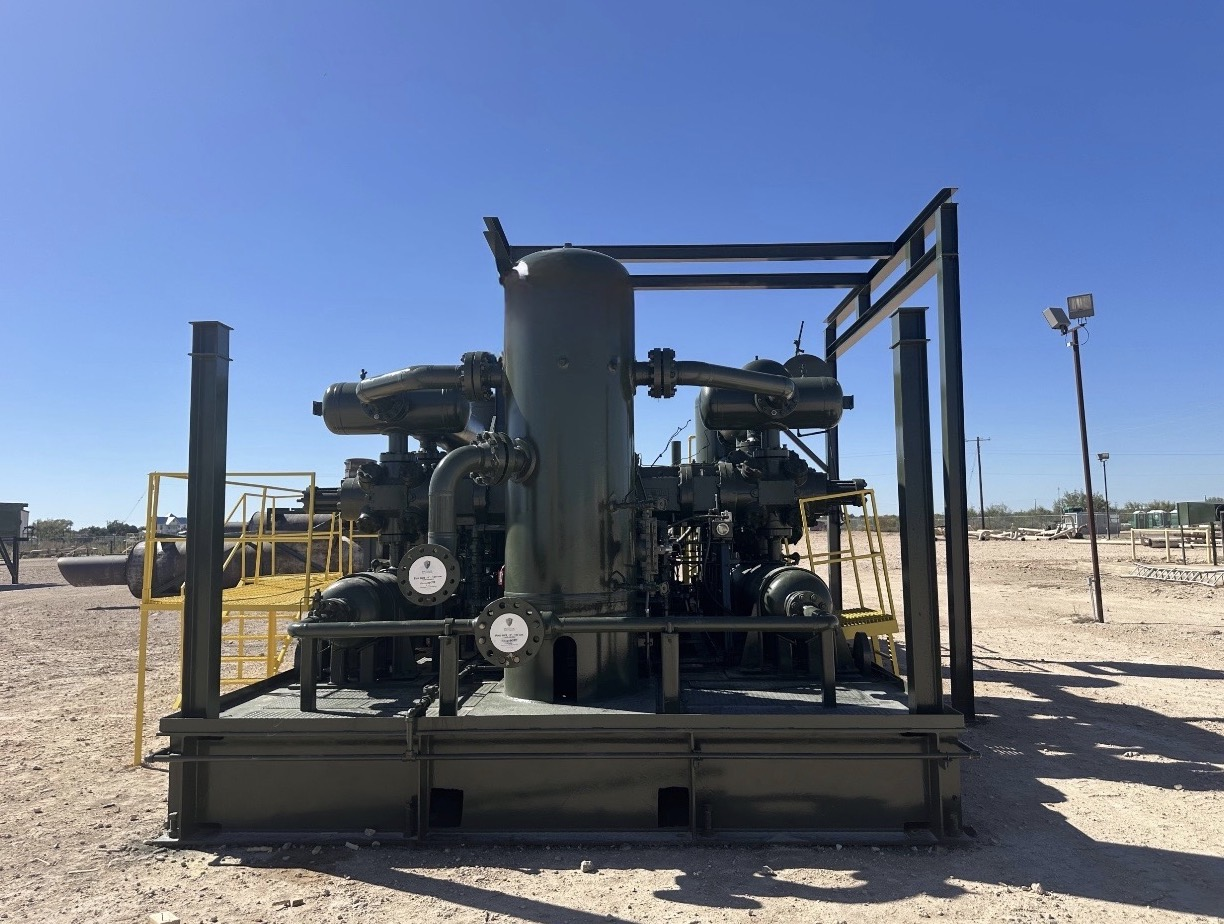

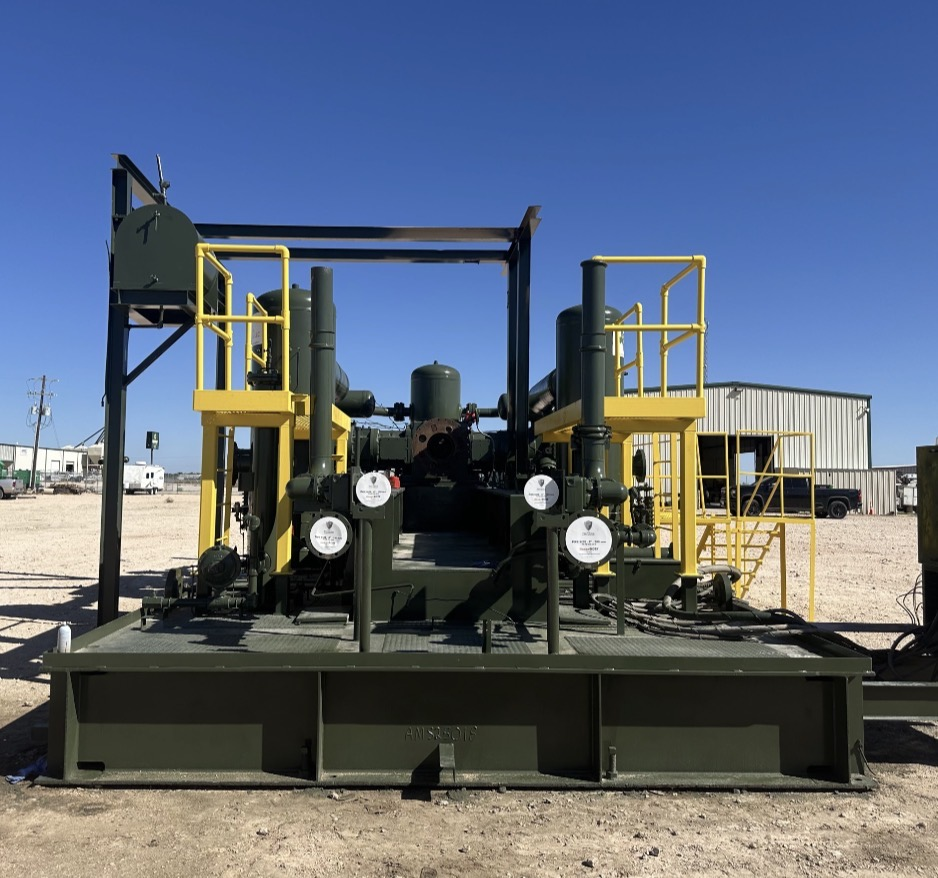

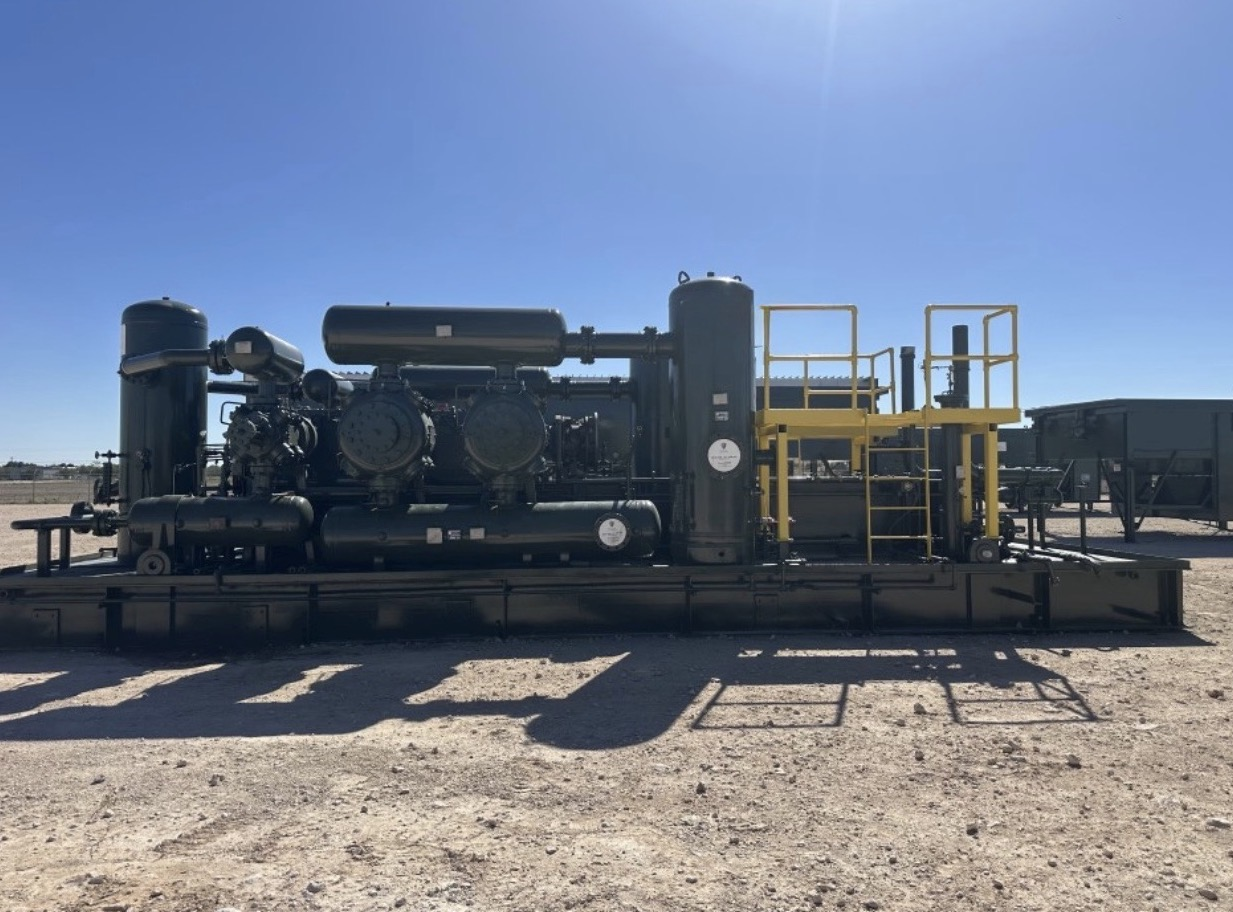

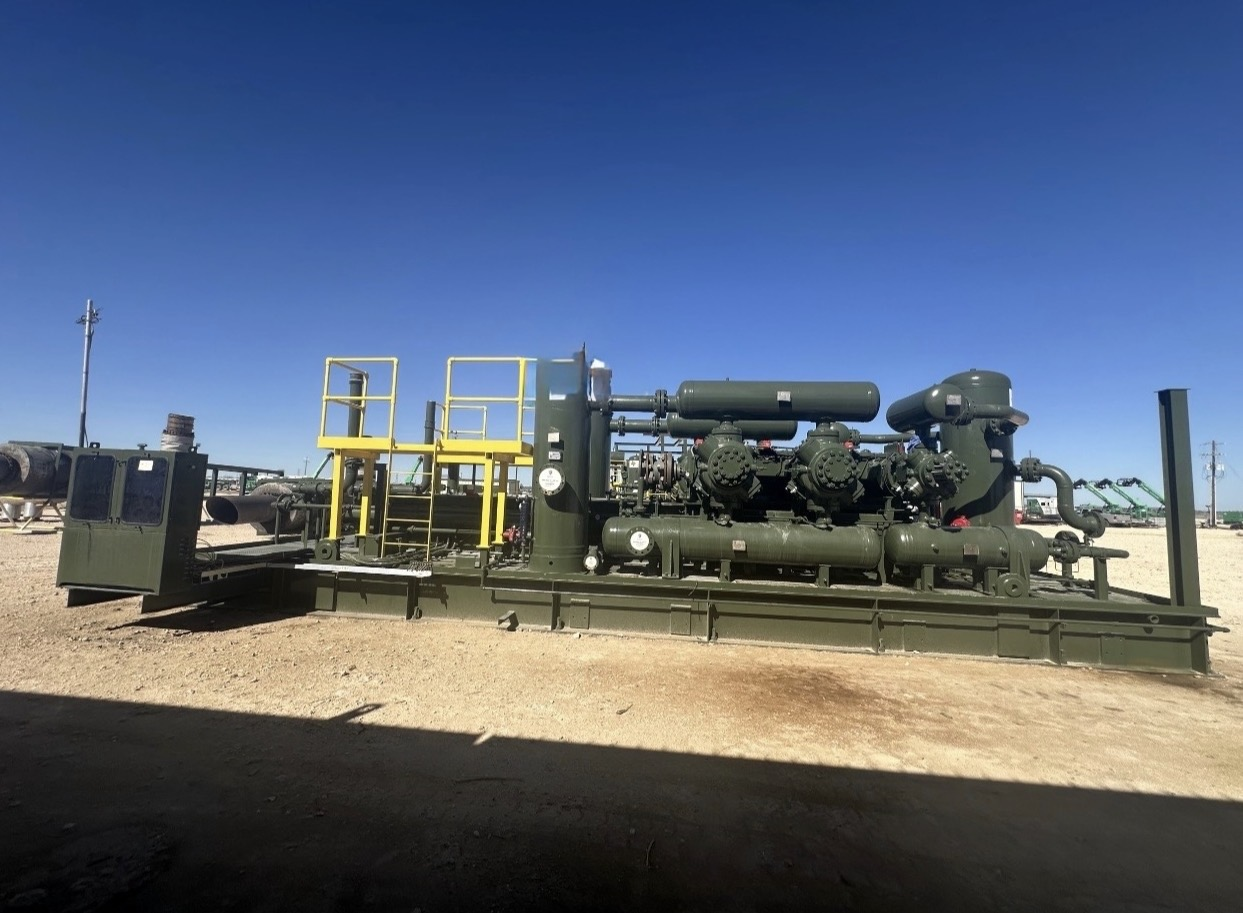

Compressor Frame Data

Model:

High Speed F706

• Rated Power: 7200 HP

• Stroke: 7.000 in

• Rated Speed: 1000 RPM

• Rod Diameter: 2.500 in

• Max Rod Load (Compression): 60,000 lbf

• Max Rod Load (Tension): 50,000 lbf

• Max Rod Load (Gas): 60,000 lbf

 Driver Data

Manufacturer:

Caterpillar

Model:

G3616 A3

• Rated Power: 4735 HP

• Rated Speed: 1000 RPM

• Available Power: 4261.5 HP

• Derate: 10%

• Run Speed: 1000 RPM

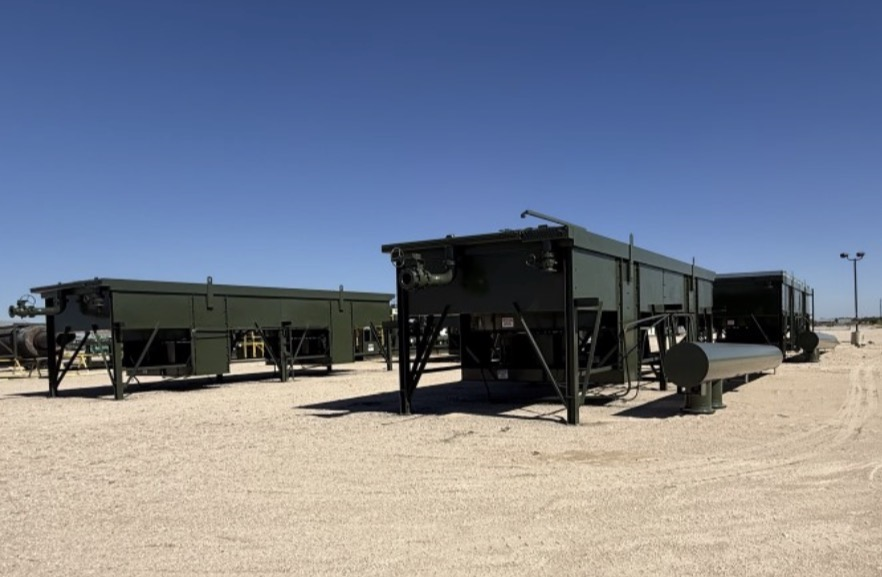

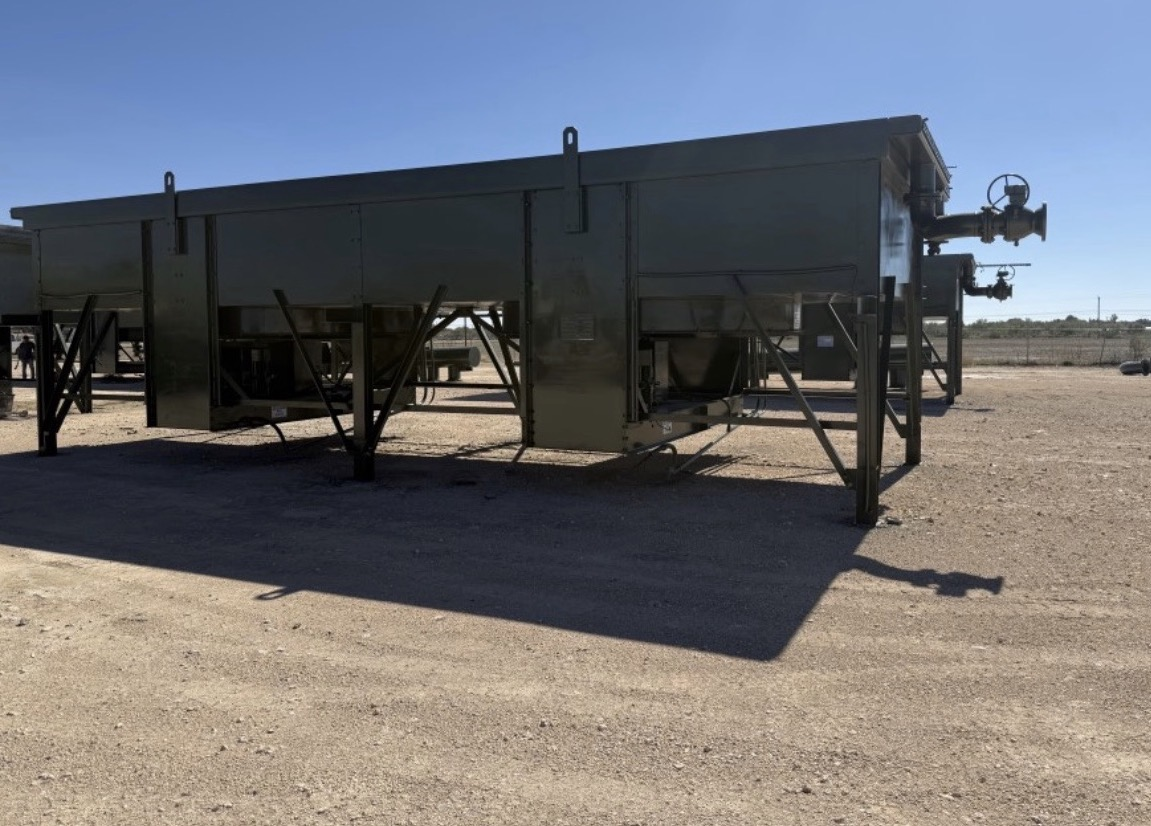

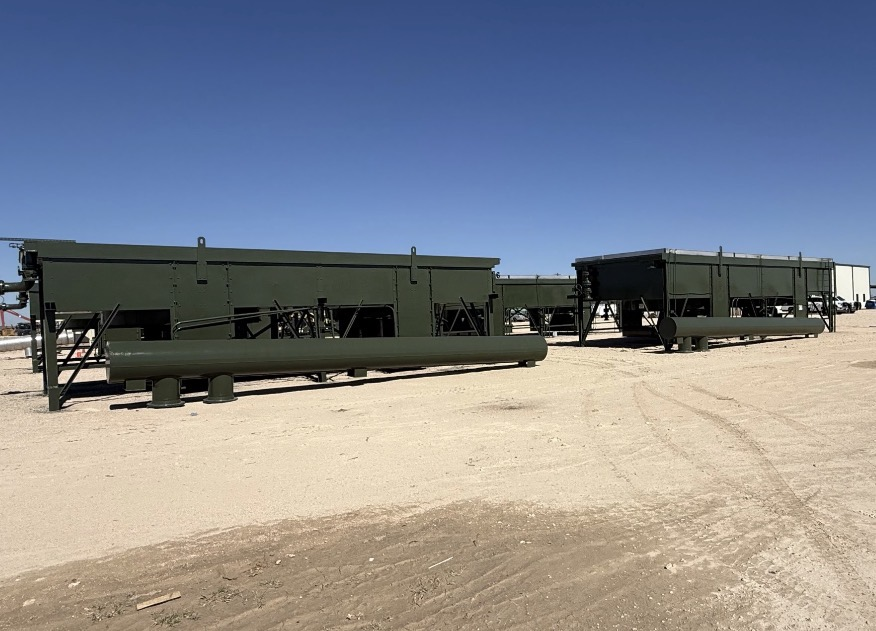

Application Data

• Unit Flow: 36.17 MMSCFD

• Load per Flow: 108.34 HP/MMSCFD

• Lubrication: Lubed

• Unit Load: 3919 HP

• Average Piston Velocity: 1166.67 ft/min

• Type: Gathering

Site Data

• Elevation: 687 ft

• Atmospheric Pressure: 14.33 psia

• Ambient Temperature: 120°F

• Gas Method: AGA8

• Base Pressure: 14.696 psia

• Base Temperature: 85°F

• Auxiliary Load: 0 HP

 Stage / Service Data

Flow Rate:

• 36.170 MMSCFD (All 3 stages)
