| Nominal rating | 2,000 HP |
| AC motor | 2,000 HP continuous drawworks duty |
| Blower | 25 HP |
| Maximum input power | 2,250 HP intermittent |

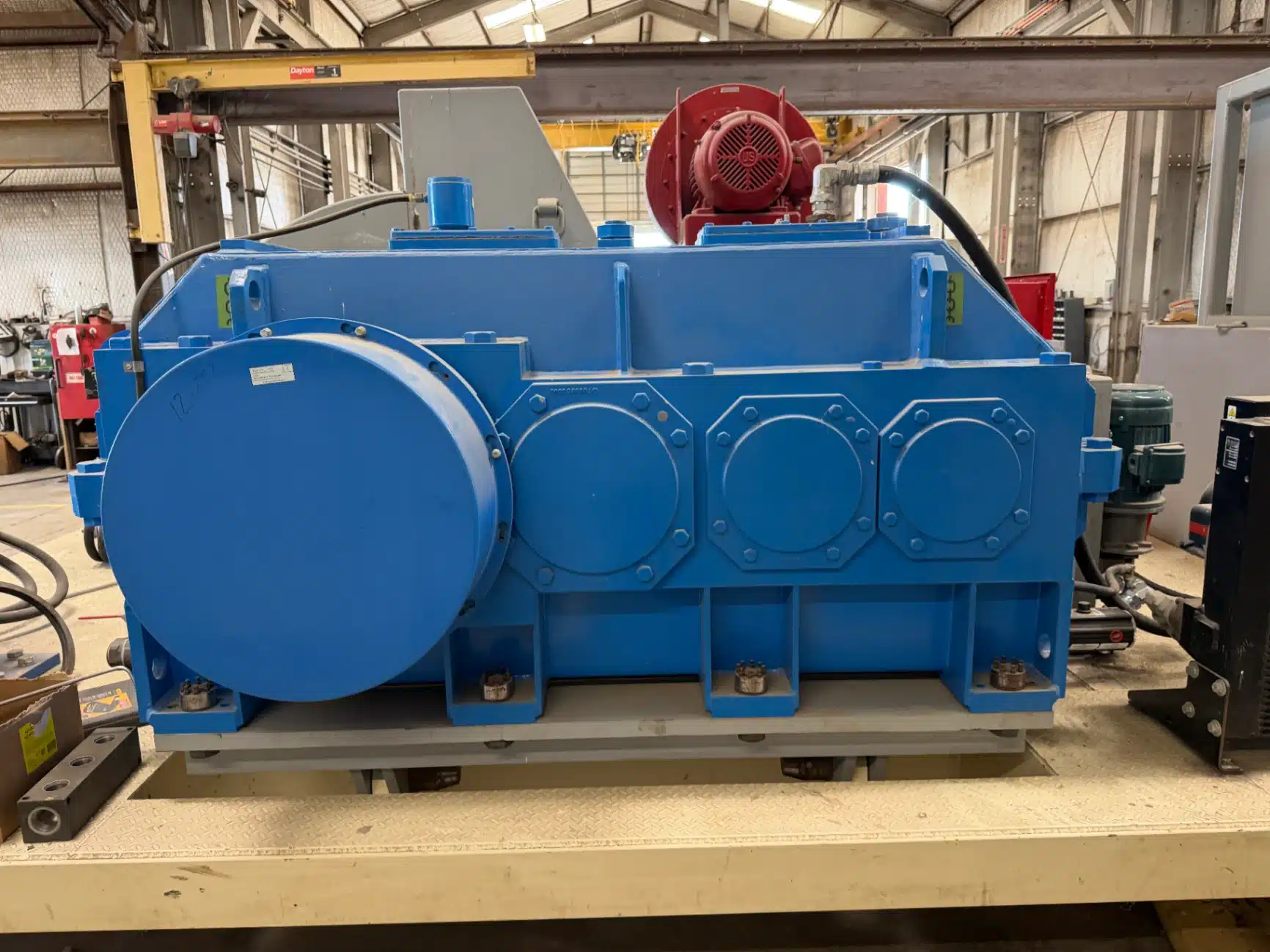

| Drive | Gear-driven direct-drive gearbox |
| Gear ratio | ~9.909:1 |
| Drum diameter | 31 in. |
| Drum length | 54.25 in. |
| Drill line | 1-3/8 in. (1.375") |
| Maximum fast-line pull | 95,500 lb |
| Maximum hoisting capacity | 750,000 lb on 10 lines |
| Main braking | Dynamic AC motor braking |
| Parking/emergency brake | Spring-set, air/pneumatic release |
| Lubrication | Motor-driven positive-flow external system |
| Lube cooling/filtration | Heat exchanger + filter |
| Construction | Heavy-duty frame/skid |
