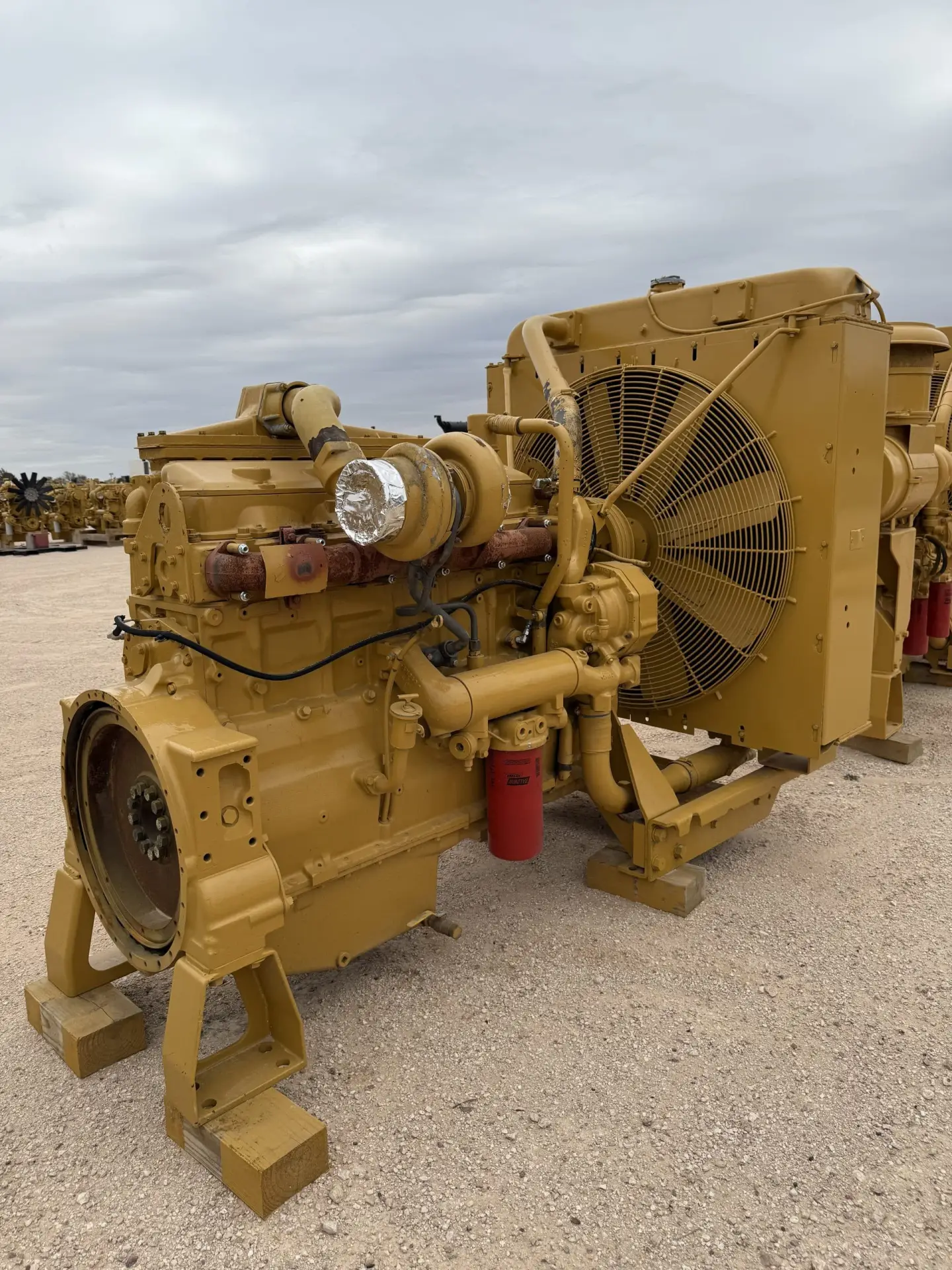

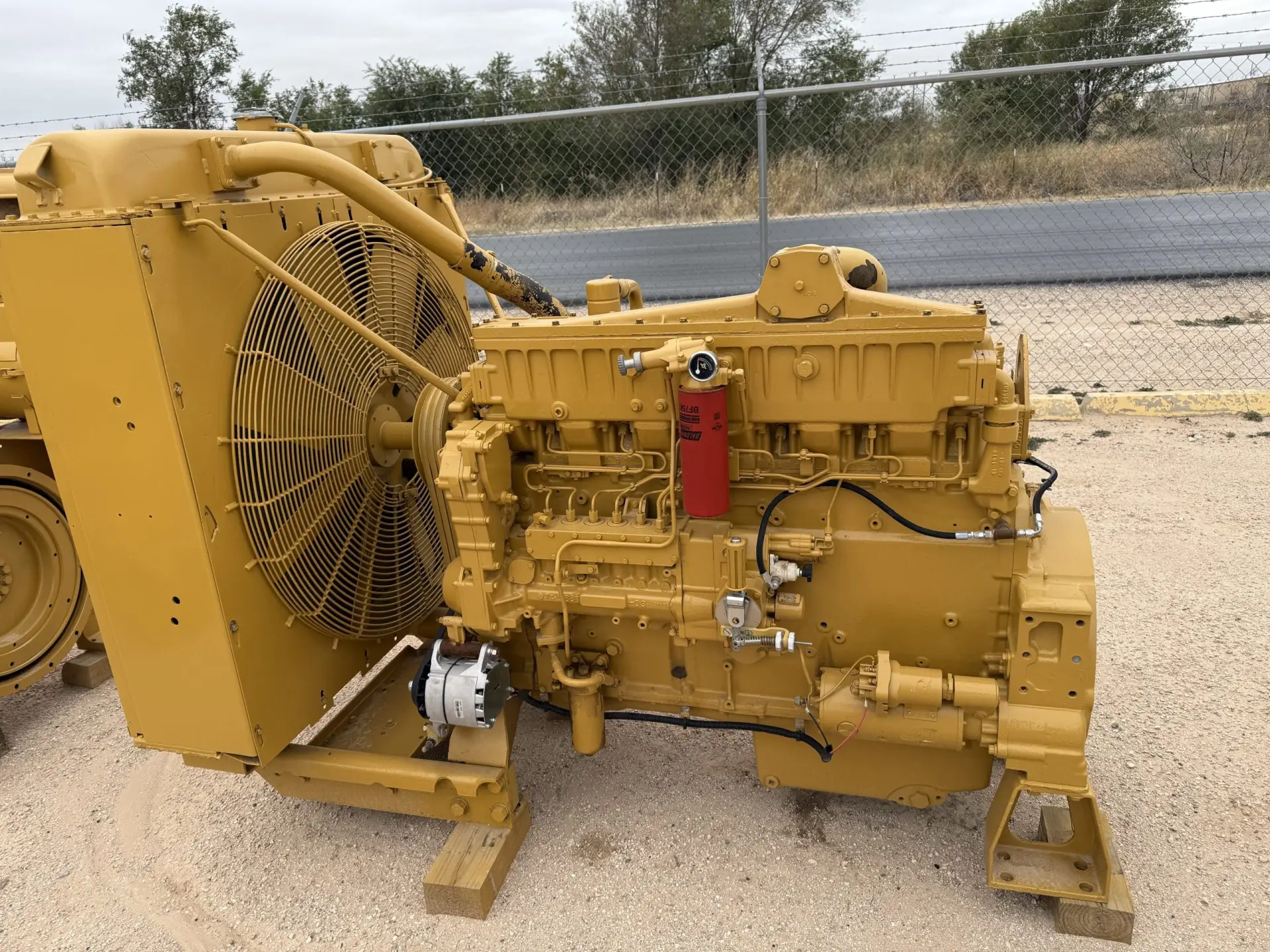

Rebuilt 3406 CAT Engine

General Specifications:

• Engine Configuration: Inline 6-cylinder, 4-stroke-cycle diesel
• Displacement: 14.6 liters (893.4 cubic inches)
• Bore: 137 mm (5.4 inches)
• Stroke: 165 mm (6.5 inches)
• Compression Ratio: 14.5:1
• Aspiration: Turbocharged Aftercooled
• Rotation (from flywheel end): Counterclockwise

Performance Ratings:

• Maximum Power: 465 hp (347 kW)
• Minimum Power: 375 hp (280 kW)
• Rated Speed: 1,800-2,100 rpm
• Maximum Torque: 1,602 lb-ft (2,172 Nm) at 1,350 rpm

Physical Dimensions:

• Length: 65.4 inches (1,660 mm)
• Width: 35.7 inches (906 mm)
• Height: 52.6 inches (1,335 mm)
• Weight (Net Dry): 2,866 lbs (1,300 kg)
