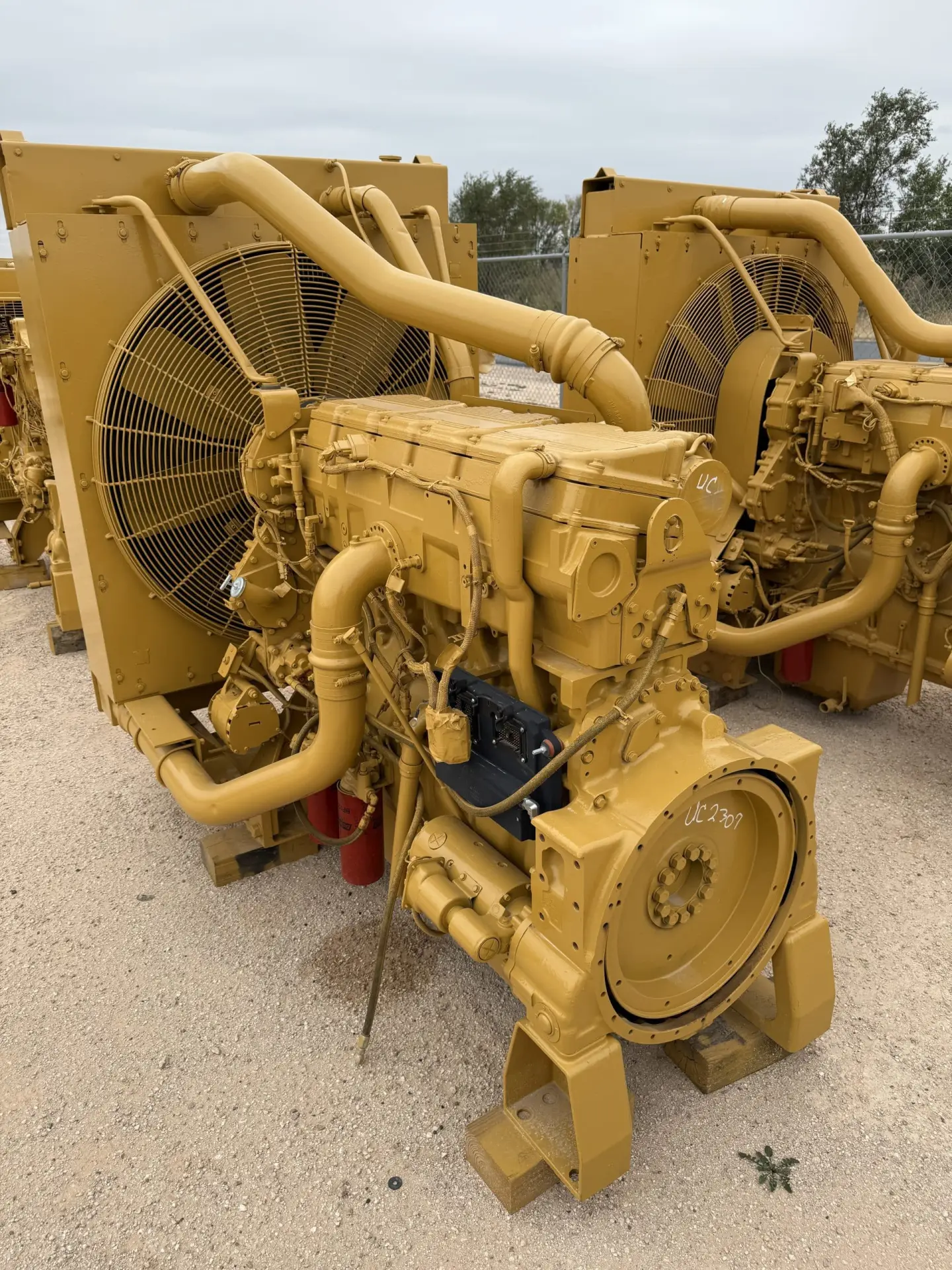

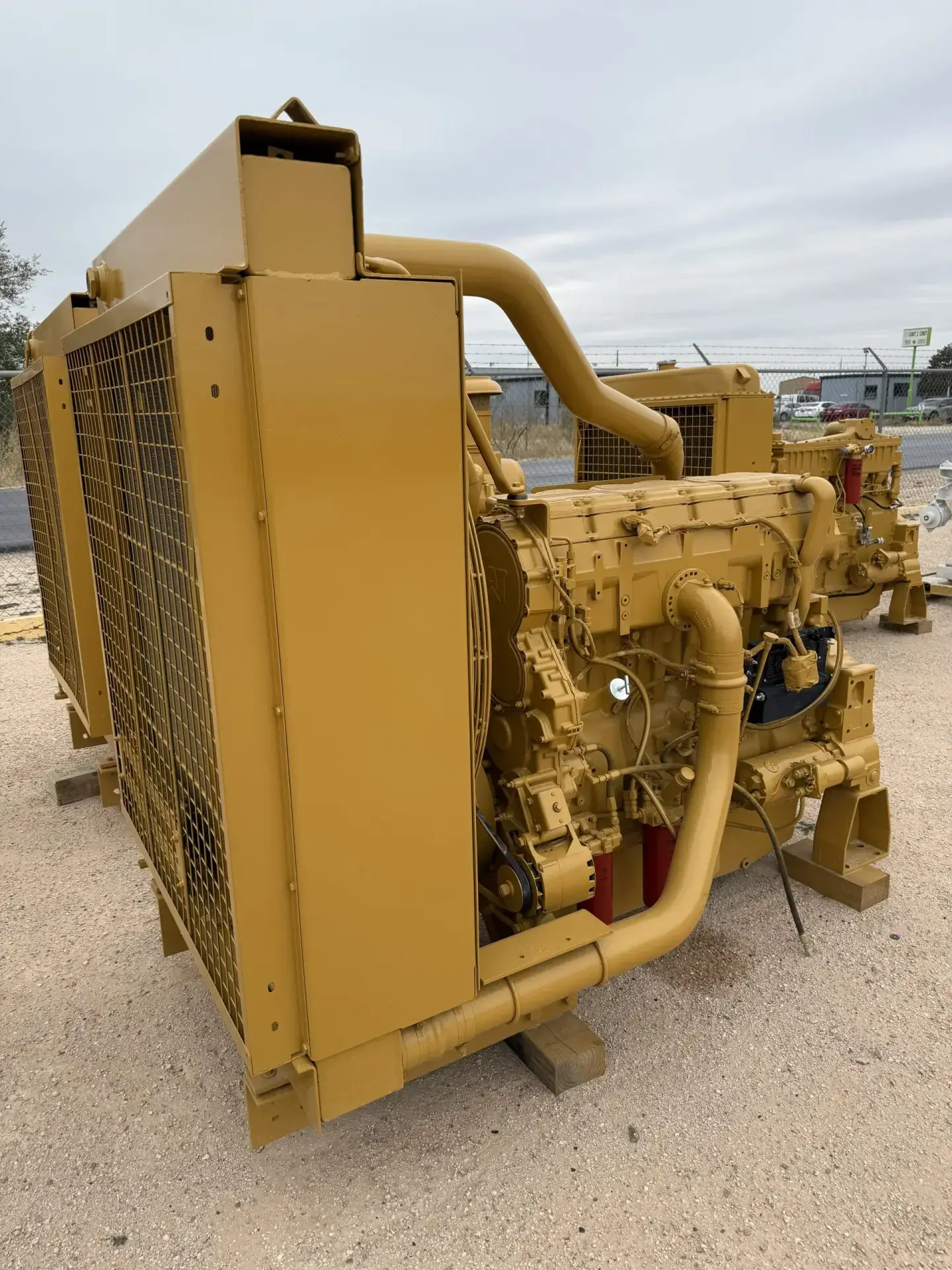

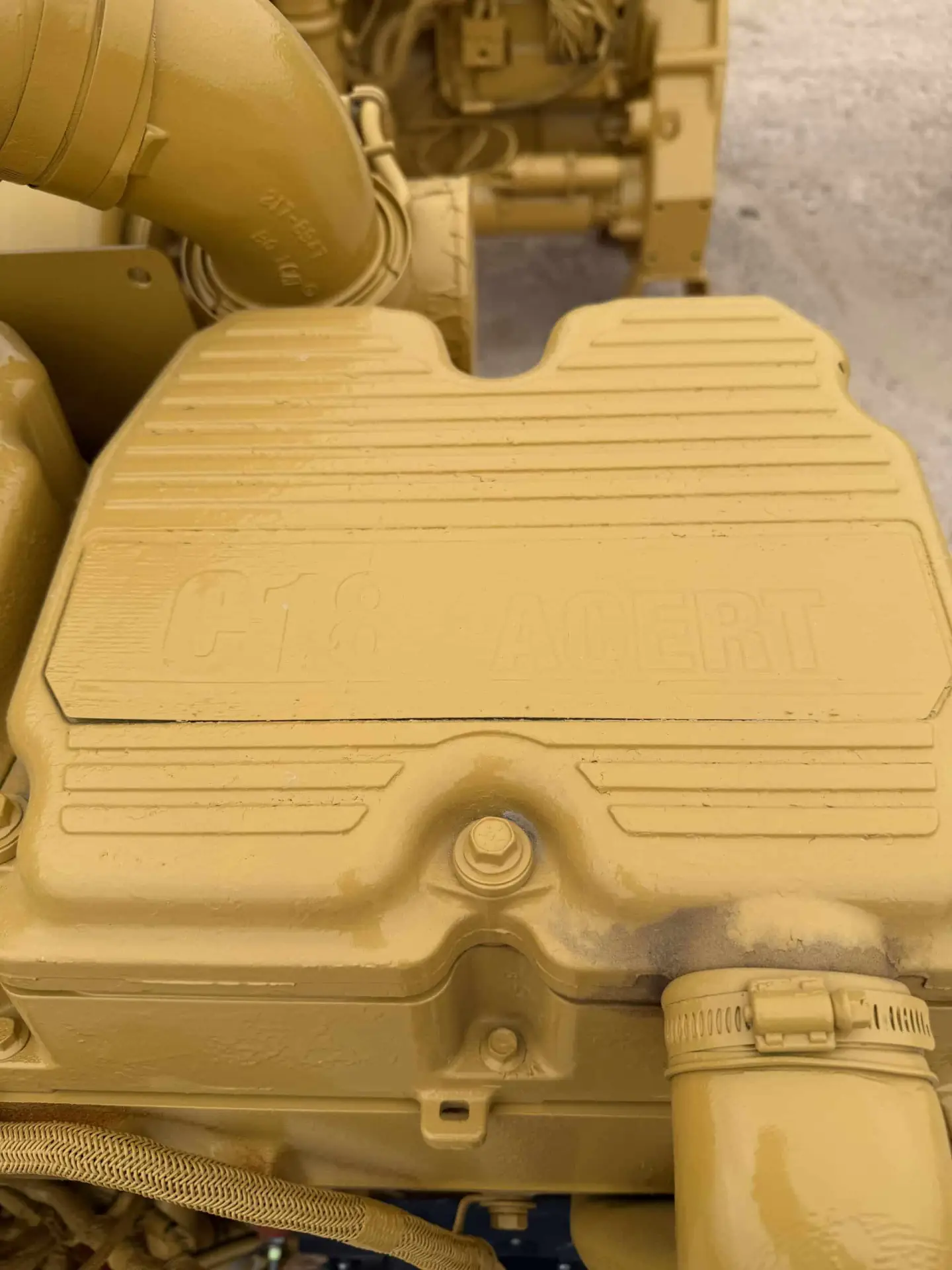

Rebuilt C18 CAT Engine

General Specifications:

• Displacement: 18.1 liters (1,104.5 cubic inches)
• Bore: 145 mm (5.7 inches)
• Stroke: 183 mm (7.2 inches)
• Compression Ratio: 16.0:1
• Aspiration: Turbocharged-Aftercooled (TA) or Series Twin Turbocharged Aftercooled (TTA)
• Fuel System: Direct Injection
• Cooling System: Liquid-cooled
• Rotation (from flywheel end): Counterclockwise

Performance Ratings:

• Maximum Power: 597 kW (800 hp)
• Minimum Power: 429 kW (575 hp)
• Rated Speed: 1,800–2,100 rpm
• Maximum Torque: 3,710 Nm (2,736 lb-ft) at 1,300 rpm

Physical Dimensions (Approximate):

• Length: 1,545 mm (61 inches)
• Width: 1,141 mm (45 inches)
• Height: 1,334 mm (53 inches)
• Dry Weight: 1,758 kg (3,875 lbs)
• Wet Weight: 1,790 kg (3,945 lbs)
