Manufacturer:
Continental-Emsco Company
(A Division of Ingersoll-Rand / Oilwell Supply heritage)
Model:

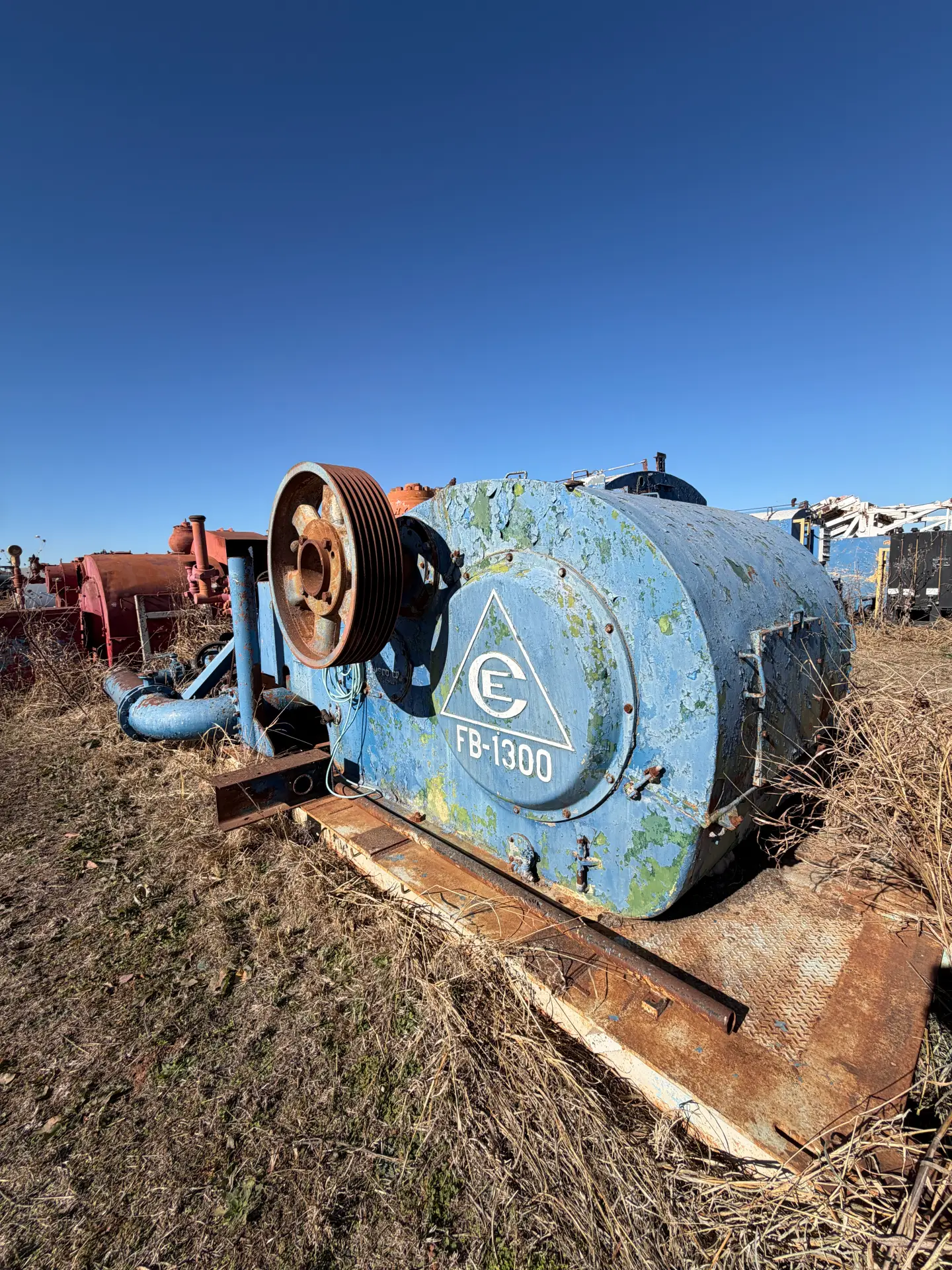

FB-1300 Power Pump
Pump Type:
Triplex, single-acting mud pump
Maximum Input Power: 1300 HP
Maximum Pump Speed: 120 SPM
Stroke Length: 12 in
7.0 in
6¾ in
6½ in
6¼ in
6.0 in

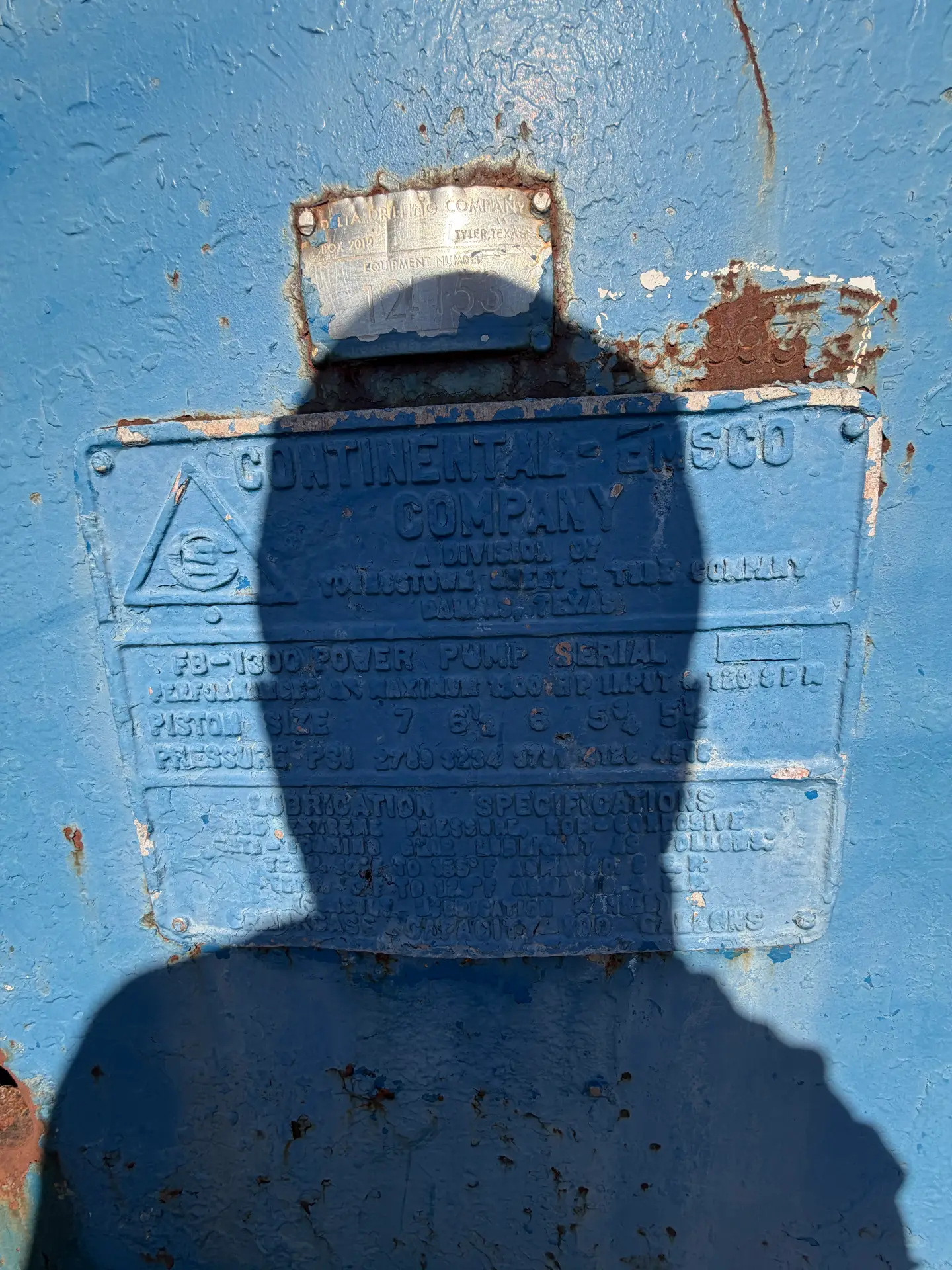

(approximate, as stamped)
| Liner Size | Max Pressure |
|---|---|
| 7.0 in | ~2,700 psi |
| 6¾ in | ~3,050 psi |
| 6½ in | ~3,440 psi |
| 6¼ in | ~3,915 psi |
| 6.0 in | ~4,500 psi |
| Liner Size | Approx Flow (GPM) |
|---|---|
| 7.0 in | ~720 GPM |
| 6¾ in | ~670 GPM |
| 6½ in | ~620 GPM |
| 6¼ in | ~570 GPM |
| 6.0 in | ~530 GPM |
