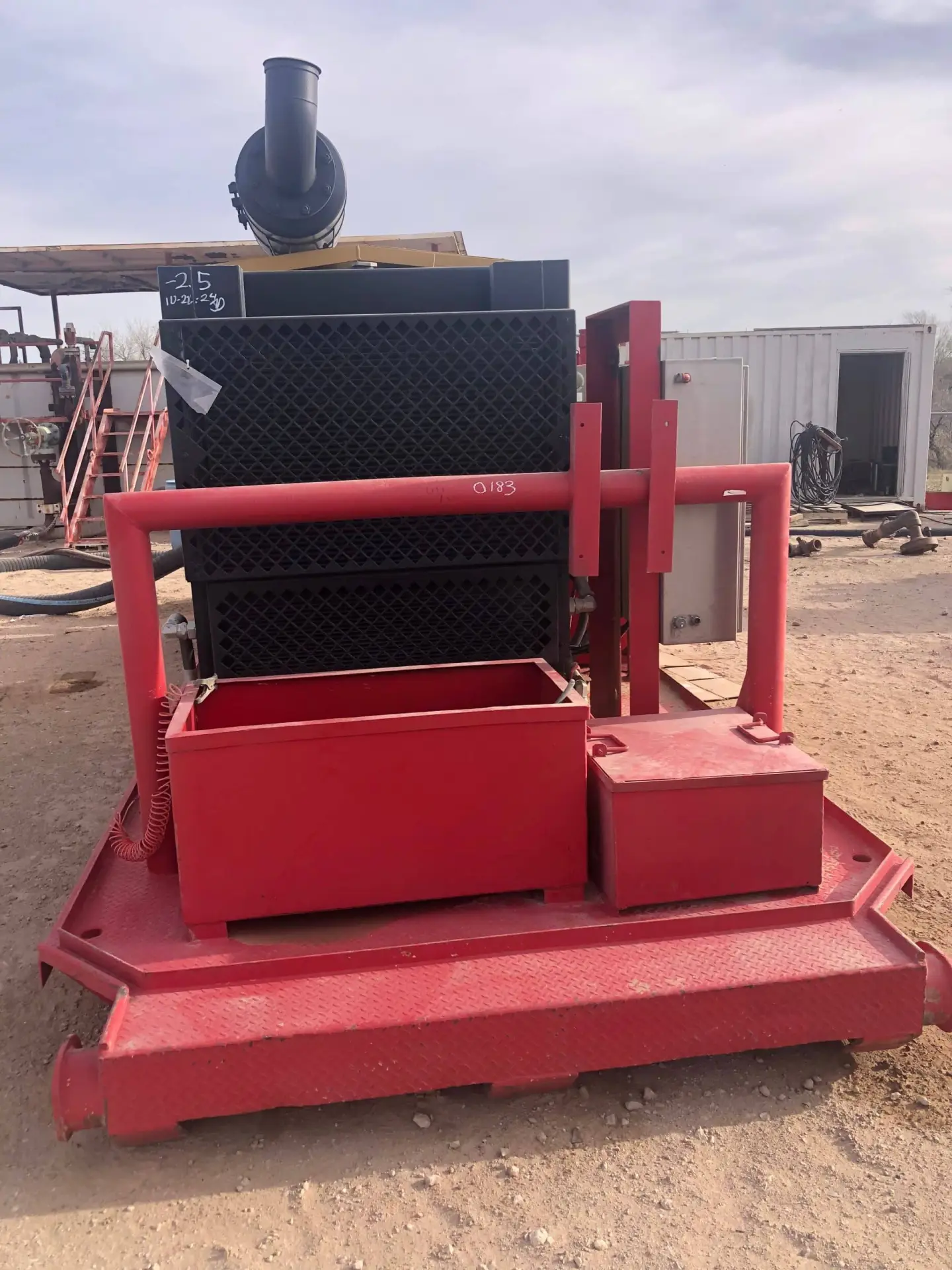

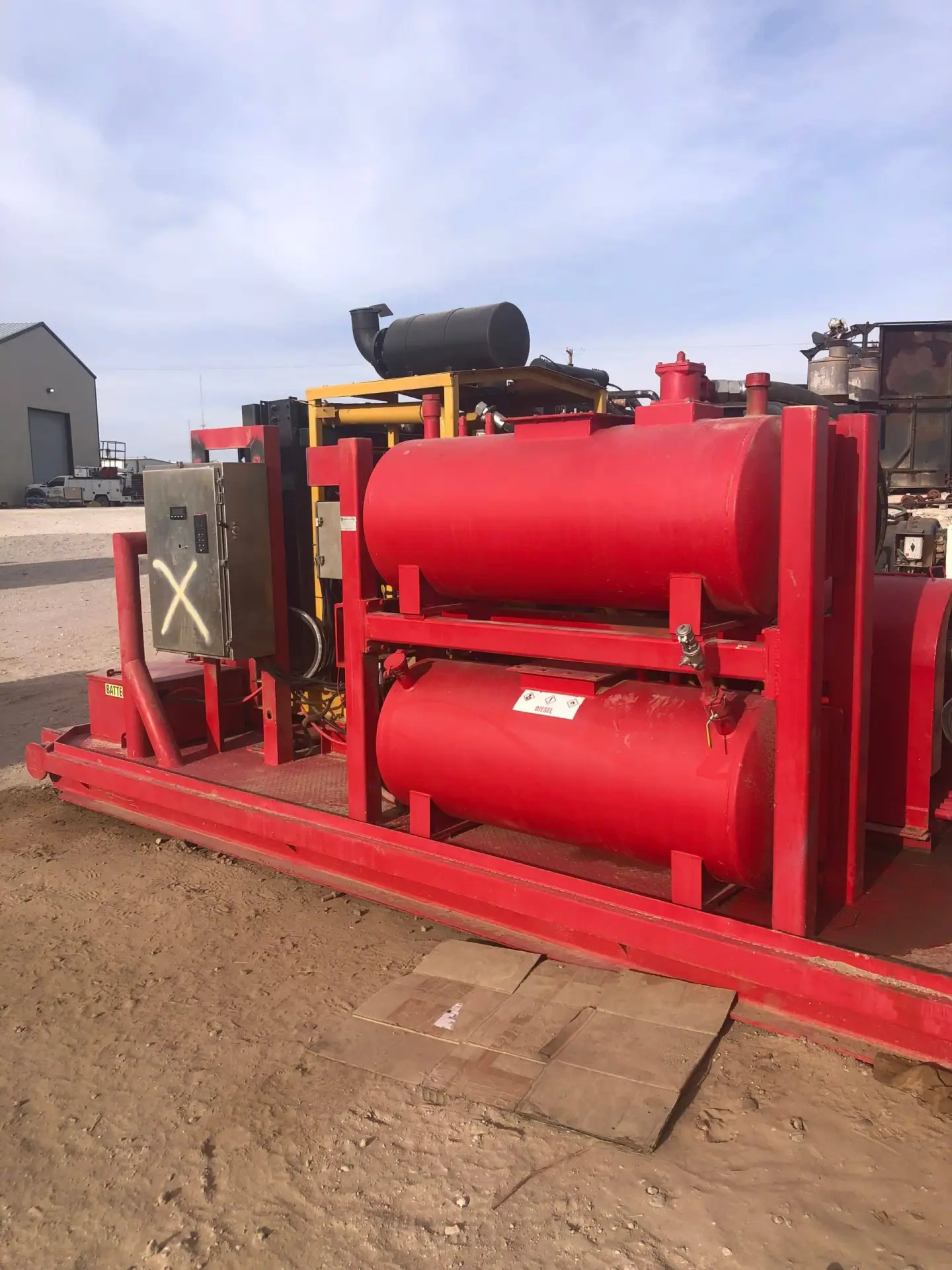

Rebuilt TGF Gardner 400 hp Denver with C-13 Cat

Key Specifications:

• Rated Brake Horsepower: 225 HP​
• Stroke Length: 8 inches​​

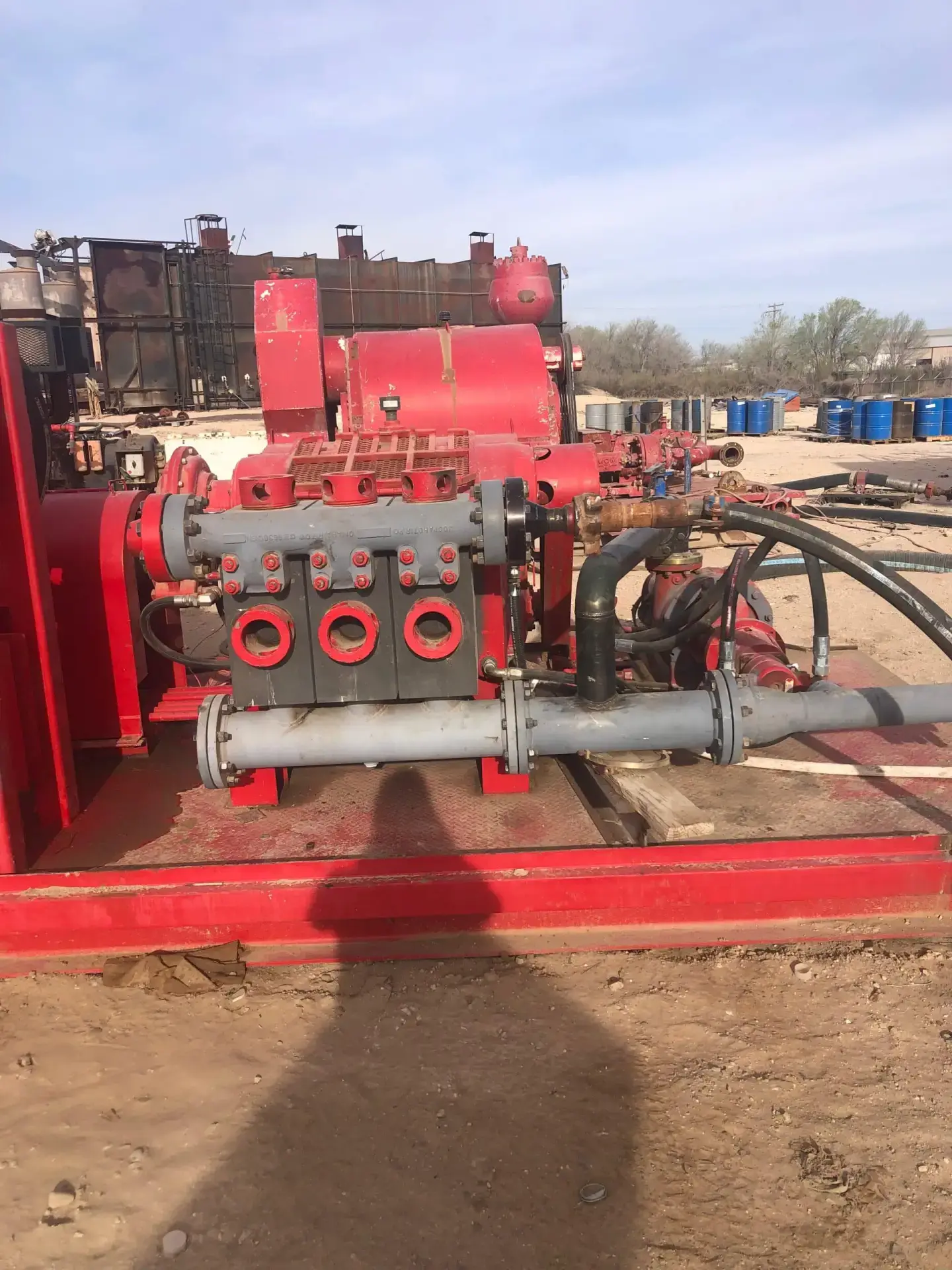

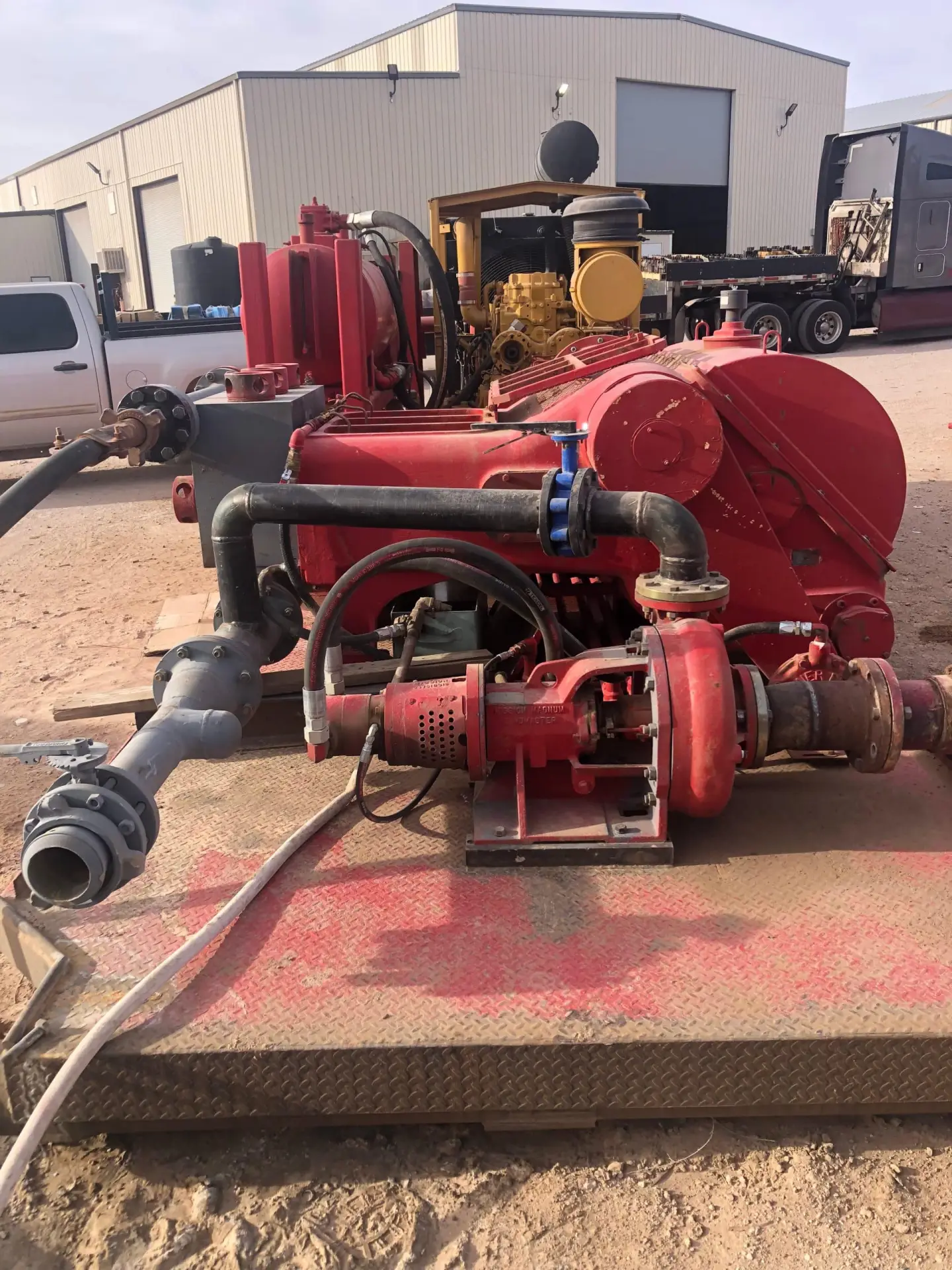

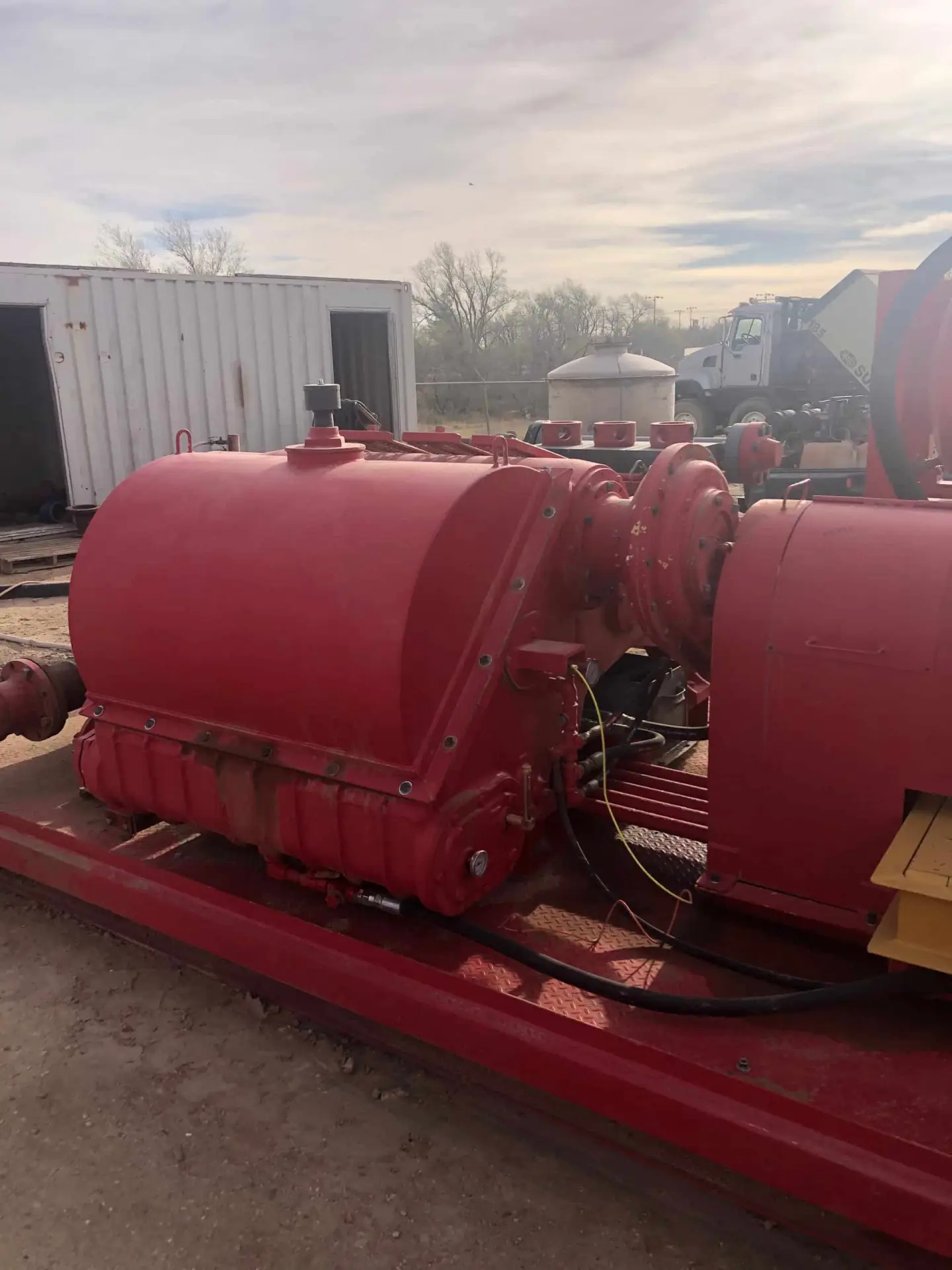

The TGF model is part of Gardner Denver's line of triplex pumps, known for their reliability and efficiency in well service operations. ​

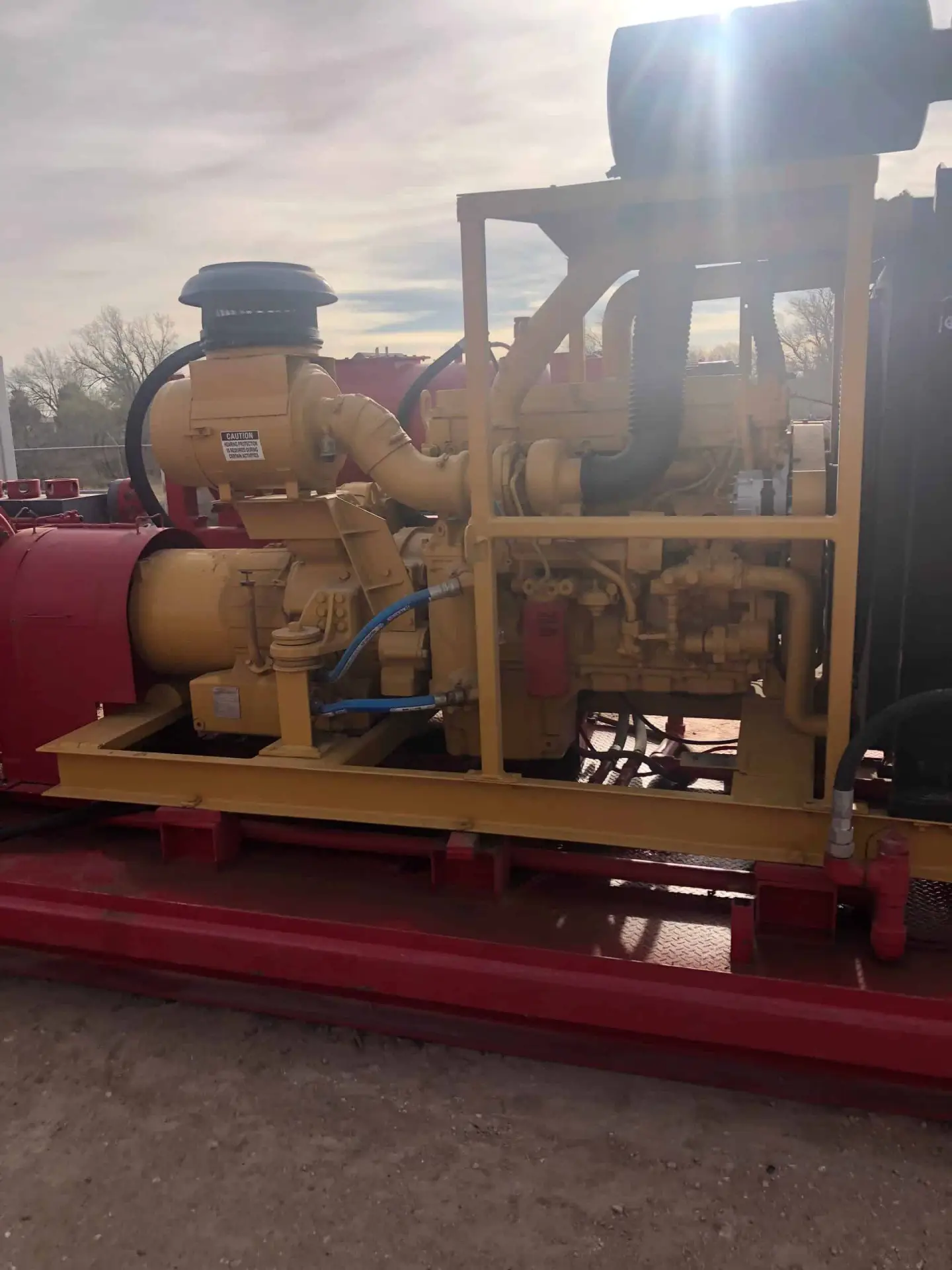

Caterpillar C13 Engine:

The pump is powered by a Caterpillar C13 ACERT diesel engine, which is an inline 6-cylinder, 4-stroke-cycle engine with a displacement of 12.5 liters (762.8 cubic inches)

Key Specifications:

• Power Rating: 440 bhp (328 bkW) at 2100 rpm
• Torque: 1,492 lb-ft at 2100 rpm
• Bore and Stroke: 130 mm (5.12 in) x 157 mm (6.18 in)
• Compression Ratio: 17.3:1​
• Aspiration: Turbocharged Aftercooled (TA)​
