| Parameter | Value |
|---|---|

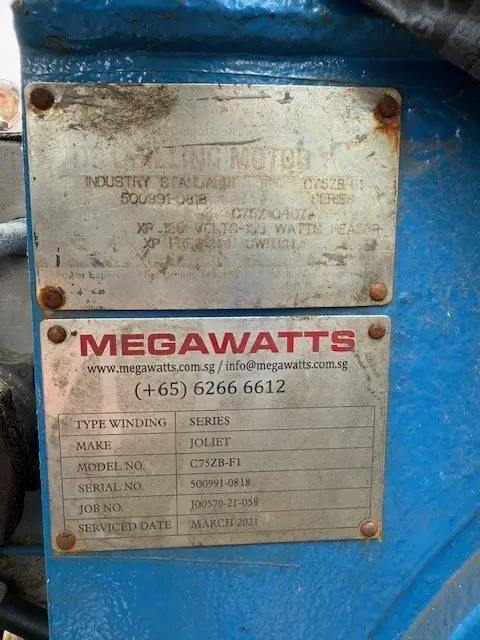

| Model | C75ZB-F1 (Series Wound) |
| Type | DC Drilling / Mud Pump Motor (Hi-Torque) |
| Continuous HP Rating | ~ 1,085 HP |
| Intermittent (Drawworks) HP Rating | ~ 1,320 HP |
| Nominal Voltage (Armature) | ~ 750 V DC |
| Continuous Armature Current | ~ 1,150 A |
| Rated Speed | ~ 965 RPM |
| Parameter | Value |
|---|---|
| Approximate Weight | ~ 7,225 lbs |
| Frame / Compatibility | Matching the GE “752” frame dimensions (mounts, blower mounting, etc.) |
| Insulation Class | Class H |
| Shaft | Tapered shaft (1.25 in per foot taper) |
| Condition | Torque (at Base/Rated RPM) |
|---|---|
| Continuous Duty | ~ 5,900 lb-ft |
| Intermittent / Overload Duty | ~ 6,800 lb-ft |
