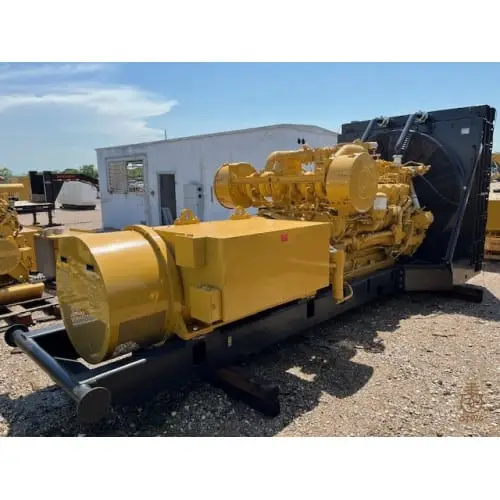

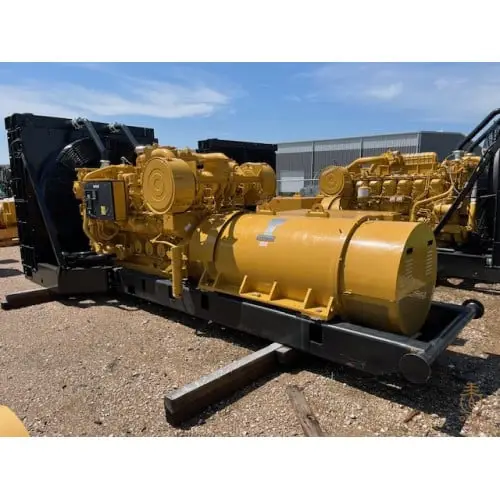

QT-4 New Surplus CAT 3512C Gensets

QT-4 New Surplus CAT 3512C Gensets, with 1365KW, 60 Hertz, KVA1950 , 346/600 Volts,1876 Amperes,1200 RPM.

Generator Set Specifications:

• Power Output:
  • Prime Power Rating: 1,365 kW
  • Standby Rating: Up to 1,500 kW
• Voltage Options: 600 Volts
• Frequency: 60 Hz
• Speed: 1,200 RPM
• Emissions/Fuel Strategy: Tier 2 Flex

Engine Specifications:

• Engine Model: Caterpillar 3512C DITA SCAC
• Displacement: 58.56 liters
• Bore: 170 mm
• Stroke: 190 mm
• Compression Ratio: 14.7:1
• Aspiration: Turbocharged Aftercooled (TA)
• Fuel System: Electronic Unit Injection
• Governor Type: ADEM™ A3
• Horsepower: 1,476 HP

Generator Specifications:

• Generator Brand: Kato
• Model: 6P6-3300
• kVA Rating: 1,950 kVA
• Power Factor: 0.7
• Phase: Three-phase
• Excitation Type: Permanent Magnet Excitation
• RPM: 1,200
• Temperature Rise: 80°C

Physical Dimensions:

• Length: Up to 6,319.4 mm (248.6 inches)
• Width: Up to 2,281.2 mm (89.8 inches)
• Height: Up to 2,794 mm (110 inches)
• Dry Weight: Approximately 13,970 kg (30,790 lbs)
